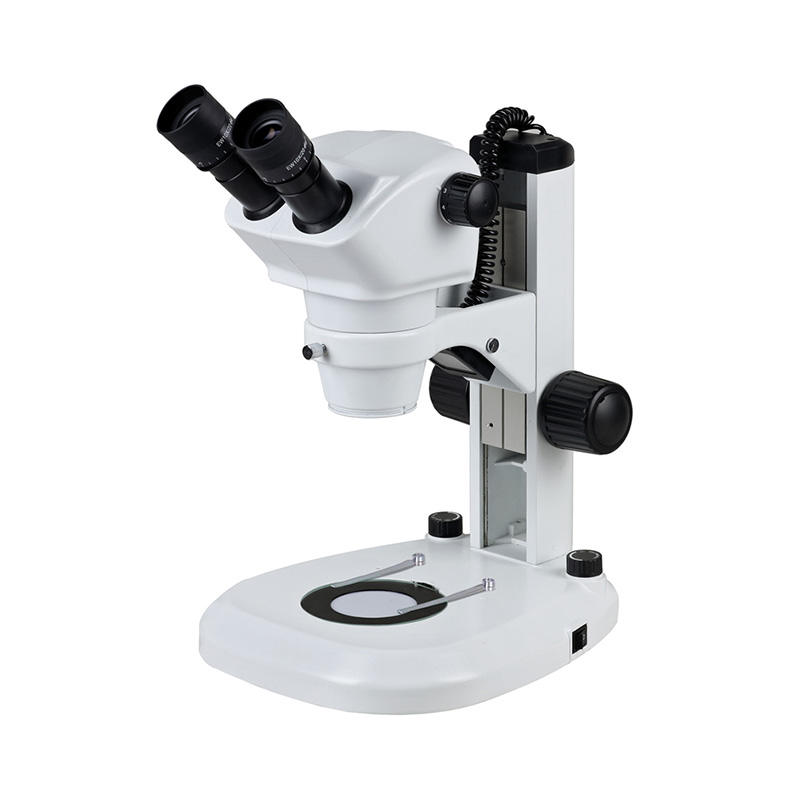

Features
- 8X-55X super widefield zoom magnification power
- Large working distance up to 115mm
- Widefield Optics Offering Crisp Clear Stereo Images
- Equipped with top and bottom illumination system
Specification
| Head | Binocular Viewing Head, Inclined at 45°, Interpupillary Distance :55-75mm |
| Eyepiece | Extra wide field eyepiece EW10x/22 |
| Zoom Objective | 0.8x-5x |
| Zoom Ratio | 1:6.3 |
| Working Distance | 115mm |
| Glass Insert | Glass Insert, Diameter 100mm |
| Light Track Stand | Incident Illumination 100V-240V/ LED |
| Transmitted Illumination 100V-240V/ LED | |
| Travel Length:100mm | |
| B/W Plate Dia:100mm, Thickness: 2mm | |
| Base Dimensions: 285x240x40mm | |
| Height: 340mm |
Optional accessories
| Eyepiece | WF15x/16 |
| WF20x/12 | |
| Auxiliary objective | 0.5X WD=220mm(Track stand needs to be extended) |
| 0.7X WD=113mm | |
| 2x WD=45mm |
