Specification
|
Model
|

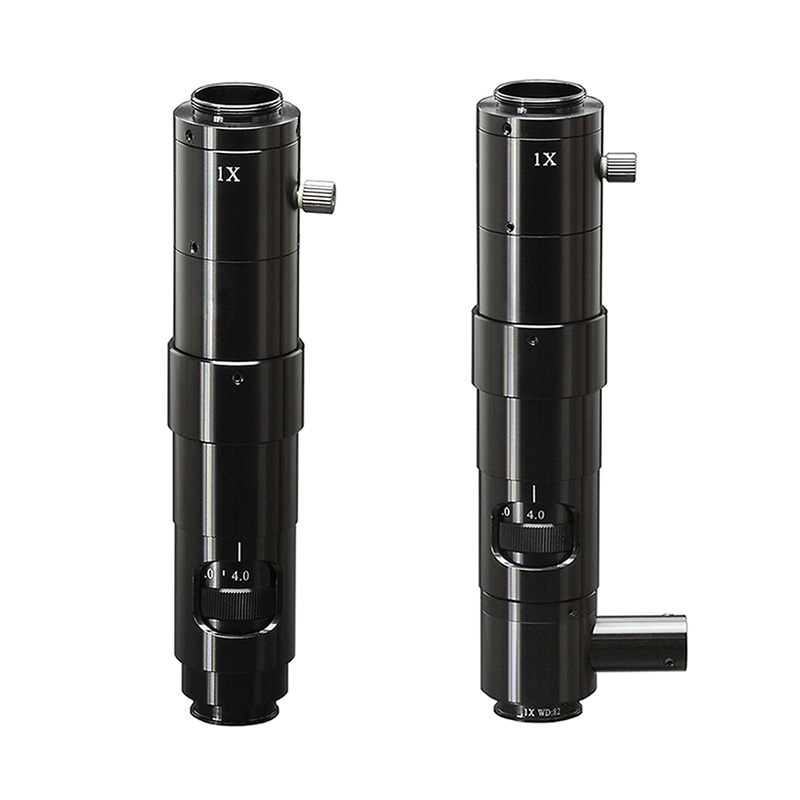

VID05640 Main Body
|
VID050640C Main Body
|
| Zoom Range | 0.6X～4X | |
| Zoom Ratio | 1:6.6 | |
| Magnification | 0.6X～4X ( extended total magnification: 0.09X～16X,use auxiliary objectives and kinds of magnification CCD adapters) | |
| Coaxial LED light | Adjustable and high brightness 1W LED illuminator | |
Optical Parameter
|
Objective |
Items |
CCD adapter |
|||
|
0.5X |
1X |
1.5X |
2X |
||
|
0.3X WD=293mm |
Total Mag. |
0.09X～0.6X |
0.18X～1.2X |
0.27X～1.8X |
0.36X～2.4X |
|
FOV(mm) |
40X53.33～6X8 |
20X26.67～3X4 |
13.33X17.78～2X2.67 |
10X13.33～1.5X2 |
|
|
0.5X WD=175mm |
Total Mag. |
0.15X～1X |
0.3X～2X |
0.45X～3X |
0.6X～4X |
|
FOV(mm) |
24X32～3.6X4.8 |
12X16～1.8X2.4 |
8X10.67～1.2X1.6 |
6X8～0.9X1.2 |
|
|
0.75X WD=117mm |
Total Mag. |
0.225X～1.5X |
0.45X～3X |
0.675X～4.5X |
0.9X～6X |
|
FOV(mm) |
16X21.33～2.4 X3.2 |
8X10.67～1.2X1.6 |
5.33X7.11～0.8X1.07 |
4X5.33～0.6X0.8 |
|
|
1X WD=82mm |
Total Mag. |
0.3X～2X |
0.6X～4X |
0.9X～6X |
1.2X～8X |
|
FOV(mm) |
12X16～1.8X2.4 |
6X8～0.9X1.2 |
4X5.33～0.6X0.8 |
3X4～0.45X0.6 |
|
|
1.5X WD=54mm |
Total Mag. |
0.45X～3X |
0.9X～6X |
1.35X～9X |
1.8X～12X |
|
FOV(mm) |
8X10.67～1.2X1.6 |
4X5.33～0.6X0.8 |
2.67X3.56～0.4X0.53 |
2X2.67～0.3X0.4 |
|
|
2X WD=35mm |
Total Mag. |
0.6X～4X |
1.2X～8X |
1.8X～12X |
2.4X～16X |
|
FOV(mm) |
6X8～0.9X1.2 |
3X4～0.45X0.6 |
2X2.67～0.3X0.4 |
1.5X2～0.23X0.3 |
|
|
Zoom body magnification range: 0.6X～4.0X |
|||||
Note: Optical magnification and the field of video are based on 1/3″ CCD camera and 14″monitor.
Optional Accessories
| Name of Parts | Spec. | Order No. |
| Auxiliary Objective | 0.3X WD=293mm | OBJ05DH0.3X |
| 0.5X WD=175mm | OBJ05DH0.5X | |
| 0.75X WD=117mm | OBJ05DH0.75X | |
| 1X WD=82mm | OBJ05DH1X | |
| 1.5X WD=54mm | OBJ05DH1.5X | |
| 2X WD=35mm | OBJ05DH2X | |
| CCD Adapter | 0.5X | ADA05640-C0.5X |
| 1X | ADA05640-C1X | |
| 1.5X | ADA05640-C1.5X | |
| 2X | ADA05640-C2X |
