Features

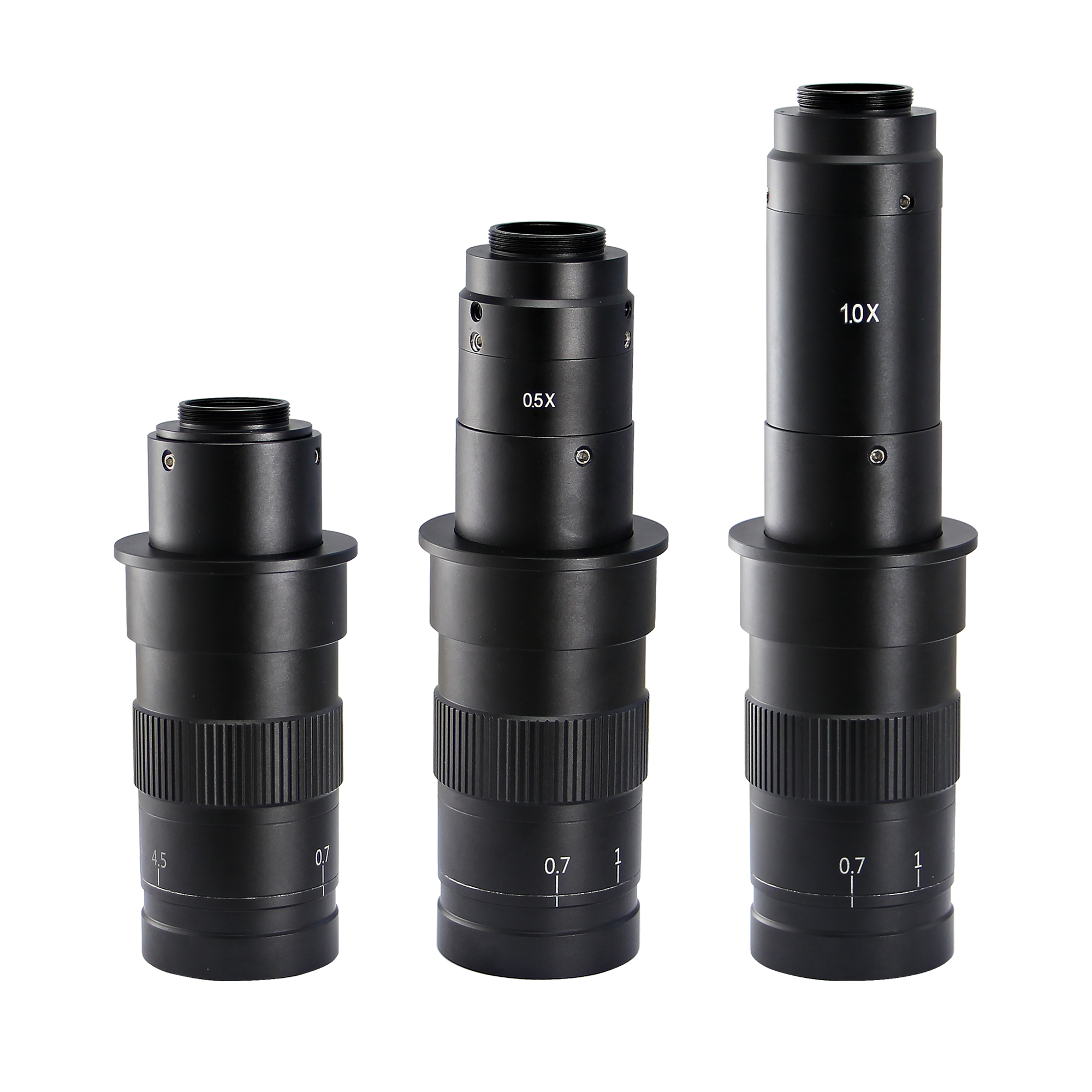

- Lab quality 0.7x-4.5x zoom video inspection lens
- high resolution and high contrast images offered

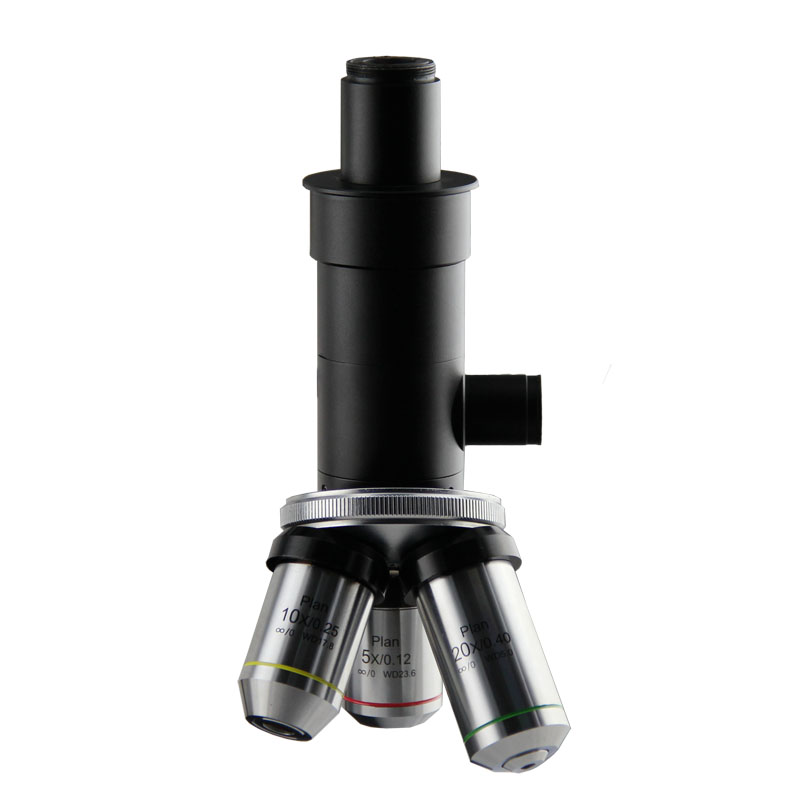

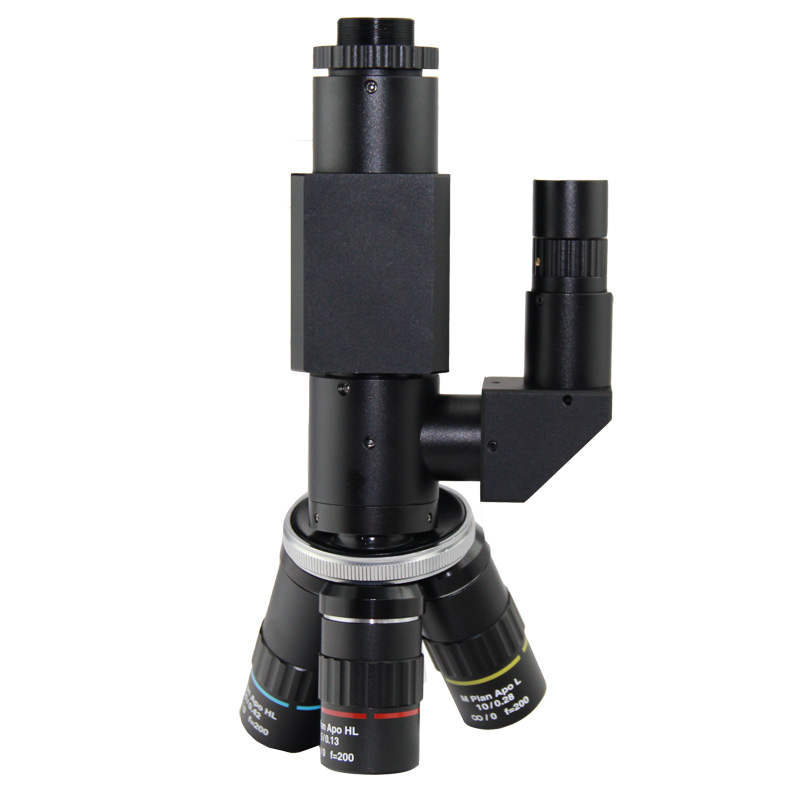

- Multiple CCD adapters and objectives available
Specification
| Zoom range | 0.7X-4.5X |
| Zoom Ratio | 01:06.4 |

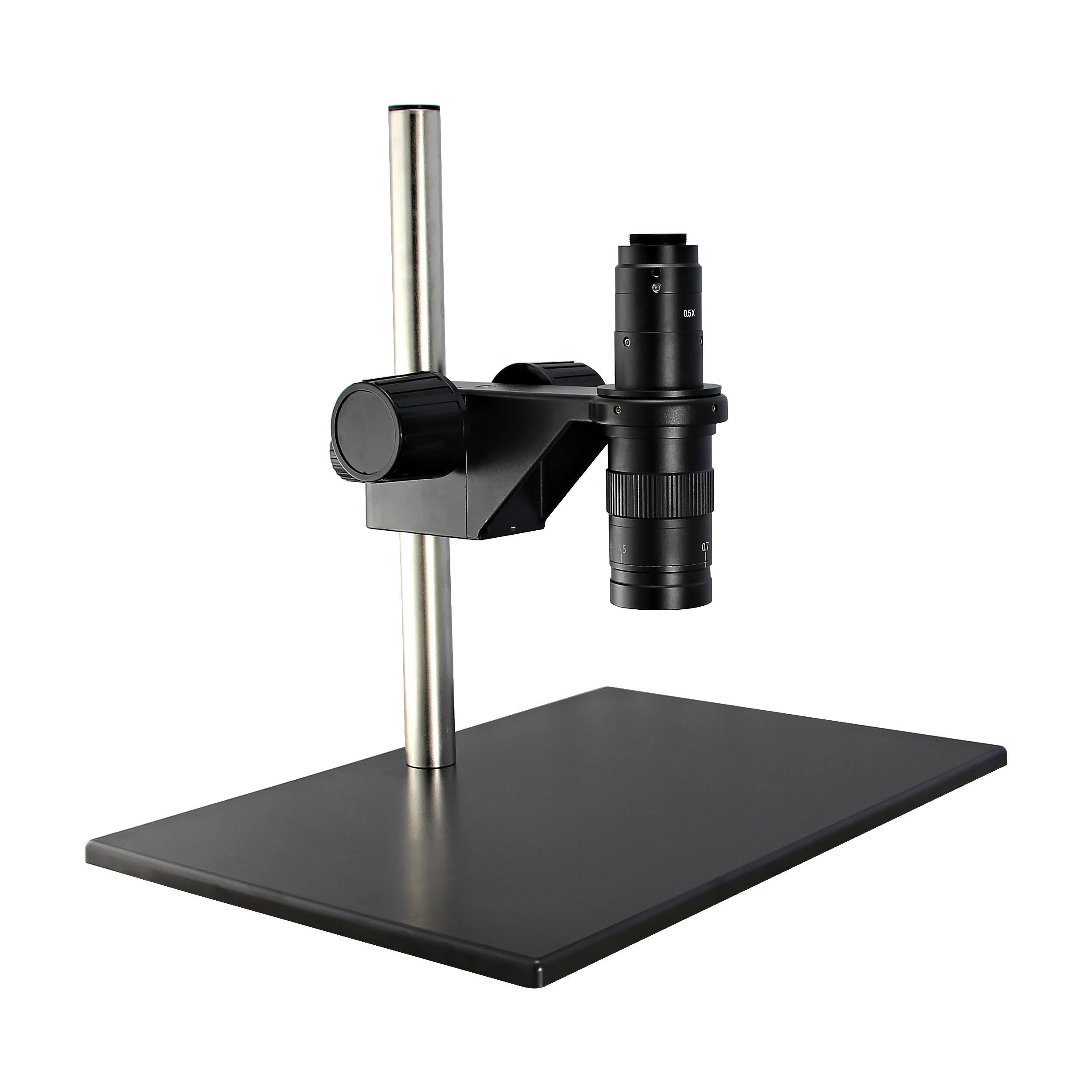

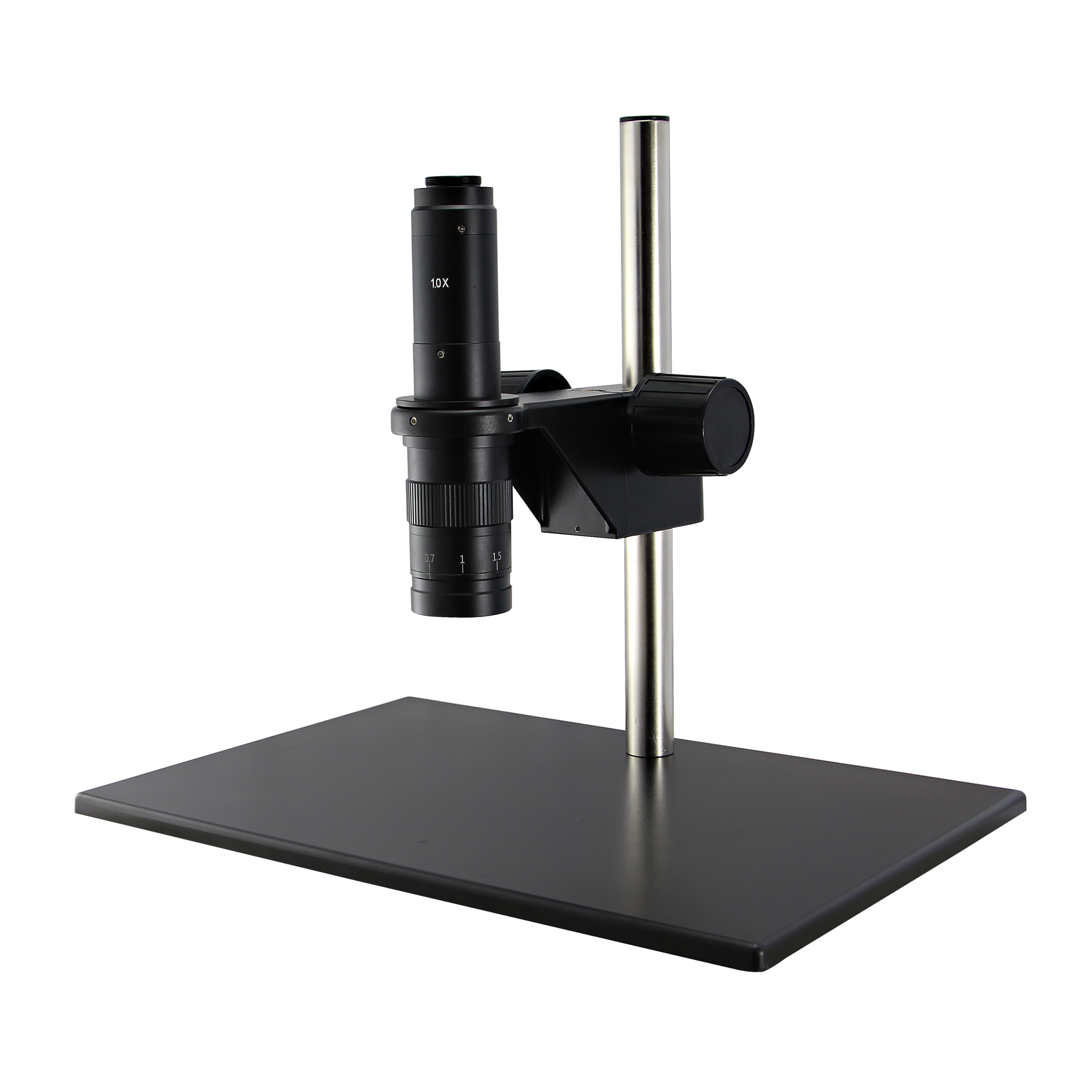

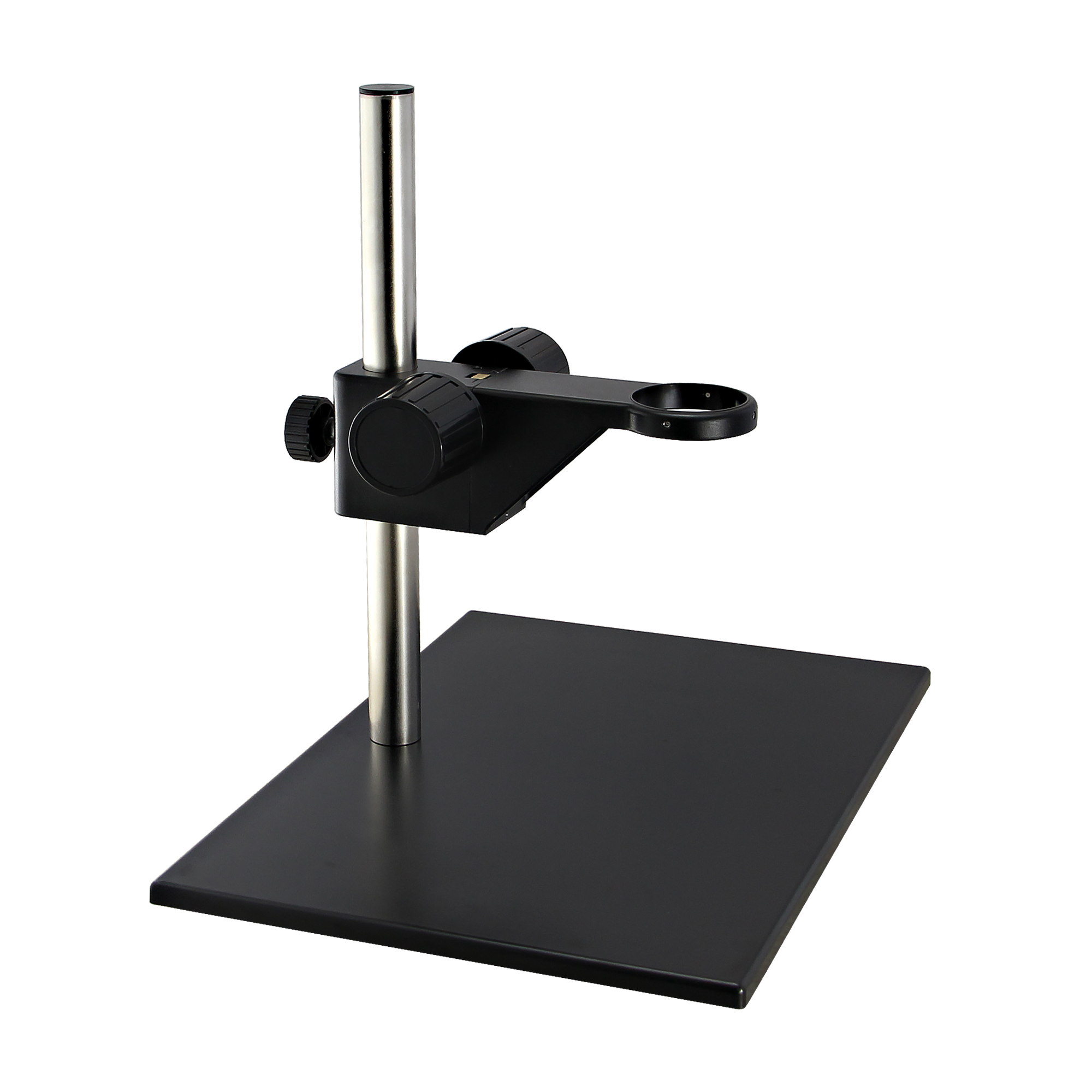

| Zoom Body Diameter | Body Diameter for matching focusing mount: 45mm |
| Standard Working Distance | 86mm(1X objective in Standard set) |

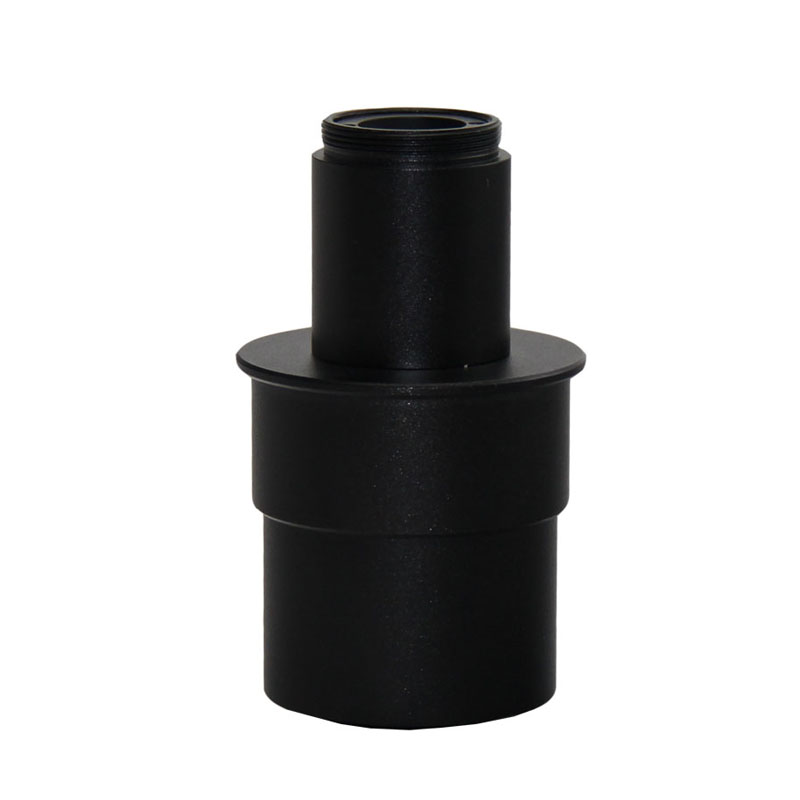

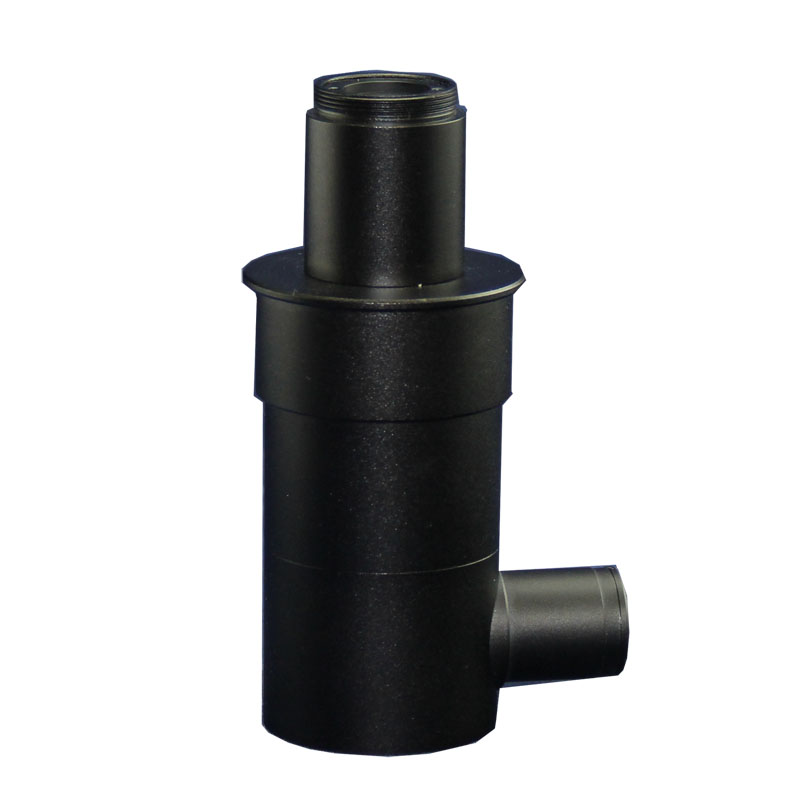

| CCD Adapter | 1x CCD adapter in standard Set |
Optical Parameter
| Magnification | Working distance | Field of View | Depth of Field | Numerical aperture | Resolution |
| 0.7X | 85.6 | 10.3×5.8mm | 2.04mm | 0.025mm | 0.014mm |
| 1.0X | 85.6 | 7.2×4.1mm | 1.21mm | 0.033mm | 0.010mm |
| 2.0X | 85.6 | 3.6×2.0mm | 0.38mm | 0.053mm | 0.006mm |
| 3.0X | 85.6 | 2.4×1.3mm | 0.20mm | 0.067mm | 0.005mm |
| 4.0X | 85.6 | 1.8×1.0mm | 0.13mm | 0.079mm | 0.004mm |
| 4.5X | 85.6 | 1.6×0.9mm | 0.09mm | 0.090mm | 0.004mm |
