Description
STU.65.SM20, is a series of laboratory biological microscope. It has a standard magnification range of 40X-1000X. It comes with monocular head/binocular or trinocular, a pair of high eye-point wide field eyepieces, four achromatic objectives, a double layer mechanical stage, coaxial coarse and fine focusing system, N.A. 1.25 condenser, and LED illumination. This microscope is a good choice for students lab.
Features
- Equipped with achromatic objectives
- Fourwide-field magnification power: 40X, 100X, 400X, 1000X
- Coaxial coarse and fine focus system
Specification

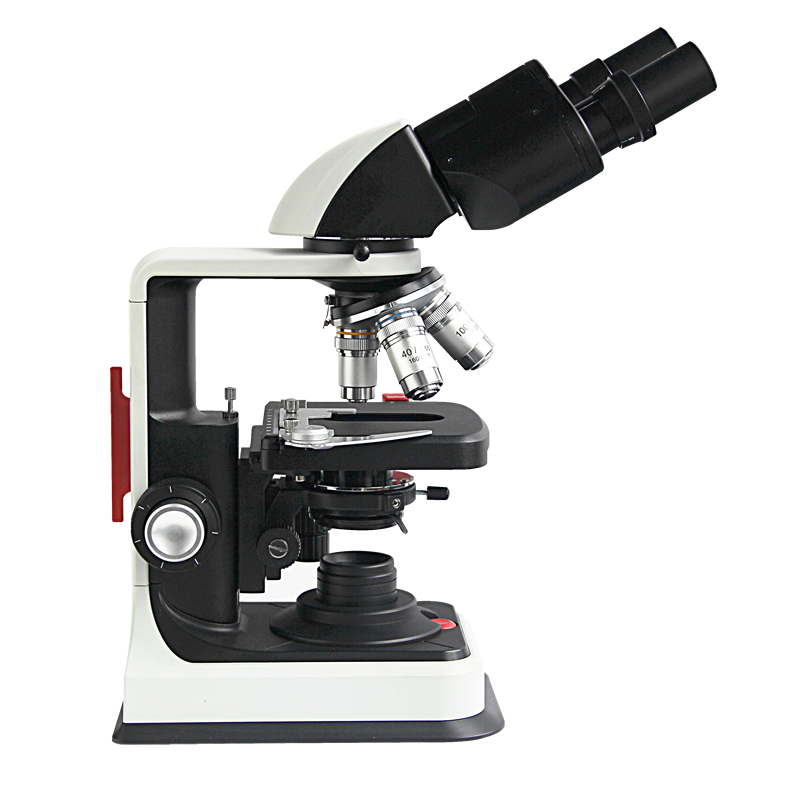

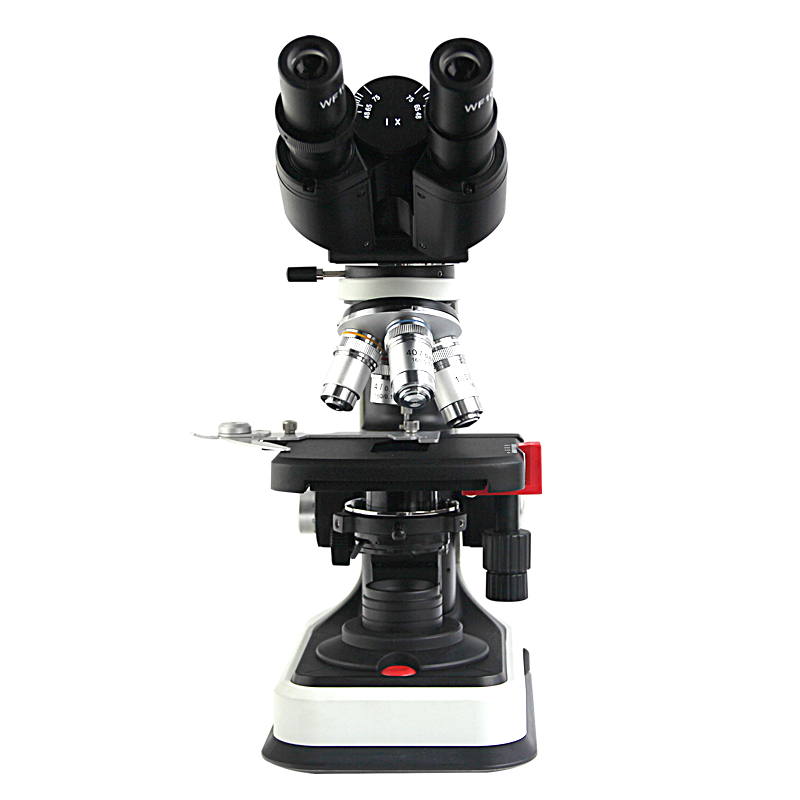

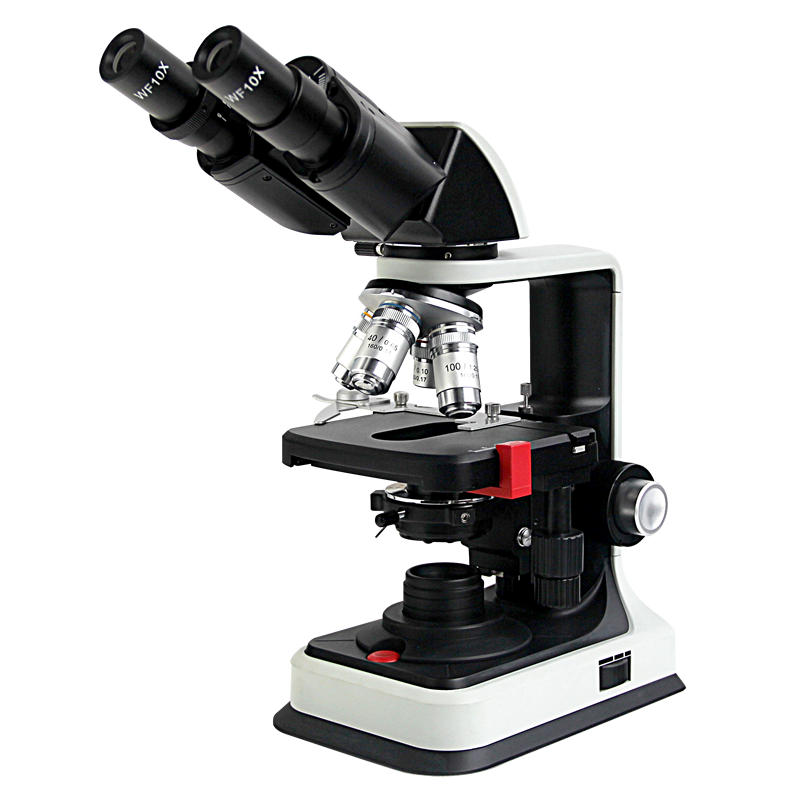

| Head | STU.65.SM20B: Binocular Head, 45° inclined,360° Rotatable, Interpupillary Distance 48-75mm |

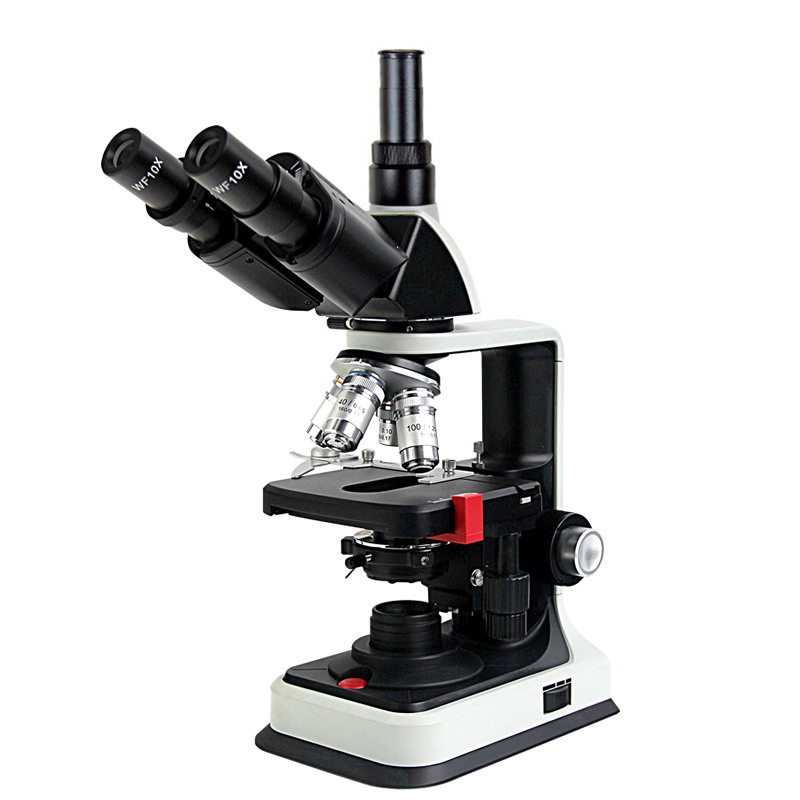

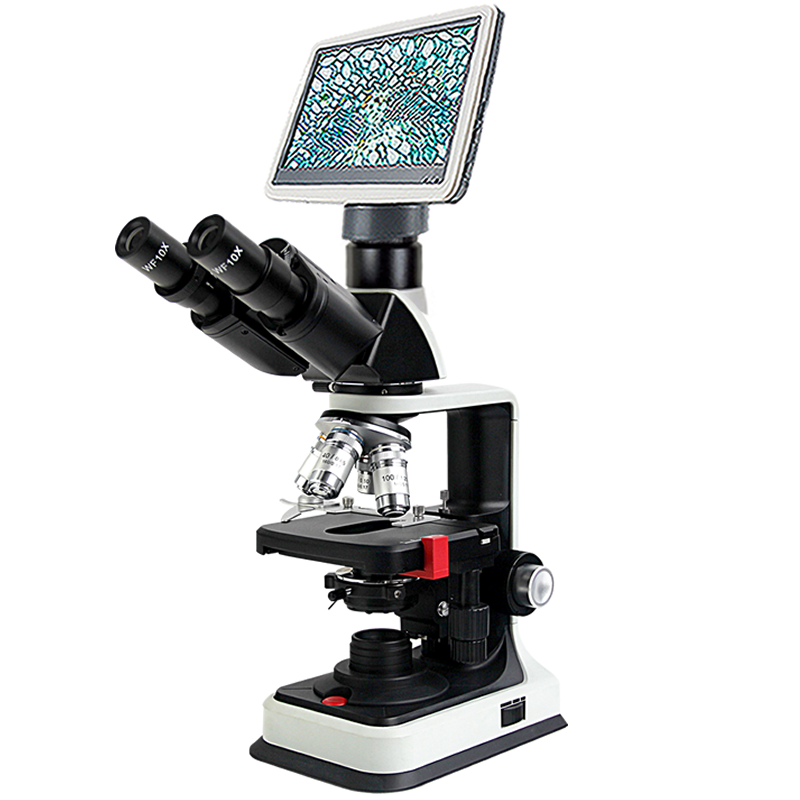

| STU.65.SM20T: Trinocular Head, 45° inclined,360° Rotatable, Interpupillary Distance 48-75mm | |

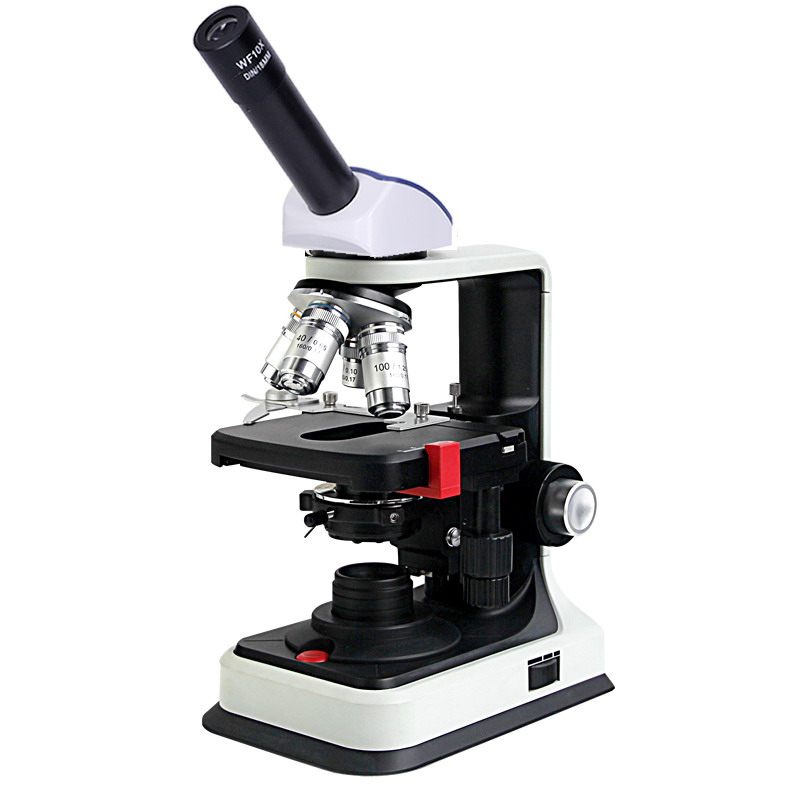

| STU.65.SM20M: Monocular Head, 45° inclined,360° Rotatable | |
| Eyepiece | WF10X/18mm |
| Objective | Achromatic 4X |
| Achromatic 10X | |
| Achromatic 40X, Spring | |
| Achromatic 100X, Spring, Oil | |
| Nosepiece | Quadruple Revolving Nosepiece |
| Stage | Double Layer Mechanical Stage, Size125mmx115mm, Moving Range: 70mmx30mm |
| Focusing | Coaxial Coarse and Fine Focusing: 0.002mm division |
| Condenser | ABBE N.A.1.25 Condenser with Iris Diaphragm & Filter |
| Filter | Blue Filter |
| Light source | 1W LED, with Rechargeable Battery, Type C USB cable, 5V/1A USB Charger |
| Note: if shipped by air, Battery not be offered with goods |
Optional Accessories
| Biological Microscope | |
| Eyepiece | WF10X/20mm,Insert Diam23.2mm |
| WF16X/13mm,Insert Diam23.2mm | |
| WF20X/12mm, Insert Diam23.2mm | |
| WF25X/8mm, Insert Diam23.2mm | |
| Objective | Plan Achromatic objective 4X, 10x,40x,100x |

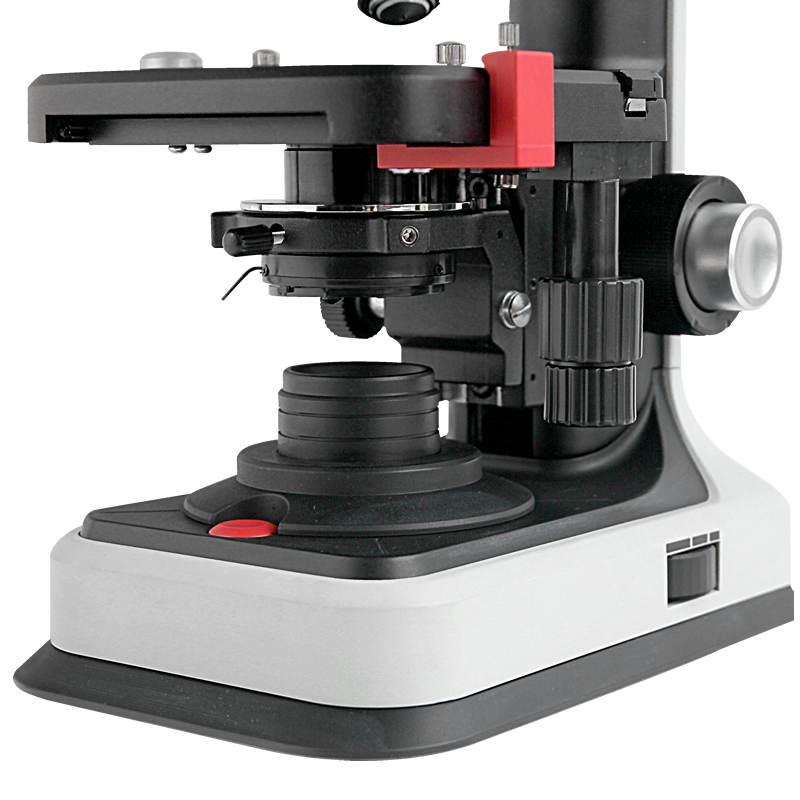

Photos of this microscope series are in the following pages.
