Description

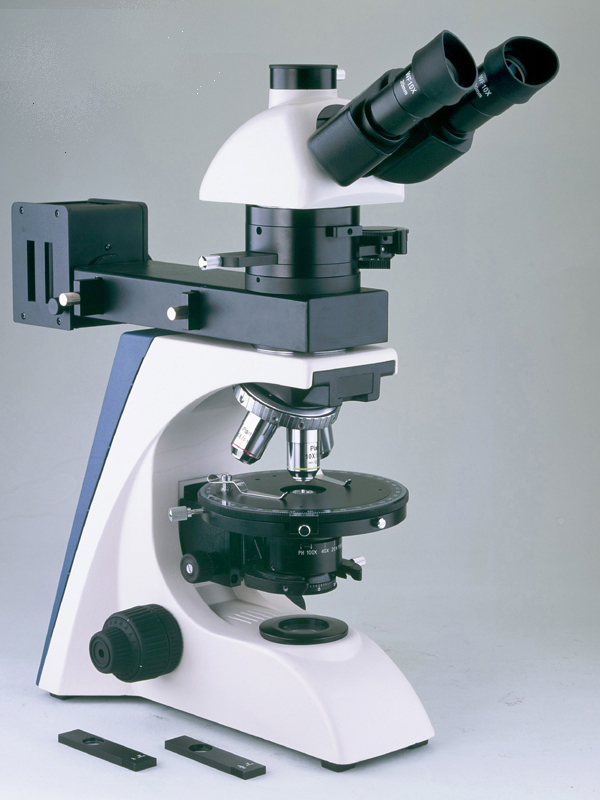

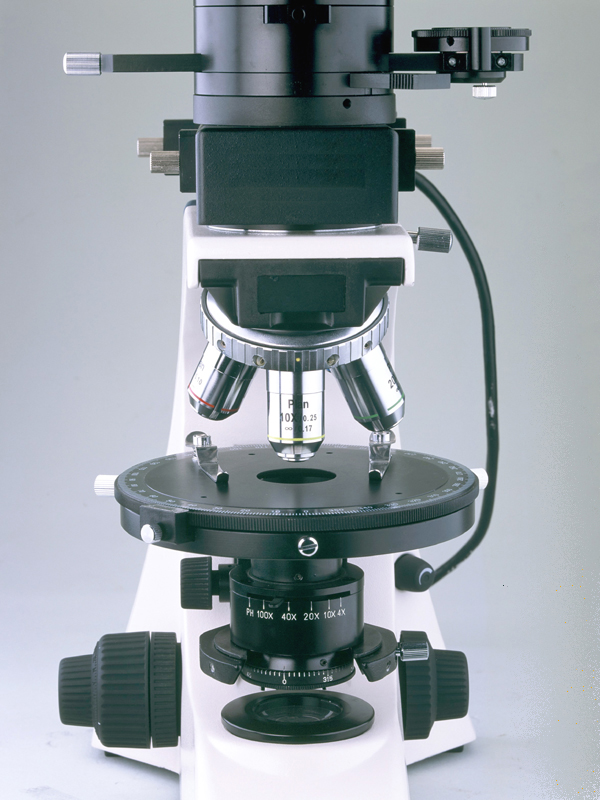

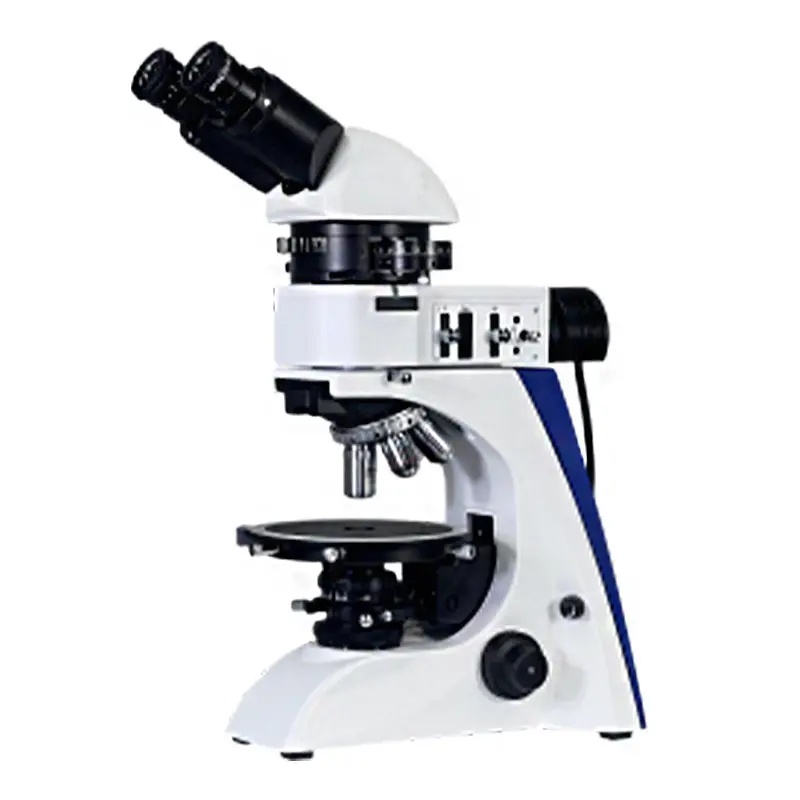

POL.12.500, a lab quality trinocular Petrographic microscope, has a standard magnification range of 40X-500X (1600X can be reached with optional eyepieces and objectives). It comes with wide field eyepieces, high quality strain-free Plan achromatic objectives, a circular mechanical stage, coaxial coarse and fine focusing system, analyzer and polarizer, and halogen lamp transmitted illumination. This microscope is an ideal microscope for the research of geology, chemistry, physic and medical fields.
Features
- Four Wide-field magnification settings: 40X, 100X, 200X,400X, 500X
- high quality strain-free Plan achromatic objectives
- Equipped with analyzer and polarizer
- Transmitted illumination by halogen lamp
Specification
| Items | Specification |
| Eyepiece | WF10X/20 mm |
| WF10X/20 mm (Reticule 0.1mm) | |

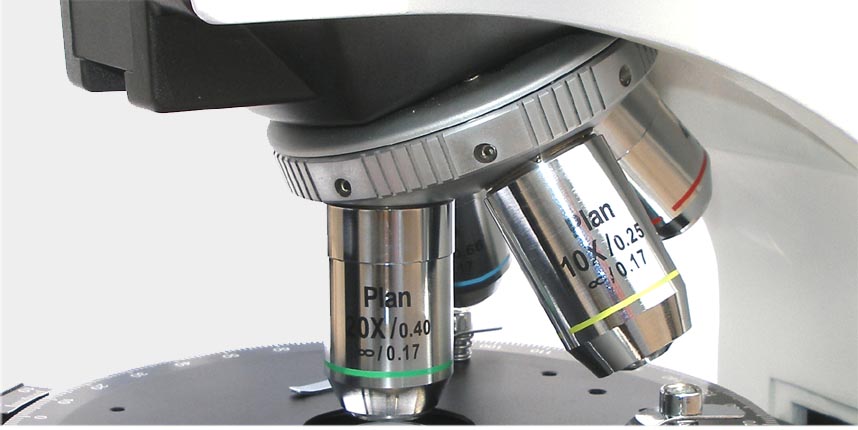

| Non-stress Infinity Plan Objective | 4X |
| 10X | |
| 20X | |
| 40X | |
| 50X | |

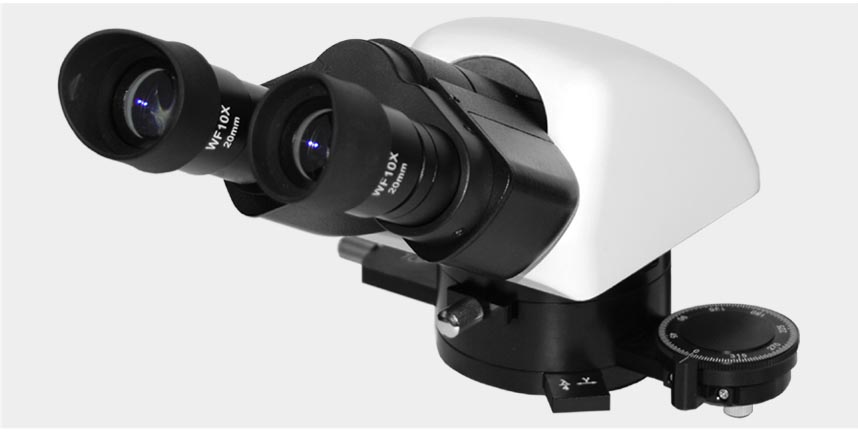

| Seidentopf Trinocular Head | Inclined 30°, Rotatable 360°, Interpupilary Distance: 50-75mm.
Light Distribution: 0:100 |
| Nosepiece | Quintuple |

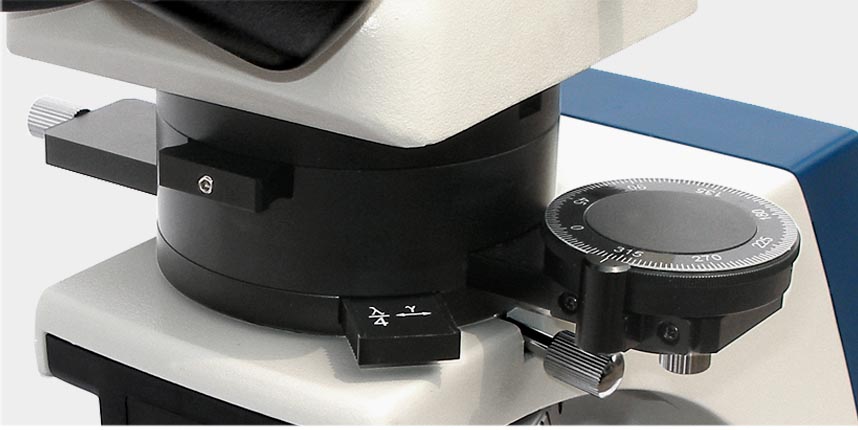

| Analyzer Unit with Scale | Rotatable 360°(Module Type, Can Be Locked) |
| Bertrand Lens | Built In, Center Adjustable |

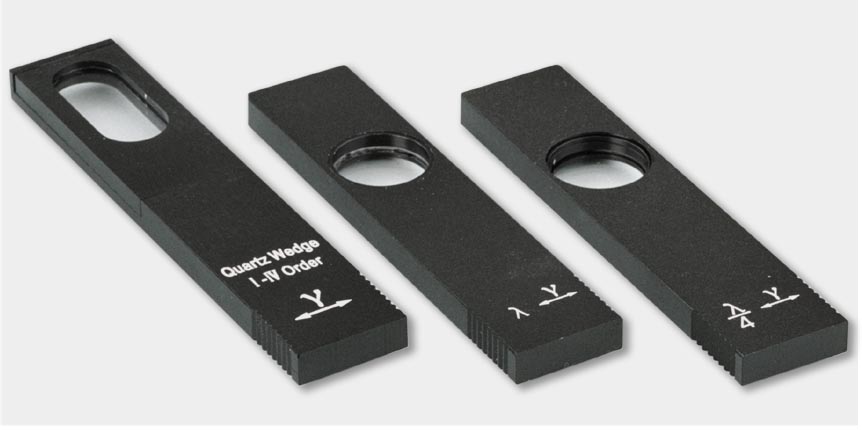

| Λ Slip | First Class Red |
| 1/4λ Slip | |
| Quartz Wedge | (Ⅰ-Ⅳ Class) |

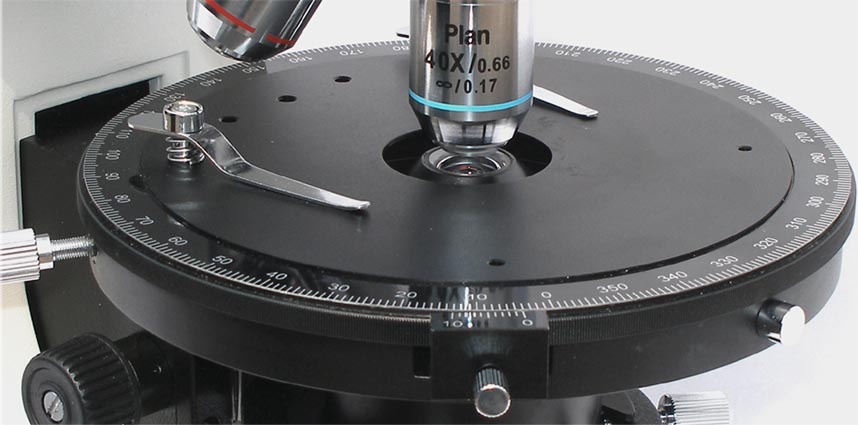

| Revolving Round Stage | Stage Dia: 156,mm |
| Rotatable 360°, Center Adjustable, | |
| Division 1°, Vernier Division 6’ | |
| Hole Diameter for Condenser:26mm | |

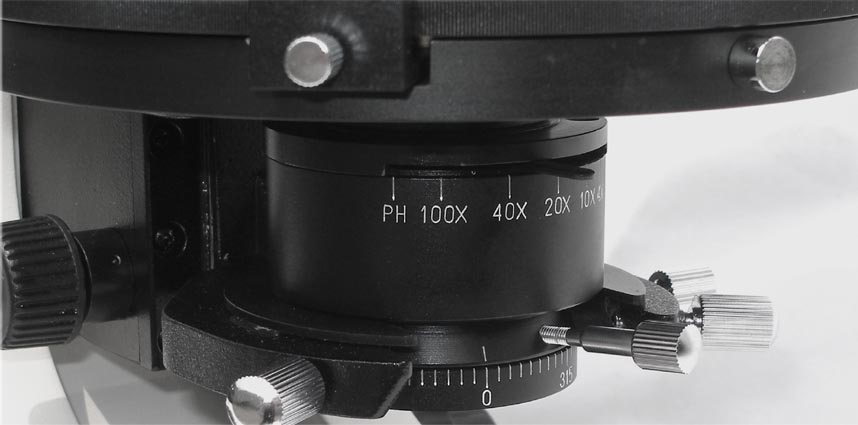

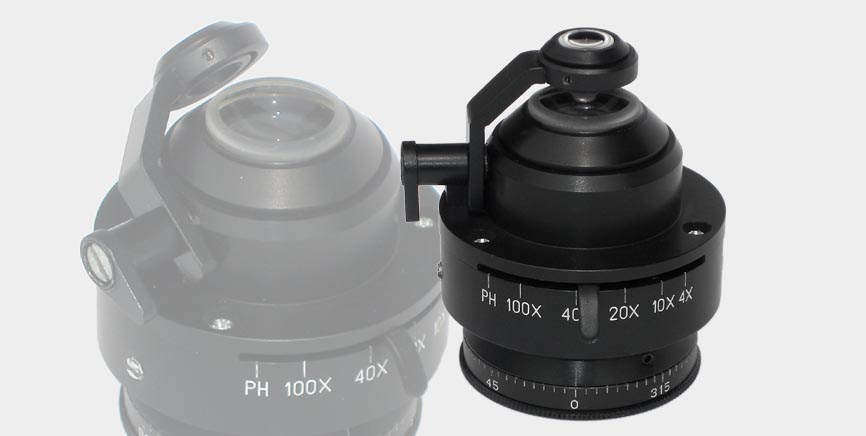

| Swing-out Condenser | N.A.0.9/0.13 swing out achromatic condenser |
| Polarizing Unit with Scale | Rotatable 360°,Can Be Locked |
| Koehler Illumination | 6V/20W Halogen Lamp, (6V/30W is Optional) |
| Filter | Blue |
| Reflecting Polarizing Unit | Halogen Lamp House 12V/50W |
| Power House | |
| Polarizer Choosing Slide |
