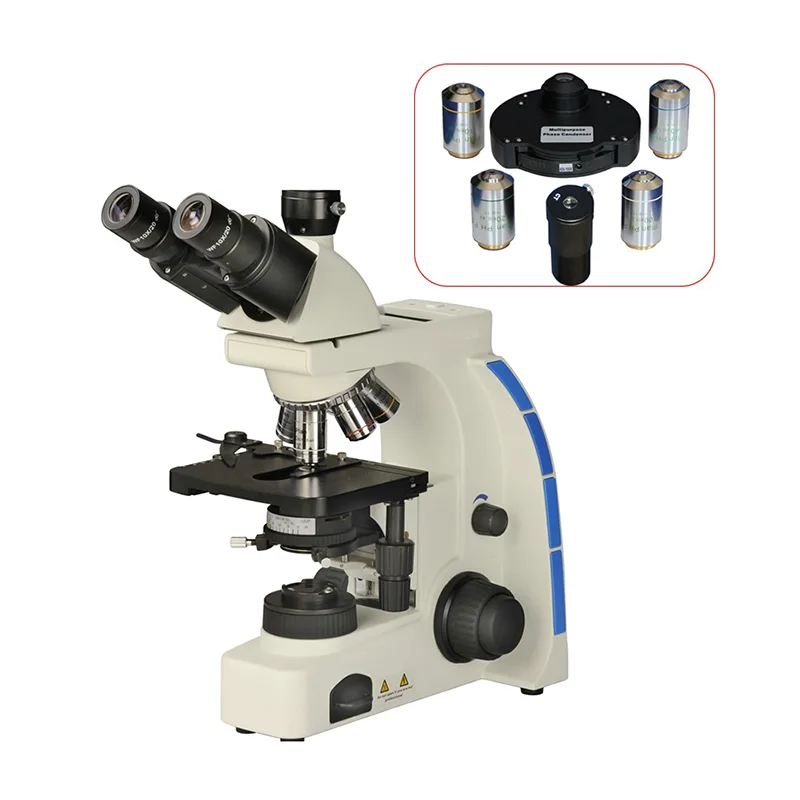

Specification
| Head | Trinocular Tube, Interpupillary distance 52-75mm, 30°inclined, Trinocular light is split 20/80 by a high-quality prism, diopter adjustable +5 to -5 |
| Eyepiece | WF10X/20mm, high eye-point up to 21mm Dia:30mm |
| Nosepiece | Quadruple reversed nosepiece |
| Focus System | Low positioning, Coaxial coarse/fine focus system, |
| Coarse knob tension adjustable, 14mm per rotation | |
| Fine knob 0.1mm per rotation, minimum reading 1 microns on left-side fine knob | |
| Stage | Double layer mechanical, size 156x138mm, moving range 76x54mm. |
| Low positioned X-Y coaxial control knob, can hold 2 specimen slides | |
| Condenser | Abbe N.A.1.25 with aperture iris diaphragm and with socket to accommodate Phase Contrast slide, Condenser center adjustable, color-coded diaphragm scale markings corresponded with the objectives of different power. |
| Focus System | Low positioning, Coaxial coarse/fine focus system, |
| Coarse knob tension adjustable, 14mm per rotation | |
| Fine knob 0.1mm per rotation, minimum reading 1 microns on left-side fine knob | |
| Turret Phase Contrast Kits | Multi-purpose Phase contrast Condenser with Dark Field Hole for Dark Field Observation for PH10x-20x-40x |
| Infinity Plan Phase Contrast Objective, Positive 10x | |
| Infinity Plan Phase Contrast Objective, Positive 20x | |
| Infinity Plan Phase Contrast Objective, Positive 40x | |
| Infinity Plan Phase Contrast Objective, Positive 100x | |
| Centering telescope | |
| Filter | Blue filter |
| Light source | 6V 20W halogen lamp, Kohler Illumination with field diaphragm, Easy to replace bulb. |
| CCD Adapter | 1X CCD adapter |
| Power | 100-240V wide power range |
| Packing Info. | Gross weight: 12kgs, One set/Carton, Carton Size: 48X48X31.5cm |
Optional accessories
| Head | Binocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm |
| Trinocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm | |
| Eyepiece | WF10x/22mm, High Eyepoint up to 21mm |
| WF16x/13mm, High Eyepoint up to 21mm | |
| Retical Eyepiece WF10x/20mm | |
| Retical Eyepiece WF10x/22mm | |
| Objectives | Infinity Plan 4x/0,1 WD=13.21mm |
| Infinity Plan 10X/0.25 WD=5.03 mm | |
| Infinity Plan 40x/0,65 WD= 0.72mm | |
| Infinity Plan 100x/1,25 WD 0.17mm | |
| Infinity Plan 20X/0.4/0.17, WD=2.71mm | |
| Infinity Plan 60X/0.80 /0.17, WD=0.35mm (Spring) | |
| Rackless mechanical stage | Upgrade to mechanical stage 185x177mm platform, moving range 75x50mm, low position, right or left hand controls, X-Y coaxial control knob, two slides holder |
| Nosepiece | Quintuple reversed nosepiece |
| Light | Upgrade to LED 3W |
| Filter | Green filter |
| Yellow filter | |
| Frosted Glass | |
| Polarizing Kit | Analyzer + Polarizer |
| Dark Field | Dark field condenser, dry, for objective 4x,10x,40x,100x |
| Infinity Plan Phase Contrast Objective, Positive | 60x |
| Infinity Plan Phase Contrast Objective, Negative | 10x |
| 20x | |
| 40x | |
| 60x | |
| 100x | |
| Adapter | CCD 0.5x |
| CCD 0.25x | |
| Canon EOS digital Adapter |
