Description
OPR.46.L100DP /L100EP is a comprehensive operation microscope. It is equipped with a 90 degree inclined binocular head, one pair of WF12.5X eyepiece, long working distance objectives, coaxial LED illumination system and movable base. With optional objectives, the magnification can reach 2.4x-24x. TThis microscope is an idea instrument for ENT(otorhinolaryngologic), dental and ophthalmic inspection and operation.
Key features
- 6-steps manual magnification adjustment: 0.3x, 0.5x, 0.8x,1.2x, 2.0x, 3.0x
- LEDlight sourceproviding higher brightness
- Wide range of objective focus distance: 230-260 mm
- Binocular 0-180 degree inclined (Optional)
Specification
| Head | |

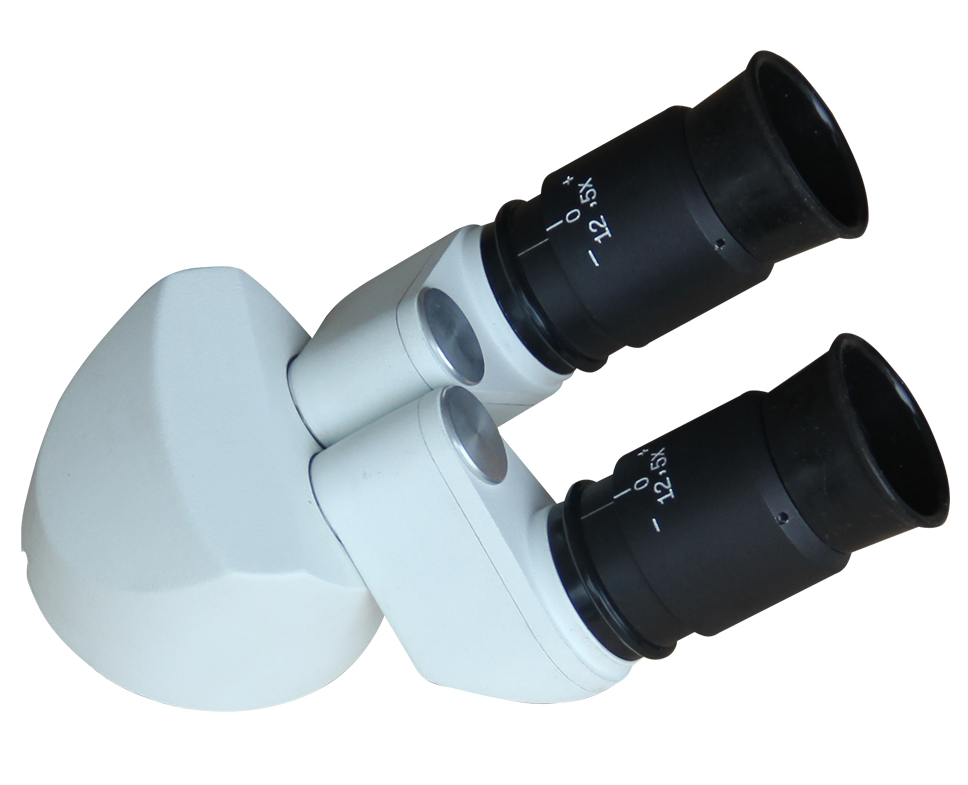

| Binoculars | 45 ° inclined, f’=160 mm—For OPR.46.L100DP Dental Surgery scope |

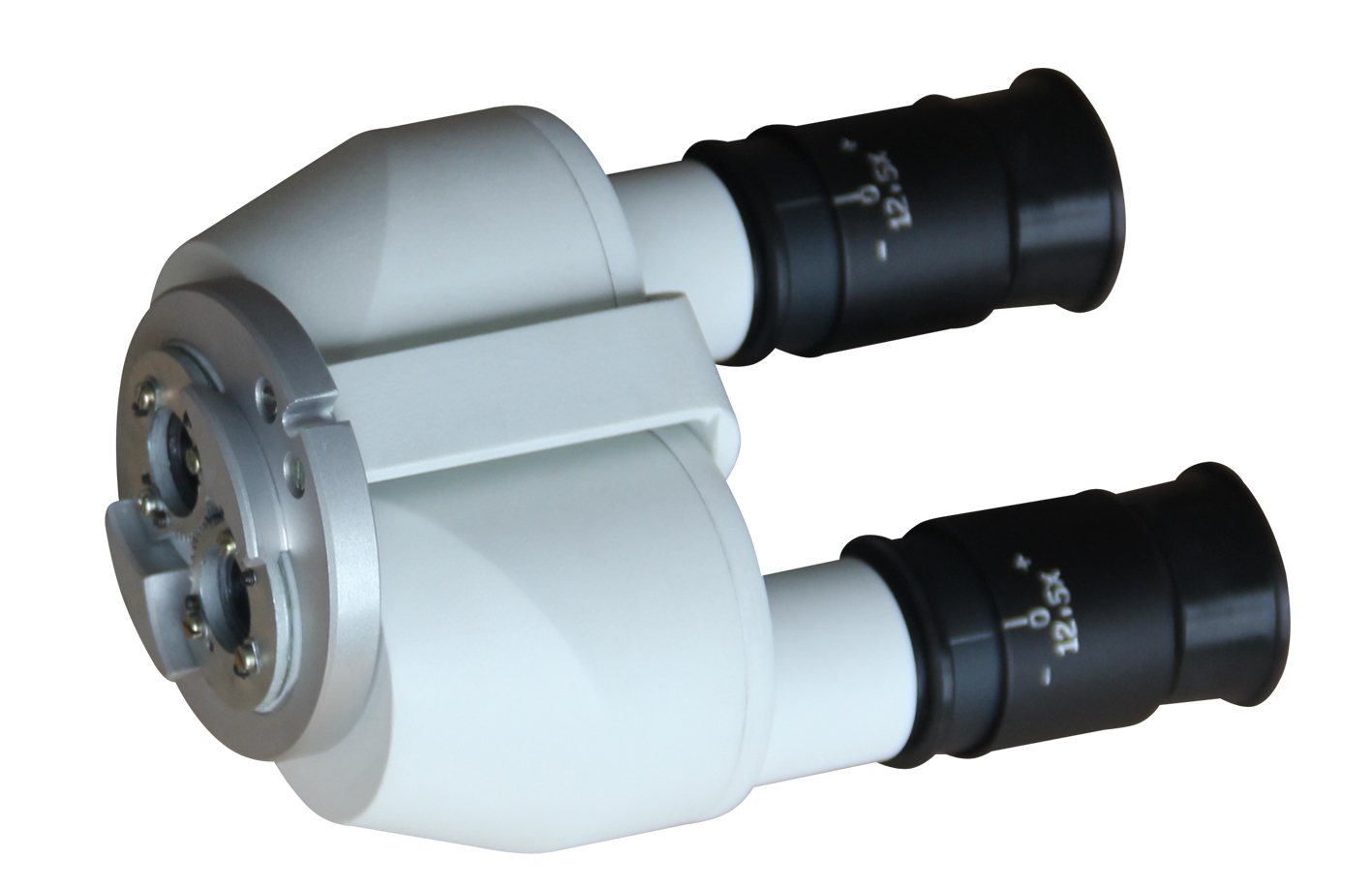

| Straight, f’=160 mm—For OPR.46.L100EP ENT surgery microscope | |

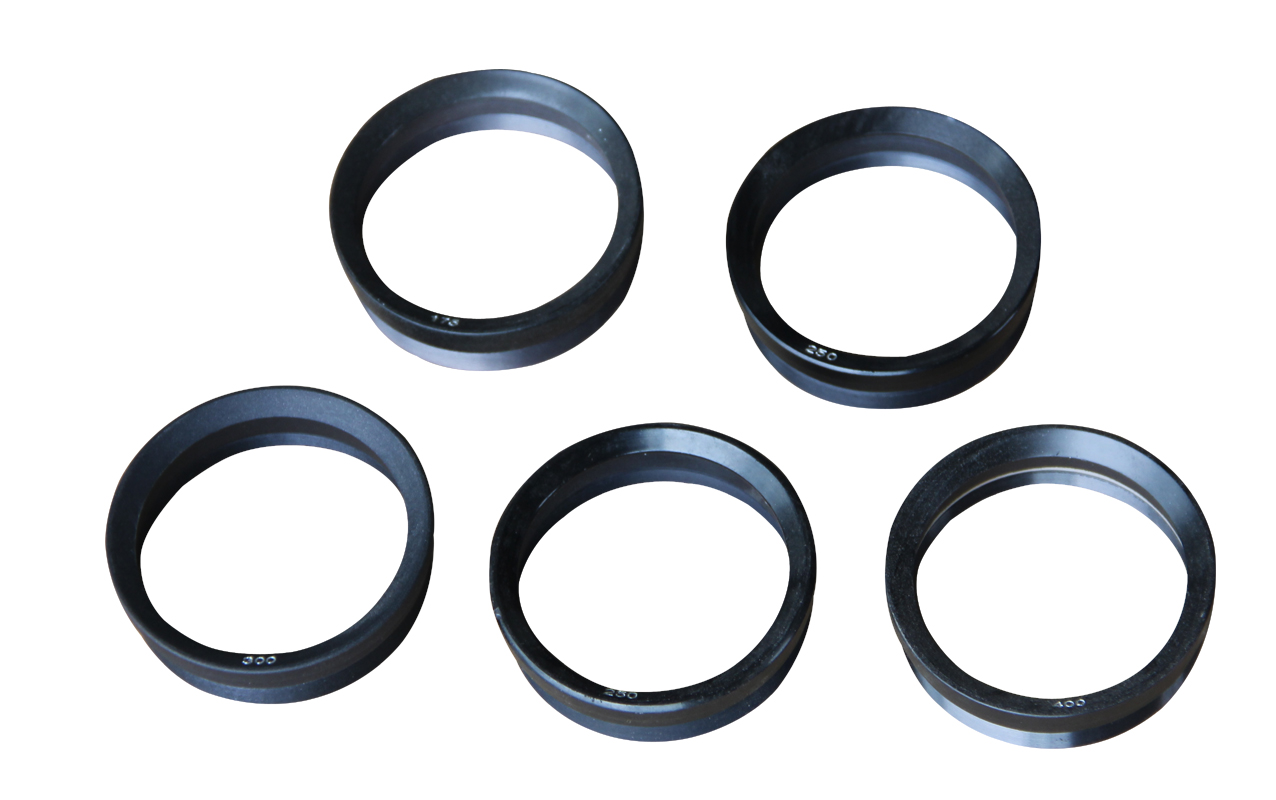

| Objective | f’=230-260 mm |
| Eyepiece | 12.5x, high-eyepoint, wide angular |
| Diopter adjustment | -5D to + 5D |
| Magnification changer | 6 steps: 0.3x, 0.5x, 0.8x, 1.2x, 2.0x, 3.0x |
| Total magnifications | 2.4x, 4.0x, 6.0x, 9.6x, 16x, 24x |
| Visual field | 78 mm-8.5mm |
| Interpupillary distance | 55mm to 75 mm |
| Working distance | 230-260 mm |
| Illumination | |
| Type | Coaxial illumination by optical light-guide system |
| Cold light source | LED lamp, 3V/10W |
| Illumination control | 3steps |
| Field of illumination | 65mm |
| Power supply | AC 90-240V |
| Light intensity | 25,000 LUX |
| Filter | Yellow, green, blue |

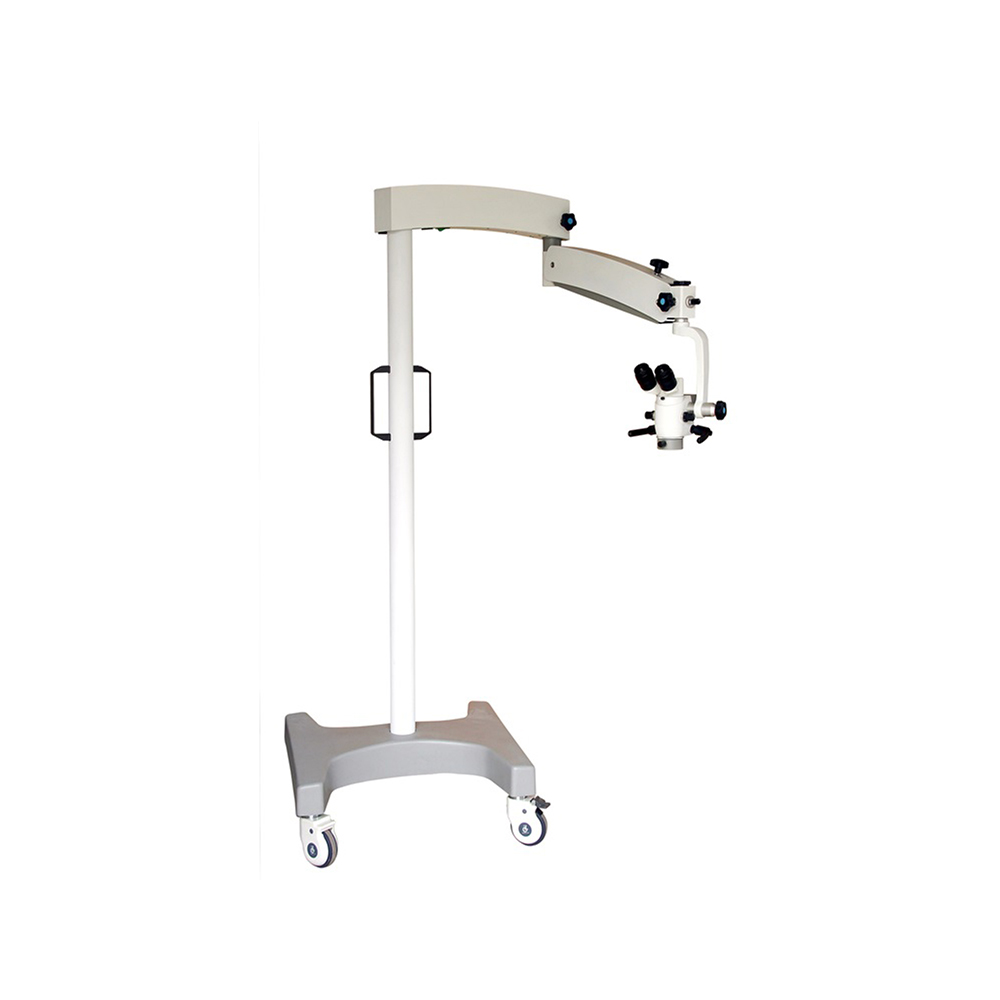

| Arm, Stand | |
| Type | Pantographic arm, floor stand |
| Range | 1250mm |
| Rotation angle | 270 degree |
| Elevation stroke | 400 mm |
| Base size | 600 mm x 600 mm |
| Weight | 90 kg |
Optional Accessories
| Binoculars | 0-180 degree inclined binoculars f’=170mm |

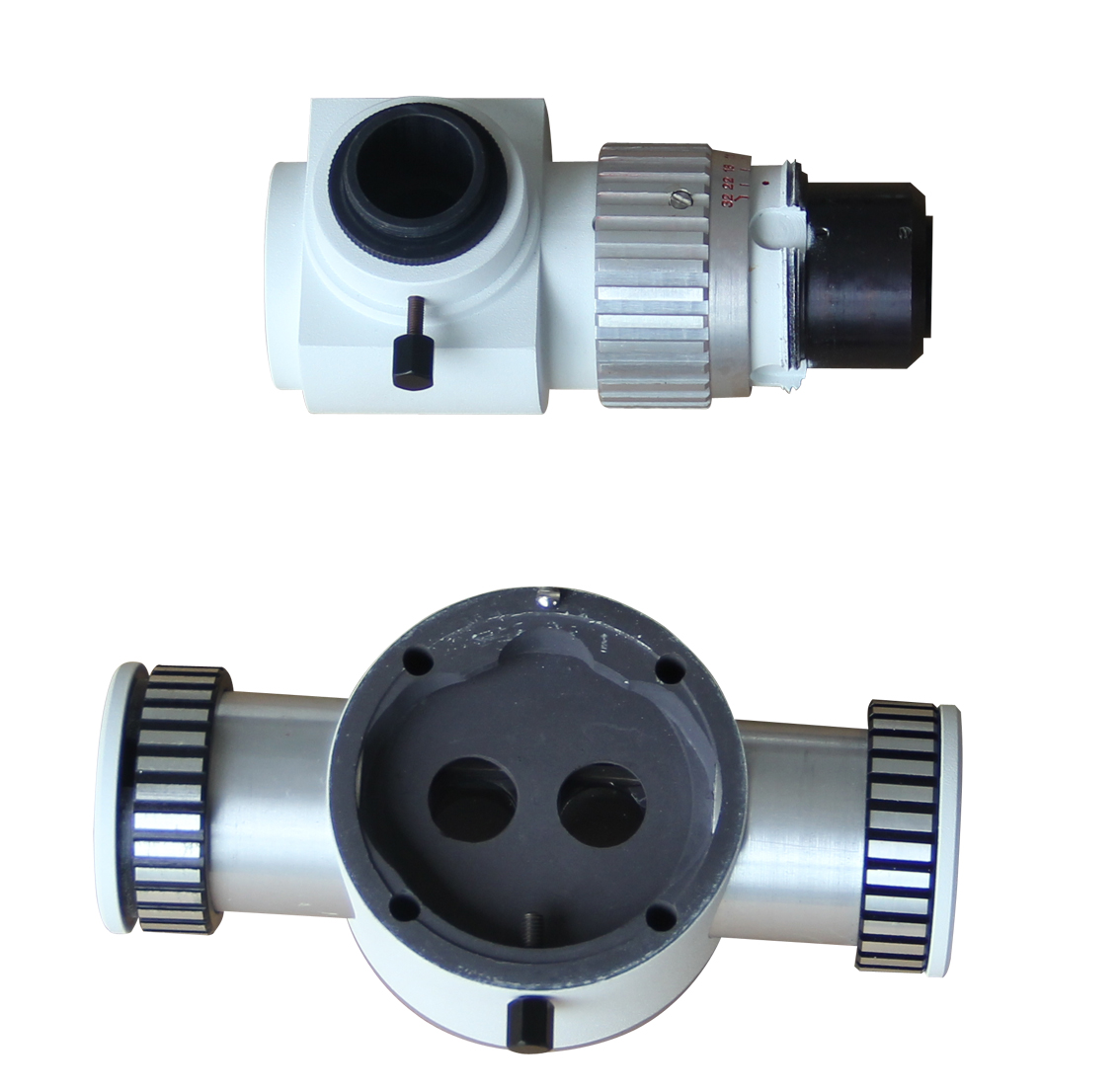

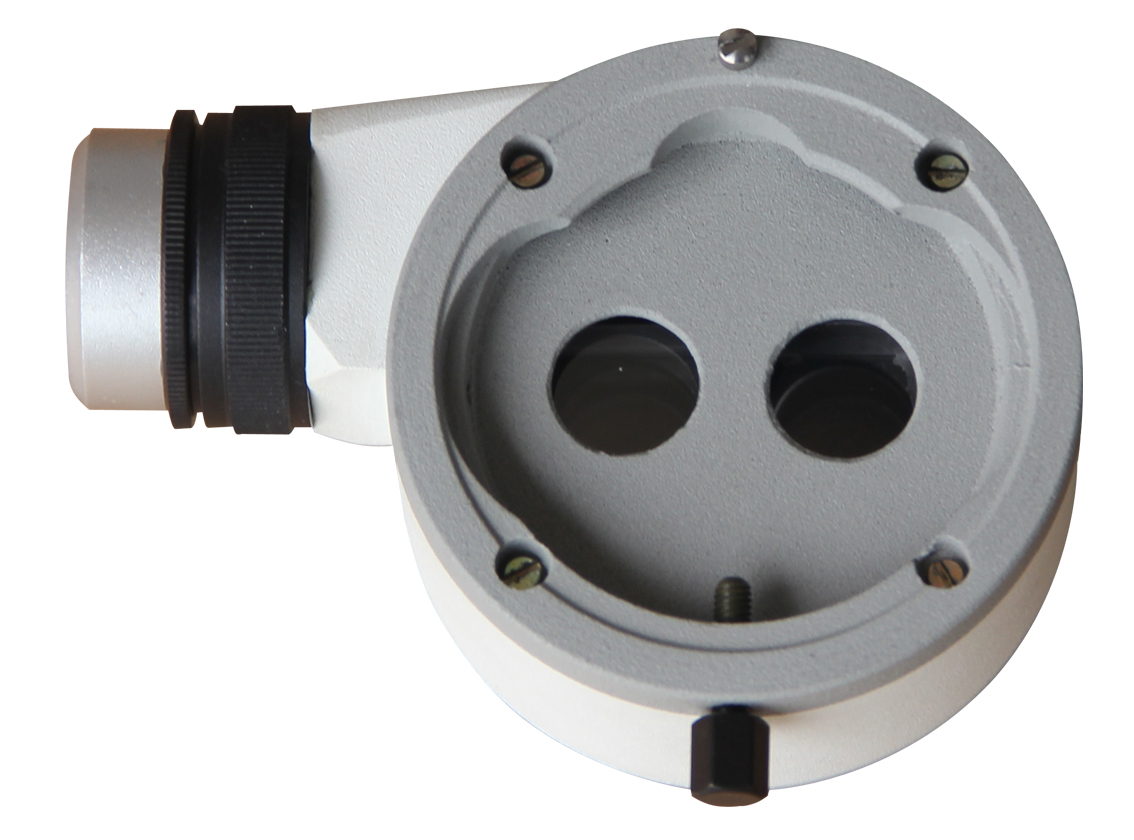

| Beam splitter | Dismountable |
| CCD Adapter | With iris diaphragm, f’=65 mm |
Photos of this model are in the following pages.
