Specification

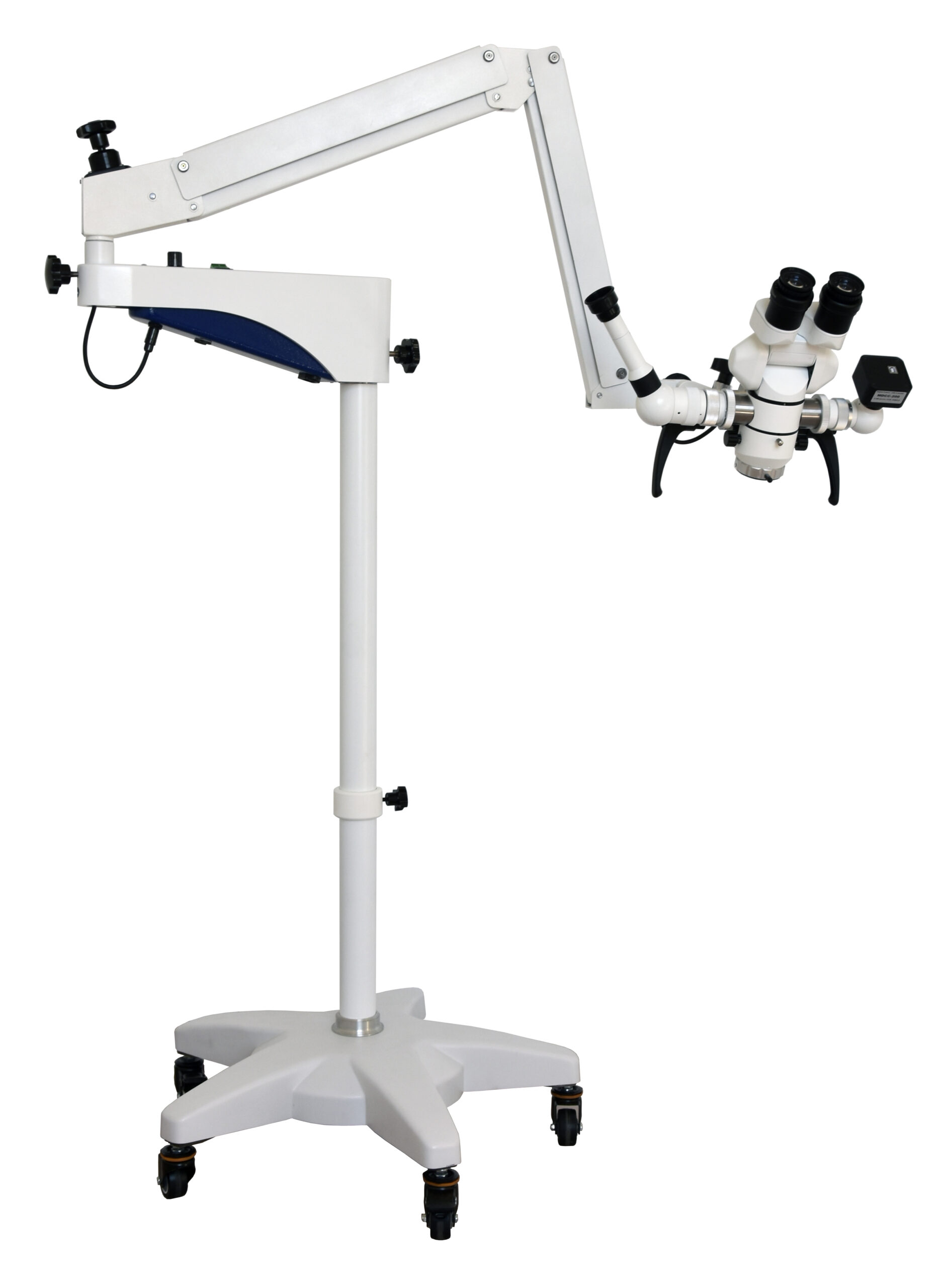

OPR.33.A180 is a comprehensive operation microscope. It is equipped with a 0-180 degree inclined binocular head, one pair of WF12.5X eyepiece, two long working distance objectives, coaxial LED illumination system and movable base. The 0-180 inclined binocular head can offers more comfort for operation. With optional objectives, the magnification can reach 3x-16x. The 10W LED illuminator can offer brightness over 40000 lux. This microscope is an idea instrument for ENT(otorhinolaryngologic), dental and ophthalmic inspection and operation.
Key Features
- 3-step magnification adjustment: 0.6x, 1.0x, 1.6x
- Two objectives with different focusing distance
- High brightness 10W LED illumination
- Total Magnification: 3x-16x (with Optional objective)
Specification
| Magnification of binocular | 8X |

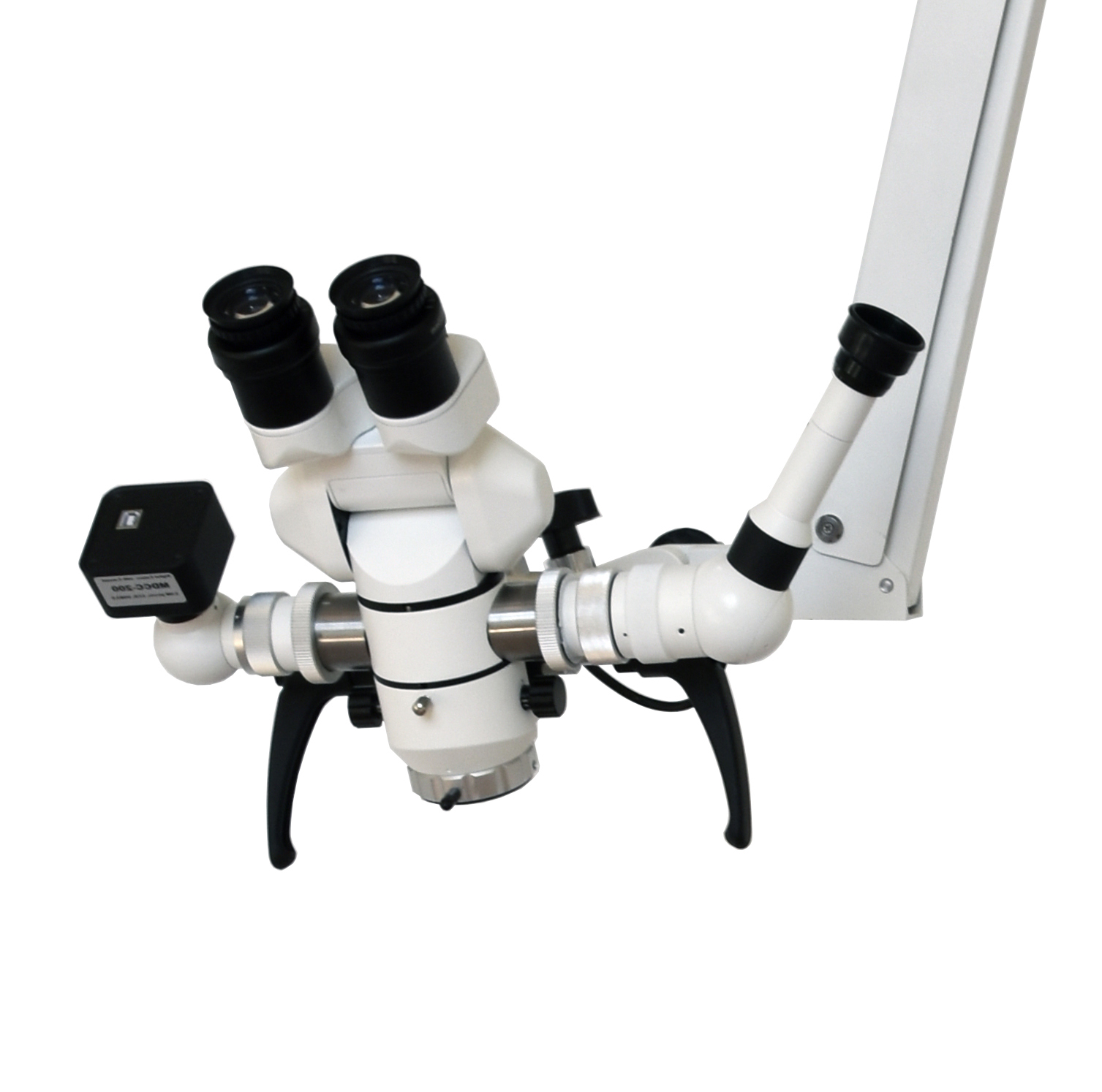

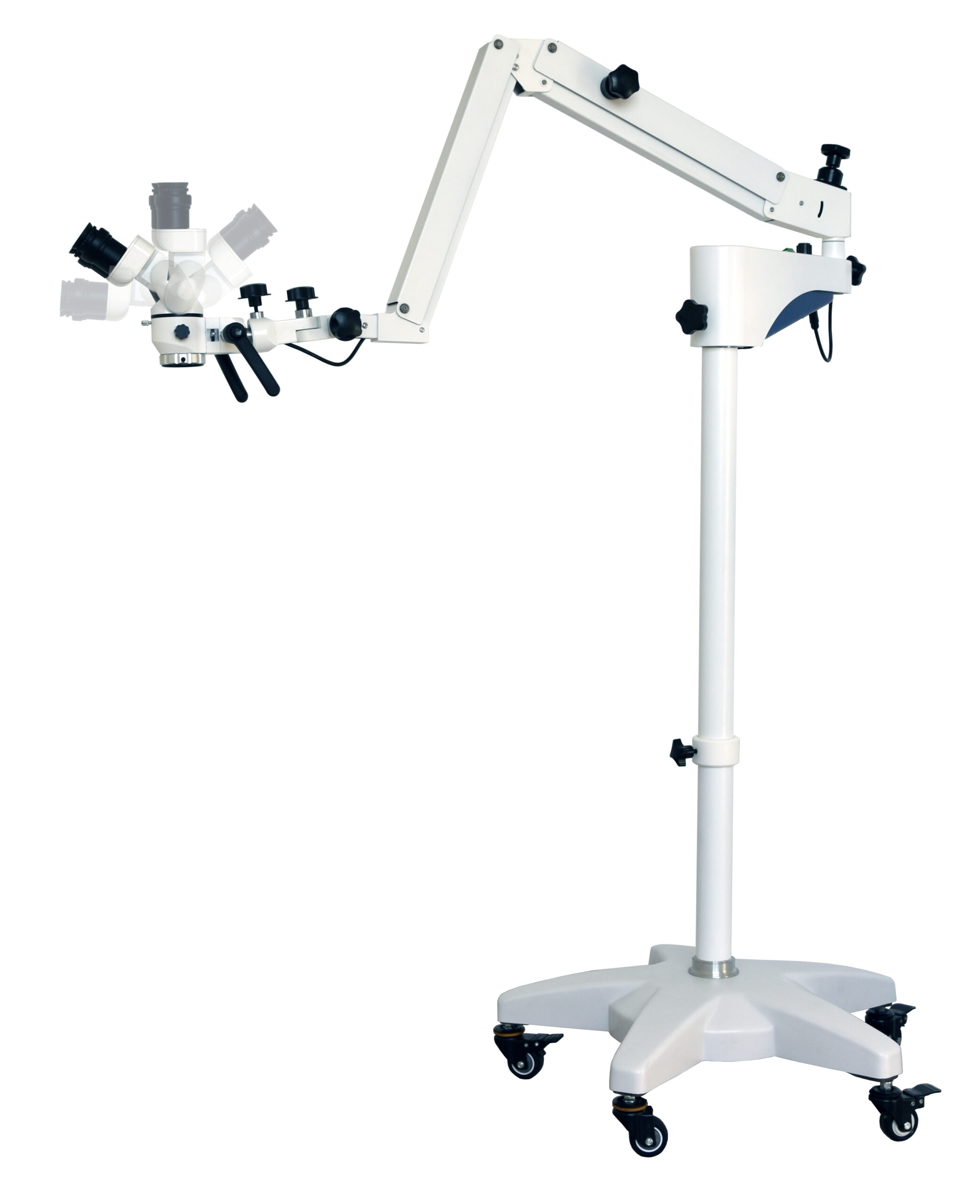

| Binocular | 0-180° inclinable |
| Magnification of eyepiece | 12.5X |
| Interpupillary distance | 50mm-80mm |
| Diopter adjustable | ±7D |
| Focal length of objective | F=200mm and F=250mm two objectives |
| Magnification changer | 3-step, 0.6X, 1X, 1.6X |
| Total magnification | 4.8X, 8X, 12.8X, 6X, 10X, 16X |
| Linear field | 50mm, 30mm, 19mm, 40mm, 24mm, 15mm |
| Fine focusing distance | 10mm |
| Illumination | Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>40000lx |
| Filter | Build-in green and yellow filters |
| Balancing arm | 2-part arm with universal joints, counterweight adjustable and can be locked |

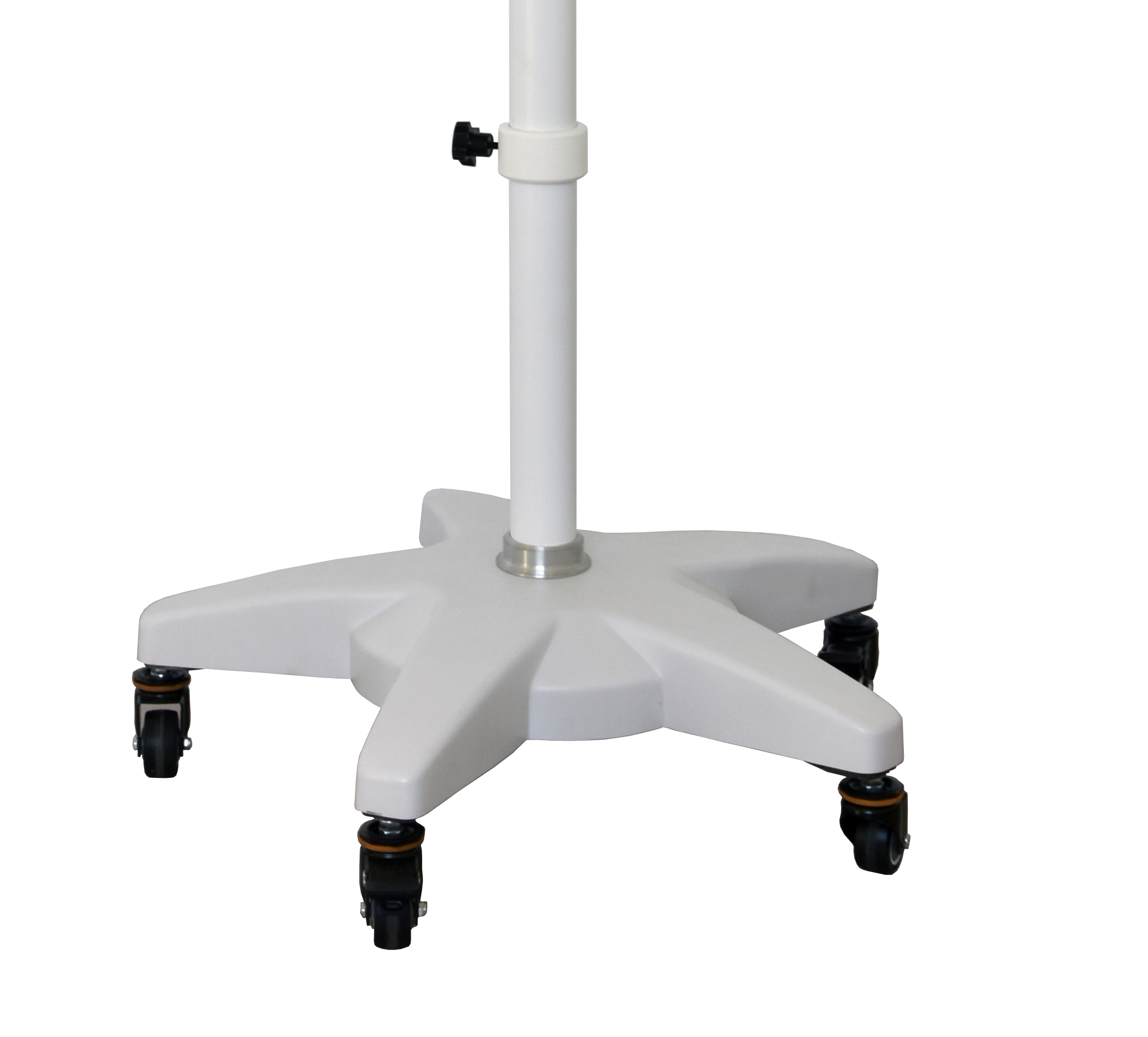

| Floor stand | 2-part column fitted on the five-star base with casters |
| Power supply | AC100V-AC240V |
Optic parameter
| Magnification of eyepiece | 12.5X/20mm | |||||||||||

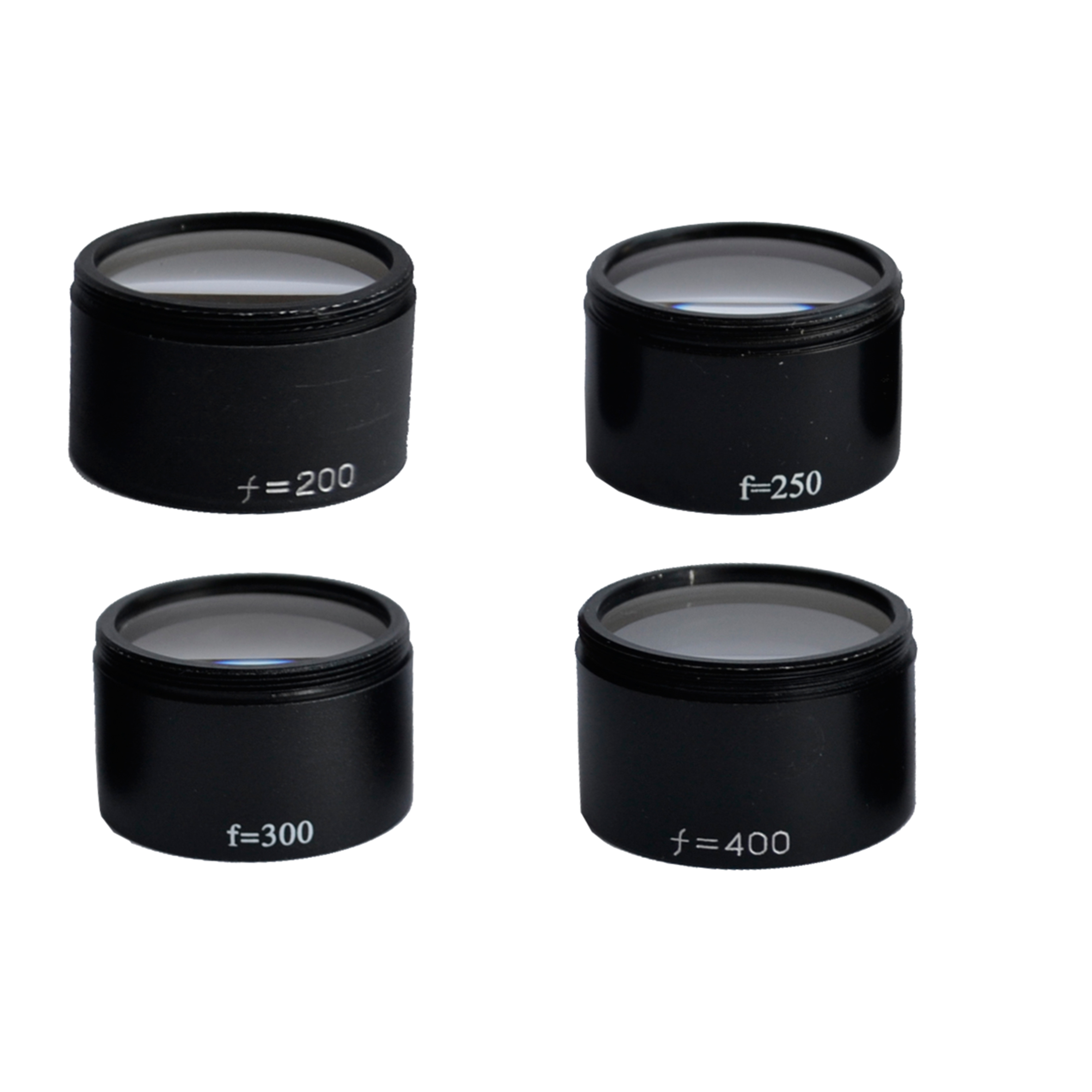

| Focal length of objective | F=200mm | F=250mm | F=300mm(optional) | F=400mm(optional) | ||||||||
| Magnification on handwheel | 1.6X | 1X | 0.6X | 1.6X | 1X | 0.6X | 1.6X | 1X | 0.6X | 1.6X | 1X | 0.6X |
| Total magnification | 16X | 10X | 6X | 12.8X | 8X | 4.8X | 10.7X | 6.7X | 4X | 8X | 5X | 3X |
| Linear field (mm) | 15 | 24 | 40 | 19 | 30 | 50 | 23 | 37 | 60 | 30 | 48 | 80 |
| Diameter of spot (mm) | 57 | 71 | 86 | 113 | ||||||||
| Exit pupil distance (mm) | 20 | |||||||||||
Optional accessories
| Objectives | F=200mm, F=300mm, F=200-300mm zooming objective |

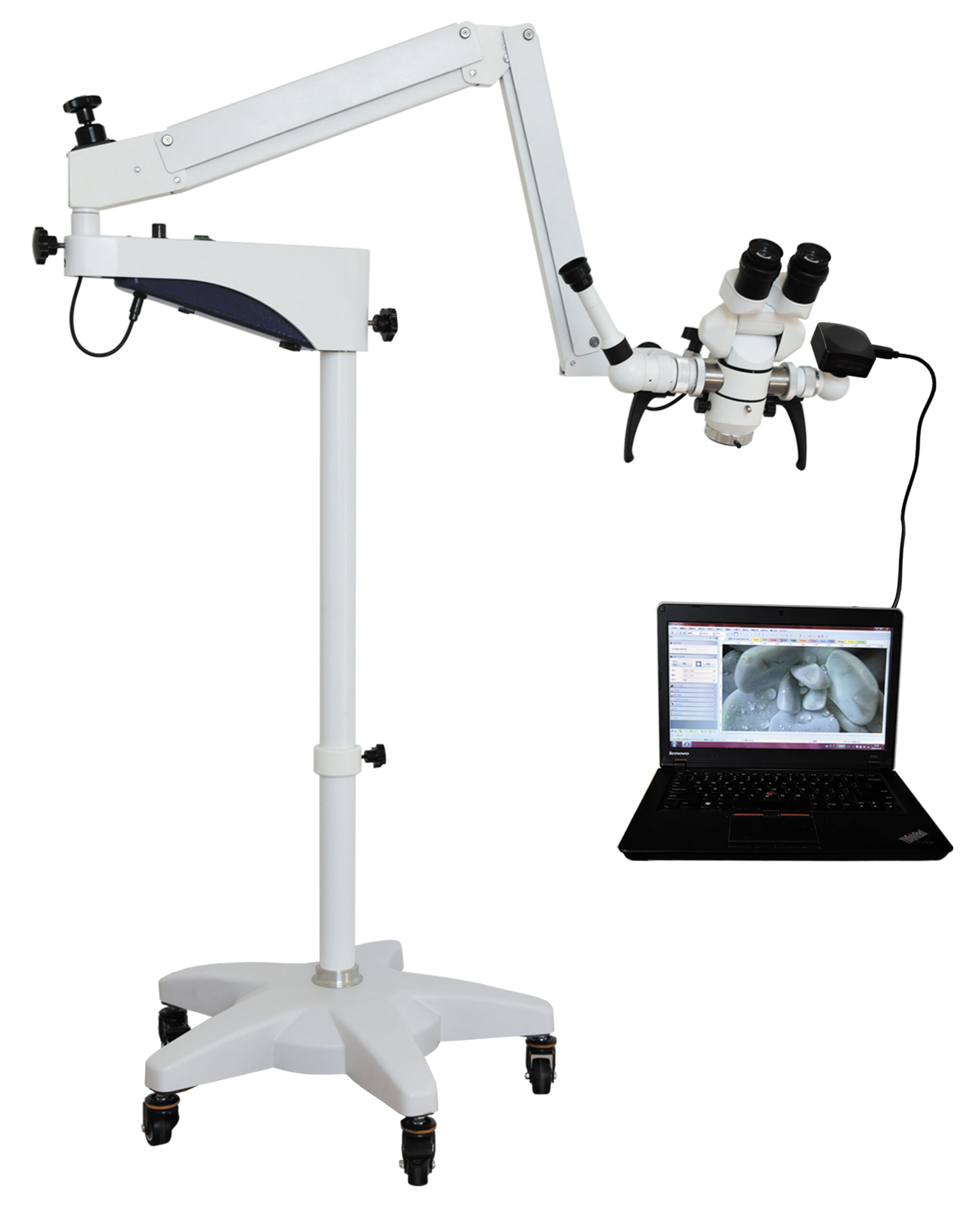

| Other accessory | Beamsplitter, CCD adapter, DLSR camera adapter, wall-mount, table clamp |
Photos of this model are in the following pages.
