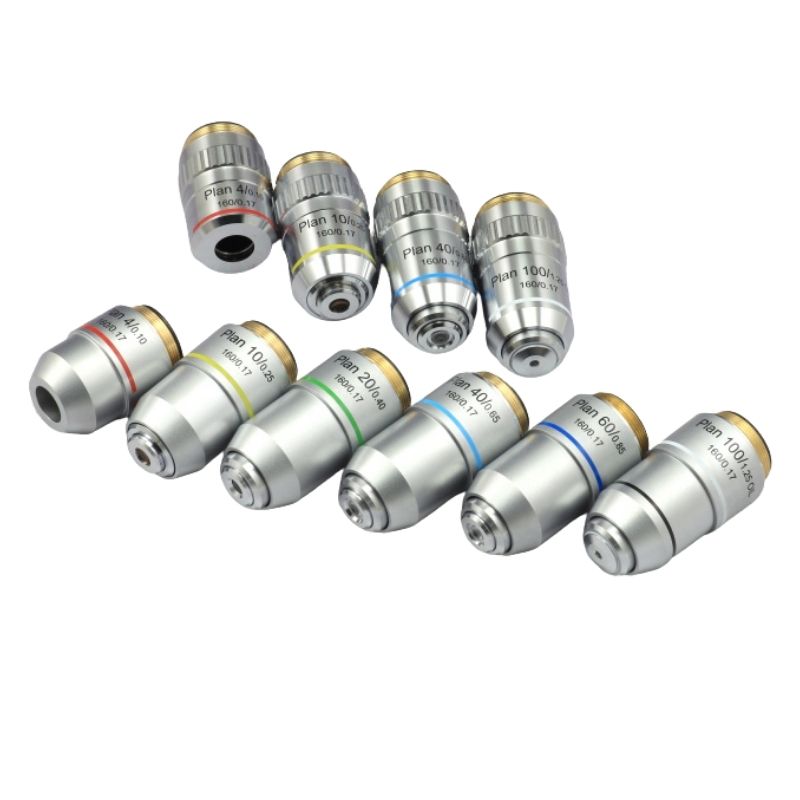

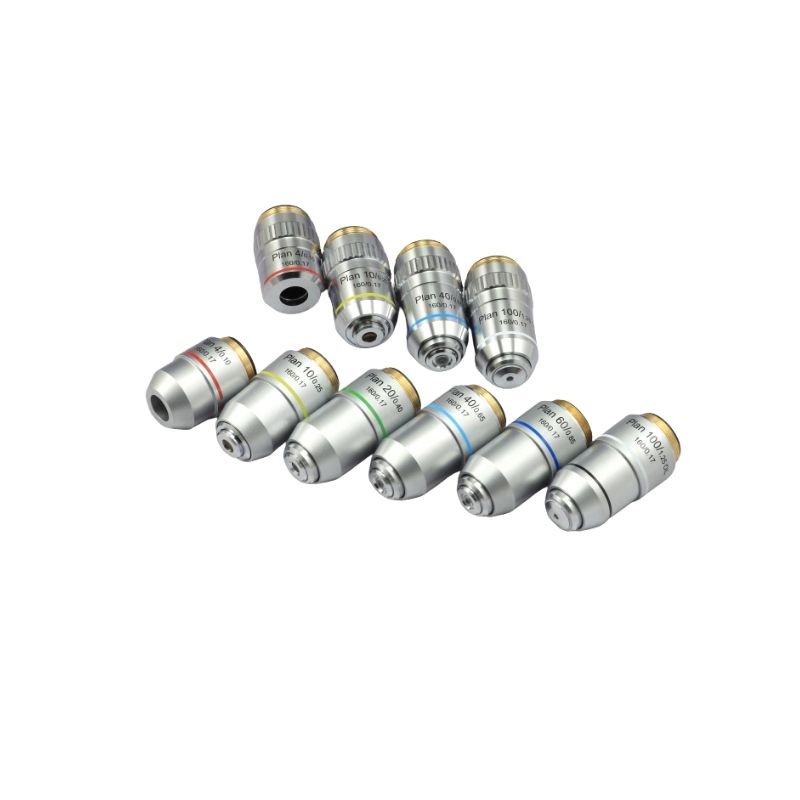

This series of plan achromatic objective lens are designed for DIN-standard microscopes. Intended primarily for biological applications, it is designed to work with microscopes using 160mm tube-length and 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.
Product Description
Specification
| Magnification | NA | WD(mm) | R（μm） | DF(μm) | screw |
| 4X | 0.1 | 28.9 | 3.36 | 27.5 | 4/5×1/36″ |
| 10X | 0.25 | 5.84 | 1.34 | 4.4 | 4/5×1/36″ |
| 20X | 0.4 | 1.16 | 0.84 | 1.71 | 4/5×1/36″ |
| 40X | 0.65 | 0.75 | 0.52 | 0.65 | 4/5×1/36″ |
| L-40X | 0.68 | 2.3 | 0.49 | 0.59 | 4/5×1/36″ |
| 60X | 0.8 | 0.49 | 0.45 | 0.48 | 4/5×1/36″ |
| 100X | 1.25 | 0.23 | 0.27 | 0.18 | 4/5×1/36″ |
This series of plan achromatic objective lens are designed for DIN-standard microscopes. Intended primarily for biological applications, it is designed to work with microscopes using 160mm tube-length and 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.
