Specification

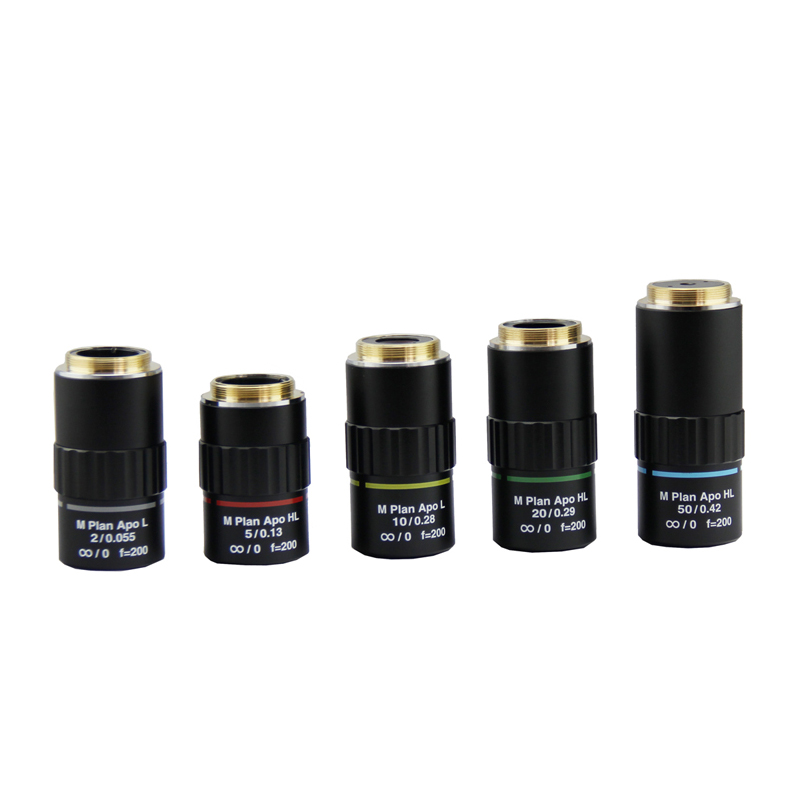

OBJ.32.APO is a series of 95mm apochromatic objectives. It is 95mm parfocal distance. The mounting screw is M26. Optical system is 200mm.
Key Features
- Infinitive Optical System, Tube Lens Focal Length 200mm
- Parfocal Distance 95mm
- Objective Screw M26X0.705
Specification
| Model No. | Specification | |||||
| Mag. | N.A. | W.D.(mm) | Focal length(mm) | Resolution
（μm） |
Depth of
Field (μm) |
|

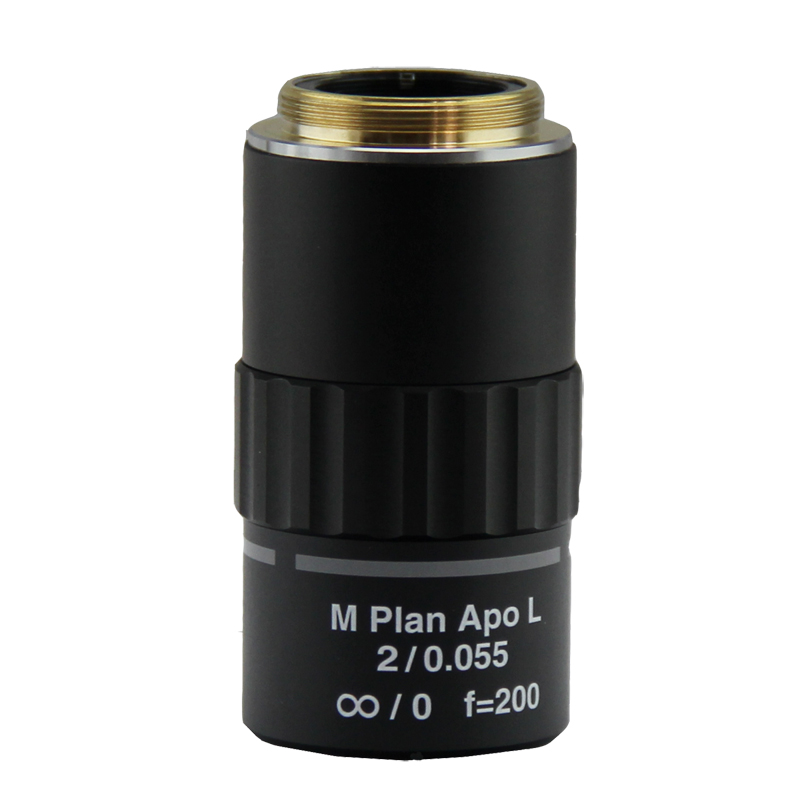

| APO2X | 2X | 0.055 | 34.6 | 100 | 5 | 91 |

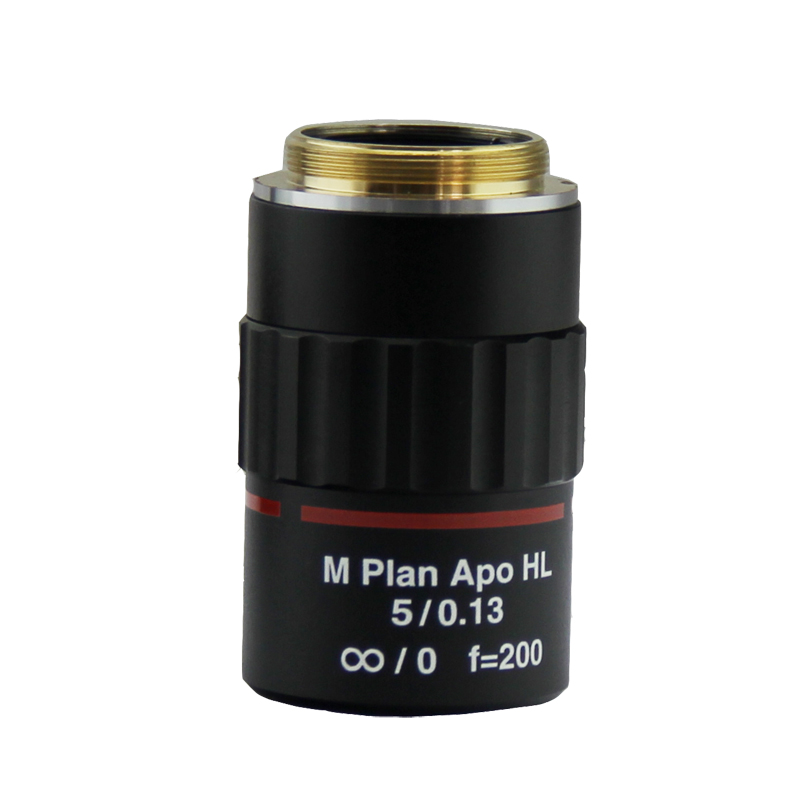

| APO5X | 5X | 0.13 | 44.5 | 40 | 2 | 16.3 |

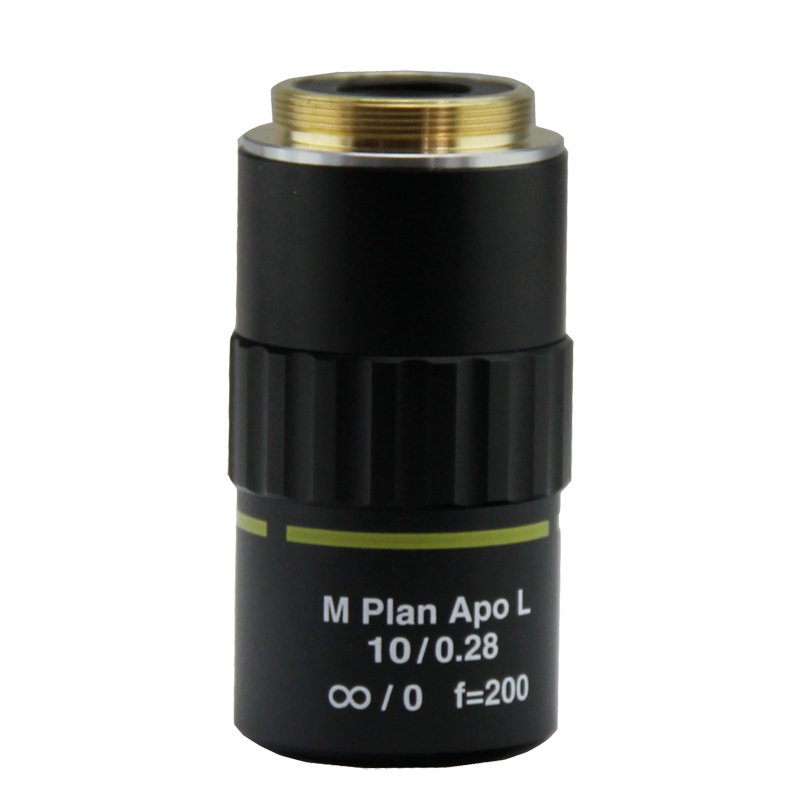

| APO10X | 10X | 0.28 | 34 | 20 | 1 | 3.5 |

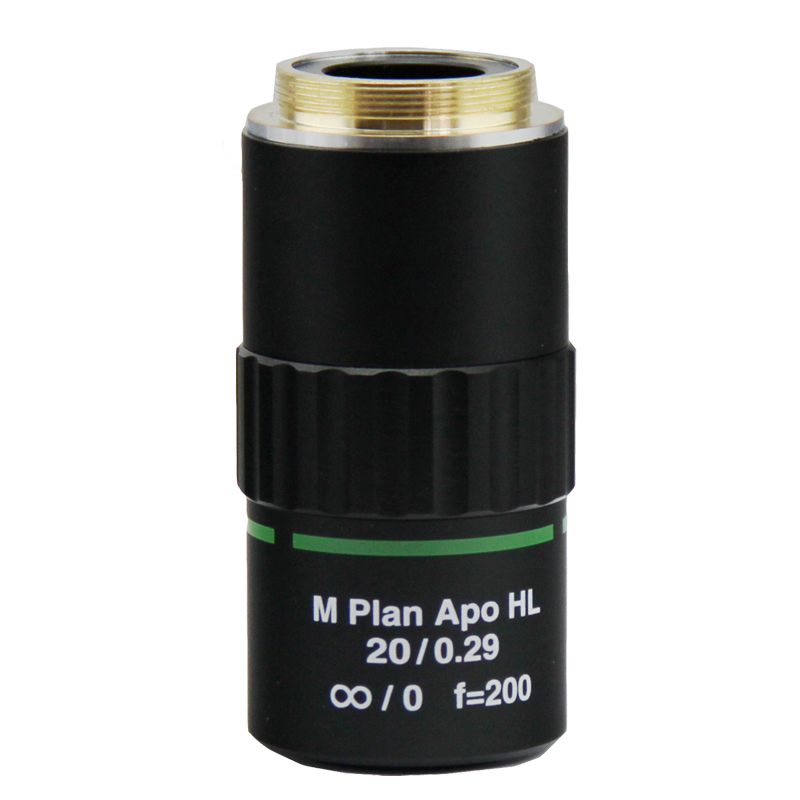

| APO20X | 20X | 0.29 | 31 | 10 | 1 | 3.3 |

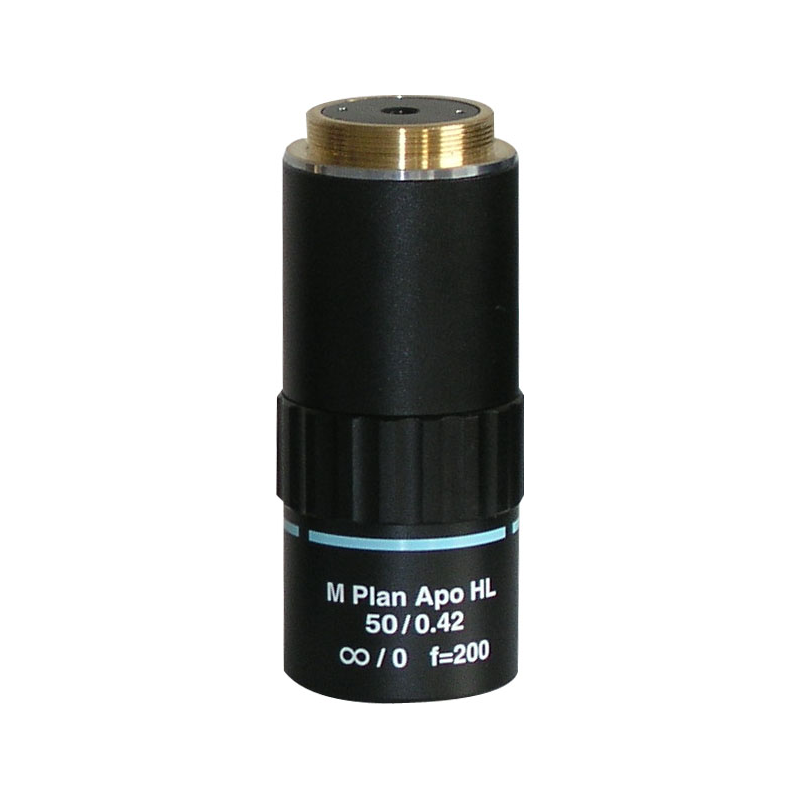

| APO50X | 50X | 0.42 | 20.1 | 4 | 0.7 | 1.6 |
| APO100X | 100X | 0.55 | 12.6 | 2 | 0.5 | 0.91 |
