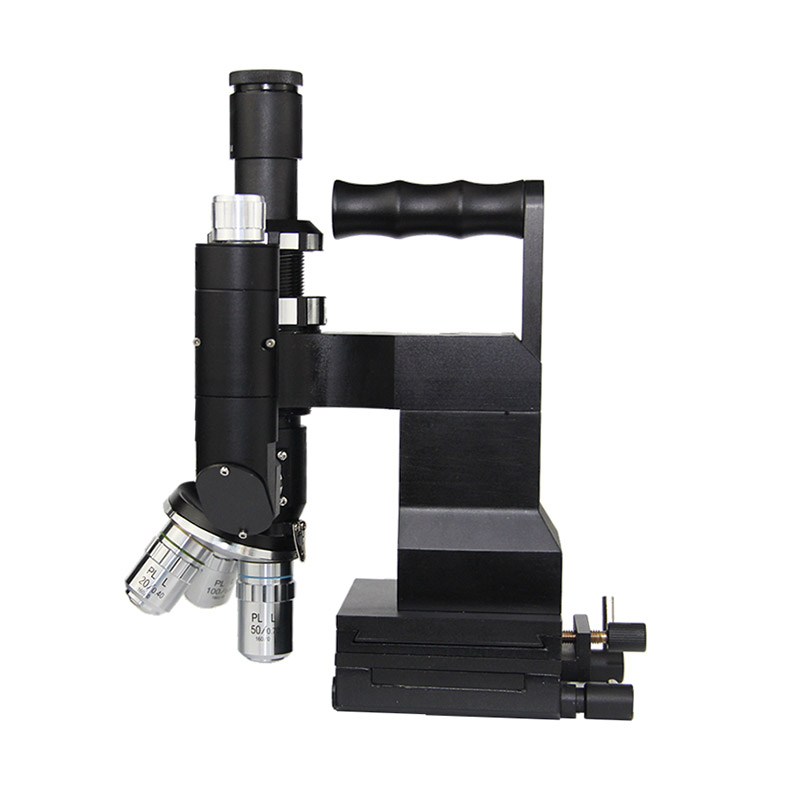

MTL24TRP is a Portable Handheld Metallurgical Microscope. It has a standard magnification range of 10X-500X. It comes with a handheld metallurgical microscope body, one piece of wide field eyepiece, three long working distance Plan Metallurgical objectives, one set of polarizing kits, built-in rechargeable LED illumination. It is an ideal microscope for viewing opaque or metallurgical specimens or larger specimens that cannot be sampled or inspected on a standard microscope stage.
Product Description
Specification
| Eyepiece | WF10X/FN18, Dia.23.2 |
| LWD Plan Objective (no cover glass) | PLL 10X/0.25 WD=7.3mm |
| PLL 20X/0.40 WD=8.6mm | |
| PLL 50X/0.65 WD=0.5mm | |
| Adapter | C-mount adapter (for connecting C-mount cameras) |
| Mechanical Tube Length | 160mm |
| Focusing | Coaxial coarse/fine focus system, range:36mm |
| Stage | Magnet Stage, Movement |
| Polarizing Kits | Polarizer and Analyzer |
| Light Source | Coaxial illumination, build-in LED rechargeable, brightness adjustable |
| (battery not included) | |
| Packing info | Portable aluminum case |
MTL24TRP is a Portable Handheld Metallurgical Microscope. It has a standard magnification range of 10X-500X. It comes with a handheld metallurgical microscope body, one piece of wide field eyepiece, three long working distance Plan Metallurgical objectives, one set of polarizing kits, built-in rechargeable LED illumination. It is an ideal microscope for viewing opaque or metallurgical specimens or larger specimens that cannot be sampled or inspected on a standard microscope stage.
