Specification

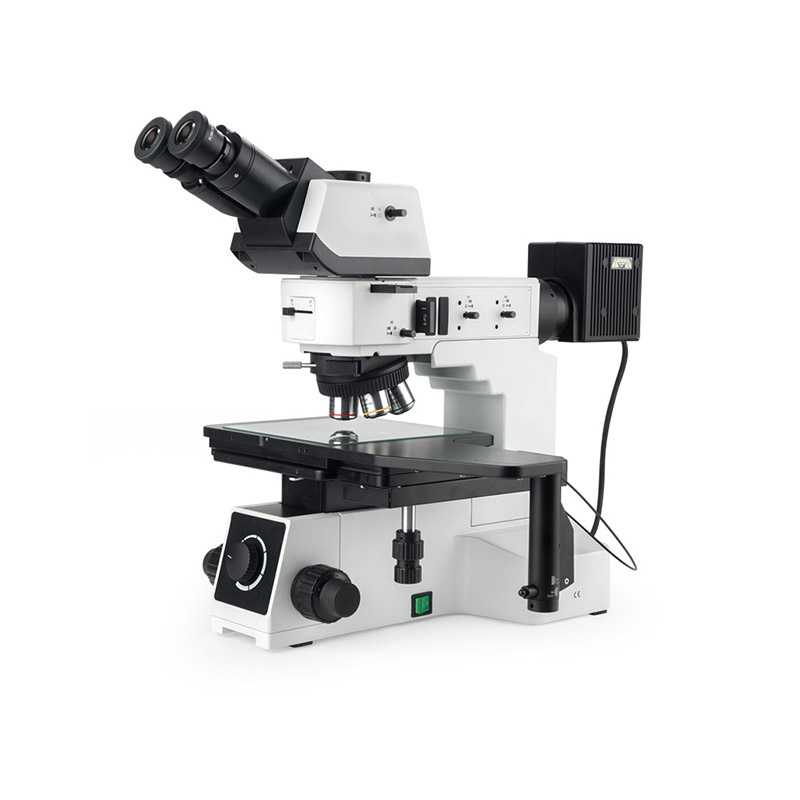

| MTL036R Industry Metallurgical with upright image viewing | 6R | 6RT | |
| Optic System | Color-corrected infinity optic system | ● | ● |
| Head | Compensation Free Trinocular (inclination of 25°) offering upright image, Light ratio: binocular 100%, trinocular: 100% | ● | ● |
| Eyepieces | High Eye point Wide Field Plan WF10X(22mm) | ● | ● |
| Objectives | LWD Infinity Plan B/D Metallurgical 5X-DIC LMPL5X/0.15 WD11mm | ● | ● |
| LWD Infinity Plan B/D Metallurgical 10X-DIC LMPL10X/0.3 WD9.5mm | ● | ● | |
| LWD Infinity Plan B/D Metallurgical 20X-DIC LMPL20X/0.45 WD3.4mm | ● | ● | |
| LWD Infinity Semi-Apo Plan B/D Metallurgical 50X LMPLFL50X/0.55 WD7.5mm | ● | ● | |
| Nosepiece | Quintuple, Backward ball bearing inner locating, for bright and dark filed use, with DIC Slot | ● | ● |
| Stage | 6″ three layers mechanical stage 455x240mm, moving range:158X158mm, glass stage, X-Y moving hand wheel, with clutch handle right hand shank, can move quickly. | ● | – |
| 6″ three layers mechanical stage 455x240mm, moving range:158X158mm, for transmission: 100x100mm, glass stage, X-Ymoving hand wheel, with clutch handle right hand shank, can move quickly. | – | ● | |
| Focus | Coaxial Coarse and fine focusing adjustment, | – | – |
| Coarse adjustment distance:33mm | |||
| precision of fine adjustment: 0.001mm, with loosen and tight limit ring. | |||
| Transformer | 90-240V wide voltage transformer, one way power output. | ● | – |
| 90-240V wide voltage transformer, double way power output | – | ● | |
| Reflected Illumination | With Iris Field Diaphragm and Aperture Diaphragm, Central Adjustable, with Filter Slot and Polarizing Slot, With Switch Device With Bright and Dark Field, 12V100W Halogen Bulb, Pre-Centering, Digital Dimming Can Be with Bright Intensity Settings And Reset Function | ● | ● |
| Transmitted Illumination | Single high-power 5w LED, white, brightness adjustable, N.A.0.5 condenser, with iris diaphragm | – | ● |
| Polarizing Set | Fixed Polarizer flashboard | ● | ● |
| Analyzer flashboard, 360° rotatable | ● | ● | |
Optional Accessory
| Eyepieces | High Eye point Wide Field Plan WF15X(16mm) |
| High Eye point Wide Field Plan WF10X(23mm), diopter adjustable | |
| DIC | DIC Slider |
| Objective | LWD Infinity Semi-Apo Plan B/D Metallurgical 100X LMPLFL100X/0.80 WD2.1mm |
| Filter | Green filter |
| Red filter | |
| Blue filter | |
| Polarizing Attachment | Polarizer |
| Analyzer | |
| Adapter | Photo adapter 1/2 C-mount |
| CCD adapter |
