Description
MTL.06.M100 has a standard magnification range of 40X-400X (1600X can be reached with optional eyepieces and objectives). It comes with wide field eyepieces, long working distance Plan achromatic objectives, mechanical stage, coaxial coarse and fine focusing system, analyzer and polarizer, and halogen illumination. This microscope is an ideal microscope for the research of metallography, mineralogy, integrated circuits, semiconductor chips, micro-electronics, and electronics research.
Features
- FiveWide-field magnification settings:40X to 400X
- Long working distance plan achromatic objectives
- Equippedwith analyzer and polarizer
Specification
| Head | Trinocular head inclined at 30 °, interpupillary distance adjustment: 48-75mm |
| Eyepiece | High-point ,extra wide field eyepiece EW10×/20 ( Dia.30mm) |
| Metallurgical Infinity Plan Objective | Metallurgical Infinity Plan Objective 4X/0.1 (non-cover) |
| Metallurgical Infinity Plan Objective 10X/0.25 (non-cover) | |
| Metallurgical Infinity Plan Objective 20X/0.4 (non-cover) | |
| Metallurgical Infinity Plan Objective 40X/0.6 (non-cover) | |
| Nosepiece | Quintuple nosepiece |
| Stage | Plain stage 160x250mm, center hole Φ10mm, Φ15mm, Φ25mm |
| Focusing | Coaxial Coarse and Fine Focusing, vertical objective movement. Coarse Range 37.7mm/per rotation, Division 0.2mm/per rotation |
| Illumination | Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable |
| Filter | Blue, Yellow. Green and ground glass |
| Polarizing | Polarization attachment |
Optional accessories
| Items | Specification | Order No. |
| Metallurgical Infinity Plan Objective | Infinity Plan Achromatic Objective 50X/0.75 (non-cover) | OBJ.06.MIPL |
| Infinity Plan Achromatic Objective 80X/0.9 (non-cover) | OBJ.06.MIPL | |
| Infinity Plan Achromatic Objective 100x/0.80 (non-cover) | OBJ.06.MIPL | |
| Stage | Attachable X-Y mechanical stage, coaxial control, movement range 120 x78mm
Auxiliary stage:70x180mm |
STD.06.XY |
| Adapter | C-Mount adapter | ADA.06.C1X |

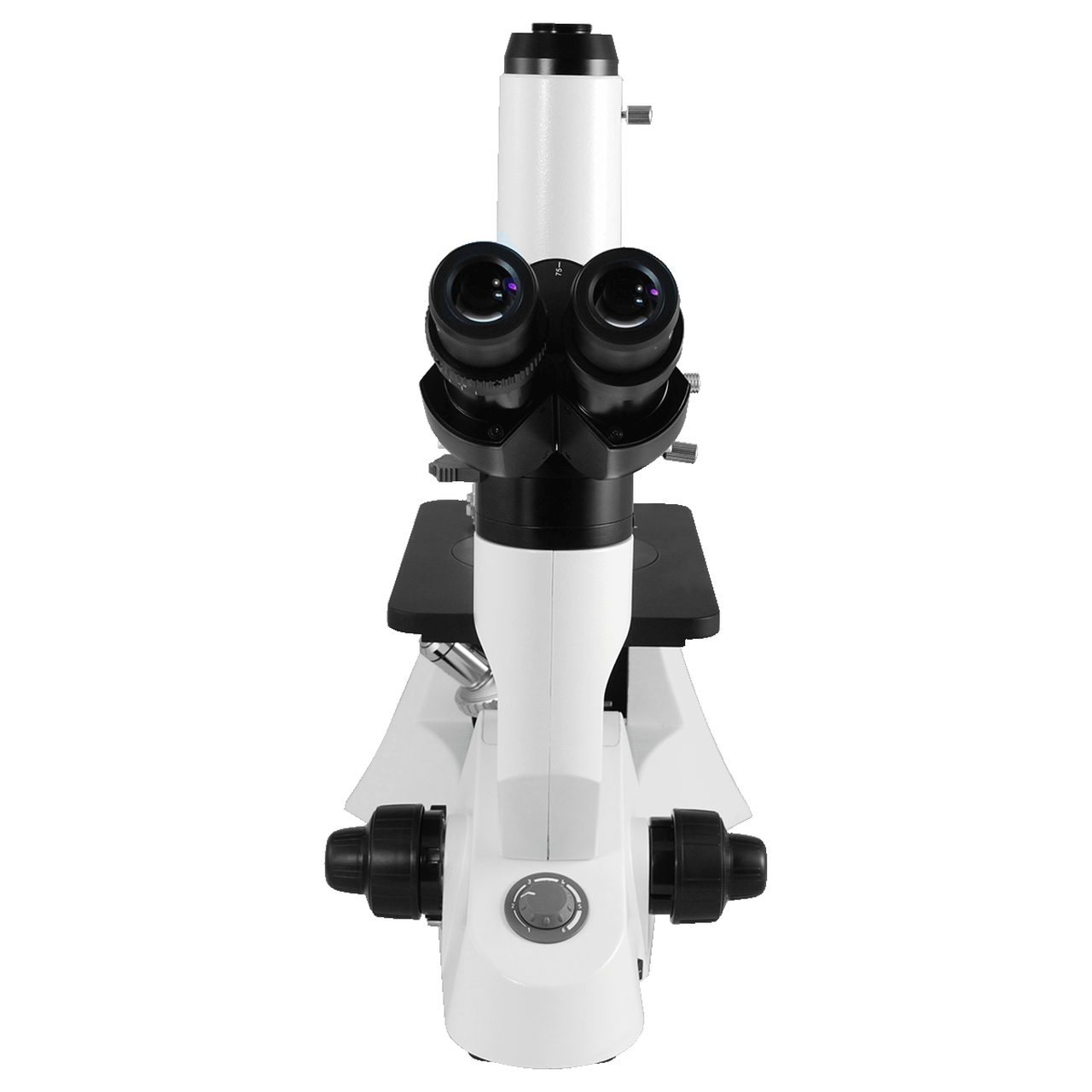

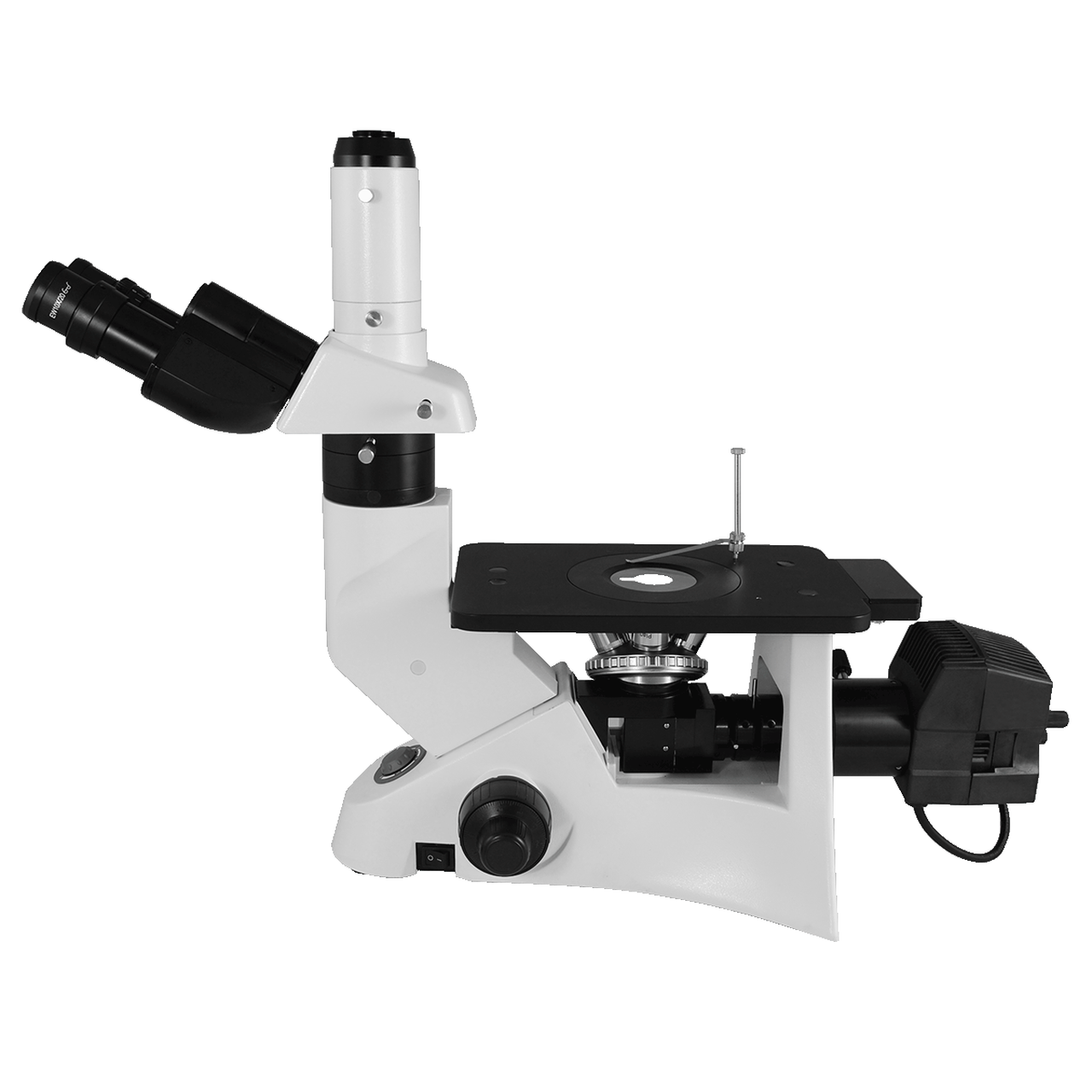

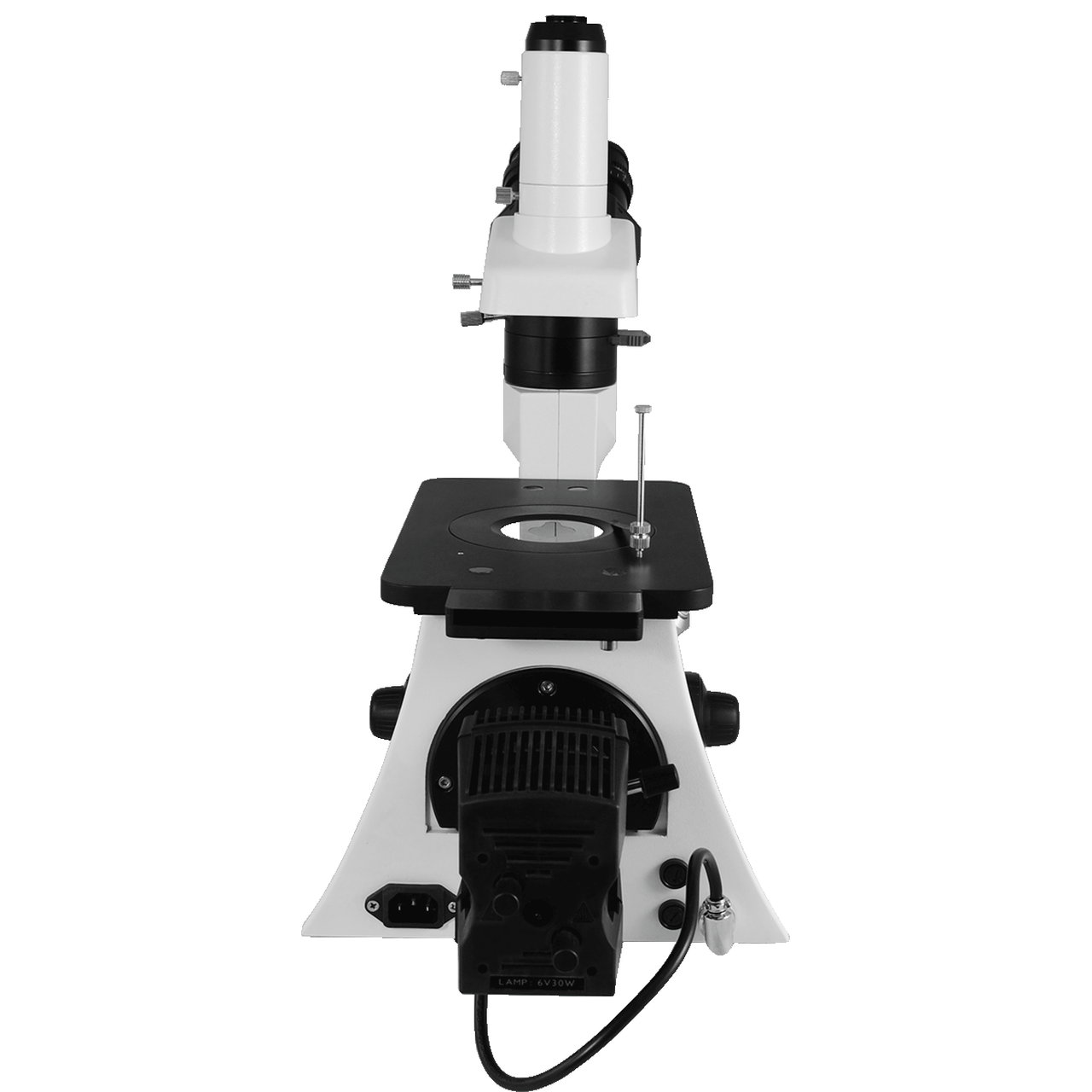

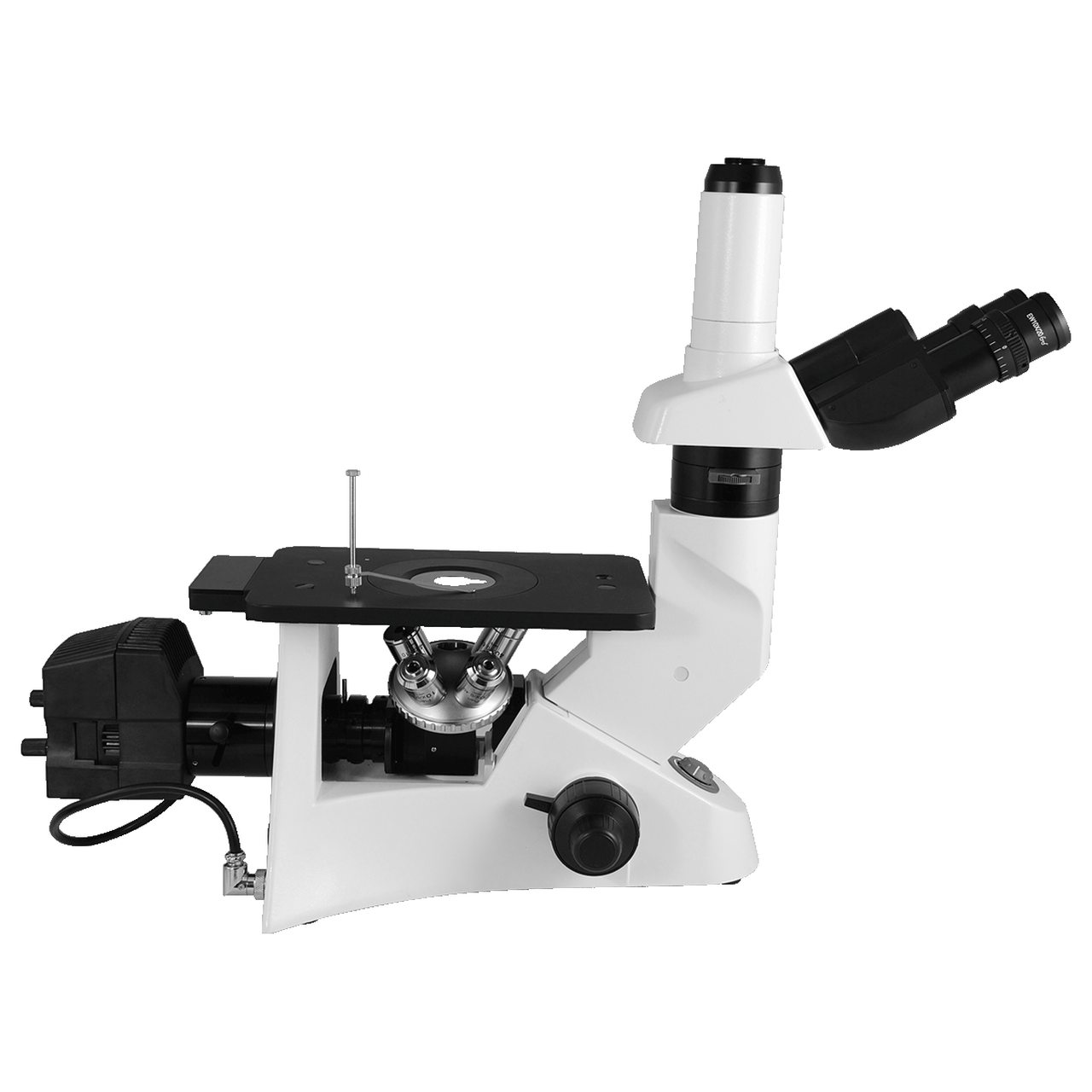

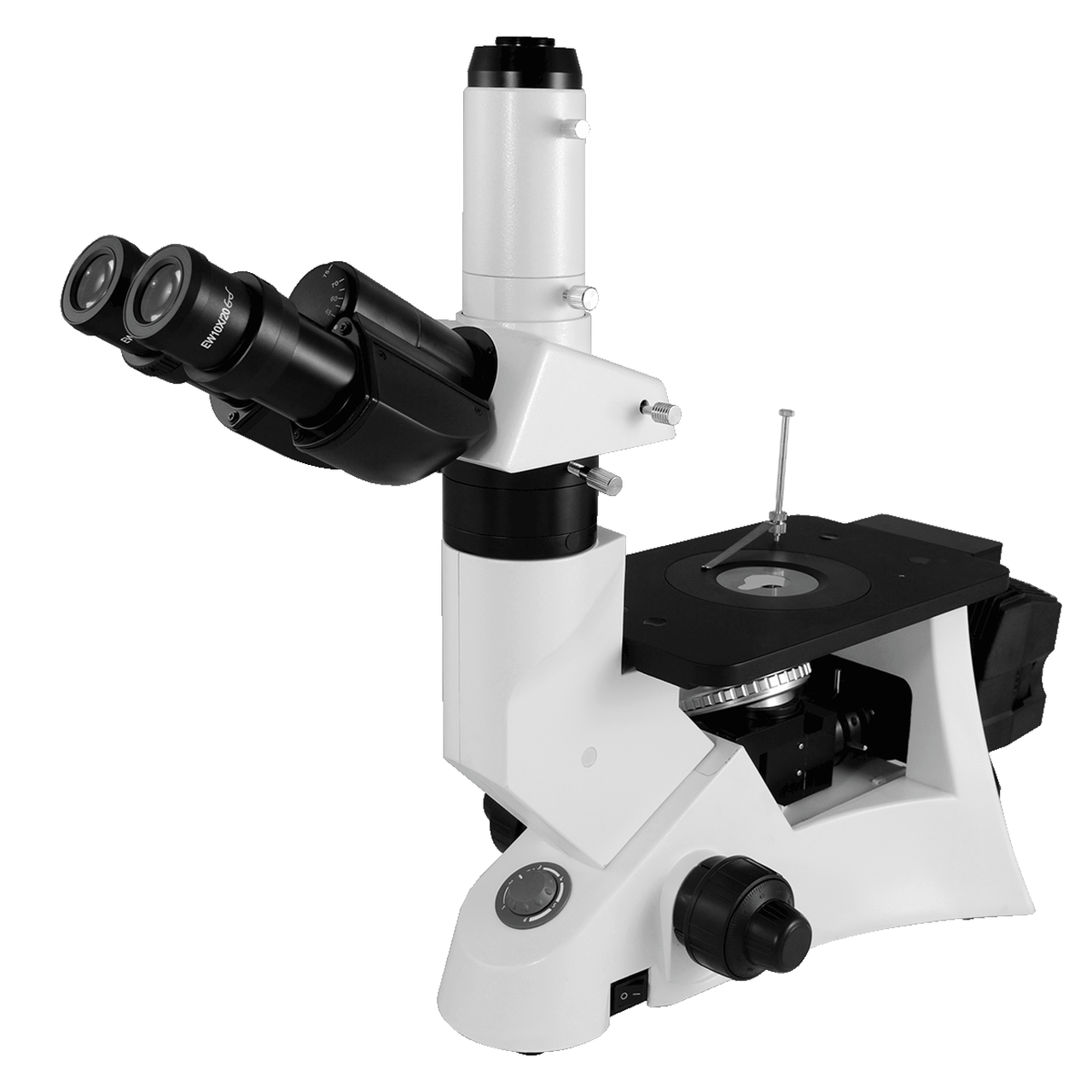

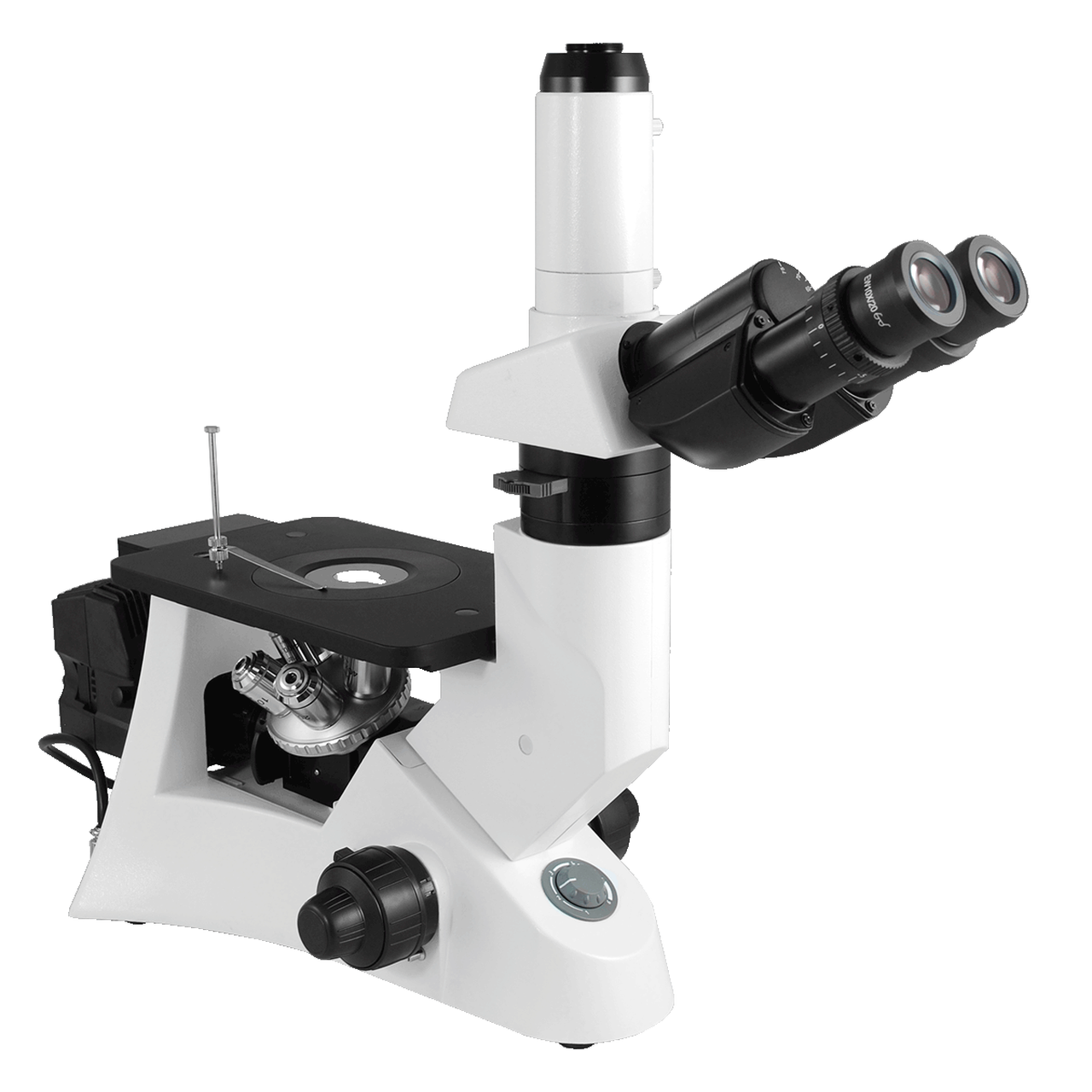

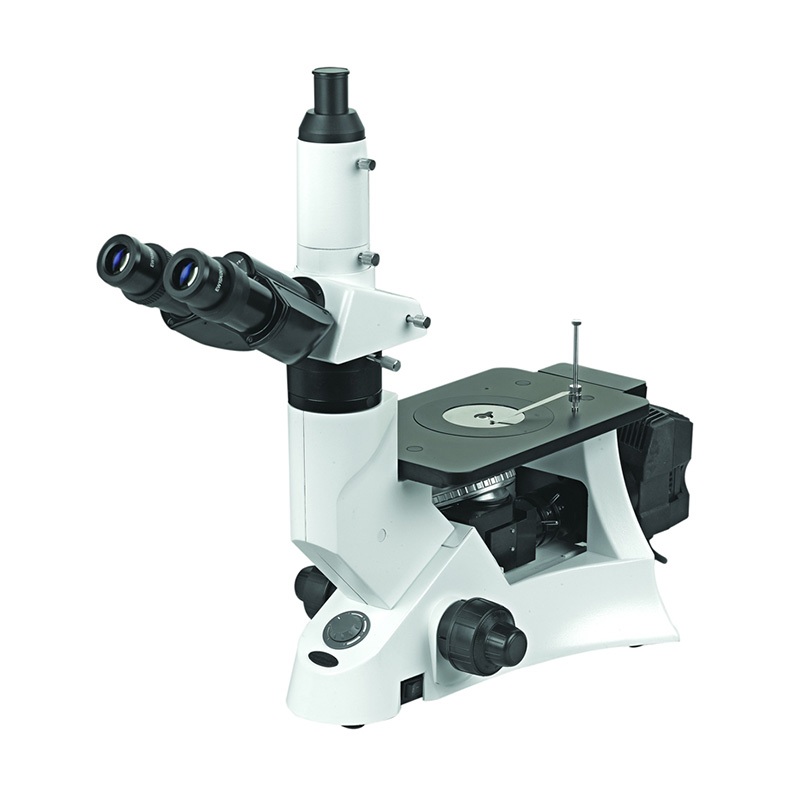

Photo of this model is as following.
