Description

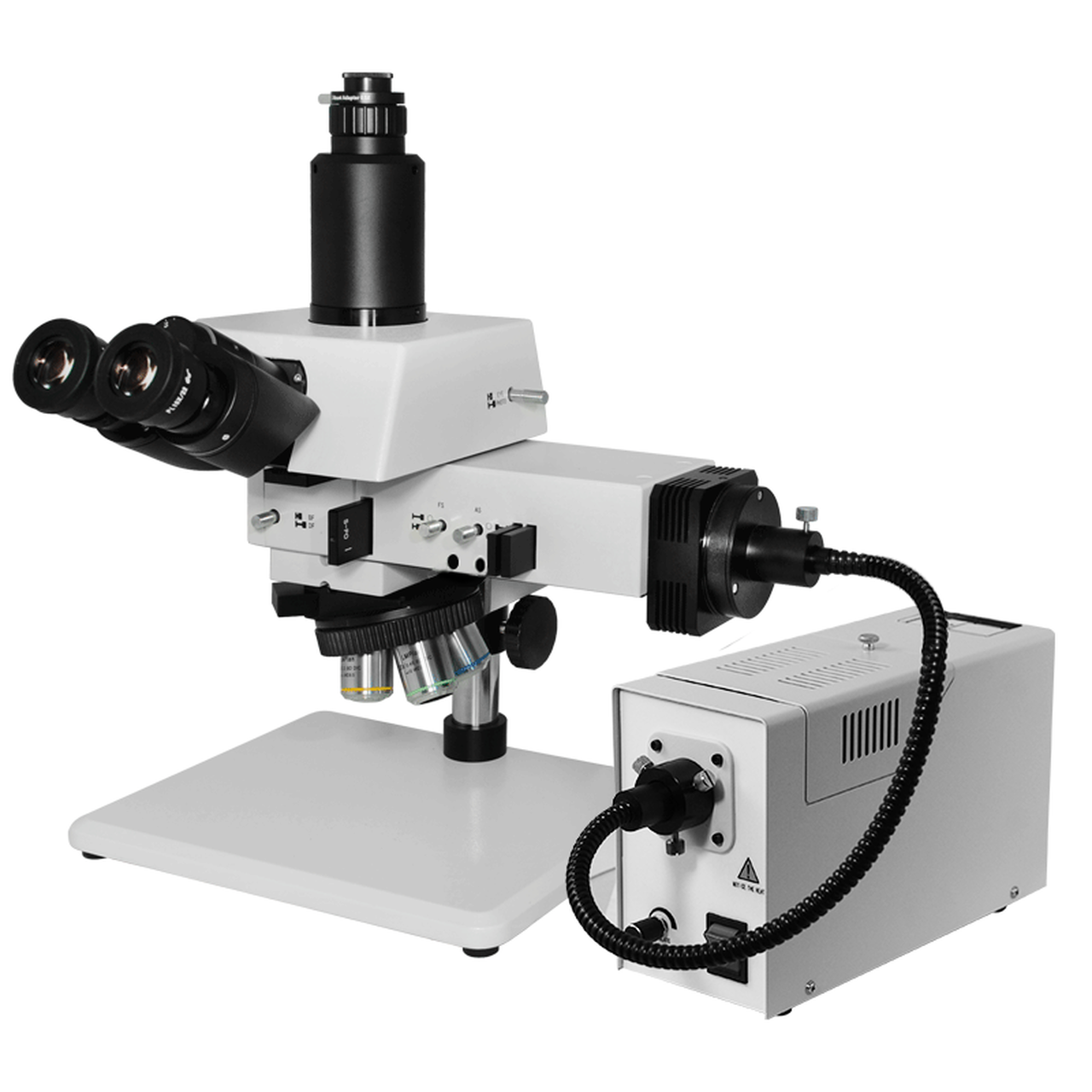

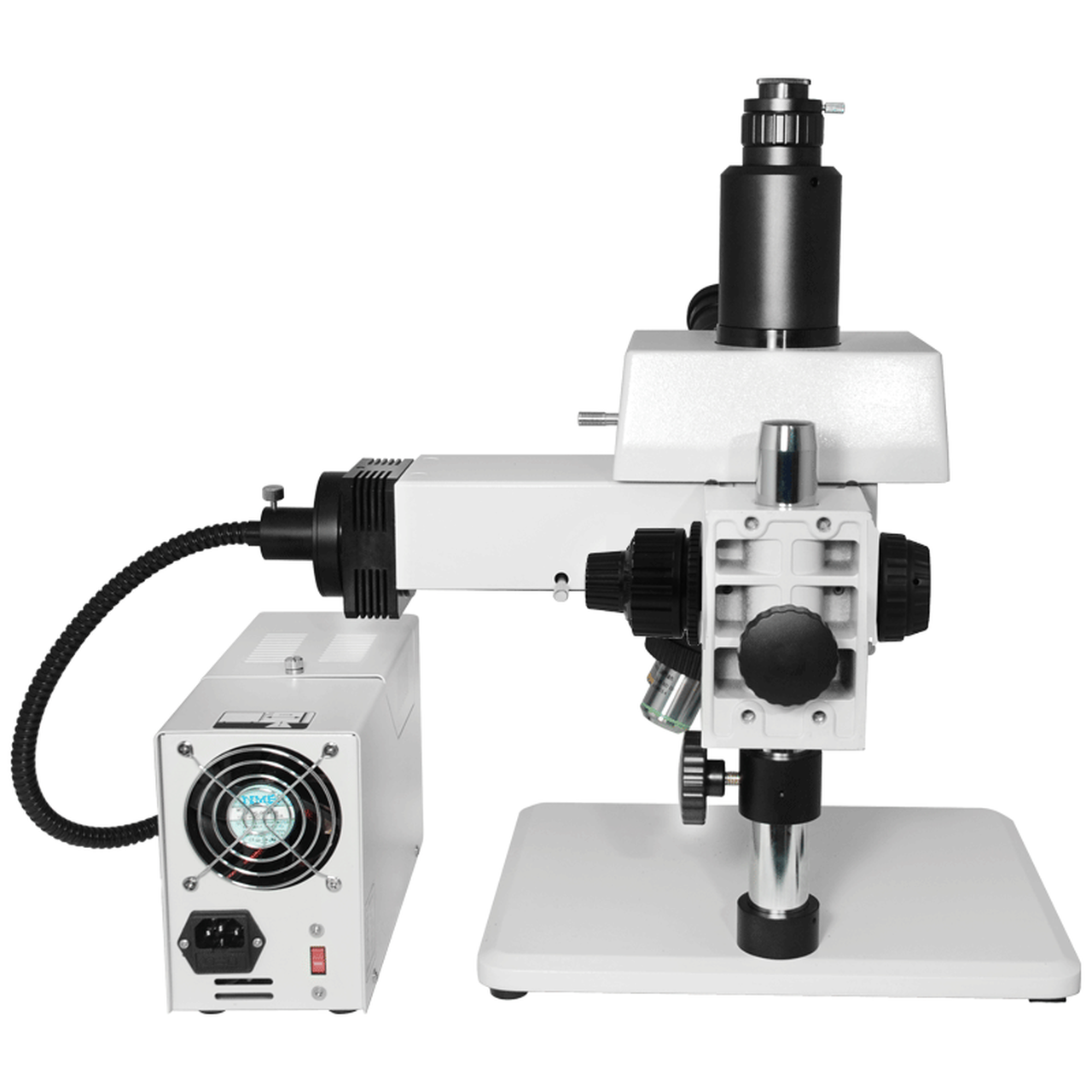

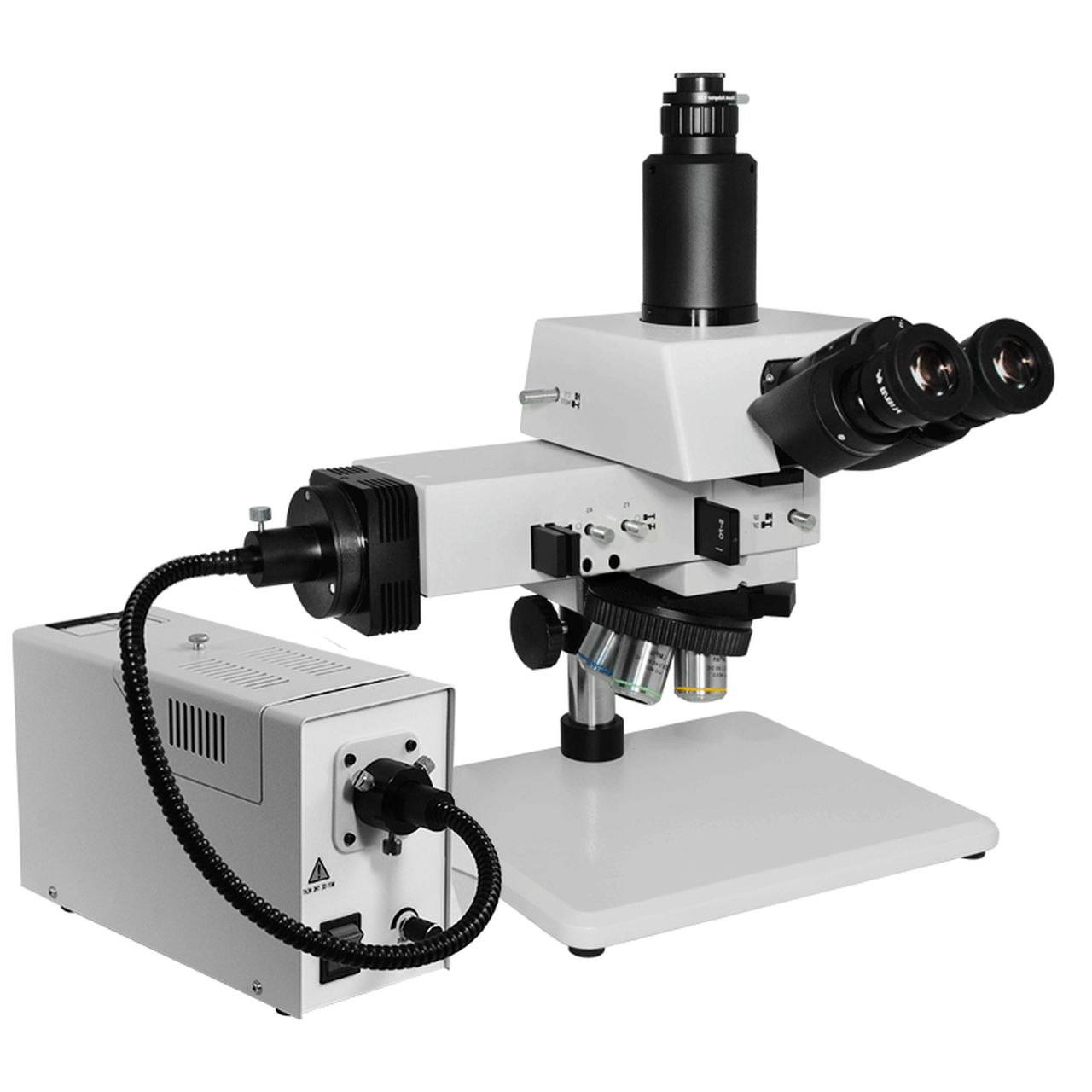

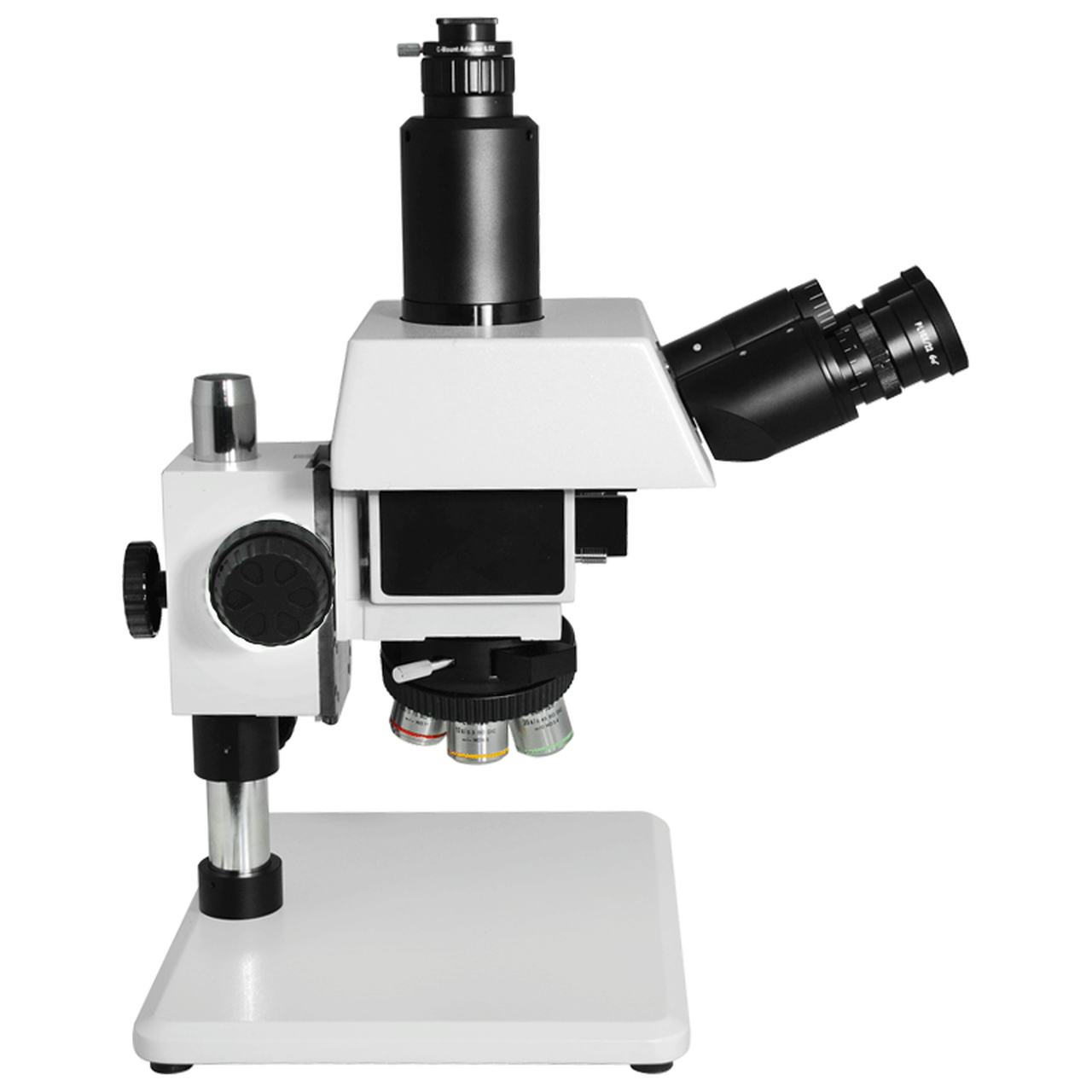

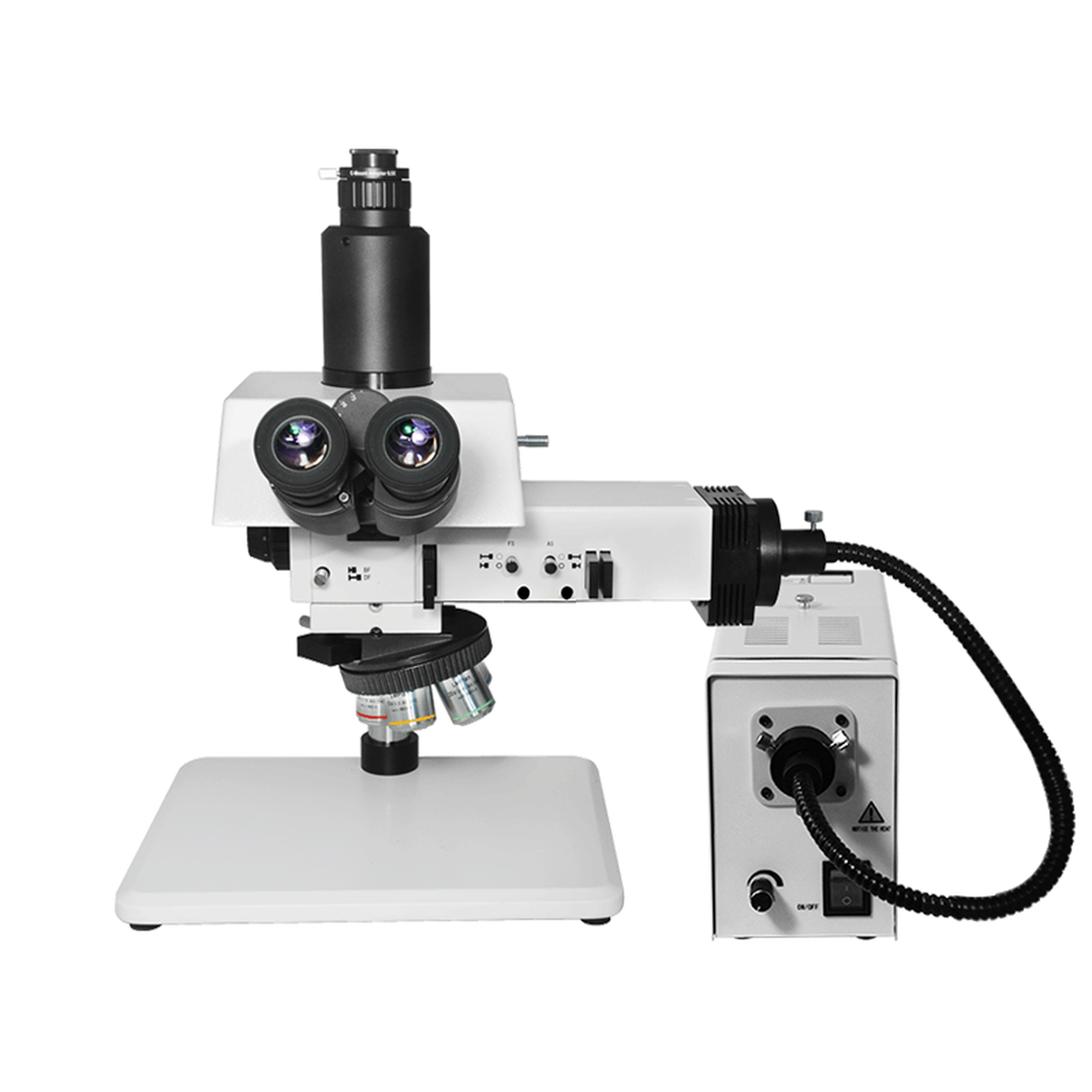

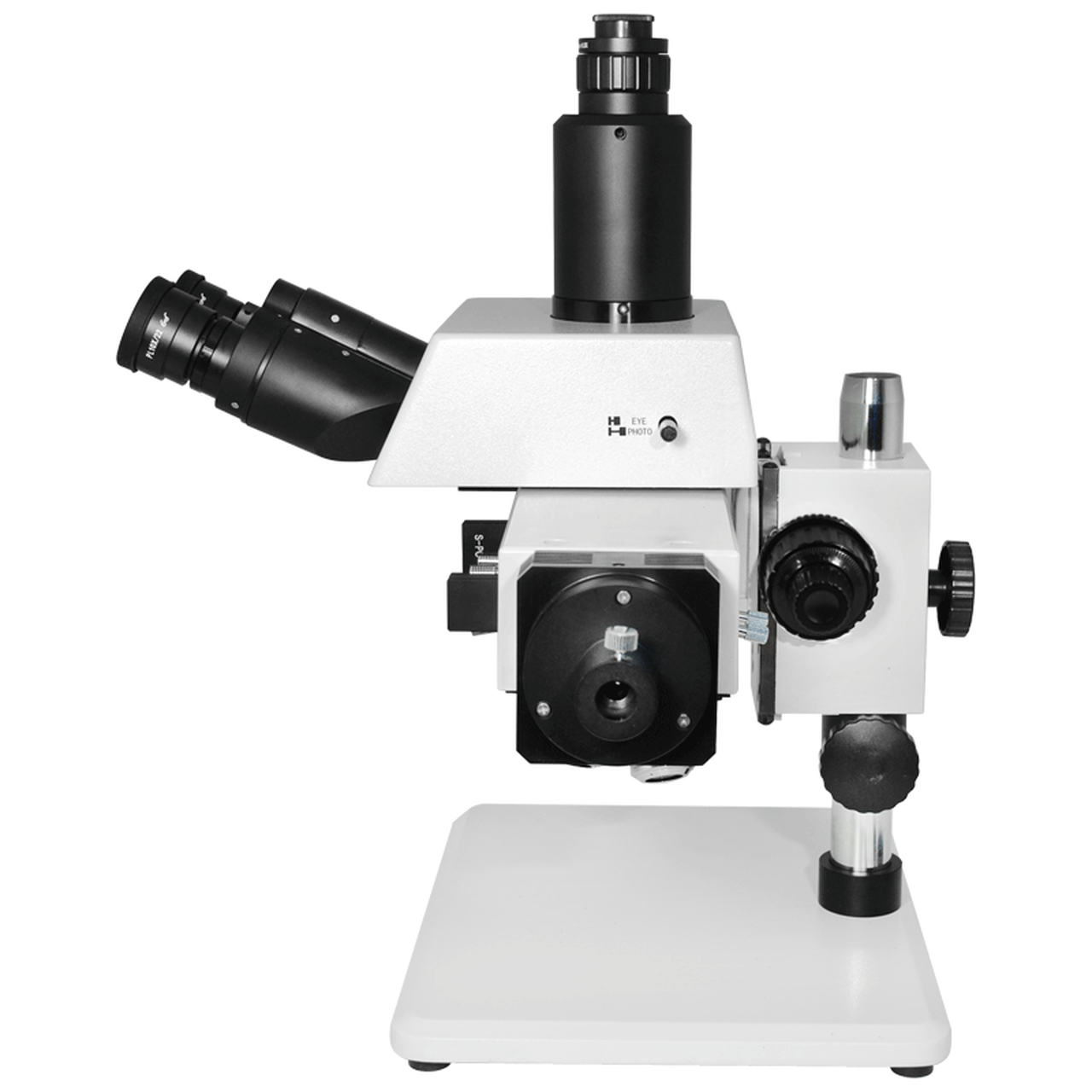

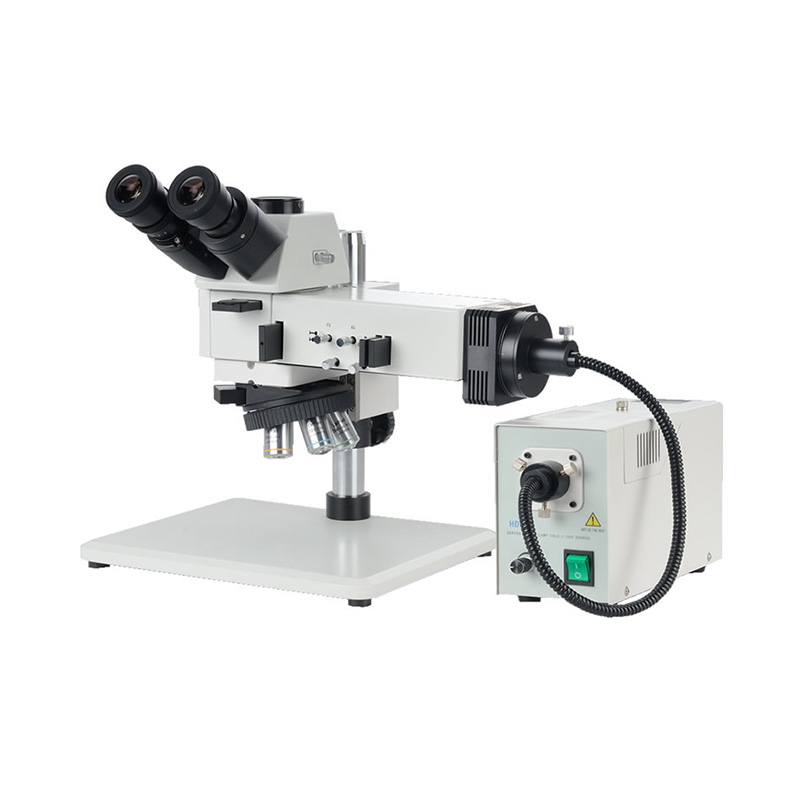

MTL.03.FMSBD has a standard magnification range of 50X-500X (1600X can be reached with optional eyepieces and objectives). It comes with wide field eyepieces, long working distance Plan achromatic objectives, coaxial coarse and fine focusing system, analyzer and polarizer, and halogen lamp reflected illumination. This microscope is an ideal microscope for the research of metallography, mineralogy, integrated circuits, semiconductor chips, micro-electronics, and electronics research.
Features
- FourWide-field magnification settings:50X to 500X
- Long working distance plan achromatic objectives
- Equippedwith analyzer and polarizer
Specification
| Specification | MTL.03.FMSBD Industry Metallurgical with Positive image viewing |

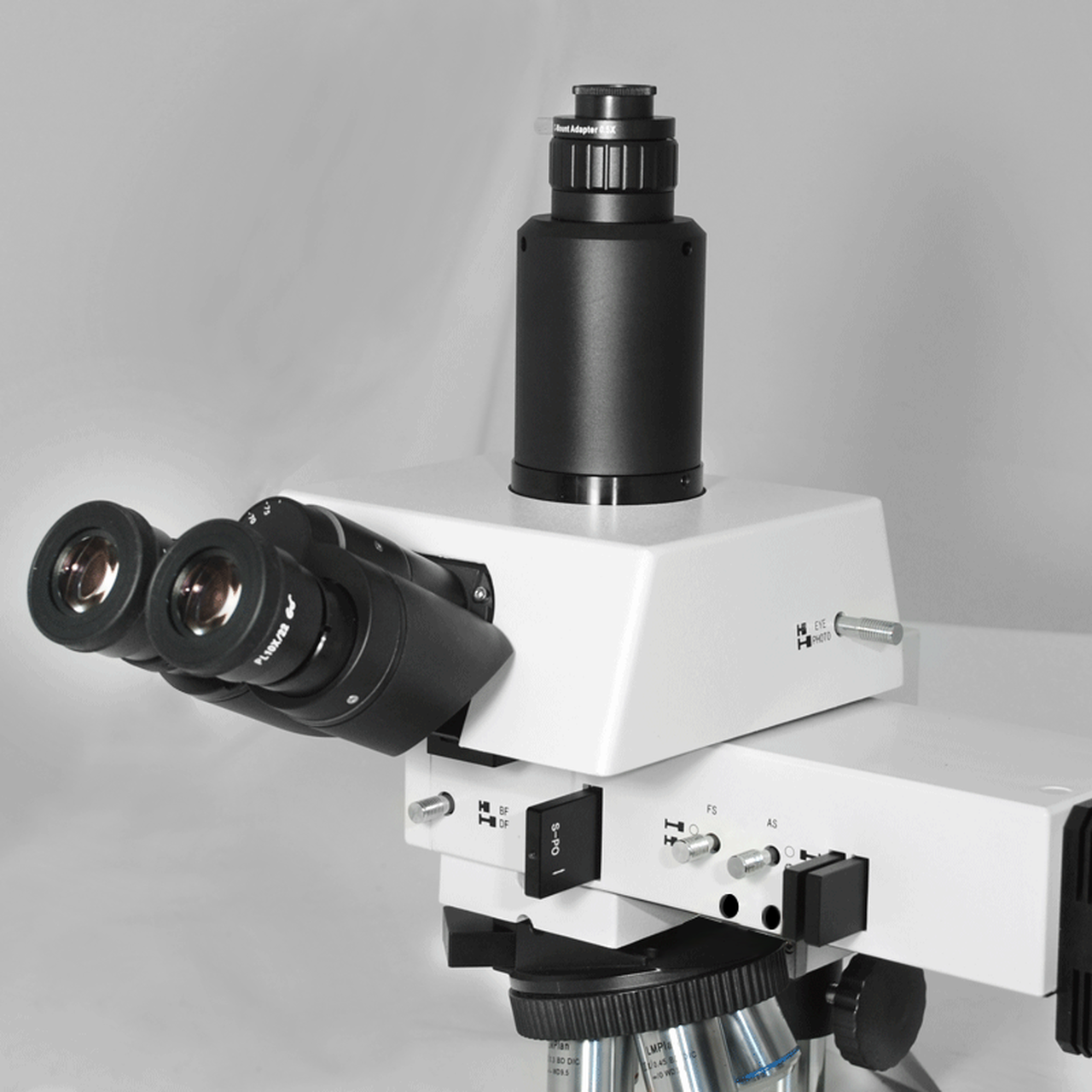

| Head | 25°inclined trinocular head with positive image viewing, splitting ratio for binocular: trinocular =100：0 or 0:100, diopter adjustment±5,interpupillary distance 54mm-75mm |
| Observation method | Bright field/Dark field |
| Eyepiece | High eye-point plan eyepiece PL10x/22mm |
| Objectives | Infinity Plan LWD Bright field/Dark field metallurgical objective 5x-DIC WD=11mm |
| Infinity Plan LWD Bright field/Dark field metallurgical objective 10x-DIC WD=9.5mm | |
| Infinity Plan LWD Bright field/Dark field metallurgical objective 20x-DIC WD=3.4mm | |
| Infinity Semi-APO plan LWD Bright field/Dark fieldmetallurgical objective 50x WD=7.5mm | |

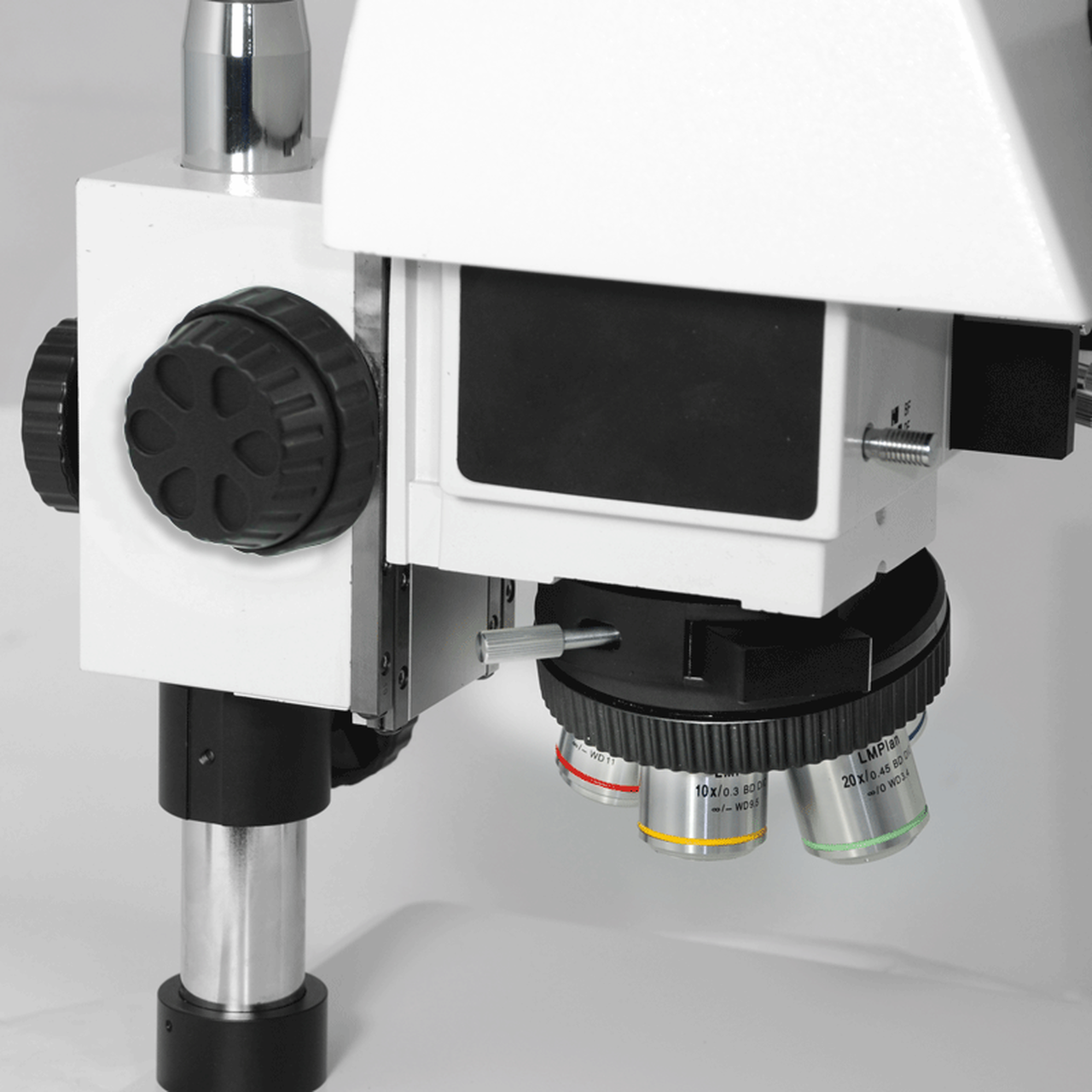

| Nosepiece | Backward quintuple nosepiece for bright field & dark field，with DIC slot. |

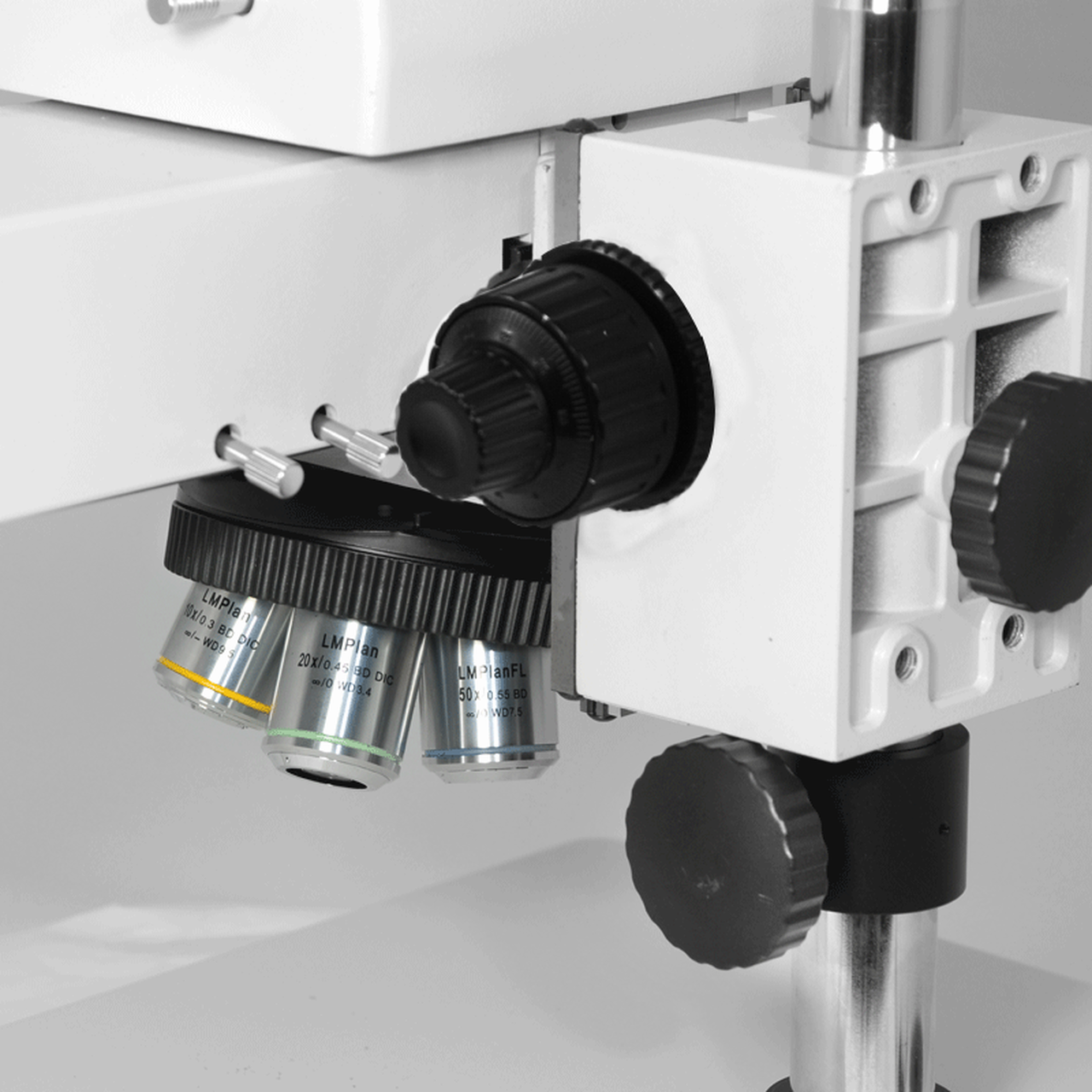

| Focusing | Coaxial coarse and fine adjustment, coarse adjustment distance 45mm,precision of fine adjustment:0.002mm,with tense adjusting device to prevent gliding |
| Base | B5 big flat base, size 320mmX260mmX16mm,post height 280mm,diameterφ32mm |

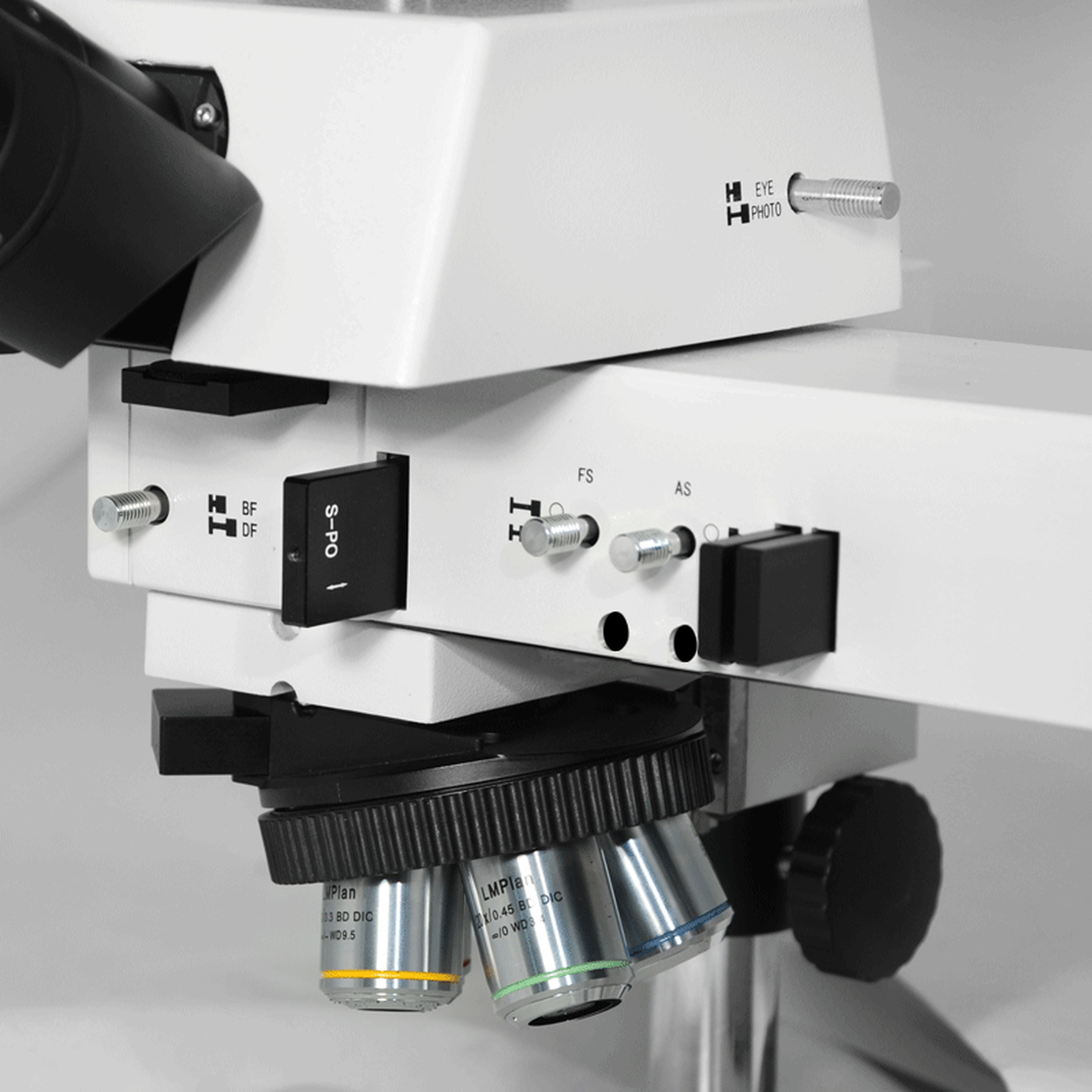

| Reflected illumination system | With iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device between bright field and dark field. |
| Polarizing Attachment | Fixed analyser flashboard |
| 360°rotatable analyser flashboard | |
| Illuminaor | 15V150W cold halogen lamp, intensity continuously adjustable; single fiber hose（550mm） |
Optional Accessory
| Name of Parts | Order No. | |
| Eyepiece | Wide field plan eyepiece PL 10x/22mm with reticle | PL10X22r |
| Wide field plan eyepiece PL 10x/22mm,diopter adjustable | PL10X22T | |
| Wide field plan eyepiece PL 10x/23mm,diopter adjustable | PL10X23T | |
| DIC Kits | MX-DICR | |
| Objectives | IInfinity semi-APO plan achromatic LWD Bright field/Dark fieldmetallurgical objective 100x WD=2.1mm | OLIPBD100NCS |
| Filter | Interference bule filter ≤480nm | IF-B |
| Interference green filter 520nm-570nm | IF-G | |
| Interference red filter 630nm-750nm | IF-R | |
| Interference neutral filter | IF-LBD | |
| Photo Attachment | Digital photo adapter (for C-mount and photo eyepiece) | |
| Vidio Attachment | 1/2 CTV C mount, focusing control | MX-CTV0.5 |
| Single Fiber Hose | 1000mm | |
| 1500mm | ||
