Description
MTL.03.200M has a standard magnification range of 50X-500X (1000X and 1600X can be reached with optional eyepieces and objectives). It comes with wide field eyepieces, long working distance Plan achromatic objectives, a large mechanical stage, coaxial coarse and fine focusing system, and transmission illumination. This microscope is an ideal microscope for metallurgical labs, foundries for silicon wafer inspection, and quality control applications.
Features
- FourWide-field magnification settings:50X, 100X, 200X, 500X
- Long working distance plan achromatic objectives
- Inverted frame configuration and large mechanical stage allow viewing large specimen
- Transmission Koehler illumination with alterable aperture diaphragm
Specification
| Optic System | Color-corrected infinity optic system |
| Head | Gemel trinocular, 45°inclined, Diopter adjustment ±5 for each side, Interpupillary distance adjustable between: 54-75mm Beam Split: binocular:trinocular =80%:20% |
| Eyepieces | High Eye point Wide Field Plan eyepiece:PL10X/18mm |
| Long Working Distance Plan Achromatic Metallurgical Objective | PLL5X/0.13 WD: 15.5mm |
| PLL10X/0.25 WD:8.7mm | |
| PLL20X/0.4 WD: 8.8mm | |
| PLL50X/0.6 WD: 5.1mm | |
| Nosepiece | Quadruple nosepiece |
| Stage | Size:180x155mm, moving range:75x40mm, precision: 0.1mm |
| Focus | Low position coaxial coarse and fine focusing with tightness adjustable, Coarse adjustment range 38mm, precision of fine focusing:0.002mm |
| Illumination Unit | Transmission Koehler illumination with alterable aperture diaphragm and centerable field diaphragm, wide-range voltage 90-240v, 6v-30w halogen bulb and brightness adjustable |
Optional accessories
| Items | Specification | Order No. |
| Eyepiece | Plan eyepiece PL10x/18R with retical | EYE.03.10X |
| Objectives | LWD Plan Achromatic Metallurgical Objective PLL100xs | OBJ.03.100X |
| Nosepiece | Quintuple nosepiece | MTL.03.5N |
| Filter | Yellow filter (Dia:32mm) | MTL.03.YF |
| CCD adapter | 1x CCD adapter | MTL.03.C1X |
| 0.5x CCD adapter | MTL.03.C0.5X | |
| Illumination Attachment | Transmission Koehler illumination with alterable aperture diaphragm and centerable field diaphragm with 3W LED lamp | MTL.03.KL |
| Polarizing Attachment | Polarizer, Analyzer 360° rotatable | MTL.03.PL |
Packing list
- PL10x eyepieces, one pair
- 5x long working plan metallurgical objective
- 10x long working plan metallurgical objective
- 20x long working plan metallurgical objective
- 50x long working plan metallurgical objective
- Transmission Koehler illumination system
- Quadruple nosepiece
- one large mechanical stage
- Power cord
- Dust cover
- Instructions

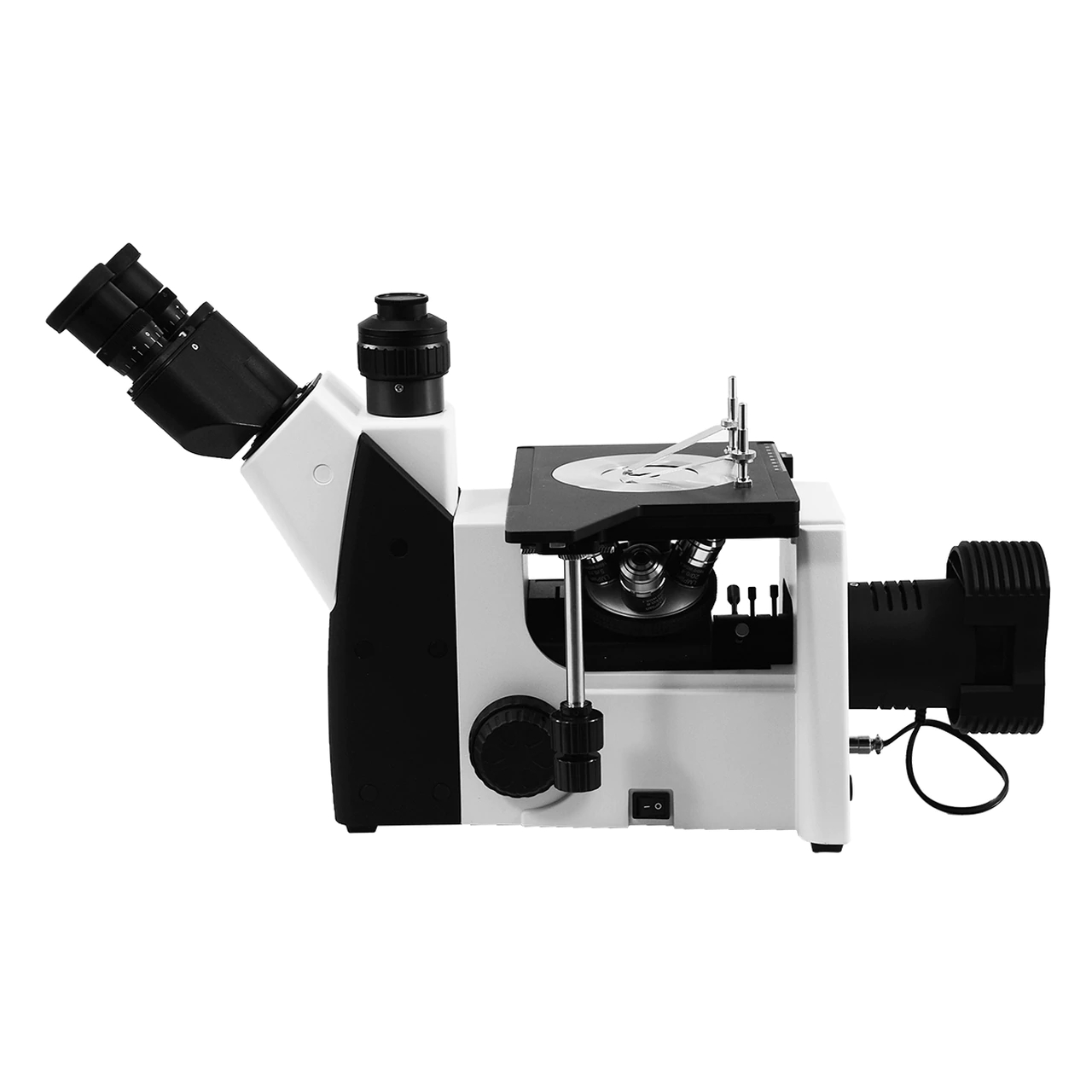

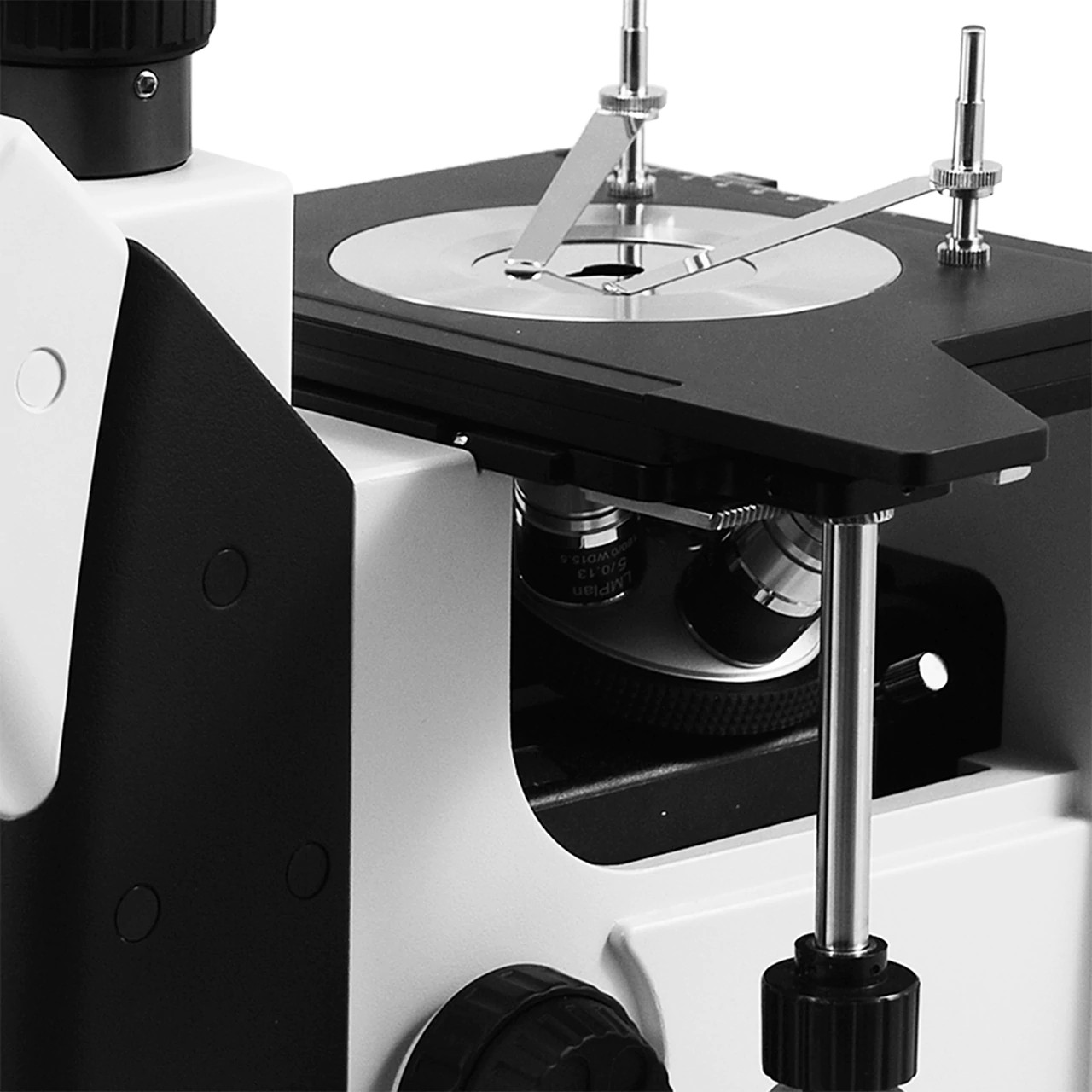

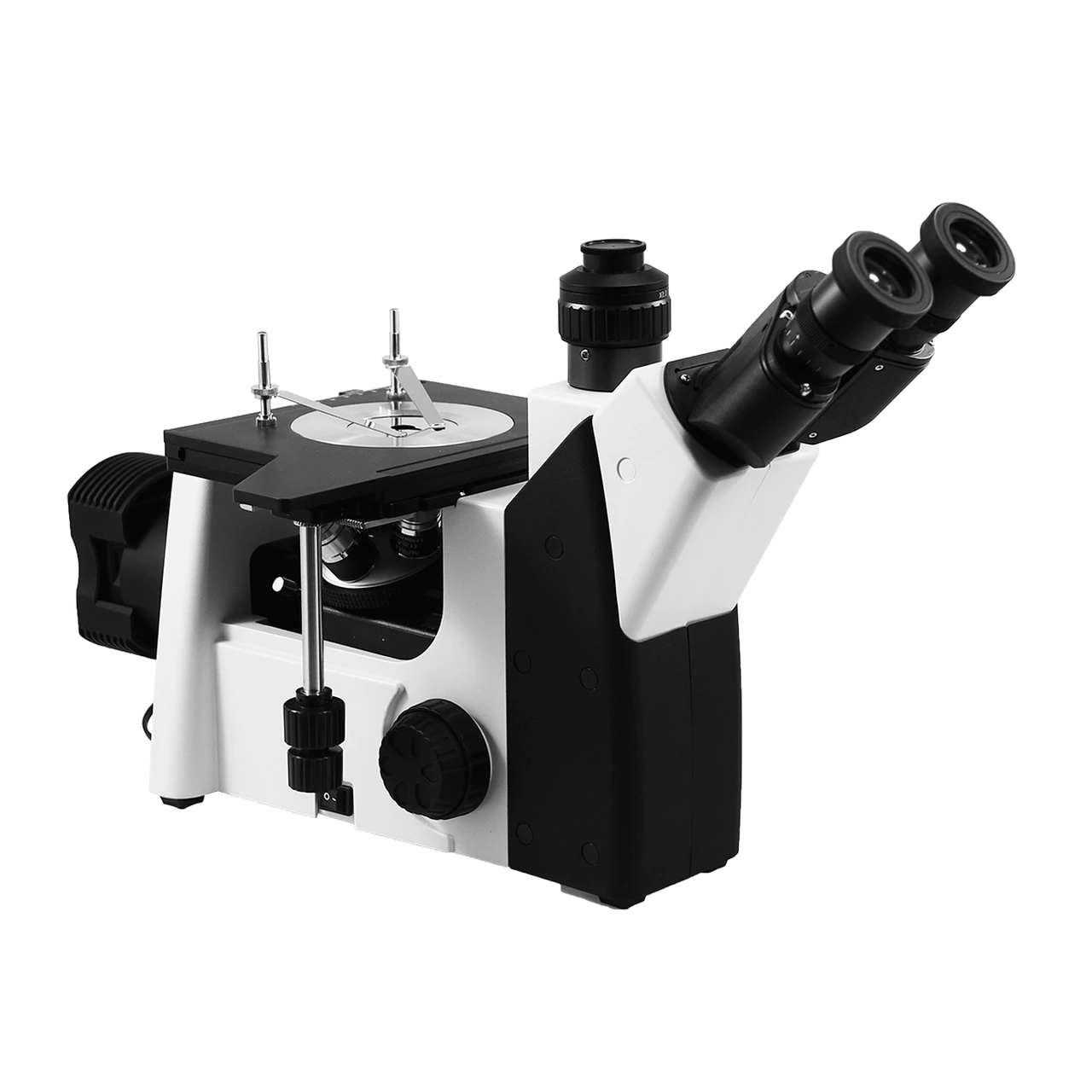

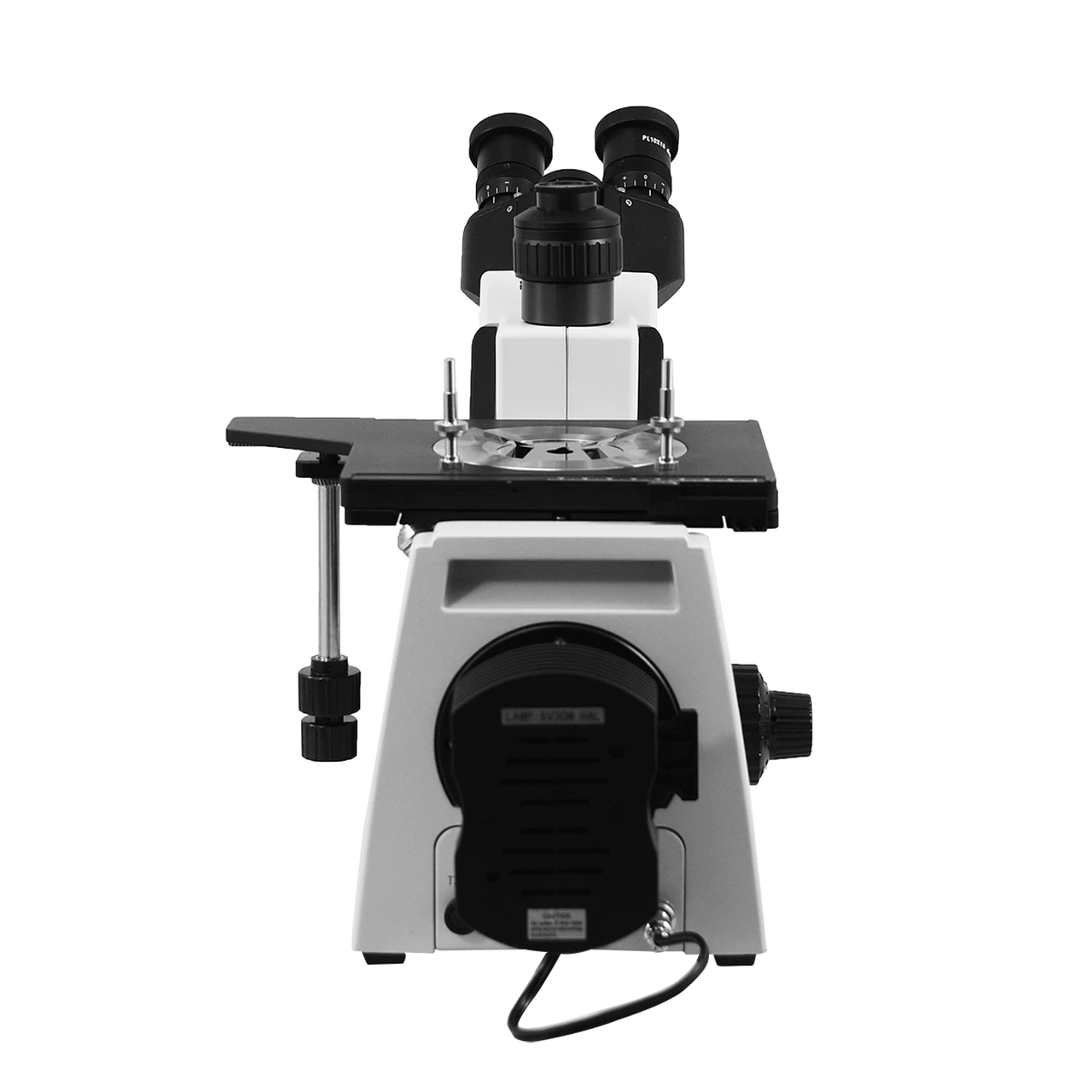

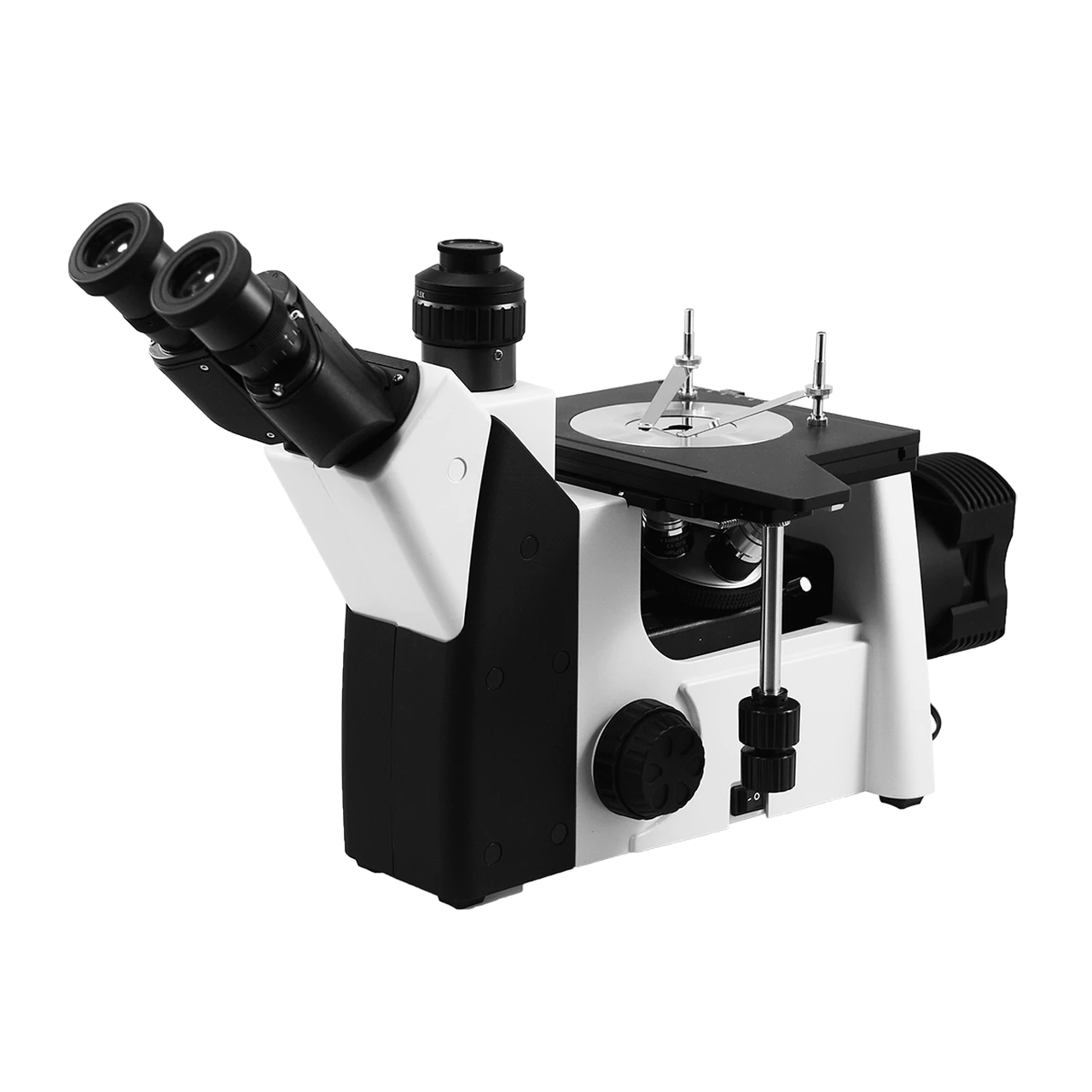

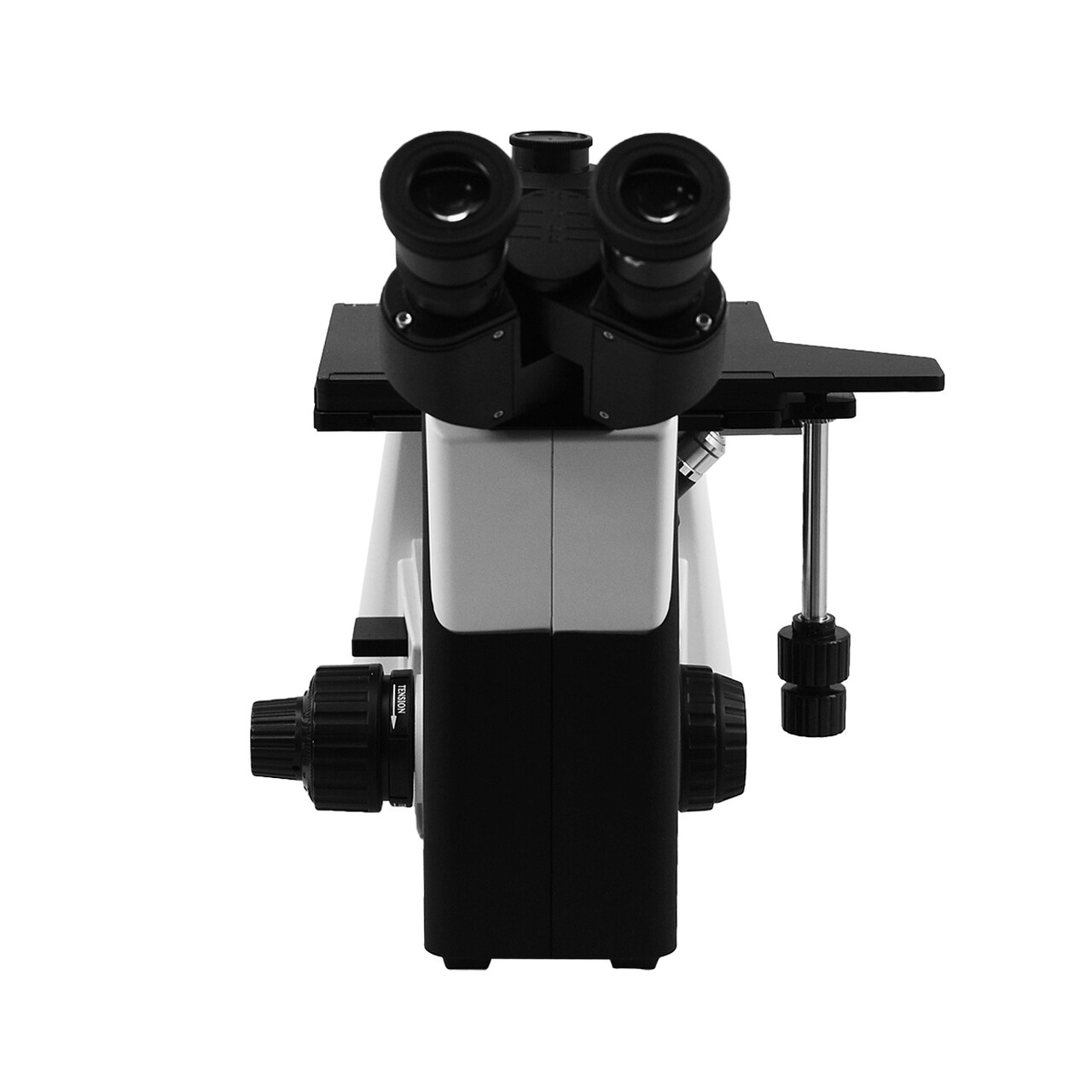

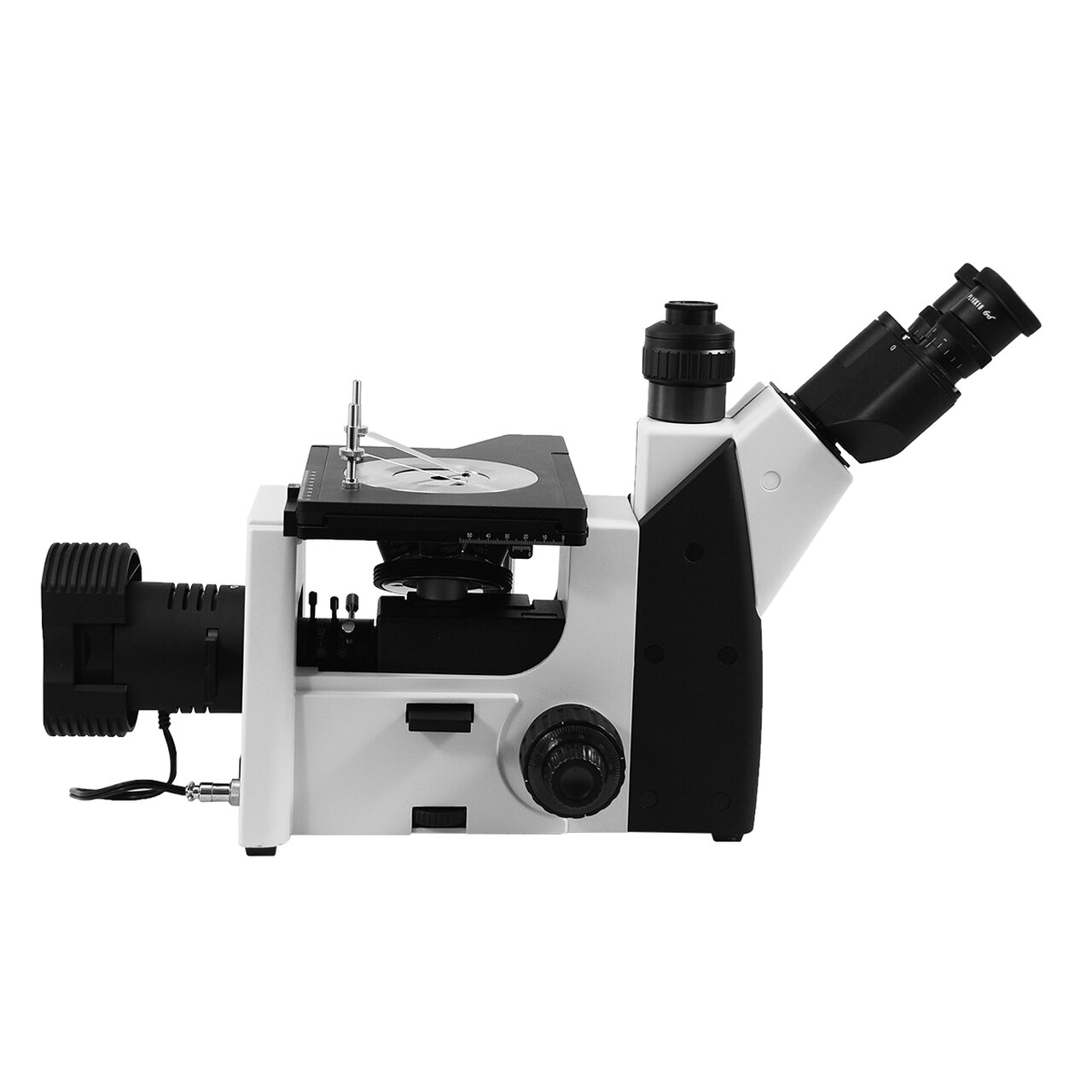

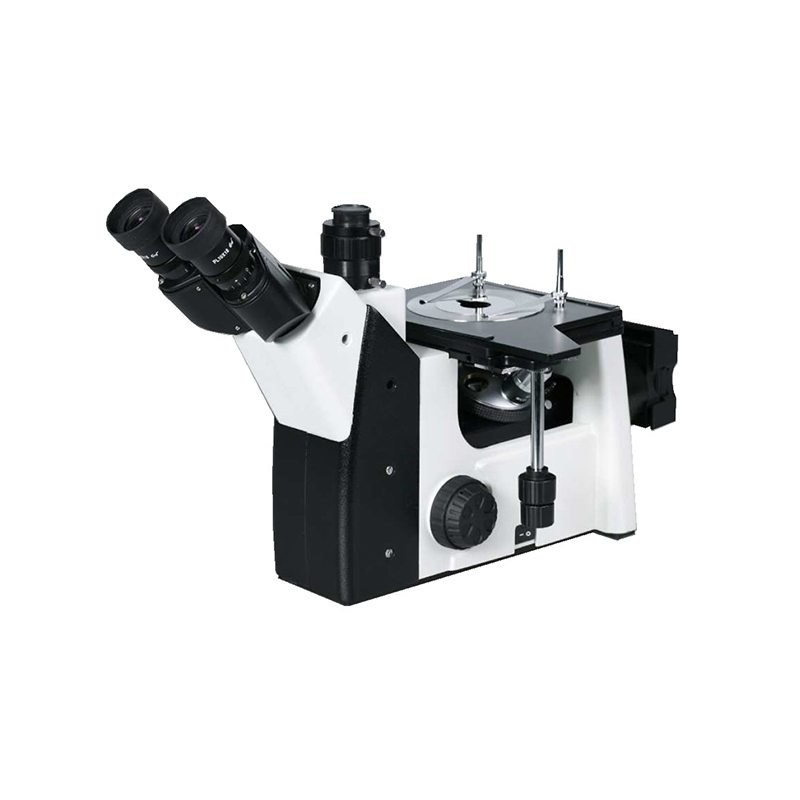

Photo of this model is as following.
