LGT2820W 20W Microscope LED Illuminator

Category

CONTACT US

LGT2820W 20W Microscope LED Illuminator

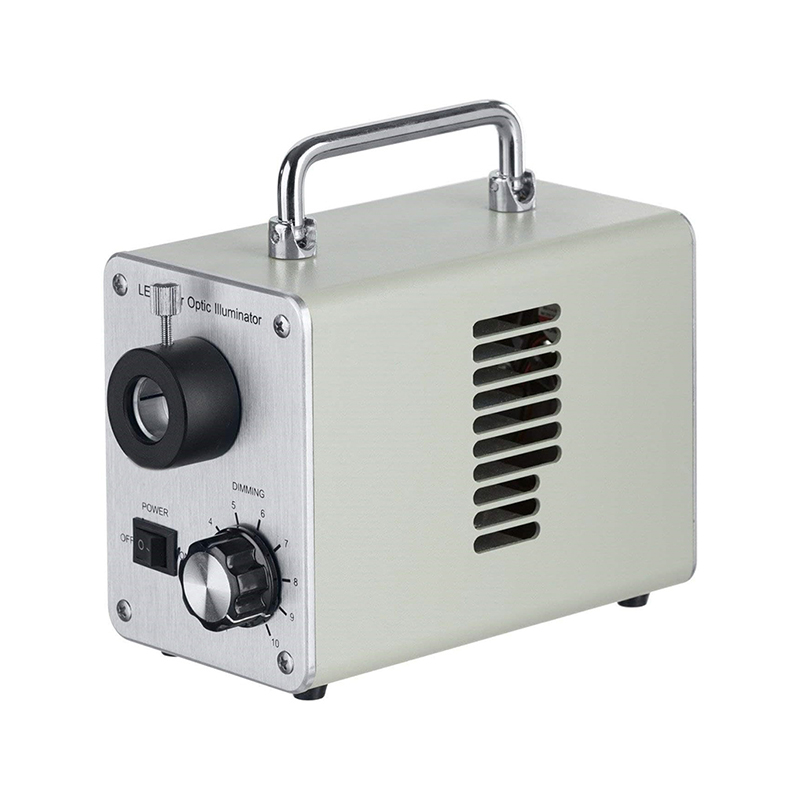

LGT2820w/30w/50w, this series of LED fiber optic microscope illuminators provide strong, even and cool daylight illumination. It comes with 20W/30W/50W LED light source. The light source has a built-in heat filter for cool light . This LED light has radiator and cooling space which allows no cooling off time needed after use. The inside fan design also allows the unit to work with very low noise. This cool high intensity lighting system is excellent for biological and electronic applications.

Product Description

Specification

MODEL LGT2850W LGT2830W LGT2820W
Power 50W s
30W s
20W s
LED Brightness >2250LM s
>1750LM s
>1250LM s
Color Temperature Typical 6400K (or Customized s s s
Color Reproduction Index 70 s s s
Supply Voltage 12VDC s s s
Current Consumption 3000mA s s s
AC Adapter input 100-240V/50-60Hz s s s
Products Dimension 270mm X 100mm X 138mm s s s
Enclosure Aluminum Body ,Painted ,IP20 s s s
Forced Cooling, Fan Noise 48db s s s
Fan Life 30,000h s s s
Weight 2.1Kg(4.61bs) s s s
Ambient Temperature Operation:0°-40°/32°F-104°F s s s
Storage:0°-50°/32°F-122°F s s s
Humidity MAX:95%,Relative,Not Condensing s s s
Casing Material Aluminum s s s

Product Show

LGT2820w/30w/50w, this series of LED fiber optic microscope illuminators provide strong, even and cool daylight illumination. It comes with 20W/30W/50W LED light source. The light source has a built-in heat filter for cool light . This LED light has radiator and cooling space which allows no cooling off time needed after use. The inside fan design also allows the unit to work with very low noise. This cool high intensity lighting system is excellent for biological and electronic applications.
