LGT19ITG Integrated Microscope Illuminator

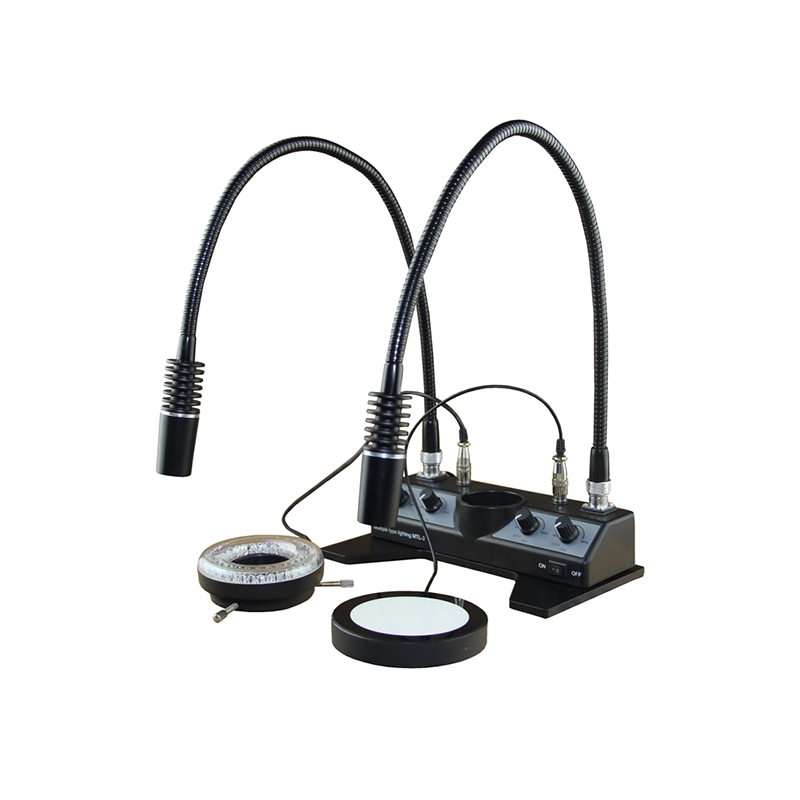

LGT19ITG is a multi-direction LED illumination source, has four independently-controlled light-sources, including a ring light, two gooseneck lamps and an illuminated stage-plate. The ring light works as a top illuminator, the stage plate offers transmitted illumination, while the two gooseneck offers light from different angles. This light source set can be used for the inspection of translucent samples, biological specimens and also electronic items.

Product Description

Specifications

Main Functions Multi-directional illumination
Ring light output 4W even illumination
Gooseneck output 3W for each gooseneck
Stage plate output 2W transmitted illumination
Illumination control Separately controlled illumination
Brightness Adjustable
Color temperature 6500K (daylight-balanced light)
Power Input DC 5V, 4A

Packing list

  • Two goose-neck illuminator
  • One LED ring light
  • One illuminated stage-plate
  • One control board
  • One power adapter

Product Show

LGT19ITG is a multi-direction LED illumination source, has four independently-controlled light-sources, including a ring light, two gooseneck lamps and an illuminated stage-plate. The ring light works as a top illuminator, the stage plate offers transmitted illumination, while the two gooseneck offers light from different angles. This light source set can be used for the inspection of translucent samples, biological specimens and also electronic items.
