Features
- Adopting UCIS Infinity Independent Achromatic Optical System

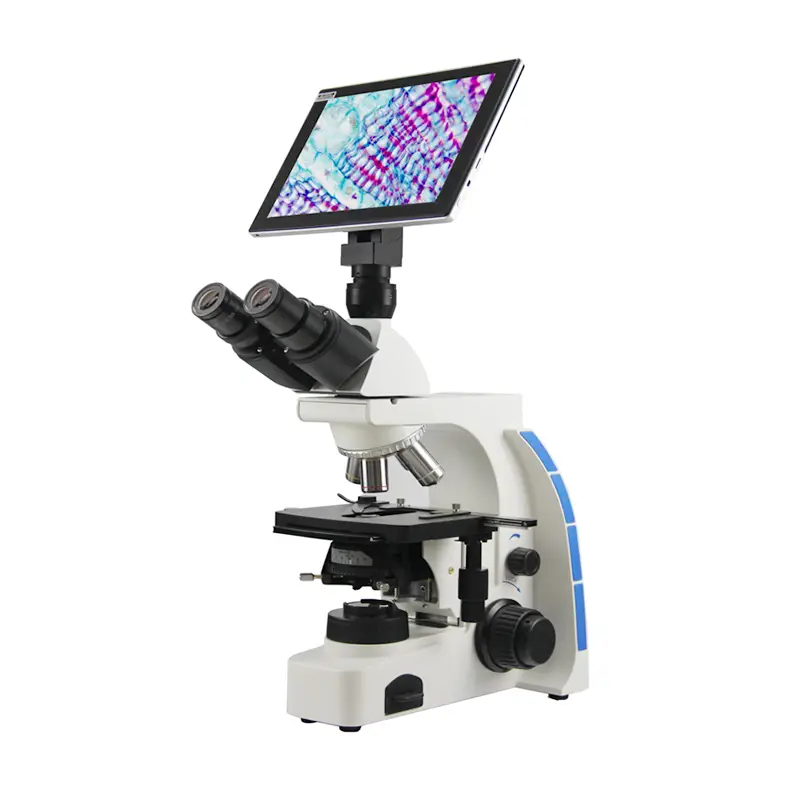

- Equipped with 5MP pad camera
Microscope Specification
| Head | Binocular head, 30°inclined, 360°rotatable, interpupillary distance 52-75mm, Diopter adjustment: +5 to -5 |
| Eyepiece | WF10X/20mm, high eye-point up to 21mm |
| Objectives | Infinity Plan 4X/0.1 WD=13.21mm |
| Infinity Plan 10X/0.25 WD=5.03 mm | |
| Infinity Plan 40X/0.65 WD= 0.72mm | |
| Infinity Plan 100X/1.25 WD= 0.17mm | |
| Nosepiece | Backward quadruple nosepiece |
| Focus System | Low position coaxial focus system with coarse/fine adjustment |
| Coarse adjustment: 14mm per rotation | |
| Fine adjustment: 0.1mm per rotation; division of fine focusing: 0.001mm | |
| Stage | Double layers, size 156x138mm, moving range 76x54mm. Low positioned X-Y coaxial control knob, capable of holding two specimen slides |
| Condenser | Abbe N.A.1.25 with aperture iris diaphragm and with socket to accommodate Phase Contrast slide; Condenser center adjustable, color-coded diaphragm scale markings corresponded with the objectives of different power. |
| Filter | Blue filter |
| Light source | 6V 20W halogen lamp, Kohler illumination with field diaphragm, easy to replace bulb. |
| Power | 100-240V wide power range |
| Weight | 9kg |
Pad Camera Specification
| Screen Size (diagonal) | 9.7″ |
| Operating system | Android |
| CPU | 1.8GHz |
| Memory | 2GB (DDR3) |
| Internal Storage | 2GB |
| External Storage | MicroSD (TF) 32GB max, USB |
| Display Type | Touchscreen LCD |
| Display Resolution | 2048 x 1536 |
| Display Mount | 360° rotation, 90° tilt |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/2.5″ |
| Active Pixels | 5M (2592 x 1944) |
| Pixel Size | 2.2µm x 2.2µm |
| Active Sensor Area | 5.70mm x 4.28mm |
| Shutter | electronic rolling shutter |
| Photo Capture Resolution | 2592 x 1944 |
| 2048 x 1536 | |
| 1600 x 1200 | |
| Connectivity | Micro HDMI |
| USB 2.0 | |
| Wi-Fi | |
| Lens-mount | C-mount |
| Power | 110-220VAC |
Optional Accessories
| Items | Specification |
| Head | Binocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm |
| Trinocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm | |
| Eyepiece | WF10x/22mm, High Eyepoint up to 21mm |
| WF16x/13mm, High Eyepoint up to 21mm | |
| Retical Eyepiece WF10x/20mm | |
| Objective | Infinity Plan 20X/0.4/0.17, WD=2.71mm |
| Infinity Plan 60X/0.80 /0.17, WD=0.35mm (Spring) | |
| Nosepiece | Quintuple reversed nosepiece |
| Light | Upgrade to LED 3W |
| Filter | Green filter |
| Yellow filter | |
| Frosted Glass | |
| Polarizing Kit | Analyzer + Polarizer |
| Dark Field | Dark field condenser, dry, for objective 4x,10x,40x,100x |
| Centering telescope | Centering telescope |
| Phase-contrast Condenser: | Phase-contrast Condenser: NA:1.25, for 10X to 100X |
| Phase Contrast Slider, for Infinity Plan Phase Contrast Objective | 10x |
| 20x | |
| 40x | |
| 60x | |
| 100x | |
| Infinity Plan Phase Contrast Objective, Positive | 10x |
| 20x | |
| 40x | |
| 60x | |
| 100x | |
| Infinity Plan Phase Contrast Objective, Negative | 10x |
| 20x | |
| 40x | |
| 60x | |
| 100x | |
| Fluorescence Attachment | Fluorescence Set 100W |
| Omega Excitation Filter | UV |
| V | |
| B | |
| G | |
| Adapter | CCD 1.0x |
| CCD 0.5x | |
| CCD 0.25x | |
| Canon EOS digital Adapter |
