Description

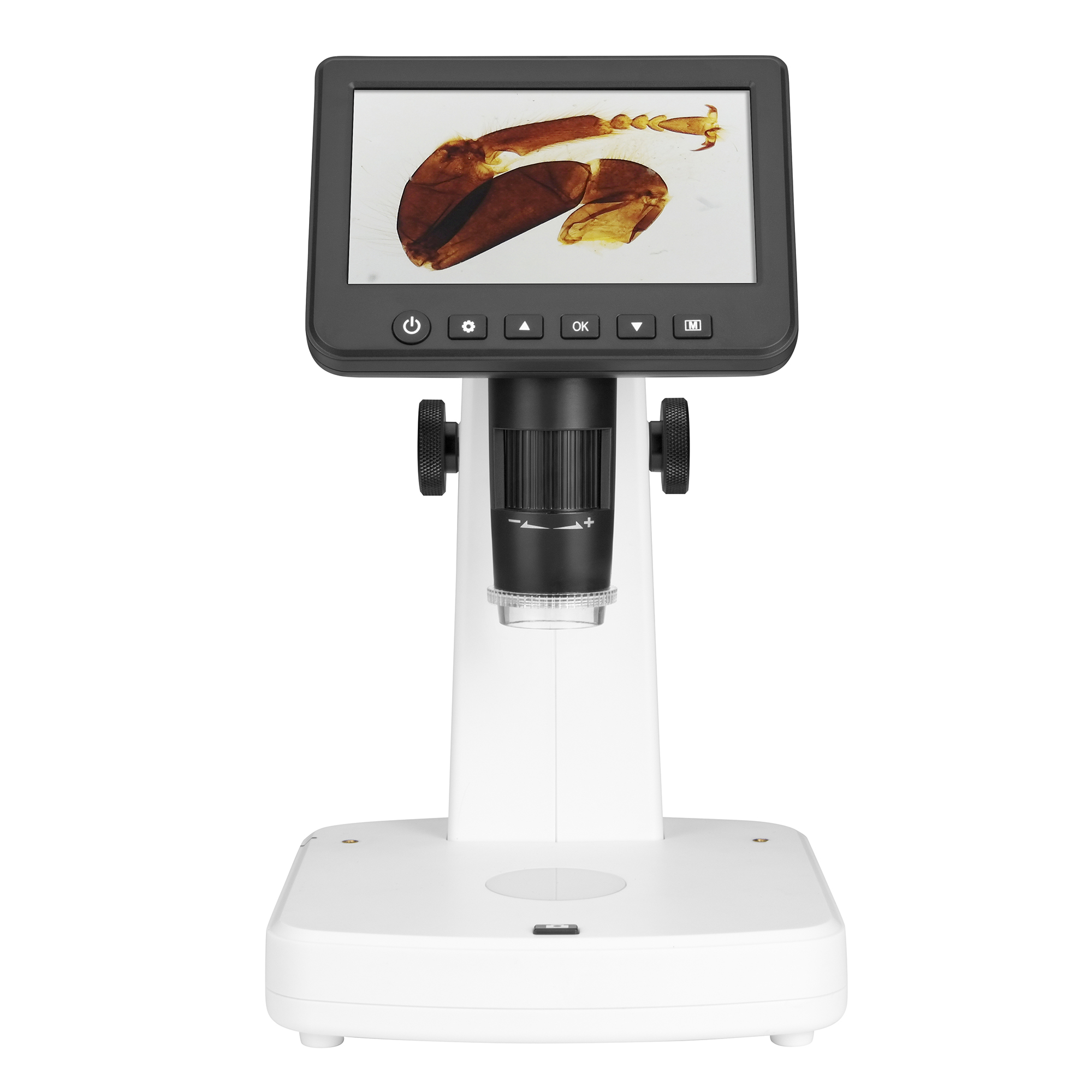

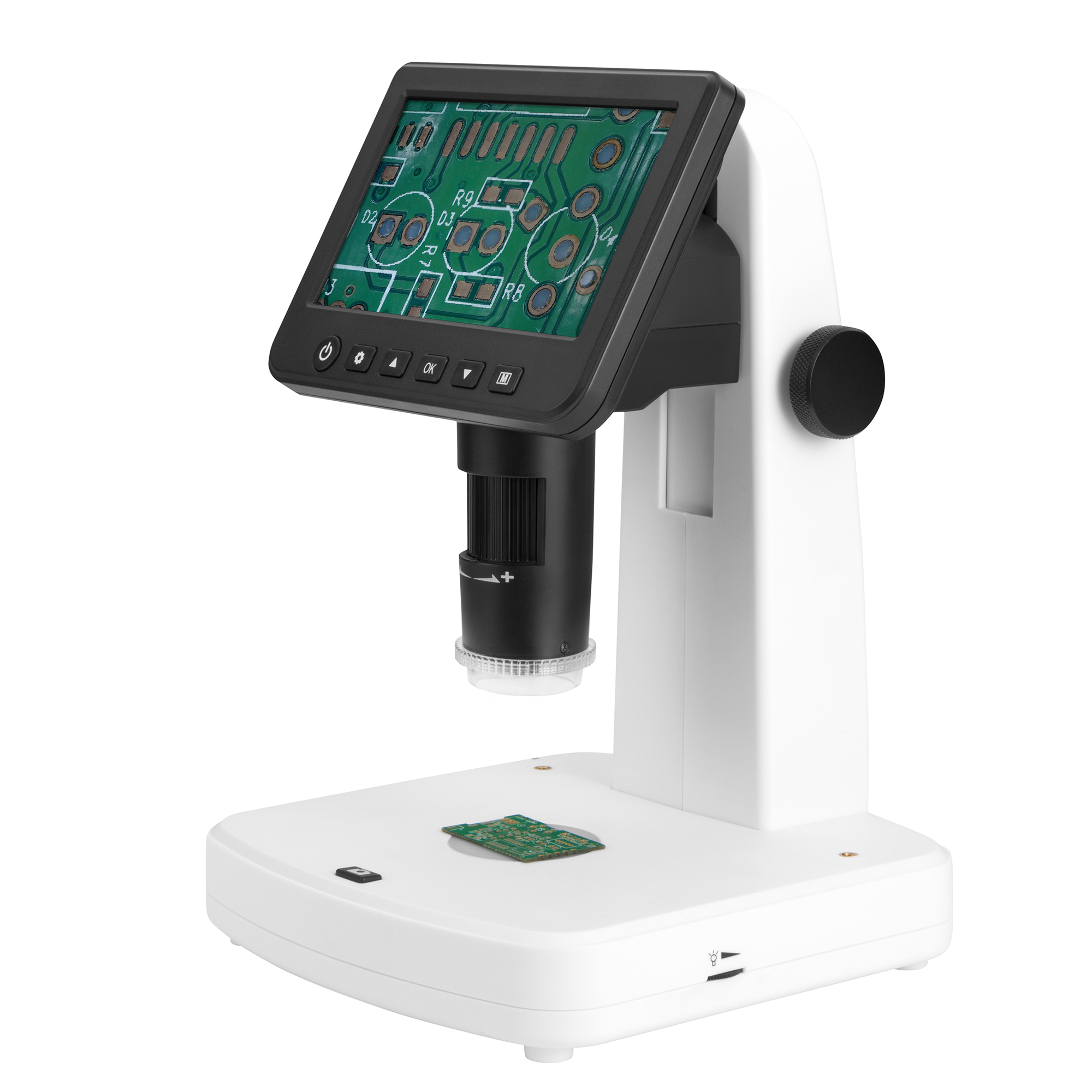

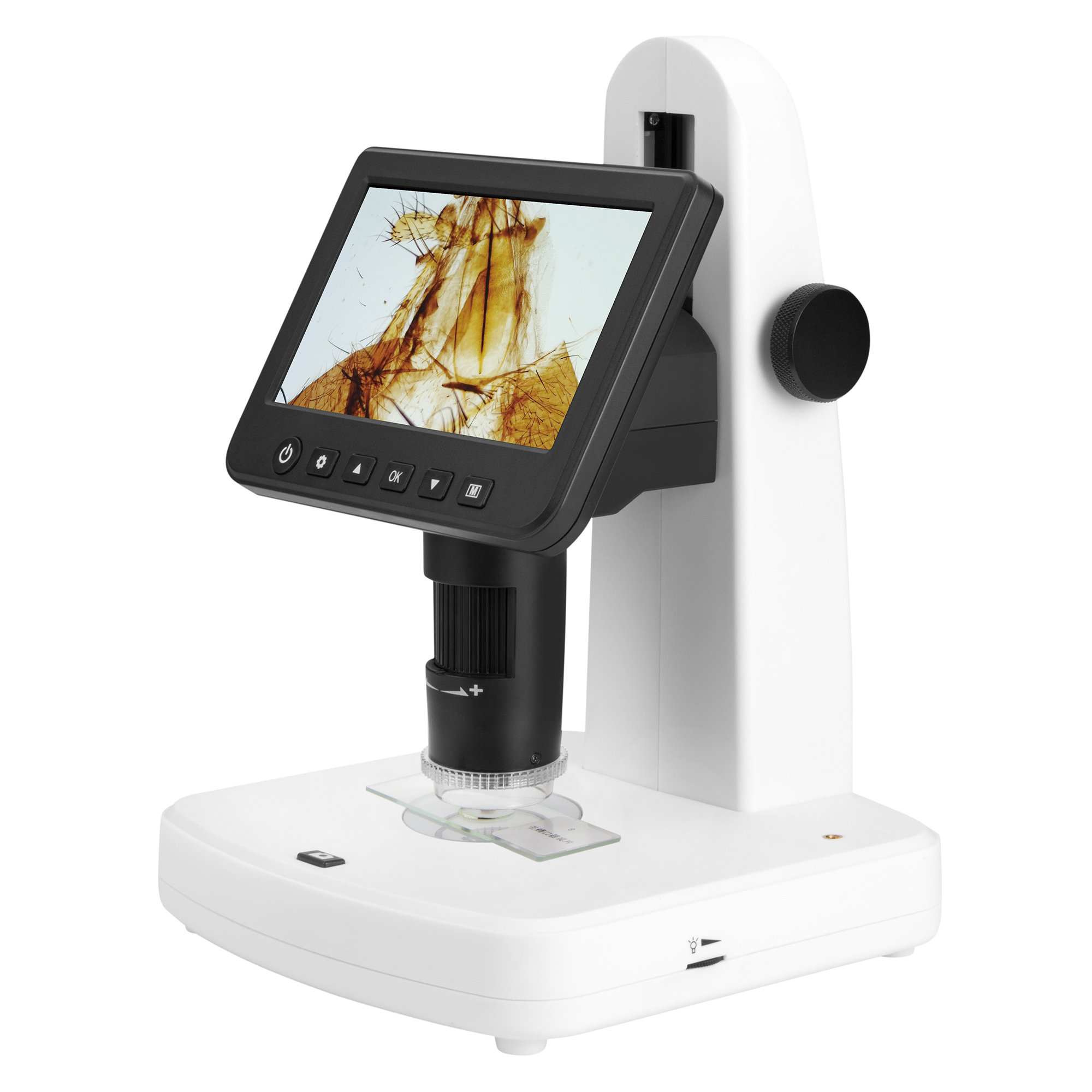

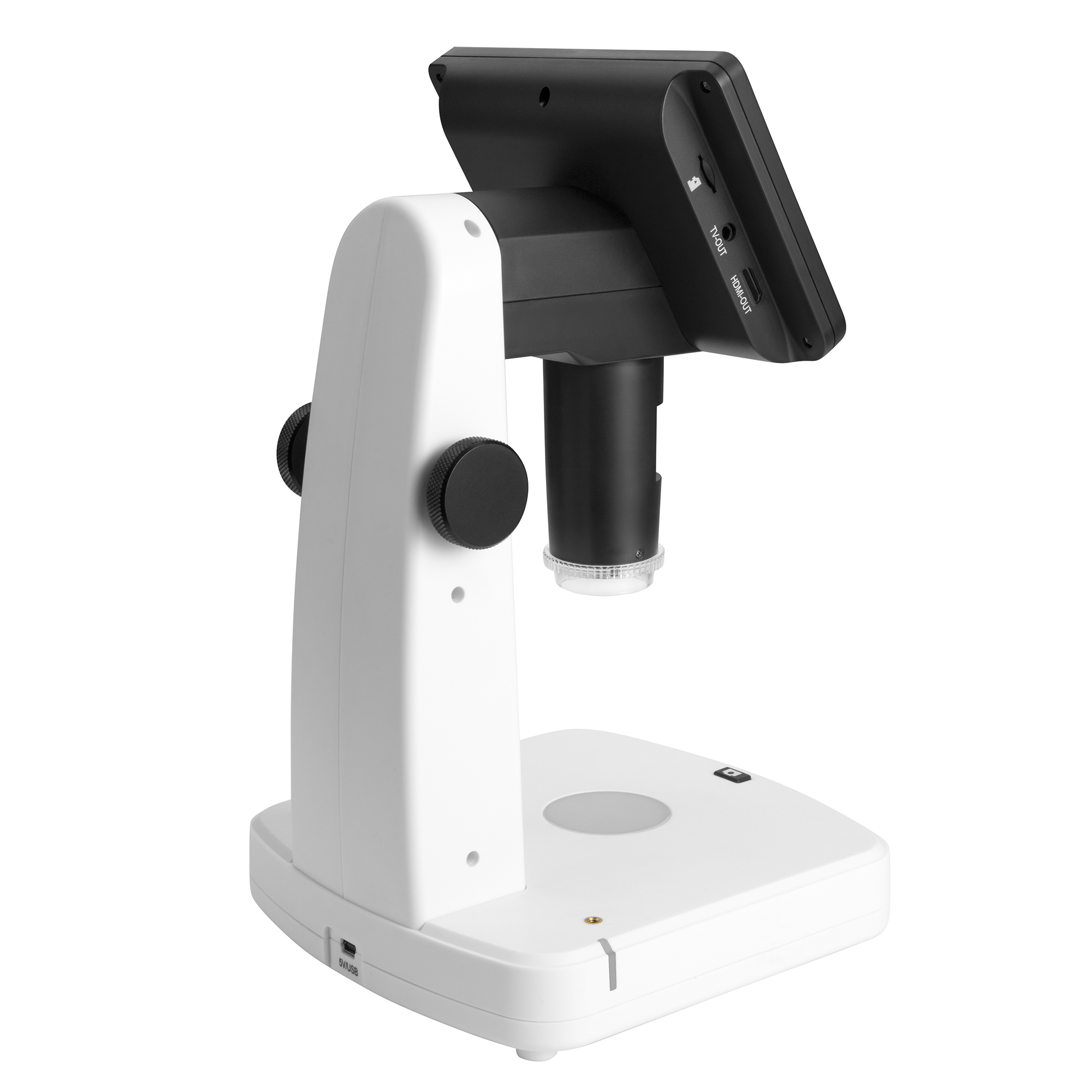

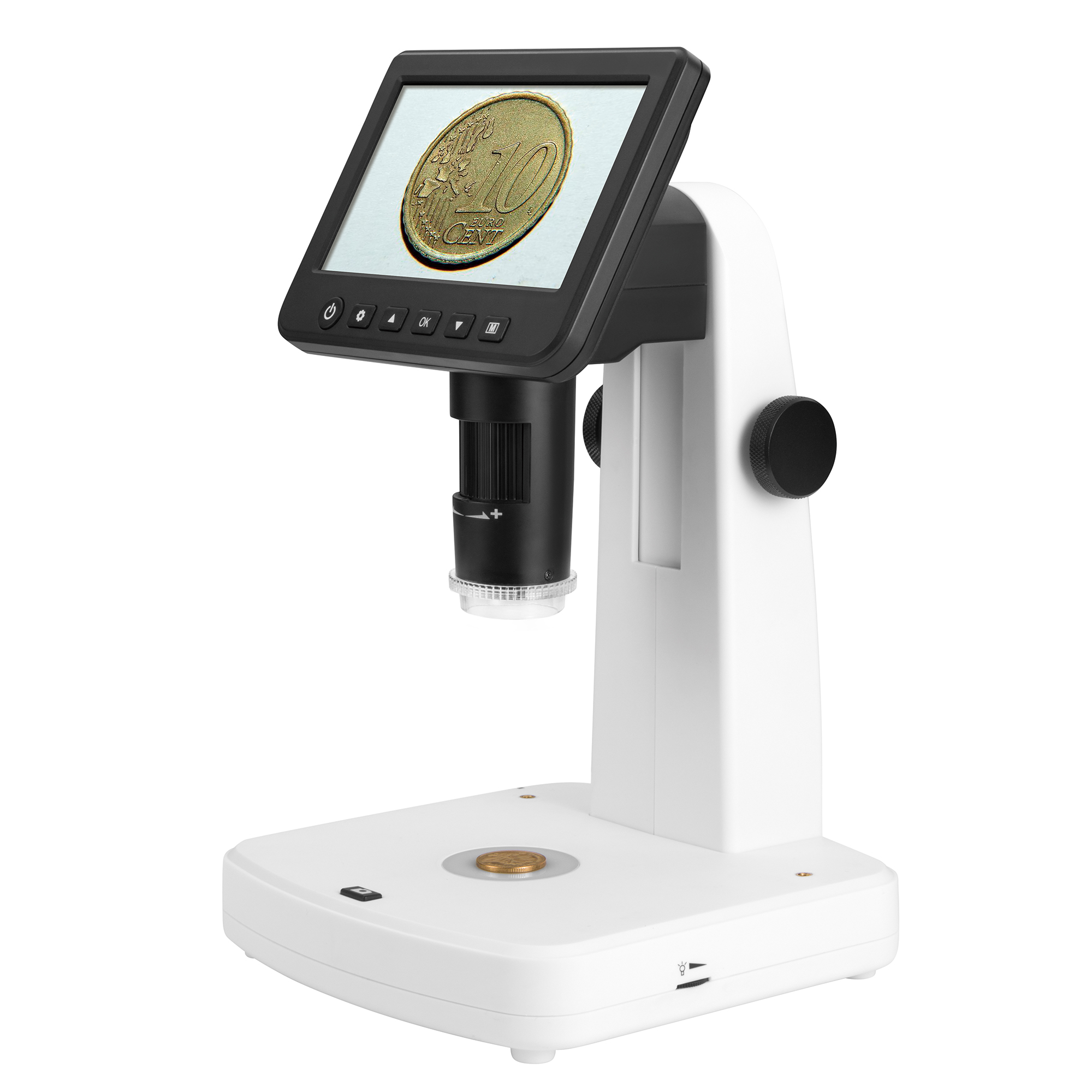

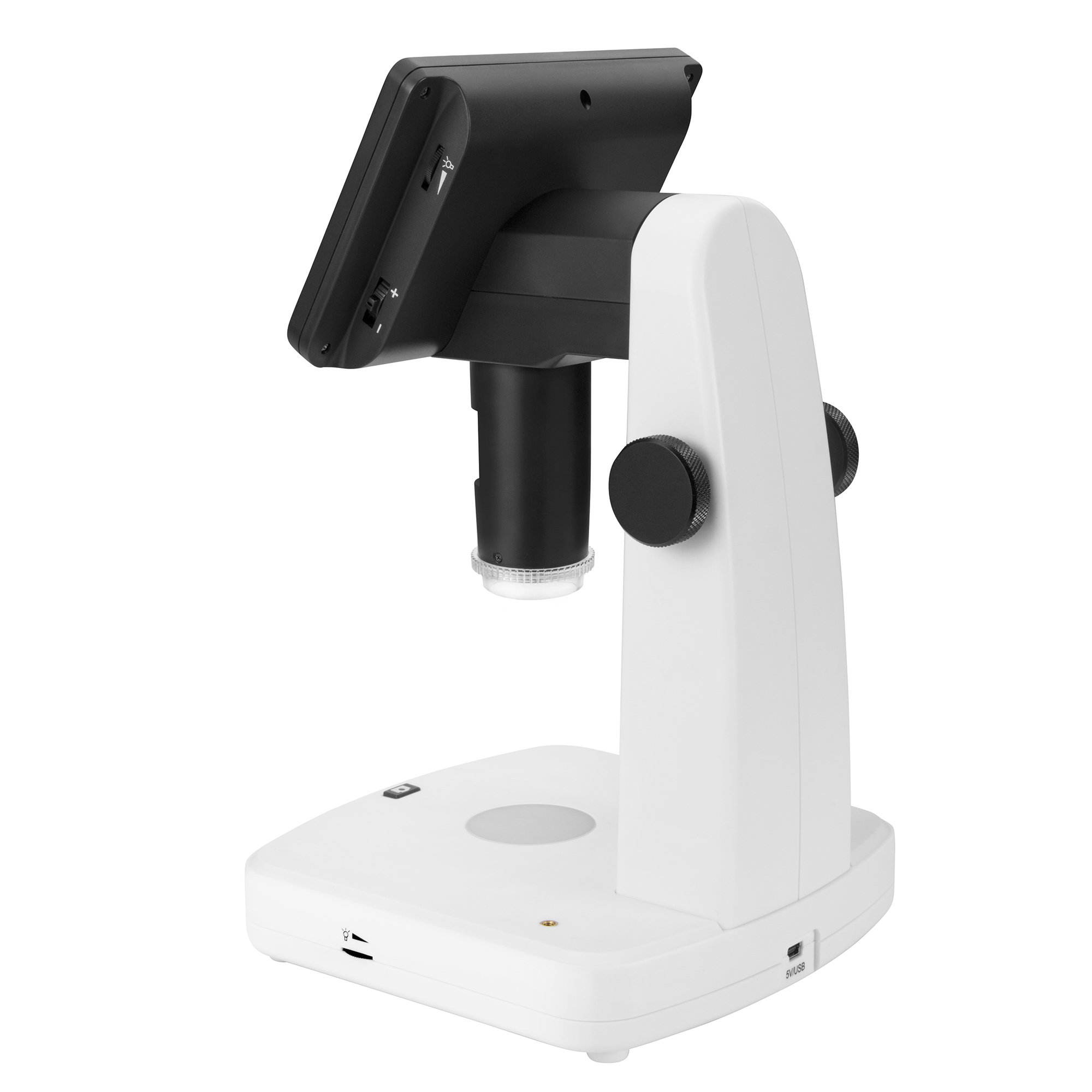

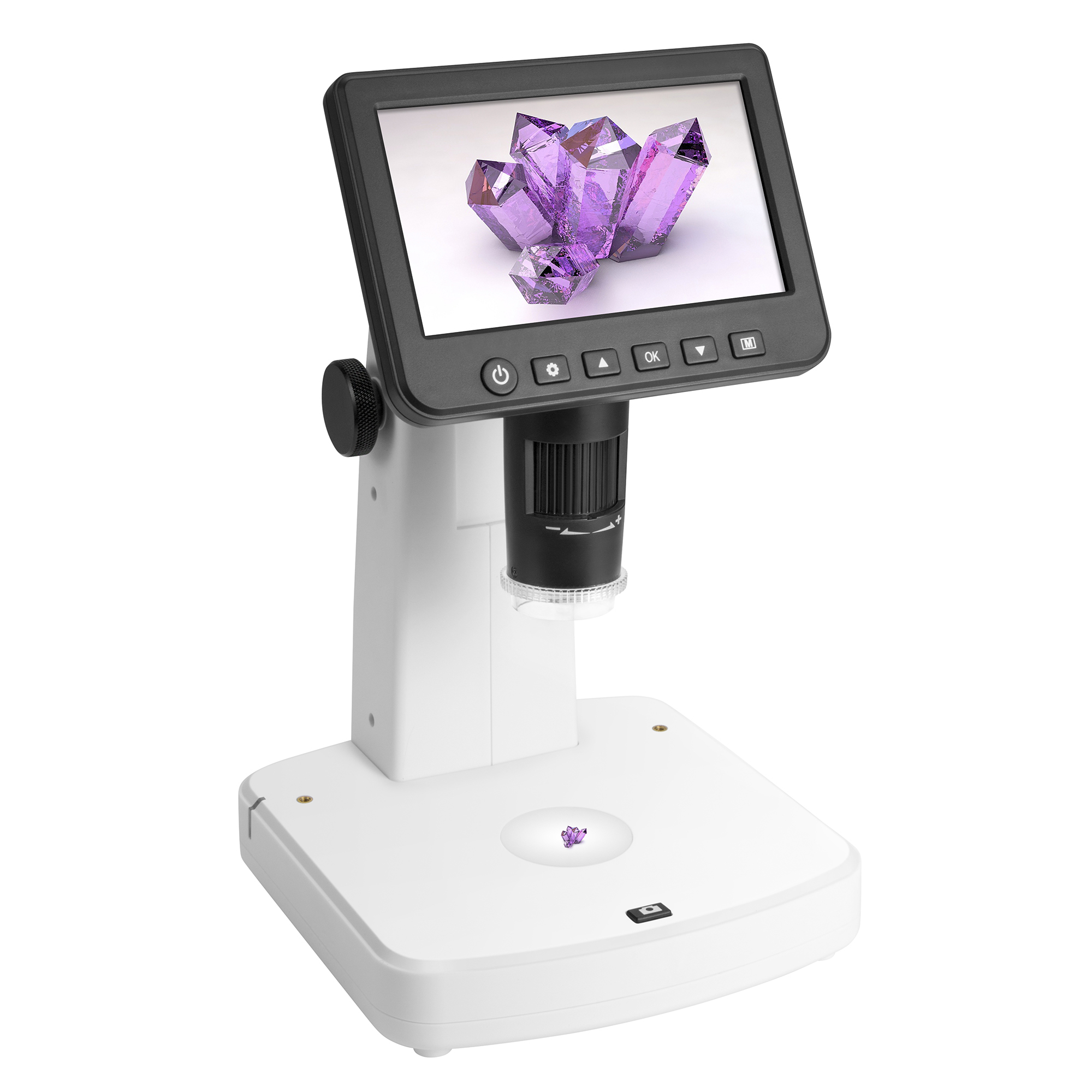

LCD.44.58 portable LCD microscope, it is equipped with a 5 inch LCD screen and polarizer and zoom body. It is a good choice for inspecting coins, stamps, and PCB board. With the polarizer, this microscope is especially good for inspecting those items with reflection.
Key Features
- Equipped with 5 inch LCD display
- HDMI&AV output
- Polarizer helps to reduce surface reflection
Specification
| Polarizer | Switchable polarizer |
| LCD Display | 5-inch IPS, 960×540 |
| Photo resolution | 12M, 10M, 8M, 5M, 3M, 2M |
| Video resolution | 1080p/720p |
| Focus Range | Manual focus from 5mm to 70mm |
| Magnification Ratio | 10x to 300x, up to 1200x by digital |
| Output to external monitor | By HDMI or TV |
| Storage | By Micro-SD card (not included) |
| Light source | 8 LED (adjustable by control wheel) |
| Powered by | Built-in rechargeable battery & Power adaptor |
| Measurement | By software (PortableCapture with OSD language: English, German, Spanish, French, Russian) |
| OSD language | English, German, Spanish, French, Russian, Japanese, Chinese etc. |
| Bundle software | PortableCapture Plus for Windows & Mac |
| Product Size | 165(L)x158(W)x267(H)mm |
| Weight | 660g |
Standard Packing List
- LCD microscope body
- Power supply adapter
- USB cable and AV cable
- Software CD
- Calibration slide
- User manual
Photos for this camera are in the following pages.
