Features
- Wide magnification settings from 100X to 400X

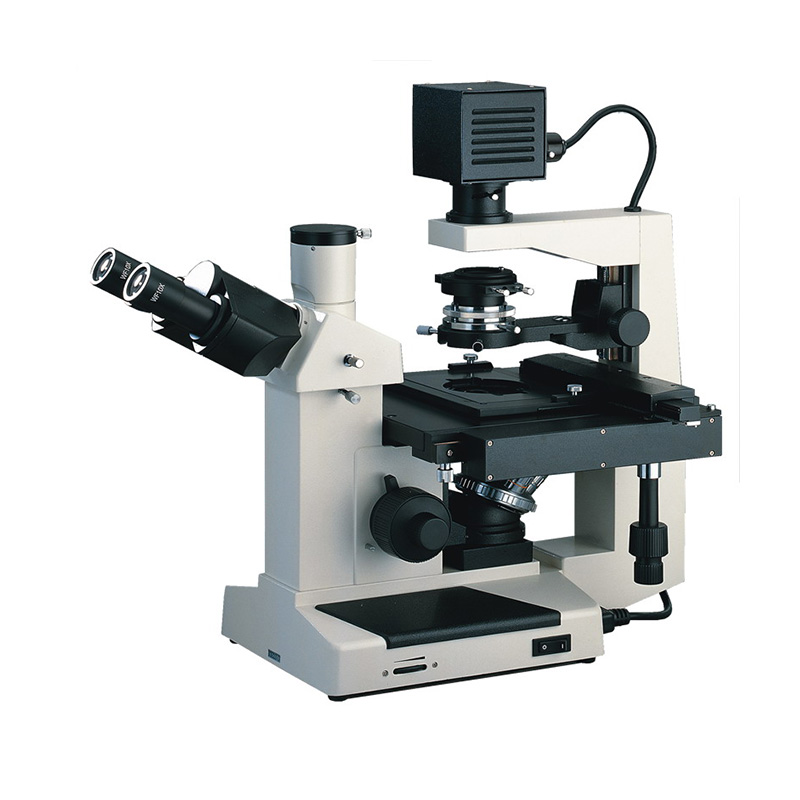

- Professional plan inverted microscope
- Upright photo port for photographic/video capability
Specification
| Eyepiece | WF10X(Φ20mm) |
| Objective | Long working distance plan achromatic PLL10x/0.25 |
| Long working distance plan achromatic PLL25x/0.40 | |
| Long working distance plan achromatic PLL40x/0.60 | |
| Long working distance plan achromatic phase contrast PLL10x/0.25 PHP2 | |
| Head | Trinocular, inclination of 30°,100% image light for photography capable |
| Focus System | Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2um |
| Nosepiece | Quadruple ball bearing inner locating |
| Stage | Double layer mechanical, size 224x208mm, moving range 112x79mm |
| Shelf of Specimen | Match to install Ø68mm, or 77x29mm culture utensil |
| Match to install 82x57mm culture utensil | |
| Match to install 128x85mm 96 holes culture utensil | |
| Filter | Blue filter |
| Green filter | |
| Frosted filter | |
| Sliding Phase Contrast Unit | Centering telescope |
| 10x sliding phase plate | |
| Condenser rack & pinion adjustable, NA=0.4, working distance 50mm | |
| Light Source | 6V 30W halogen lamp with brightness control |
Optional Accessories
| Name of parts | |
| Eyepiece | Wide field WF16x/11mm |
| Dividing 10x/20mm, 0.1mm/Div | |
| Nosepiece | Quintuple (Ball bearing inner locating) |
| Condenser | Ultra long working distance, working distance 70mm |
| Filter | Yellow filter |
| Sliding Phase Contrast Unit | Long working distance plan phase contrast objective PLL25x/0.40 PHP2 |
| Long working distance plan phase contrast objective PLL40x/0.60 PHP2 | |
| Sliding phase plate 25x/40x | |
| CCD Adapter | 0.4x |
| 0.5x | |
| 1x | |
| 0.5x with dividing 0.1mm/Division | |
| DC Adapter | For Canon digital camera adapter (A610, A620, A630, A640) |
