Description
HDMI.17.1080P, a HDMI camera, equipped with advanced Sony color sensor, is characterized by compact design. With built-in C-mount compatibility and various adapters, it can be attached to any microscope, telescope, and endoscope with C-mount. It brings HDMI and USB2.0 output to professionals who require high-definition CMOS color microscopy documentation.
Features
- High definition 1080P HDMI or USB2.0 output (PC or MAC)
- Streaming HDMI output direct to monitor or TV at 60 fps
- HDMI capture resolution of 2.0MP
- Auto white balance for color accuracy
- Multiple cross-hair pointers available
- PC / MAC compatible
- HDMI cable, USB mouse included
Specification
| Sensor model | Sony IMX236(Color) |
| Sensor Size | 1/2.8″(5.5×3.4mm) |
| Pixel | 2.8×2.8μm |
| FPS/Resolution | 60@1920×1080 |
| Binning | 1×1 |
| Exposure | 0.4ms~999ms |

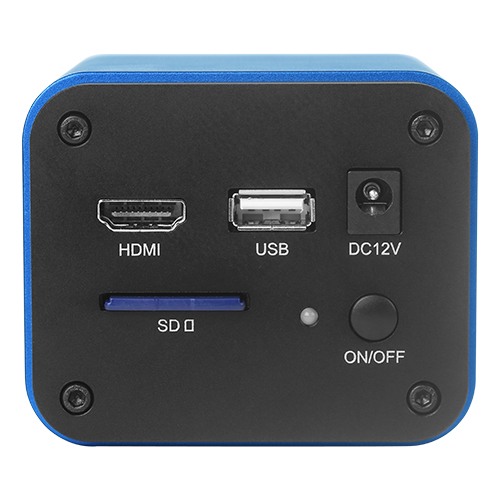

| Interface & Button Functions | |
| USB | USB Camera or USB Mouse |
| HDMI | HDMI Output |
| DC12V | 12V Power in |
| SD | SD Card Slot |
| ON/OFF | Power On/off Switch |
| LED | Power On Indicator |
| Other Specification for HDMI Output | |
| UI Operation | With USB Mouse |
| Image Capture | High Speed in SD Card(8G) |
| Video Record | 1080P 30fps in SD Card(8G) |
| Camera Control Panel | Including Exposure, Gain, White Balance, Color |
| Adjustment, Sharpness and Denoising Control | |
| Toolbar | Including Zoom, Mirror, Comparison, Freeze, |
| Cross, Browser Function | |
| Other Specification for USB Output | |
| White Balance | Auto White Balance |
| Color Technique | Ultra-FineTM Color Engine (USB) |
| Capture/Control API | Standard UVC for Windows/Linux/Mac(USB) |
| Recording System | Still Picture or Movie (USB) |
| Software Environment (for USB2.0 Connection) | |
| Operating System | Microsoft® Windows® XP /Vista /7/8/8.1(32 & 64 bit) |
| OSx(Mac OS X) | |
| Linux | |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory:4GB or More | |
| USB Port:USB2.0 High-speed Port | |
| Display:19” or Larger | |
| CD-ROM | |
| Operating Environment | |
| Operating Temperature | -10~ 50 (in Cent degree) |
| Storage Temperature | -20~ 60(in Cent degree) |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/2A Adaptor |
| Overall Dimensions | Width x Depth x Height 78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”) |
| Shipping Weight | 0.47 kg (1.0lbs) |
Application
- Scientific research, education (teaching, demonstration and academic exchanges);
- Digital laboratory, medical research;
- Industrial visual (PCB examination, IC quality control);
- Medical treatment (pathological observation);
- Food (microbial colony observation and counting);
- Aerospace, military (high sophisticated weapons);

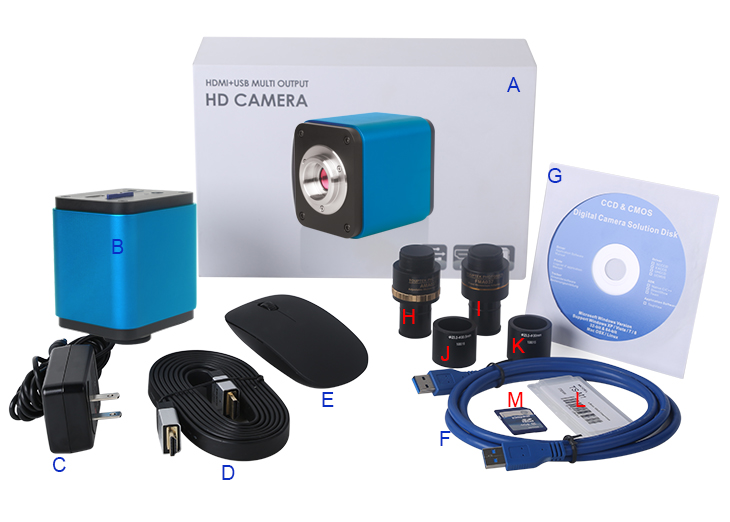

Packing List
- One 1080P HDMI Digital Camera
- One high-speed USB 2.0 Cable
- One HDMI Cable
- One USB Mouse
- One CD with Driver and Software
- One manual (if printed manual is needed)

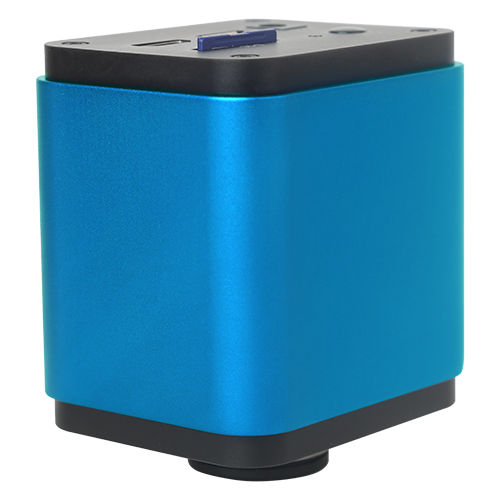

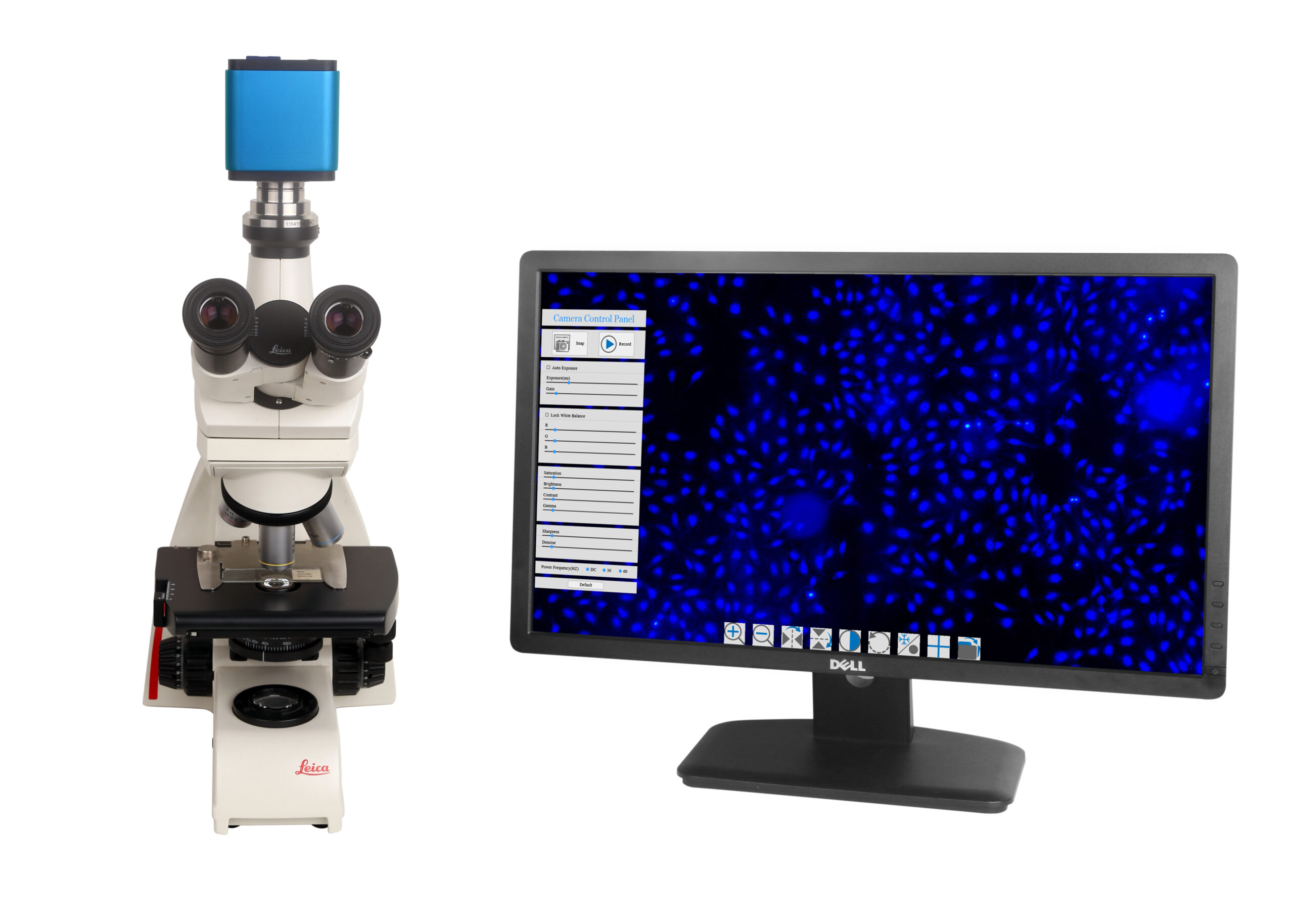

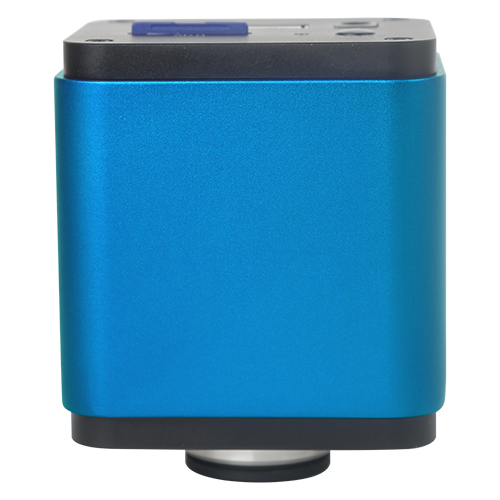

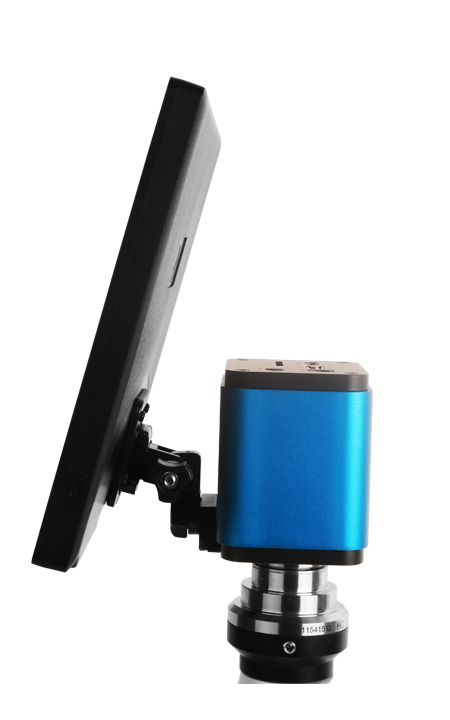

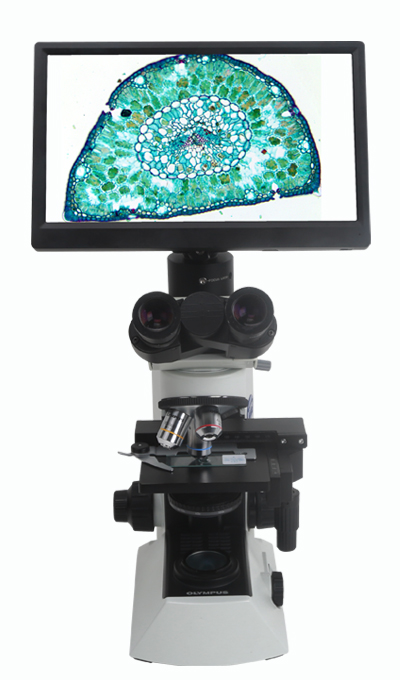

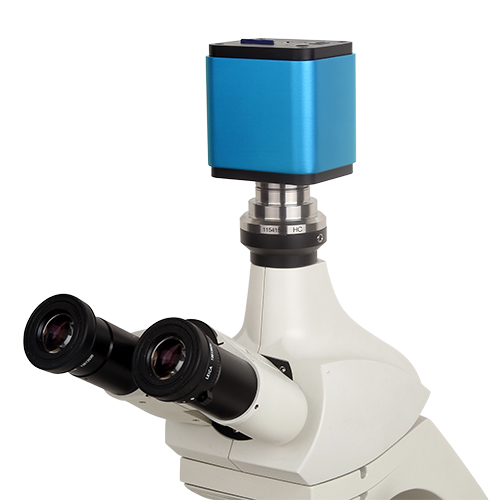

Photos of this model are as following.
