CX33 Olympus Microscope

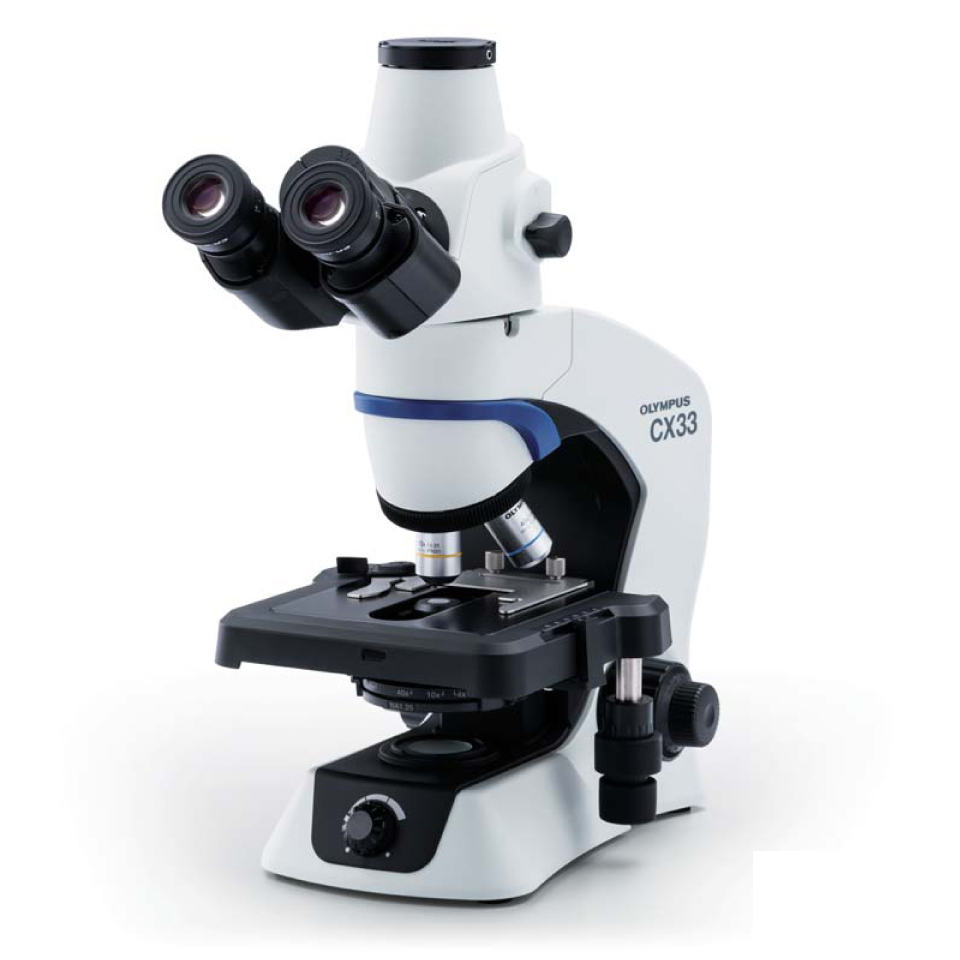

Olympus CX33 microscope

Product Description

Specification

Optical System	Infinity optical system
Head	Trinocular Head, 30° Inclined, Interpupillary Distance 48~75mm, High Eyepoint Adjustable 375.0‒427.9 mm
Eyepiece	WF10x/20
Infinity Plan Achromatic Objective	4× N.A.0.1, W.D. 27.8mm 10× N.A.0.25 W.D. 8.0mm 40× N.A.0.65 W.D. 0.6mm 100× N.A.1.25 W.D. 0.13mm
Nosepiece	Fixed quadruple nosepiece with inward tilt
Stage	Wire movement mechanical fixed stage, (W × D): 211 mm × 154 mm · Traveling range (X × Y): 76 mm × 52 mm · Single specimen holder (optional: double specimen holder, sheet holder ) · Specimen position scale · Stage XY movement stopper
Focusing	· Stage height movement (coarse movement stroke: 15 mm ) · Stroke per rotation for coarse adjustment knob: 36.8 mm, Focusing stopper · Torque adjustment for coarse adjustment knob · Fine focus knob (minimum adjustment gradations: 2.5 μm)
Condenser	Abbe Condenser N.A.1.25
Light Source	· Built-in transmitted illumination system · Köhler illumination (fixed fi eld diaphragm) · LED power consumption 2.4 W (nominal value), precentered
Power Supply	AC 100–240 V 50/60 Hz 0.4 A, With Power Cord

Product Show

Olympus CX33 microscope
