CX23 Olympus Microscope

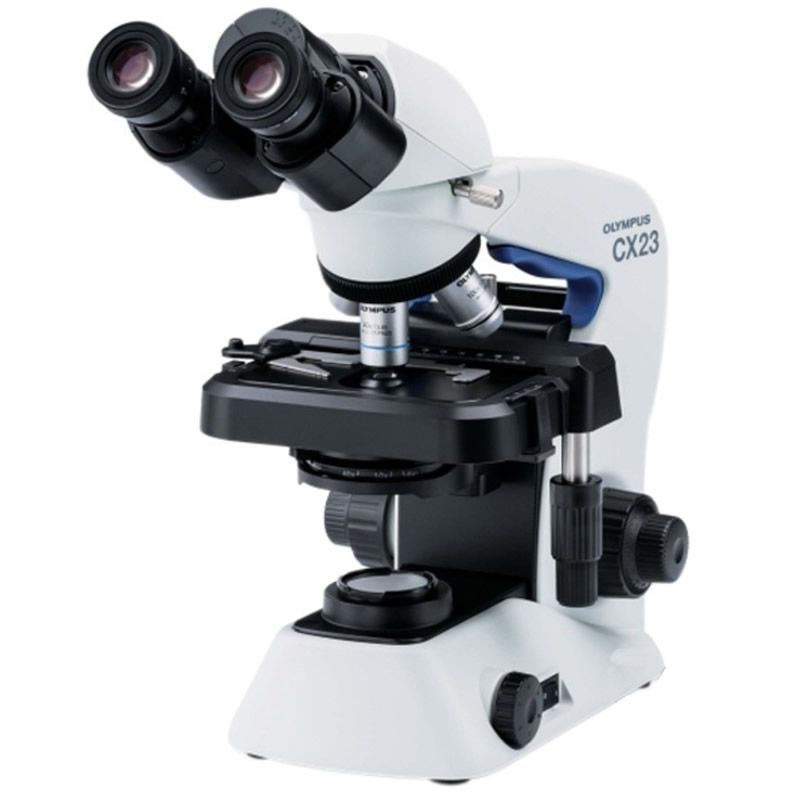

This is an original Olympus CX23 microscope.

Product Description

Specification

Optical System	UIS2 Infinity Optical System
Head	Binocular Head, 30° Inclined, Interpupillary Distance 48~75mm, High Eyepoint Adjustable 377.8-427.7mm
Eyepiece	WF10x/20
Infinity Plan Achromatic Objective	4× N.A.0.1, W.D. 27.8mm 10× N.A.0.25 W.D. 8.0mm 40× N.A.0.65 W.D. 0.6mm 100× N.A.1.25 W.D. 0.13mm
Nosepiece	Quadruple Nosepiece
Stage	Mechanical Working Stage, Moving Range 76*30mm
Focusing	Coaxial Coarse 15mm per circle, Fine Focus Knob, Minimum Division 0.0025mm
Condenser	Abbe Condenser N.A.1.25
Light Source	Transmitted Illumination, 0.5W LED, Kohler Illumination
Scope Size	198 (W) x 258 (D) x 384 (H) mm
Weight	Gross Weight 5.9Kgs
Power Supply	AC 100–240 V 50/60 Hz 0.4 A, With Power Cord
Dust Cover	Dust Cover Type 015 For CX21/31/41 (L 450mm x H 460mm)

Product Show

This is an original Olympus CX23 microscope.
