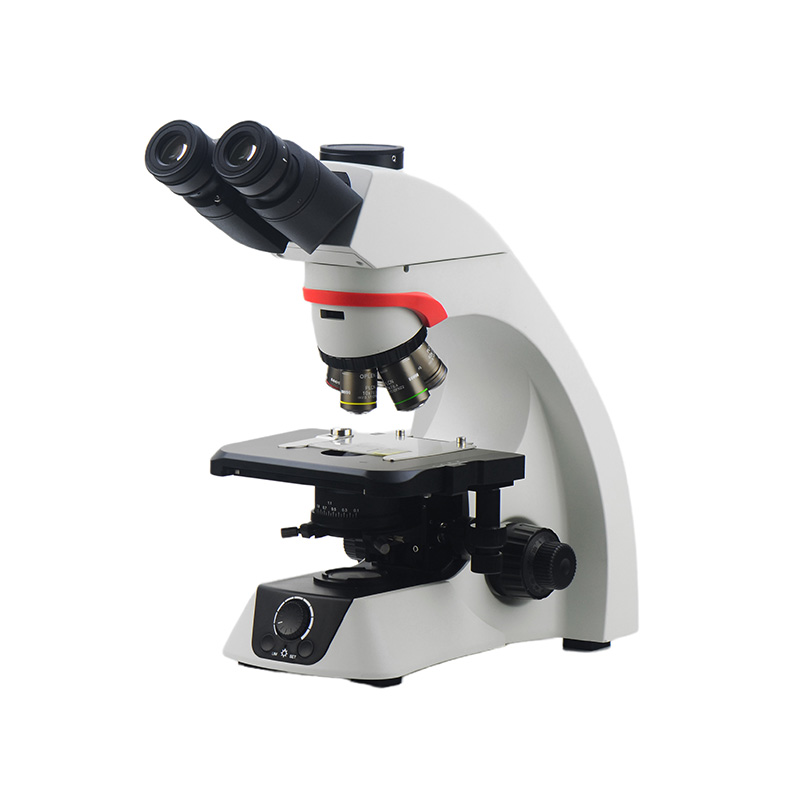

CPD2863 has a standard magnification range of 40X-1000X (1600X and 2000X can be reached with optional 16X and 20X eyepiece). This microscope comes with a compensation free binocular head, a pair of widefield eyepieces, four infinity plan achromatic objectives, double layer mechanical stage with coarse & fine focusing, Abbe N.A.1.1 Condenser with Iris Diaphragm & Filter and LED illumination. This is an ideal microscope for biological research and clinical examination.
Product Description
Specification
| Items | Specification |
| Head | Seidentopf trinocular Head, inclined 30°, rotatable 360°, Interpupillary distance: 46mm-78m |
| Eyepiece | WF10X/23mm (Diopter adjustable) |
| Infinity Plan Objectives | PLAN 4X/0.10 W.D.=17mm |
| PLAN 10X/0.25 W.D.=10mm | |
| PLAN 40X/0.65(S) W.D.=0.6mm | |
| PLAN 100X/1.25(S, Oil) W.D.=0.25mm | |
| Nosepiece | Quadruple |
| Stage | Rackless double layer mechanical stage, traveling range 76x55mm |
| Condenser | N.A. 1.1 ABBE |
| Illumination | LED, brightness adjustable |
CPD2863 has a standard magnification range of 40X-1000X (1600X and 2000X can be reached with optional 16X and 20X eyepiece). This microscope comes with a compensation free binocular head, a pair of widefield eyepieces, four infinity plan achromatic objectives, double layer mechanical stage with coarse & fine focusing, Abbe N.A.1.1 Condenser with Iris Diaphragm & Filter and LED illumination. This is an ideal microscope for biological research and clinical examination.
