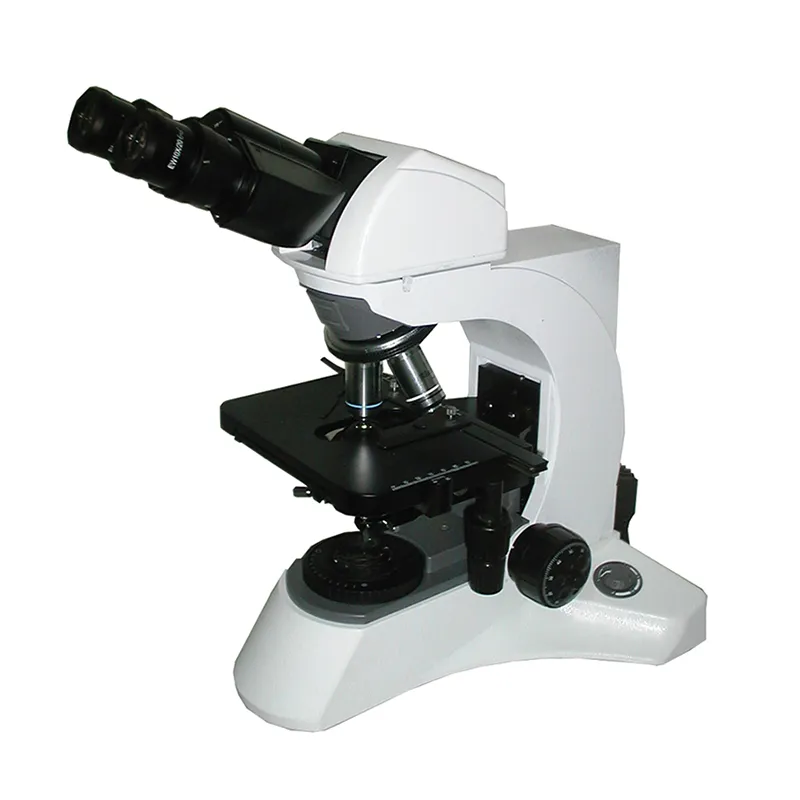

Features
- Four wide-field magnification power: 40X, 100X, 400X, 1000X
- Equipped with four infinity plan achromatic objectives
- High quality optics offering sharp images
- Coaxial coarse and fine focus system
- N.A.0.9/0.25 swing-out type achromatic condenser
Specification
| Head | Compensation Free binocular Head, Tilting trinocular 5°- 35° , interpupillary 48-75mm |
| Eyepiece | Extra wide field eyepiece EW10x/ 22 |
| Infinity Plan Objective | Infinity PL 4x |
| Infinity PL 10x | |
| Infinity PL 40x | |
| Infinity PL 100x | |
| Nosepiece | Backward quadruple nosepiece |
| Focusing | Coaxial coarse & fine adjustment, range 24mm, fine division 0.001mm, coarse stroke 37.7mm |
| Stage | Double Layers Mechanical Stage 185×142, Movement : 75×55mm |
| Condenser | Swing-out Condenser NA 0.9/ 0.25 |
| Filter | Blue filter |
| Green filter | |
| Illumination | External Illumination, Aspherical Collector, Halogen Lamp 6V/ 30W |
Optional Accessory
| Name of Parts | Specification |
| Head | Seidentopf Binocular Head |
| Objective | Infinity plan achromatic objective 20x |
| Objectives for Dark Field 100x /BD | |
| Nosepiece | Backward sextuple nosepiece |
| Illumination | 24V/100W Power Supply |
| CCD Adapter | 1X CCD Adapter |
| 0.5X CCD Adapter | |
| Dark Field Condenser | Dark Field Condenser (Dry) |
| Dark Field Condenser (Oil) | |
| Turret phase contrast set | Infinity Plan Phase Contrast Objective 10x/0.25 |
| Infinity Plan Phase Contrast Objective 20x/0.4 | |
| Infinity Plan Phase Contrast Objective 40x/0.65 (Spring) | |
| Infinity Plan Phase Contrast Objective 100x/1.25 (Spring, oil) | |
| Turnplate phase contrast condenser with five holes for BF, DF, 10X, 40X 100X | |
| Aluminum Case Packing |
