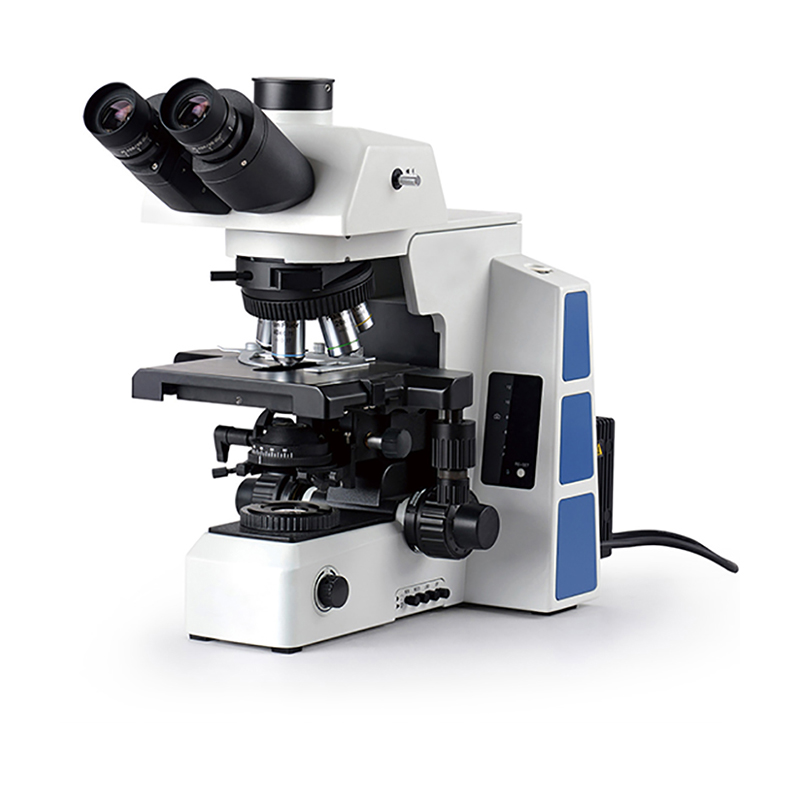

CPD0350 Infinity Semi-Apo Objective Microscope

CPD0350, is an Research-grade laboratory biological microscope adopting Infinity Corrected Optical System. It has a standard magnification range of 40X-1000X. It comes with a gemel trinocular head, a pair of high eye-point wide field plan eyepieces, five Infinity Plan Semi-Apochromatic Fluorescent Objective, a double layer mechanical stage, coaxial coarse and fine focusing system, swing-out type achromatic condenser, and illumination with halogen lamp. This microscope is a professional microscope for medical treatment, laboratories and scientific research. It can be a good substitute of Olympus microscope BX53.

Product Description

Specification

Head Trinocular Head, 30° inclined, Inverted Image, Interpupillary Distance 50~76mm,Three Split Ratio 0:100; 20:80; 100:0
Eyepiece High-Eyepoint Plan Eyepiece PL10X/25mm, Diopter Adjustable
Nosepiece Bright Field Sextuple Nosepiece, With DIC Slot
Infinity Plan Semi-Apochromatic Fluorescent Objective 4x/0.13, W.D.=18.5mm
10x/0.3, W.D.=10.6mm
20x/0.5, W.D.=2.33mm
40x/0.75, W.D.=0.6mm
100x/1.3, W.D.=0.21mm
Working Stage Double Layer Mechanical Stage, 187x166mm, Moving Range 80x55mm,Precision 0.1mm,Double Direction Transmission, Left And Right Position Handle For Option. Tension of the Torque Adjustable.
Focusing Coaxial Focus System With Upper Limited And Tension Adjustment, Coarse Adjustment Range: 25mm, Fine Adjustment Precision: 0.001mm.
Condenser N.A.0.9 swing-out type achromatic condenser, with iris diaphragm
and aperture scale, provides sufficient and uniform light for full-field
Observation in different magnifications.
Light Source 12V100W Halogen Lamp, Center Adjusted,
Adopt Digital Dimming System, With LED Indicator, With The Function Of Light Set And Reset
Power 100-240V Universal Voltage

Optional Accessories

Head Trinocular Head, 30°inclined, Erect Image, Interpupillary Distance 50~76mm,Three Split Ratio 0:100; 20:80; 100:0
Eyepiece High-eyepoint Plan eyepiece PL10X/26.5mm, diopter adjustable
High-eyepoint Plan eyepiece PL10X/25mm with micrometer, diopter adjustable,
Nosepiece Bright Field Septuple Nosepiece, With DIC Slot
Bright Field Quintuple Nosepiece, With DIC Slot
CCD Adapter C-Mount 0.5x, Focusable
C-Mount 0.65x

Product Show

CPD0350, is an Research-grade laboratory biological microscope adopting Infinity Corrected Optical System. It has a standard magnification range of 40X-1000X. It comes with a gemel trinocular head, a pair of high eye-point wide field plan eyepieces, five Infinity Plan Semi-Apochromatic Fluorescent Objective, a double layer mechanical stage, coaxial coarse and fine focusing system, swing-out type achromatic condenser, and illumination with halogen lamp. This microscope is a professional microscope for medical treatment, laboratories and scientific research. It can be a good substitute of Olympus microscope BX53.
