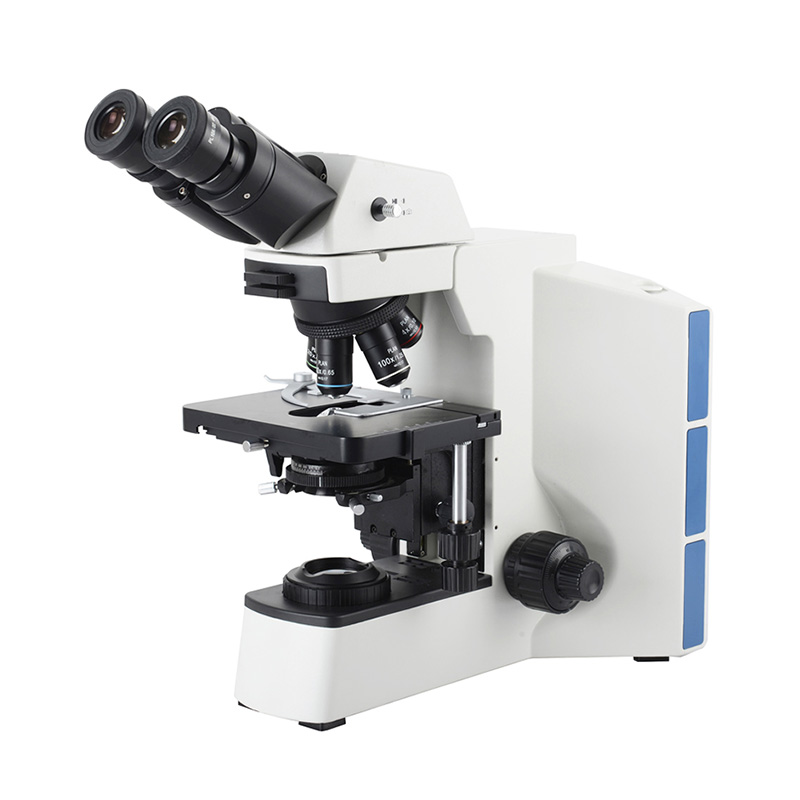

Features
- Adopting color corrected infinity optical system
- Equipped with five infinity plan achromatic objectives
- Five wide-field magnification power: 40X, 100X, 200X, 400X, 1000X
- Coaxial coarse and fine focus system
- N.A.1.2/0.22 swing-out type achromatic condenser
Specification
| Optical system | Infinity color corrected optical system |
| Head | Gemel binocular head inclined at 30 degree; 360 degree rotatable; interpupillary distance adjustment: 54-75mm; diopter +/-5 adjustable. |
| Eyepiece | High eye-point wide field plan eyepiece PL10X22mm, reticle can be assembled. |
| Objective | Infinity plan achromatic objectives 4X, WD=7.18mm |
| Infinity plan achromatic objectives 10X, WD=4.70mm | |
| Infinity plan achromatic objectives 20X, WD=1.75mm | |
| Infinity plan achromatic objectives 40X(Spring), WD=0.72mm | |
| Infinity plan achromatic objectives 100X(Spring, Oil), WD=0.15mm | |
| Nosepiece | Backward quintuple revolving nosepiece |
| Focusing | Coaxial coarse and fine focus system with upper limited and tension adjustment; coarse range: 25mm; Division of fine focus: 0.002mm; focus height adjustable. |
| Stage | 175x145mm double layer mechanical stage, rotatable; with special fabrication processing, anti-corrosion and anti-friction; X, Y moving handwheel in right or left hand; traveling range: 76x50mm, precision: 0.1mm. |
| Condenser | N.A.1.2/0.22 swing-out type achromatic condenser |
| Light Source | 6V/30W halogen, pre-centered, intensity adjustable. |
| Filter | Blue |
Optional Accessories
| Eyepiece | High eye-point PL10X/22mm with micrometer, diopter adjustable |
| High eye-point PL15X/16mm | |
| Objective | Infinity plan achromatic objectives 2X |
| Nosepiece | Backward revolving quadruple nosepiece |
| Phase Contrast Attachment | Infinity plan phase contrast objectives 10X, WD=4.70mm |
| Infinity plan phase contrast objectives 20X, WD=1.75mm | |
| Infinity plan phase contrast objectives 40X, WD=0.72mm | |
| Infinity plan phase contrast objectives 100X, WD=0.15mm | |
| N.A.1.25 five holes phase contrast condenser(Infinity) | |
| Centering Telescope | |
| Filter | |
| Polarizing Attachment | Polarizer (45) |
| Analyzer, 360° rotatable; | |
| λ Slide | |
| Rotatable Working Stage | |
| Polarizer and analyzer can be shift out of light path. | |
| Dark Field Condenser | N.A.0.9 condenser (dry) |
| N.A.1.25 condenser (immersion) | |
| CCD adapter | 1X C-Mount, focus Adjustable |
| 0.50X, For 1/2” C-Mount camera, focus Adjustable | |
| 0.67X, For 2/3” C-Mount camera, focus Adjustable |
