Description
CPD.13.U203I, adopting UCIS Infinity Independent Achromatic Optical System, has a standard magnification range of 40X-1000X (1600X can be reached with optional 16X eyepiece). It comes with a compensation trinocular head, a pair of high eyepoint Wide field eyepieces, fourinfinity plan objectives, a double layer mechanical stage, coaxial coarse and fine focusing system, Abbe condenser, and Kohler Illumination with halogen lamp. This microscope is an ideal microscope for clinical examination, laboratories and scientific research.
Features
- Adopting UCIS Infinity Independent Achromatic Optical System
- Four Wide-field magnification settings: 40X, 100X, 400X, 1000X
- High cost performance with high quality accessories
- CE Approved and Manufactured Under ISO 9001 Quality Control Standard
Specification

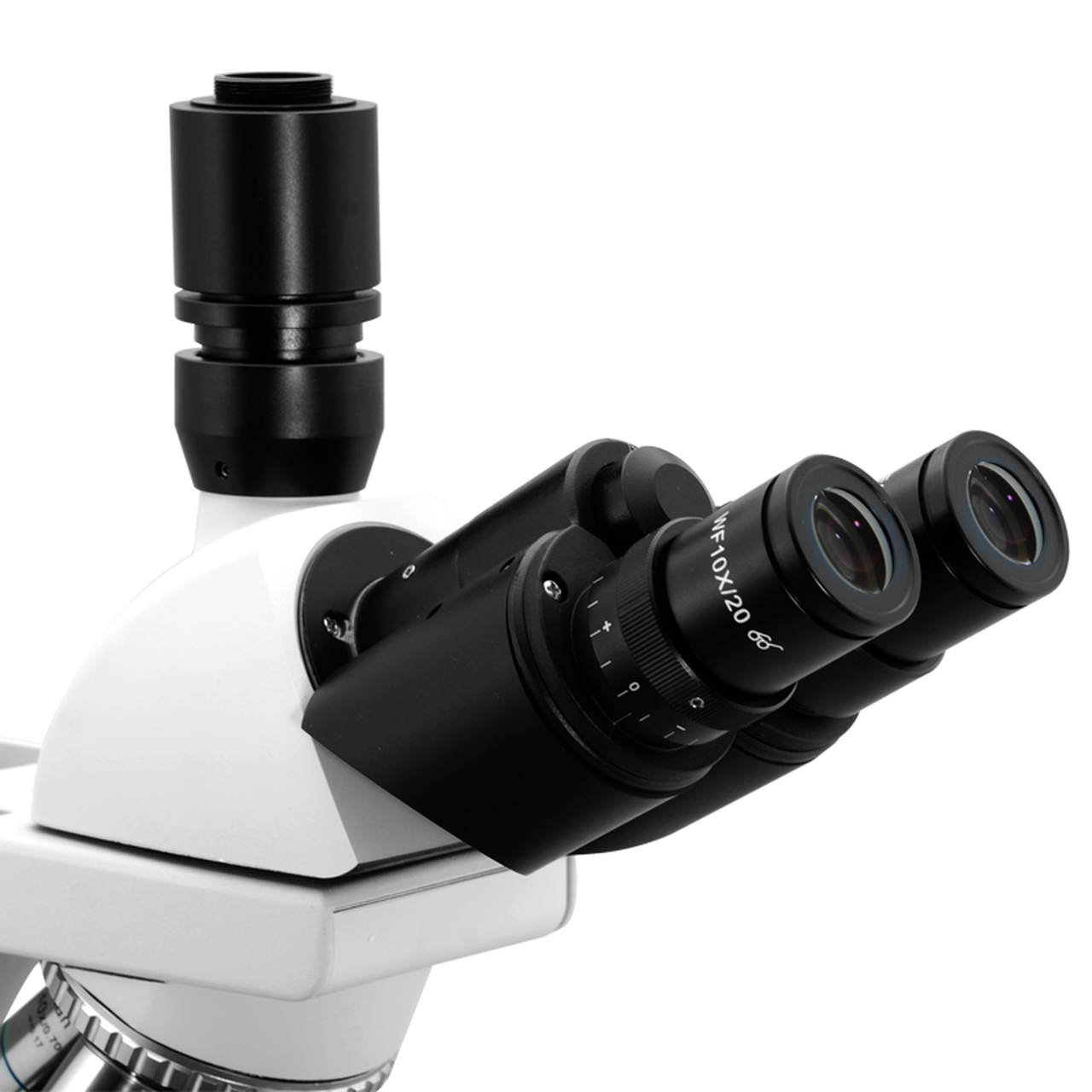

| Head | Trinocular head, 30°inclined, 360°rotatable, interpupillary distance 52-75mm, Diopter adjustment: +5 to -5 |
| Eyepiece | WF10X/20mm, high eye-point up to 21mm |
| Objectives | Infinity Plan 4X/0.1 WD=13.21mm |
| Infinity Plan 10X/0.25 WD=5.03 mm | |
| Infinity Plan 40X/0.65 WD= 0.72mm | |
| Infinity Plan 100X/1.25 WD= 0.17mm | |
| Nosepiece | Backward quadruple nosepiece |
| Focus System | Low position coaxial focus system with coarse/fine adjustment |
| Coarse adjustment: 14mm per rotation | |
| Fine adjustment: 0.1mm per rotation; division of fine focusing: 0.001mm | |

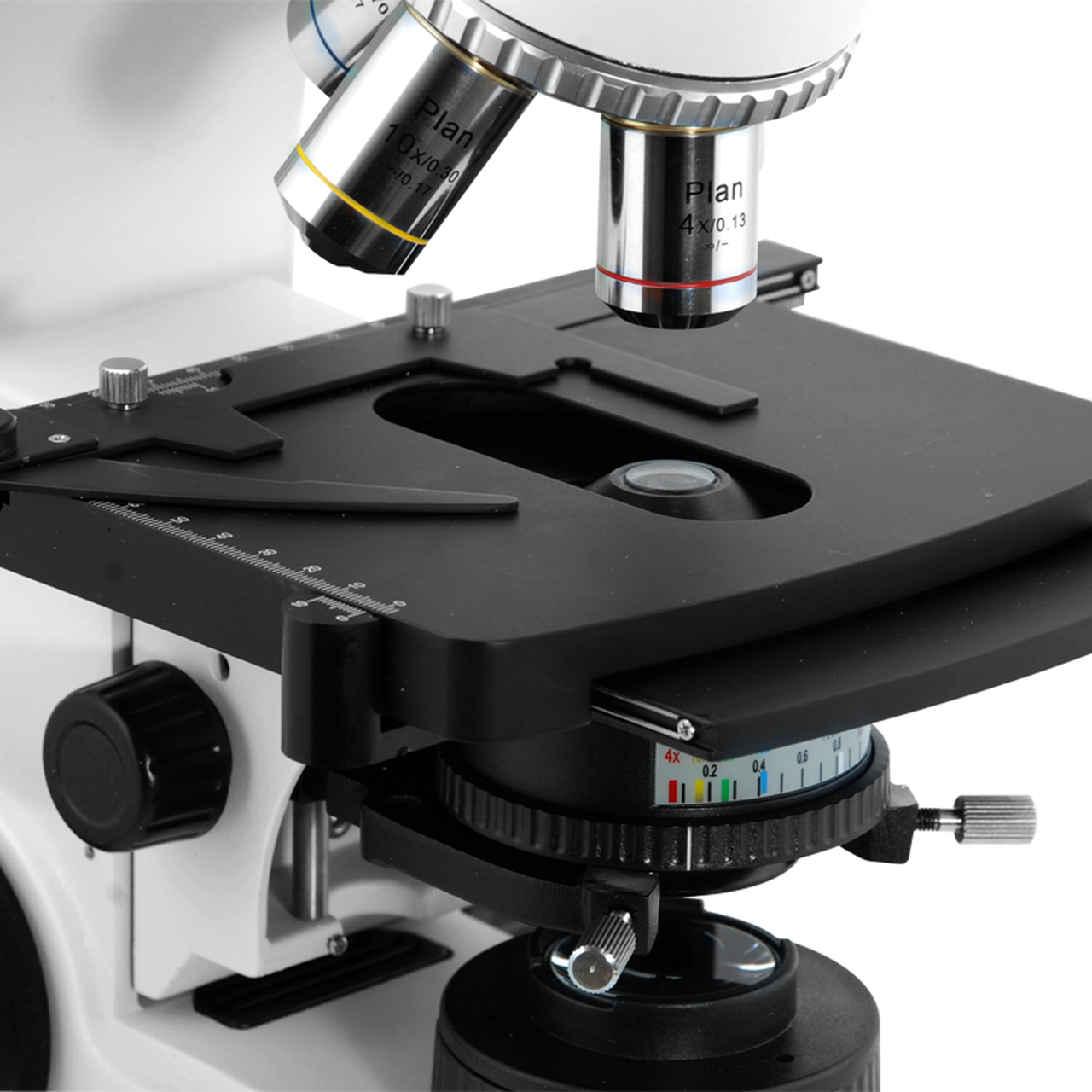

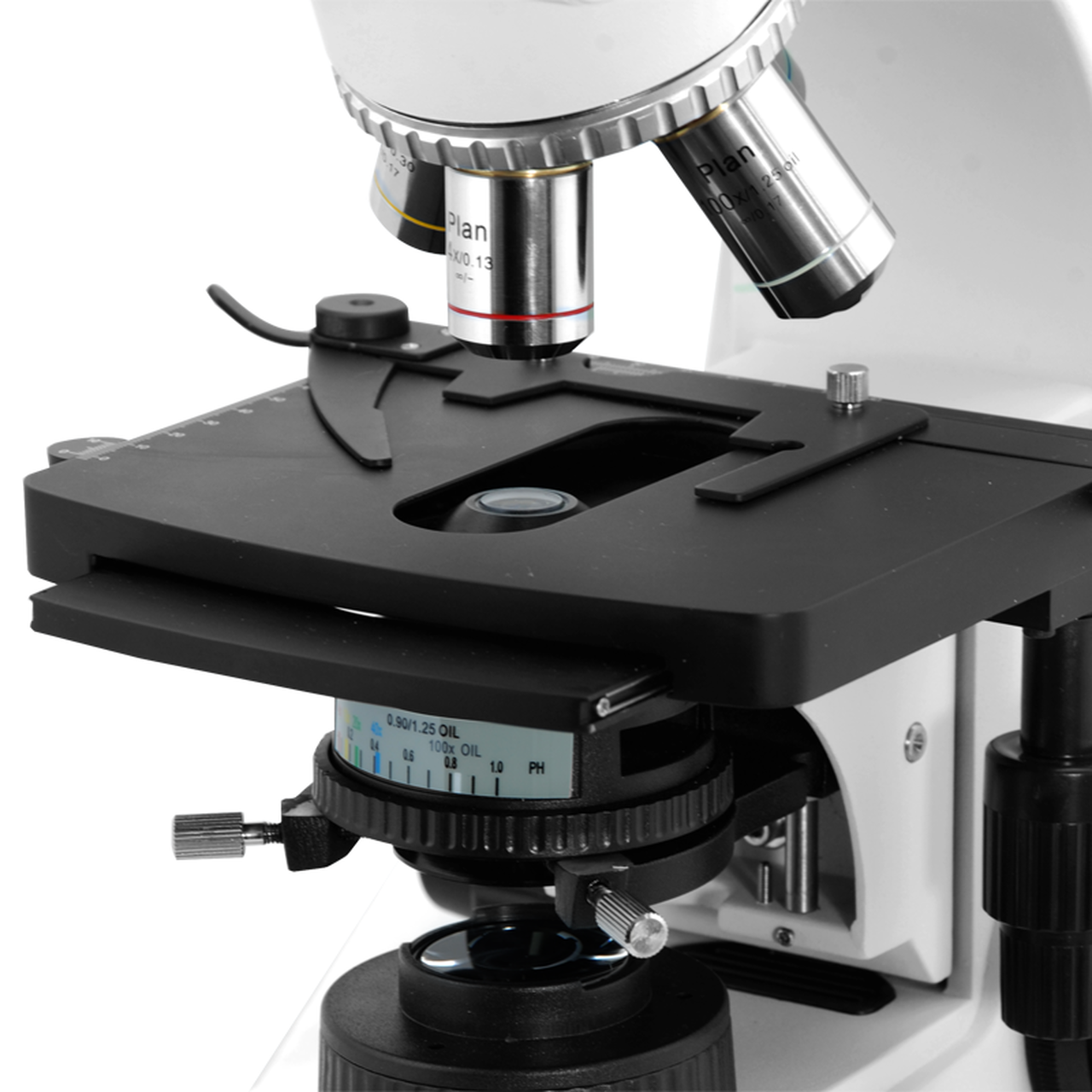

| Stage | Double layers, size 156x138mm, moving range 76x54mm.
Low positioned X-Y coaxial control knob, capable of holding two specimen slides |

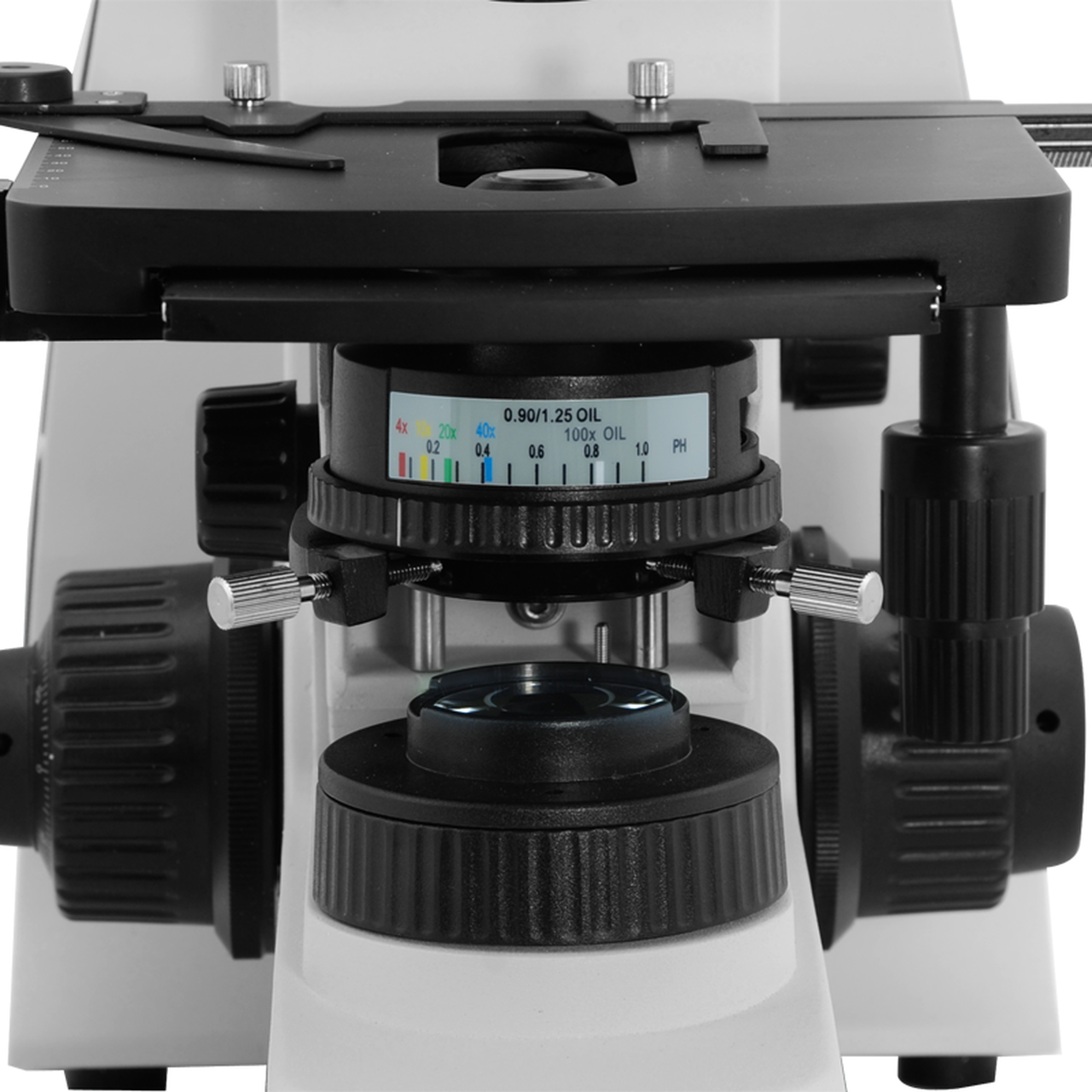

| Condenser | Abbe N.A.1.25 with aperture iris diaphragm and with socket to accommodate Phase Contrast slide; Condenser center adjustable, color-coded diaphragm scale markings corresponded with the objectives of different power. |
| Filter | Blue filter |
| Light source | 6V 20W halogen lamp, Kohler illumination with field diaphragm, easy to replace bulb. |
| Power | 100-240V wide power range |
| Weight | 9kg |
| Certification | ISO9001, ISO14001, ISO13485 and CE Certified. |
Optional Accessories
| Items | Specification |
| Head | Binocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm |
| Trinocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm | |
| Eyepiece | WF10x/22mm, High Eyepoint up to 21mm |
| WF16x/13mm, High Eyepoint up to 21mm | |
| Retical Eyepiece WF10x/20mm | |
| Objective | Infinity Plan 20X/0.4/0.17, WD=2.71mm |
| Infinity Plan 60X/0.80 /0.17, WD=0.35mm (Spring) | |
| Nosepiece | Quintuple reversed nosepiece |
| Light | Upgrade to LED 3W |
| Filter | Green filter |
| Yellow filter | |
| Frosted Glass | |
| Polarizing Kit | Analyzer + Polarizer |
| Dark Field | Dark field condenser, dry, for objective 4x,10x,40x,100x |
| Centering telescope | Centering telescope |
| Phase-contrast Condenser: | Phase-contrast Condenser: NA:1.25, for 10X to 100X |
| Phase Contrast Slider, for Infinity Plan Phase Contrast Objective | 10x |
| 20x | |
| 40x | |
| 60x | |
| 100x | |
| Infinity Plan Phase Contrast Objective, Positive | 10x |
| 20x | |
| 40x | |
| 60x | |
| 100x | |
| Infinity Plan Phase Contrast Objective, Negative | 10x |
| 20x | |
| 40x | |
| 60x | |
| 100x | |
| Fluorescence Attachment | Fluorescence Set 100W |
| Omega Excitation Filter | UV |
| V | |
| B | |
| G | |
| Adapter | CCD 1.0x |
| CCD 0.5x | |
| CCD 0.25x | |
| Canon EOS digital Adapter |

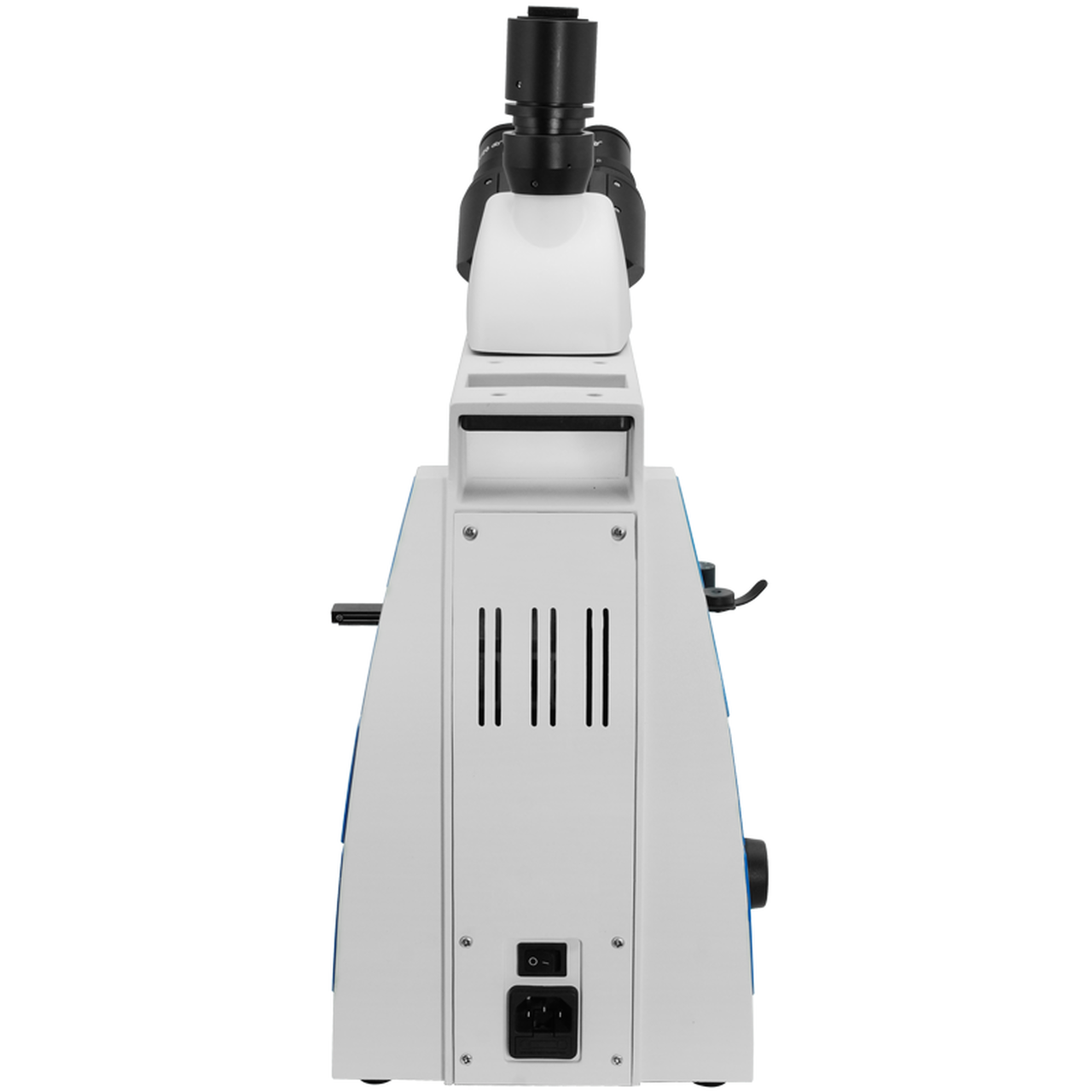

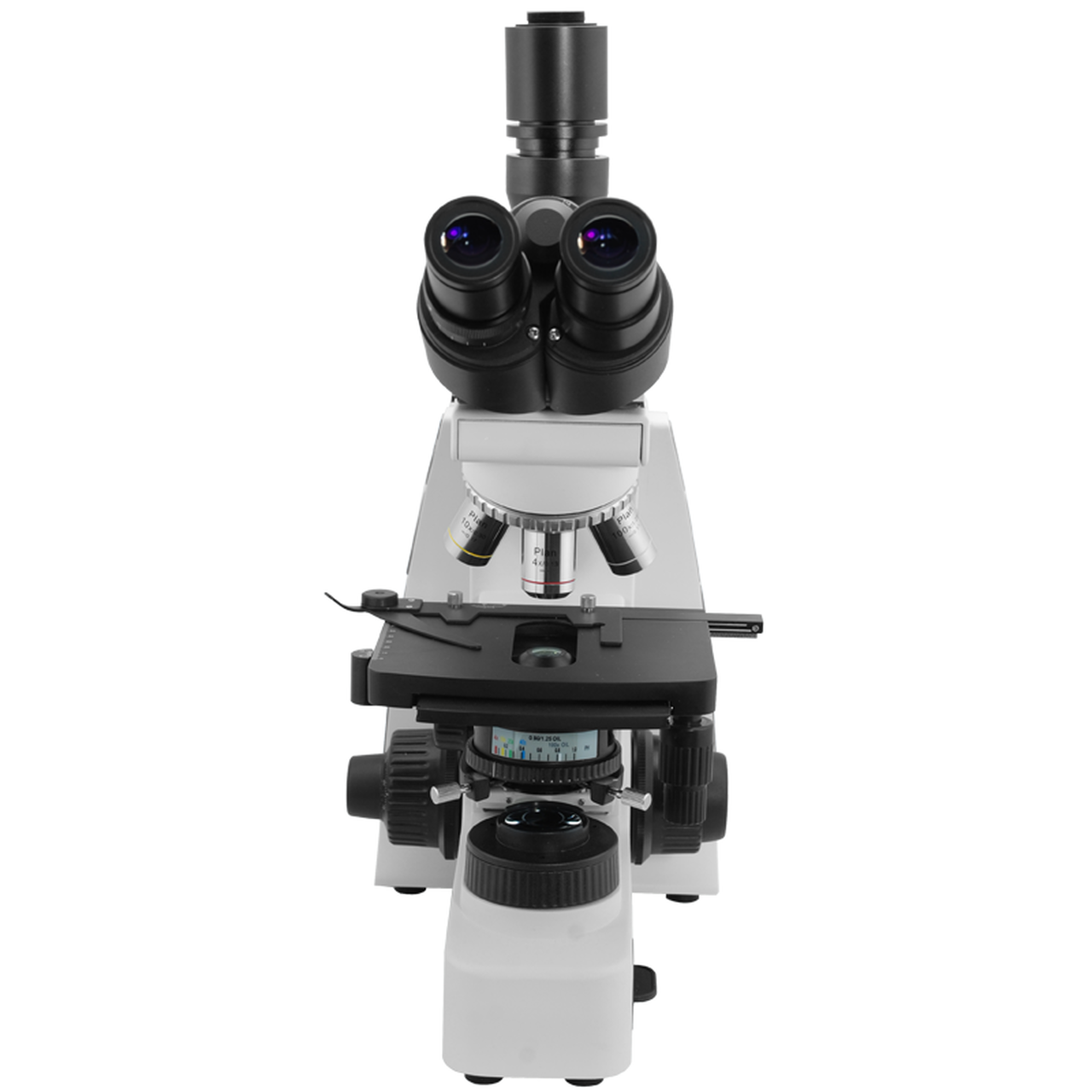

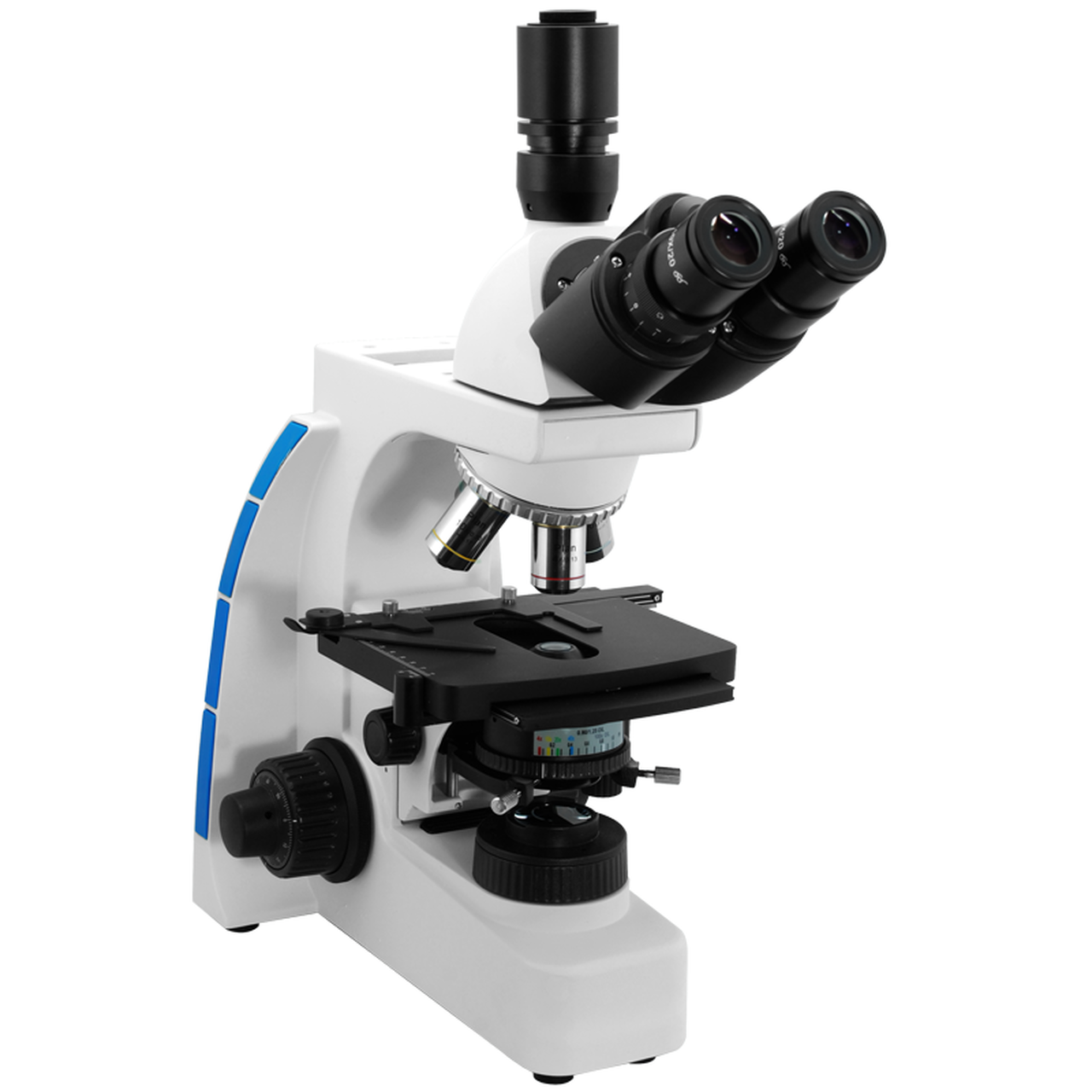

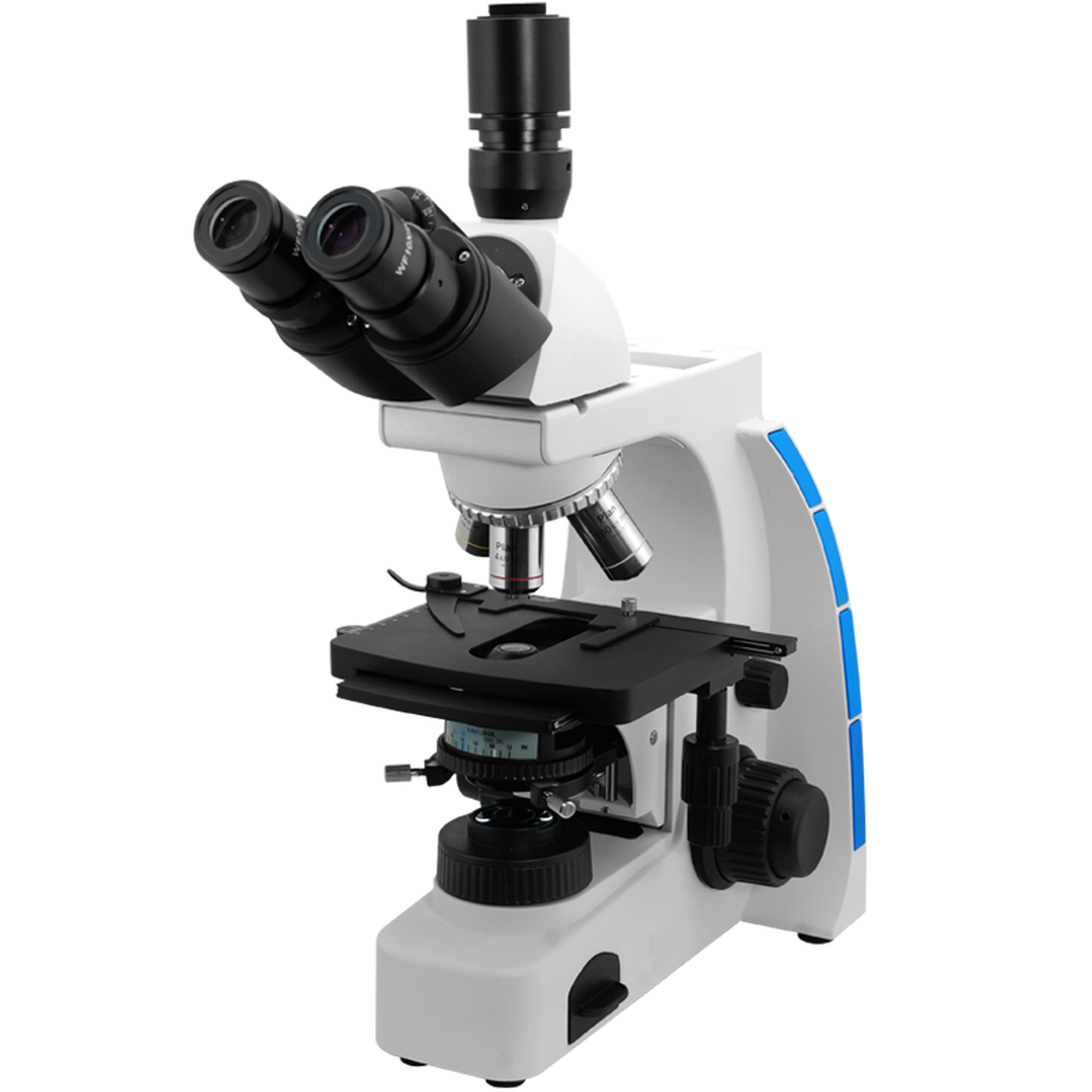

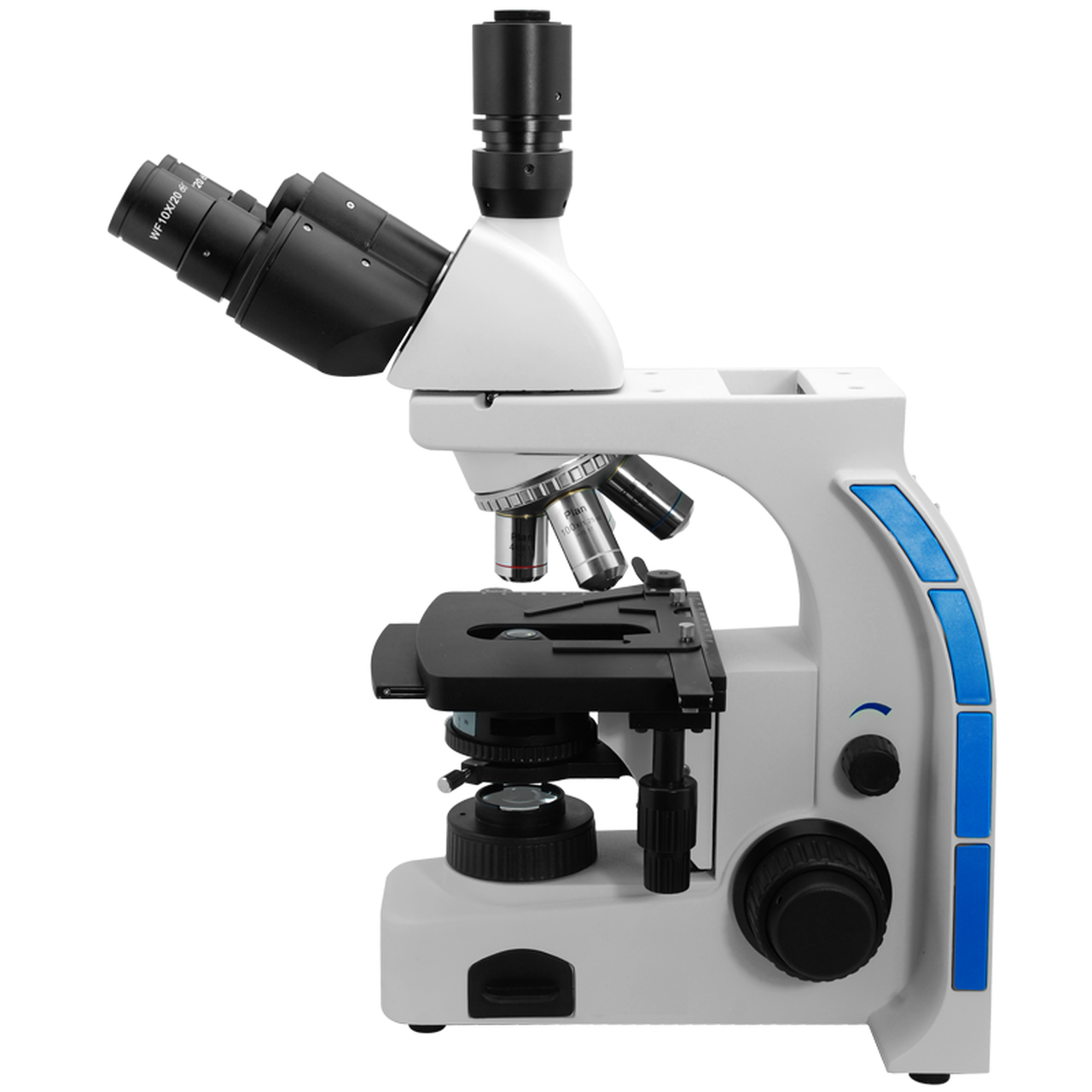

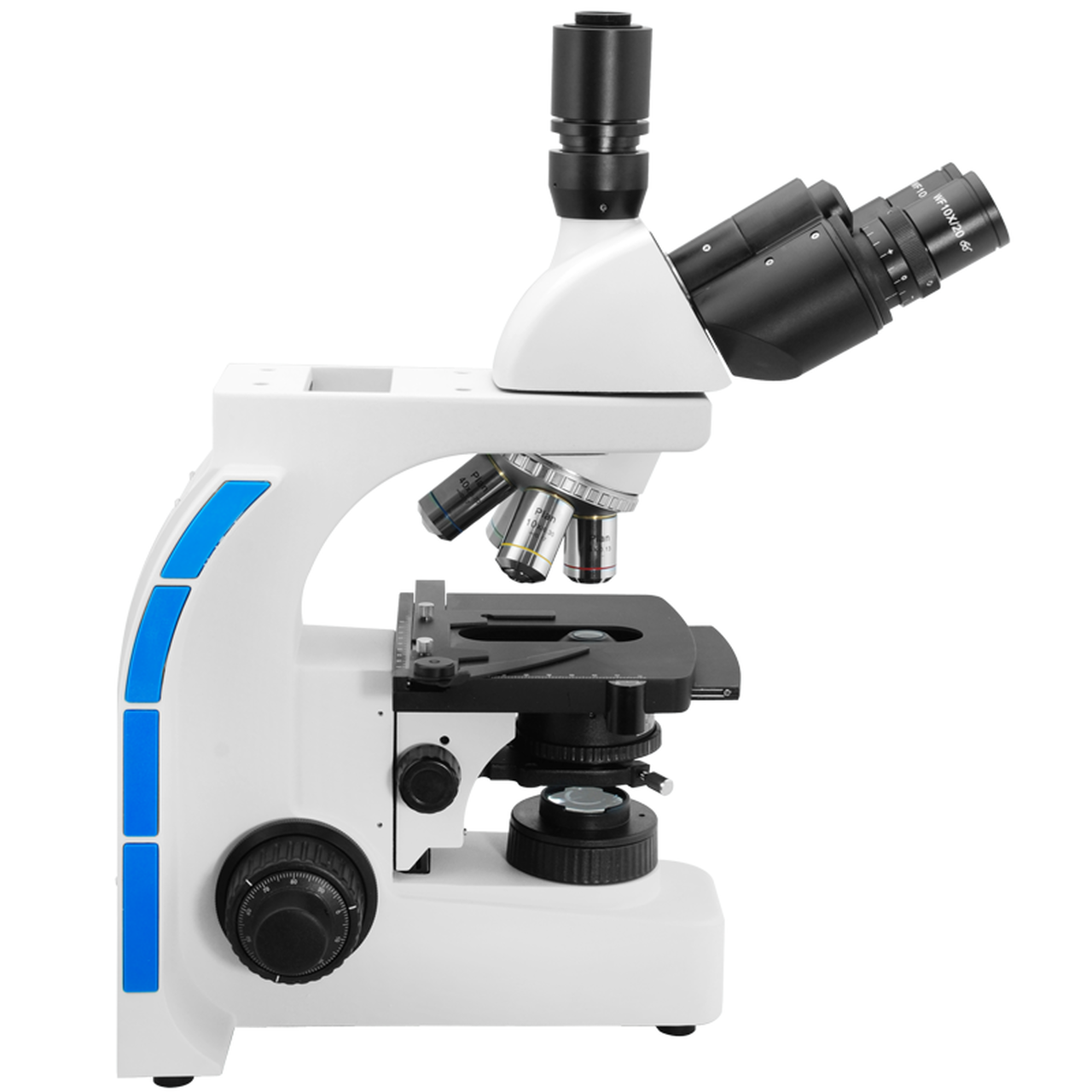

Photos of this microscope are in the following pages.
