Description
CPD.03.H200 has a standard magnification range of 40X-1000X. It comes with a binocular head, a piece of plan eyepieces, four high contrast achromatic objectives, a double layer mechanical stage, coaxial coarse and fine focusing system, N.A.1.25 Abbe Condenser, and illumination with halogen lamp. This microscope is an ideal microscope for universities labs, clinical examination, and scientific research.
Features
- Four Wide-field magnification settings:40X, 100X, 400X, 1000X
- High contrast optics offers high resolution observations
- Equipped with N.A. 1.25 Abbe Condenser
- CE Approved and Manufactured Under ISO 9001 Quality Control Standard
Specification
| Optical system | Color corrected infinity optical system |
| Head | Compensation free binocular head, 30° inclined |
| Eyepiece | High Eye-point wide field PL10X/18mm |
| Objective | High contrast achromatic objective 4X |
| High contrast achromatic objective 10X | |
| High contrast achromatic objective 40X (spring) | |
| High contrast achromatic objective 100X(spring) | |
| Nosepiece | Reversed quadruple nosepiece |
| Condenser | Abbe.N.A1.25 Condenser |
| Illumination | 90V~240V power input, Illumination by 6V 20W halogen bulb, brightness adjustable |
| Stage | Mechanical stage with damping clip,150x140mm in size, traveling range: 76x50mm |
| Focusing | Low position coaxial coarse and fine focus system with tension adjustment, with up-limited. Coarse focus range: 28mm, division of fine focus: 0.002mm |
| Filter | Blue filter Φ 45mm |
Optional Accessories
| Head | Seidentopf trinocular, 30° inclined |
| Seidentopf binocular, 30° inclined(infinity) | |
| Seidentopf trinocular, 30° inclined(infinity) | |
| Eyepiece | High-eyepoint WF10X/18mm |
| High-eyepoint WF10X/18mm with micrometer | |
| High-eyepoint WF10X/18mm with cross hair | |
| High-eyepoint WF15x/14mm | |
| High-eyepoint WF16x/13mm | |
| High-eyepoint large field PL10X/20mm | |
| Objective | Plan achromatic objective 4X, 10X, 40X, 100X |
| Infinity plan achromatic objective 4X, 10X,20X, 40X(spring), 100X(spring) | |
| Stage | 140X132mm double layer mechanical stage with damping clip, traveling range:76 x 50mm |
| Nosepiece | Reversed quadruple nosepiece |
| Filter | Green, Yellow, Neutral |
| Dark Field Condenser | Dark Field Condenser(Dry) N.A.0.9 |
| Dark Field Condenser(Immersion）N.A.1.25 | |
| TV Adapter | 0.5X |
| 0.35X | |
| Photo Attachment | 135 photo adapter (PK adapter of MD adapter) |
| 3.2X photo eyepiece | |
| Digital Photo Attachment | C-mount |
| Photo eyepiece | |
| Condenser | Kohler condenser system |
| Illumination | High brightness LED light |

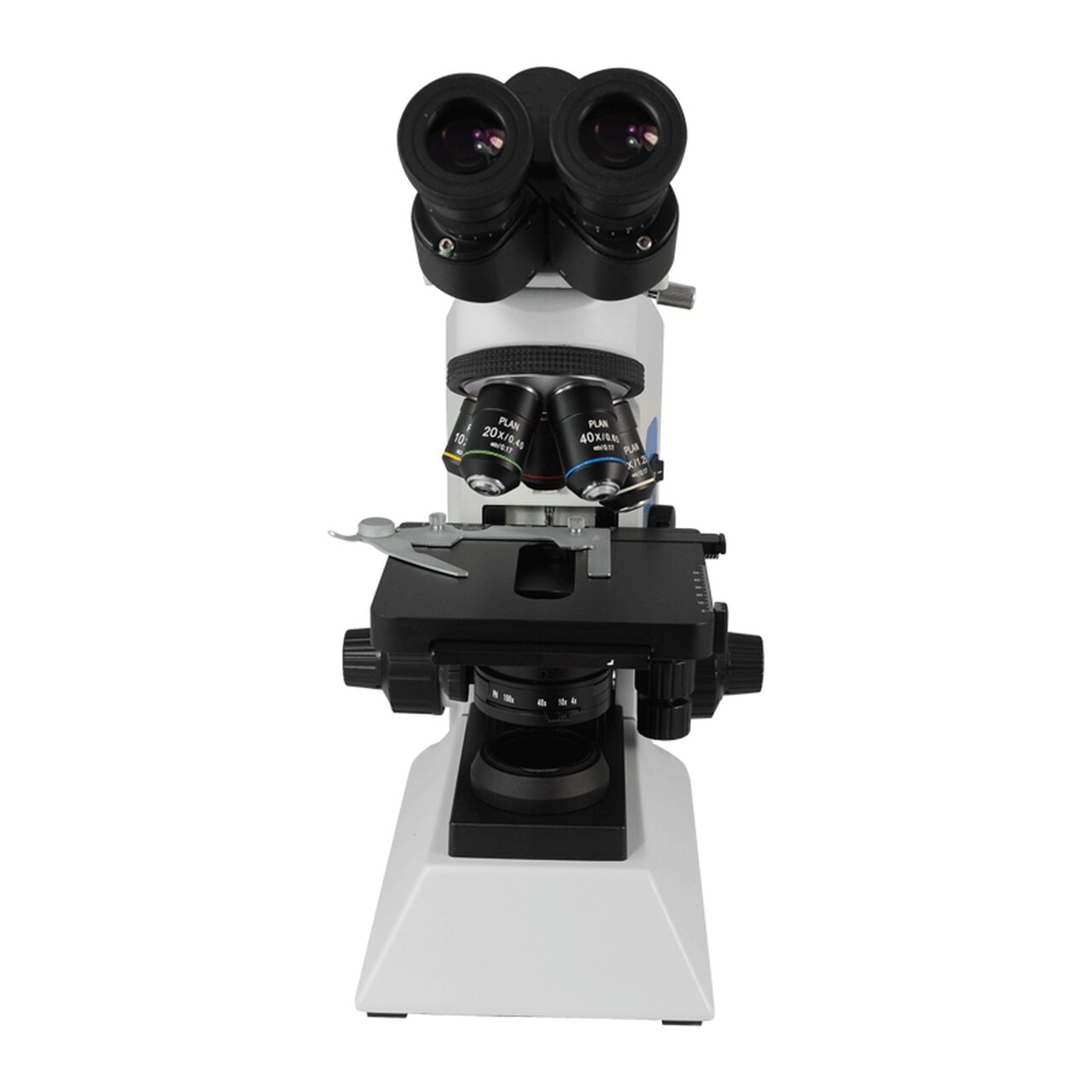

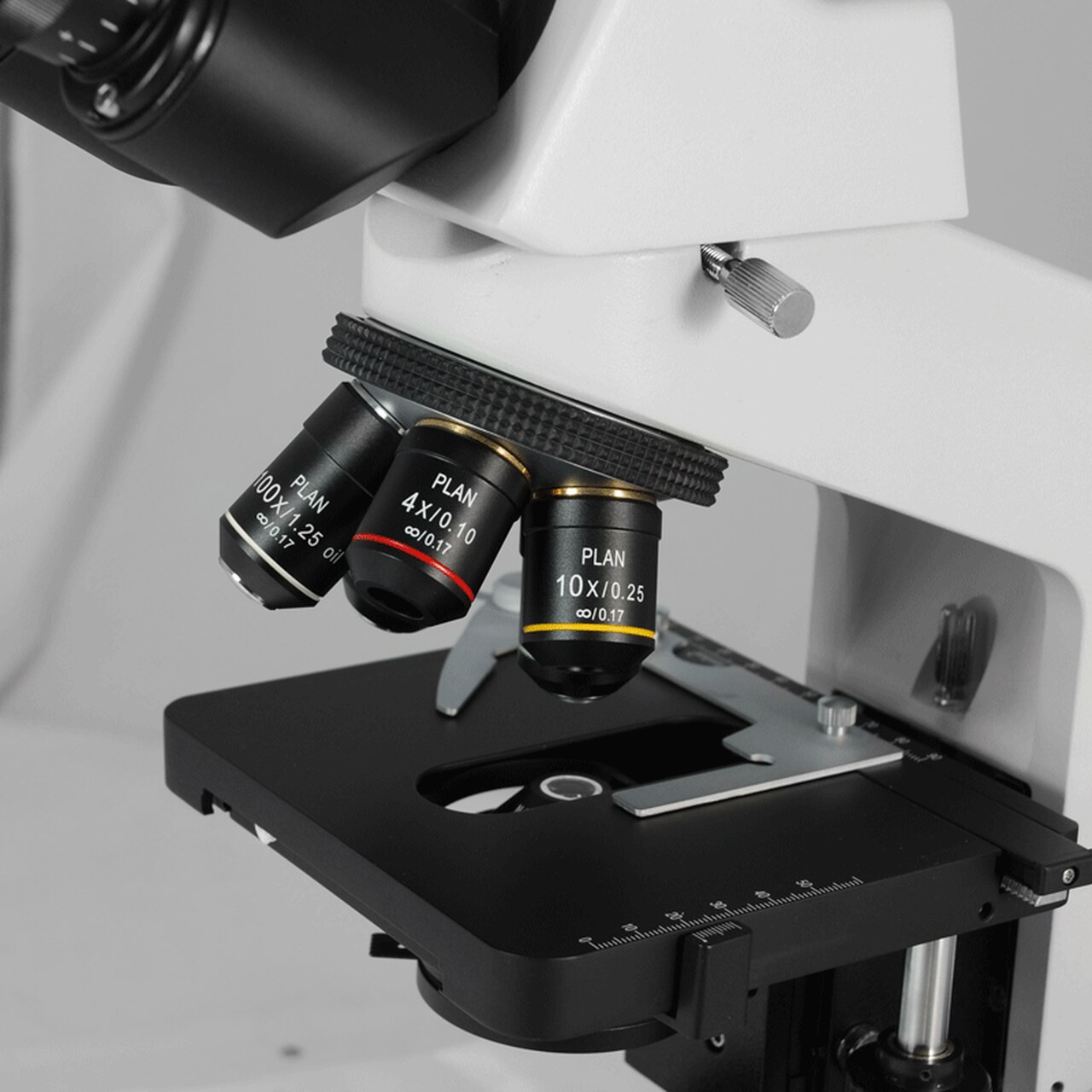

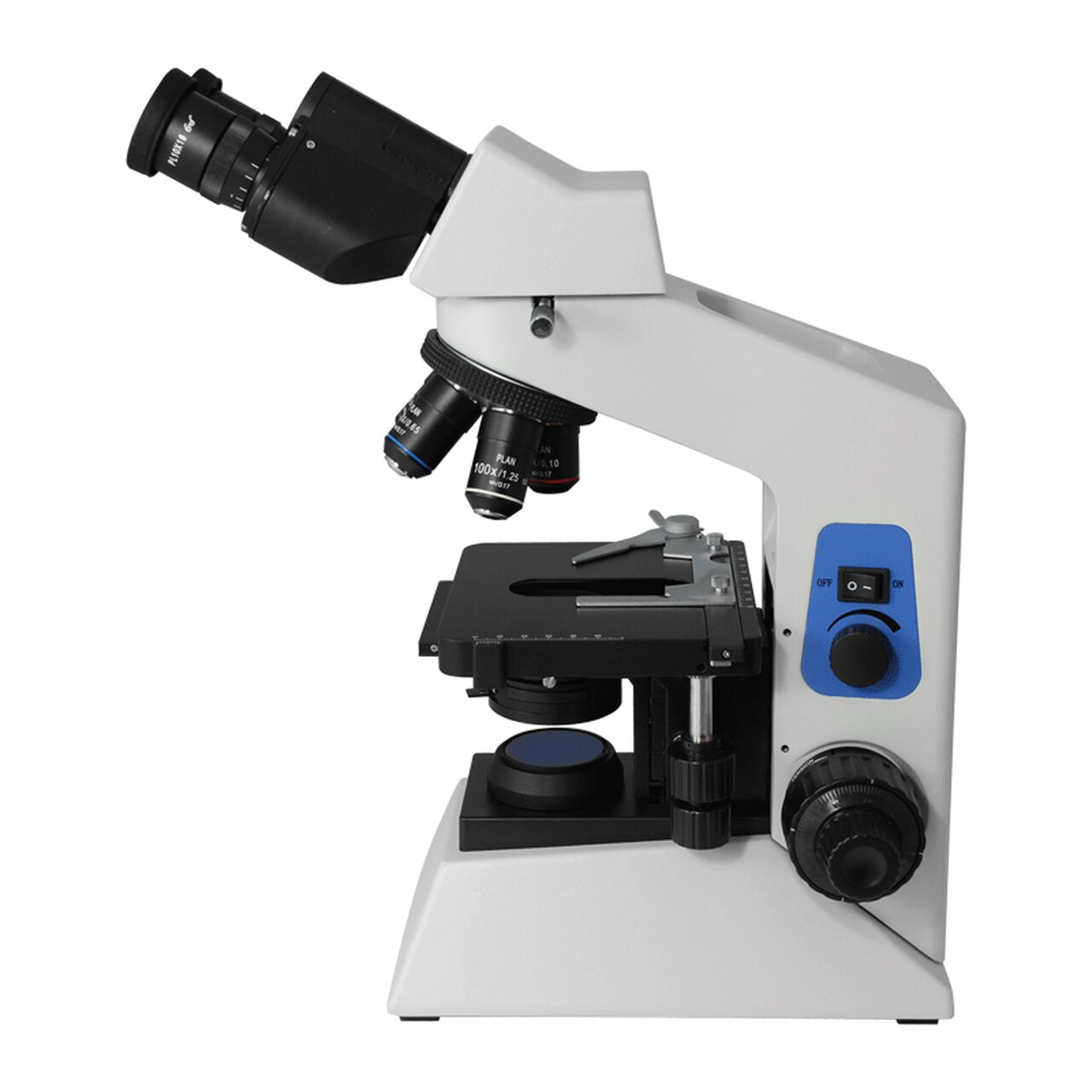

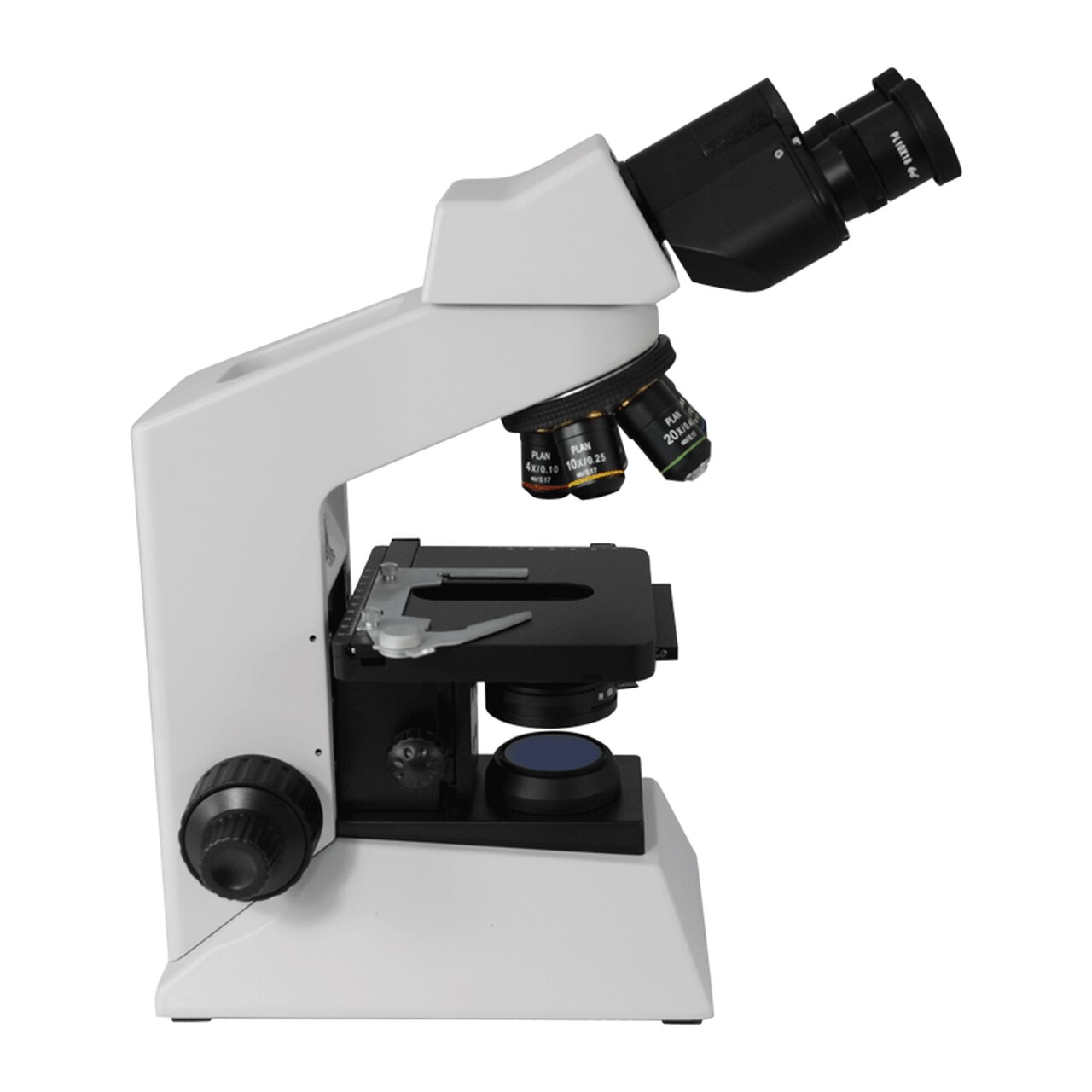

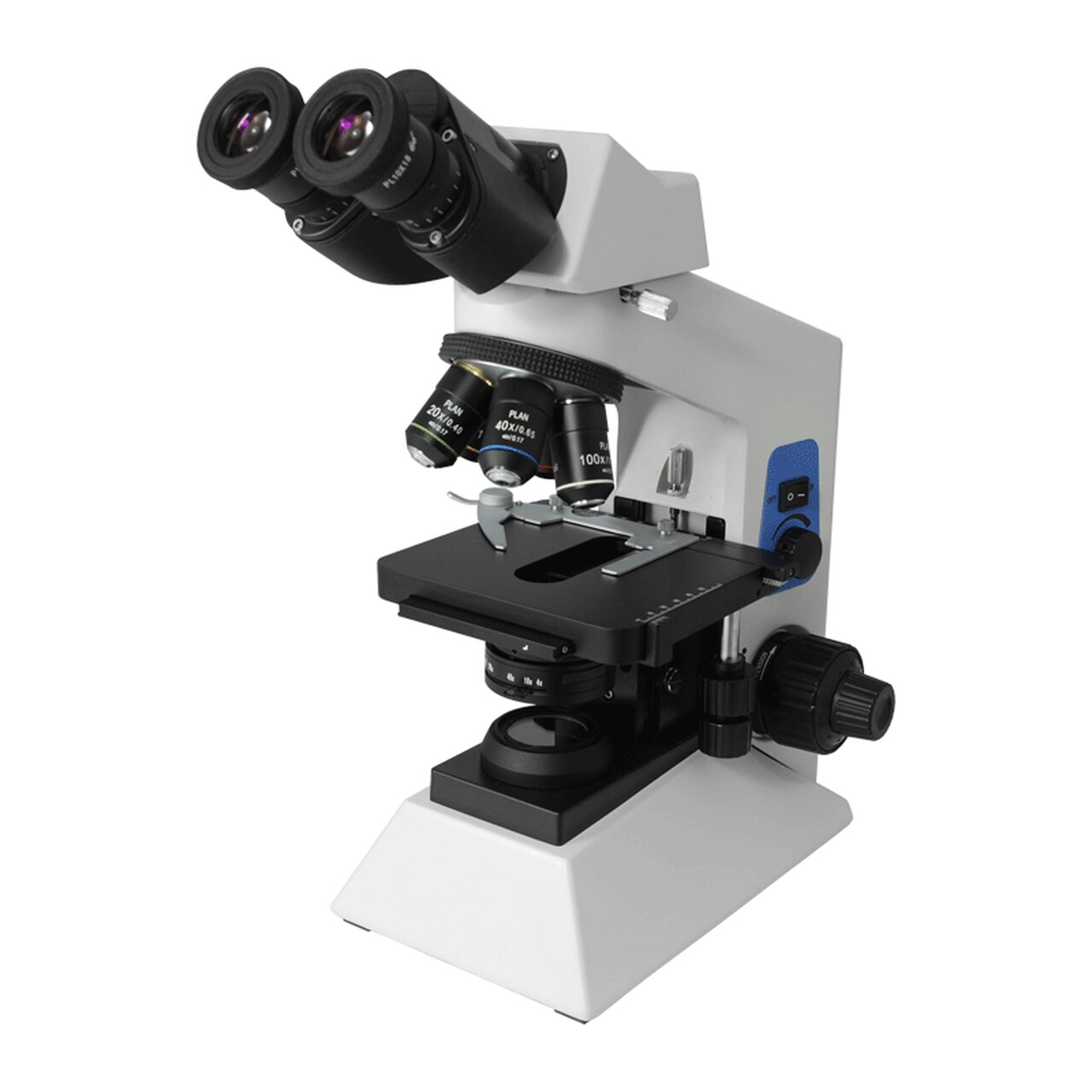

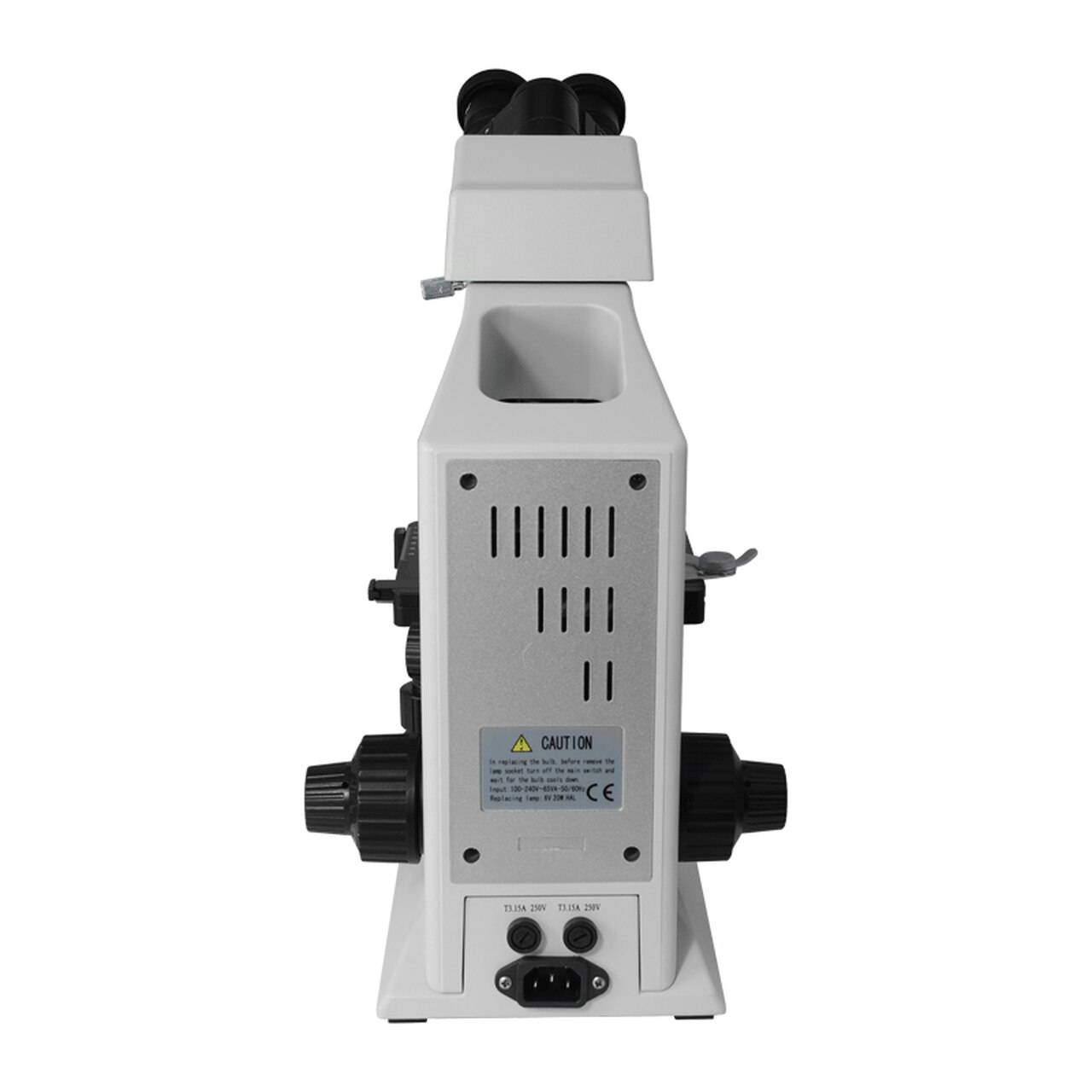

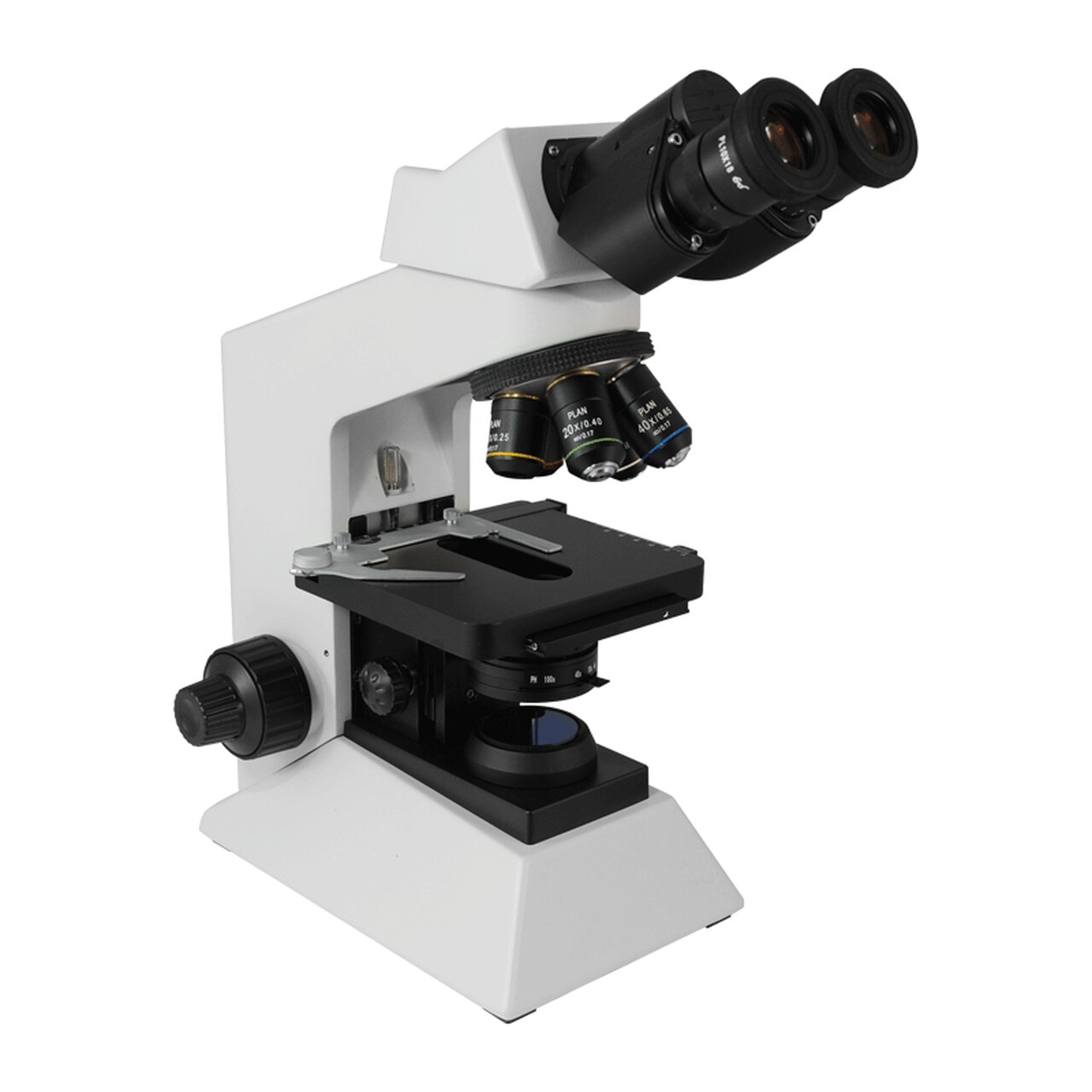

Photo of this model is as following.
