Description
CPD.03.30E is a research grade compound biological microscope. It adopts Infinity Corrected Optical System, has a standard magnification range of 40X-1000X. It comes with a 30 degree inclined binocular head, a pair of high eyepoint widefield plan eyepieces, OIP infinity plan achromatic objectives, a double layer mechanical stage, coaxial coarse and fine focusing system, Kohler N.A. 1.25 condenser, and 3W LED Illumination. This microscope is a professional microscope for clinical examination, laboratories and scientific research.
Features
- Infinity Corrected Optical System design can correct chromatic aberration
- Four Wide-field magnification settings: 40X, 100X, 400X, 1000X
- Equipped with Kohler N.A.1.25 condenser with Socket for Phase Contrast and Dark Field Slides
Specification
| Optical system | Color corrected infinity optical system |

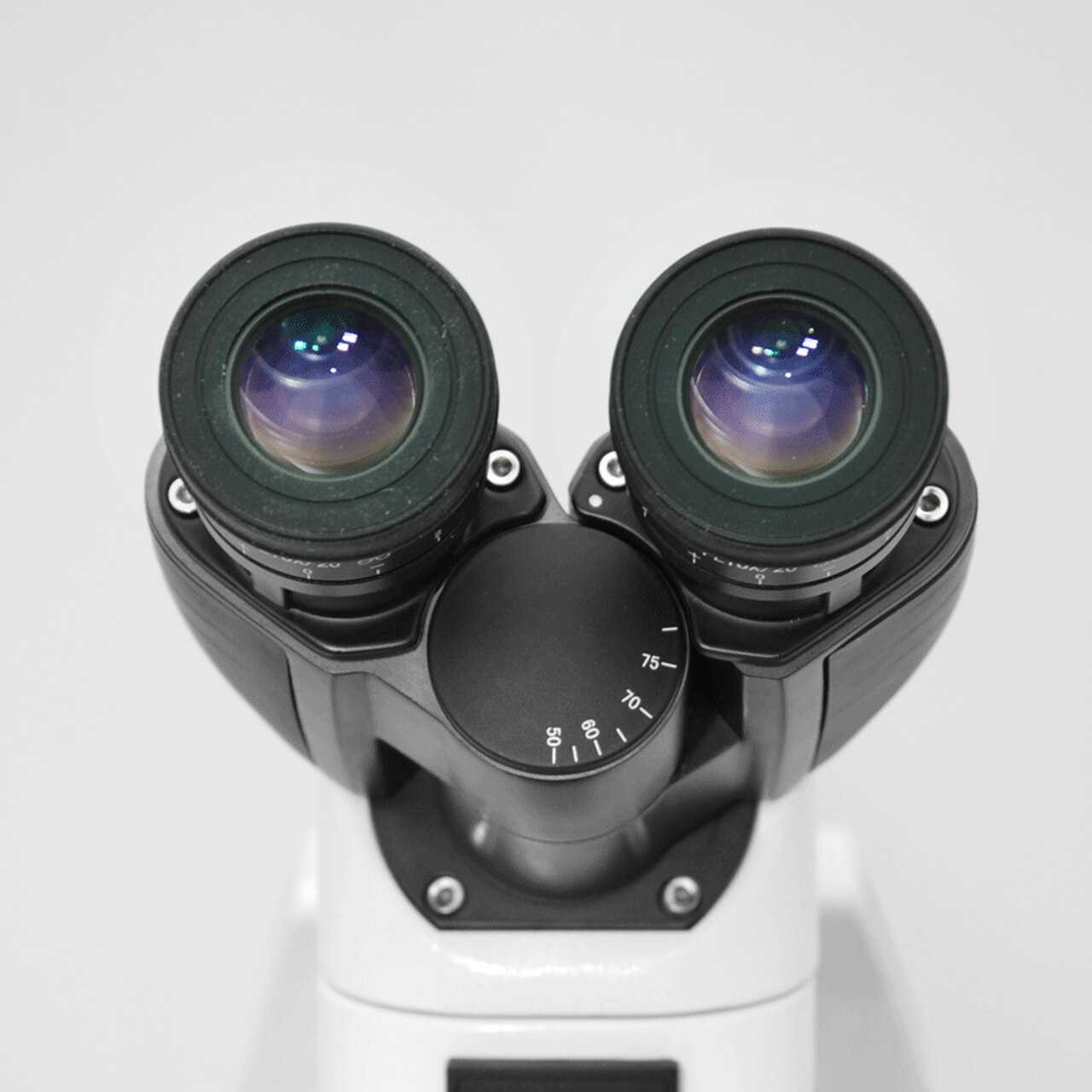

| Head | Binocular head, inclined at 30 degree, 360 degree swiveling, Interpupillary Distance 54-75mm |
| Eyepiece | PL10X/20mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree |

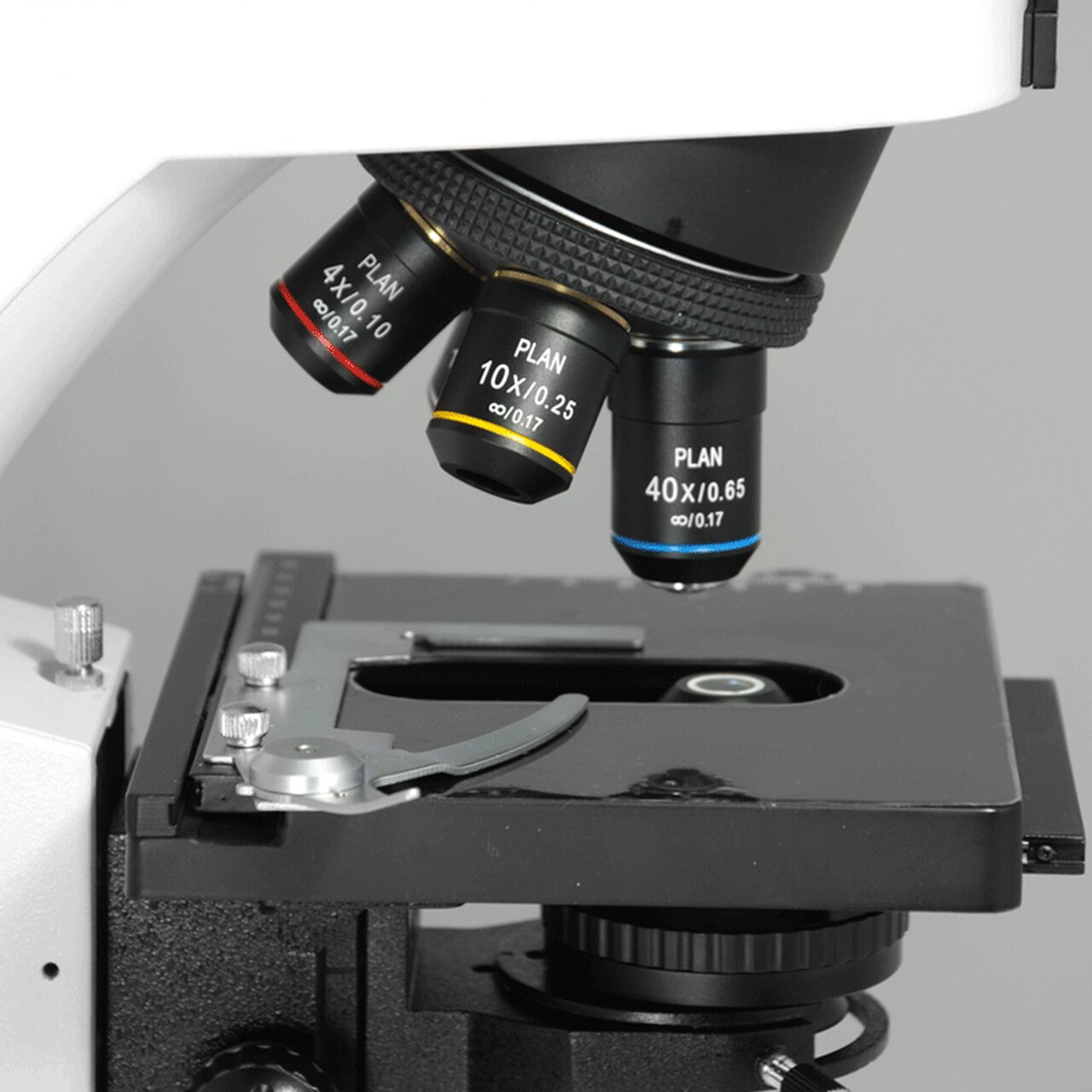

| Objective | OIP infinity plan achromatic objective 4X/0.06 WD=7.18mm |
| OIP infinity plan achromatic objective 10X/0.25 WD=4.70mm | |
| OIP infinity plan achromatic objective 40X/0.65 WD=0.72mm | |
| OIP infinity plan achromatic objective 100X /1.25 WD=0.15mm | |
| Nosepiece | Backward Quadruple |
| Condenser | Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center adjustable |
| Illumination | Wide range of input: 100V~240V; 3W high brightness LED, brightness adjustable, Center Fixed |

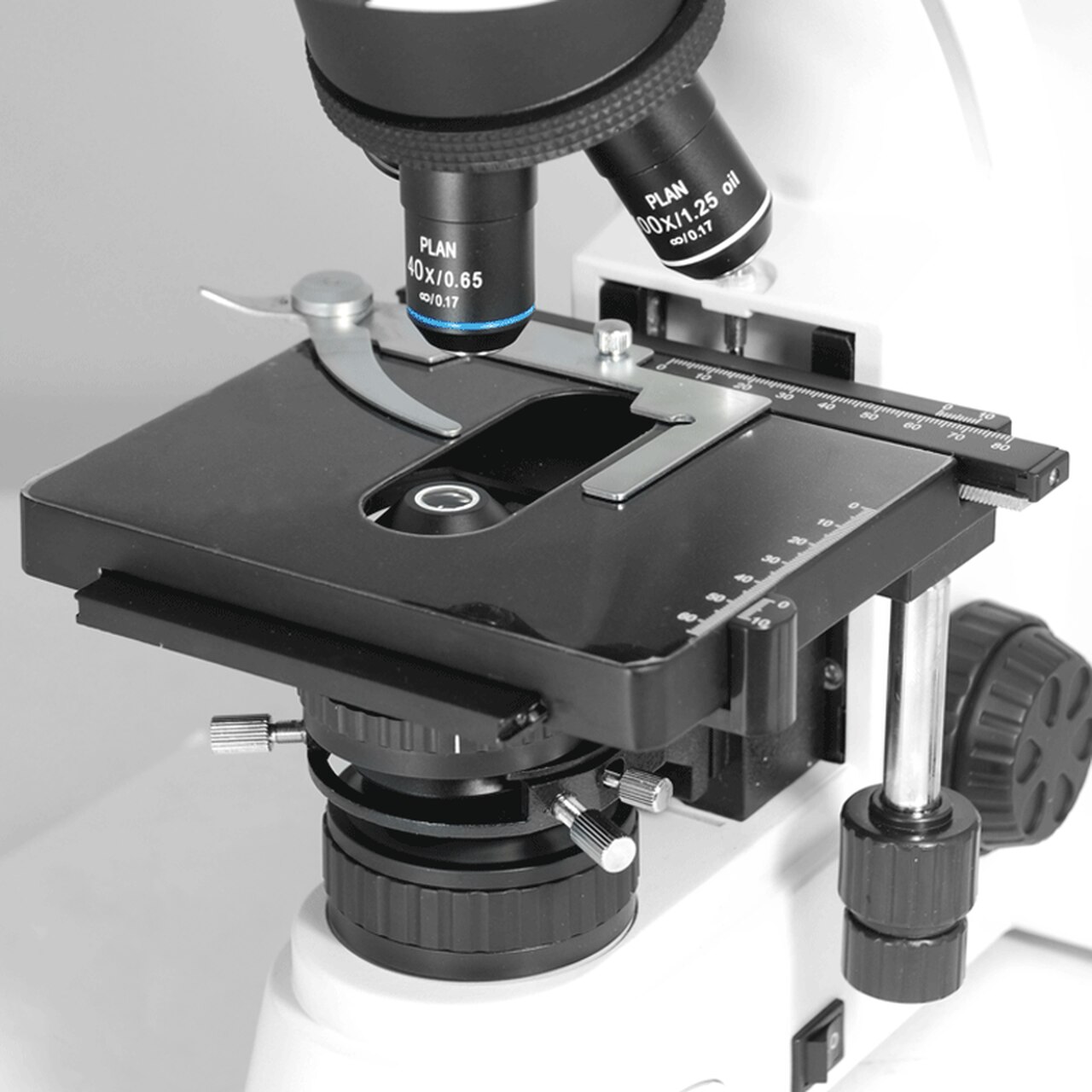

| Stage | Double layer mechanical stage with damping clips, 150x140mm in size, traveling range: 76x50mm |

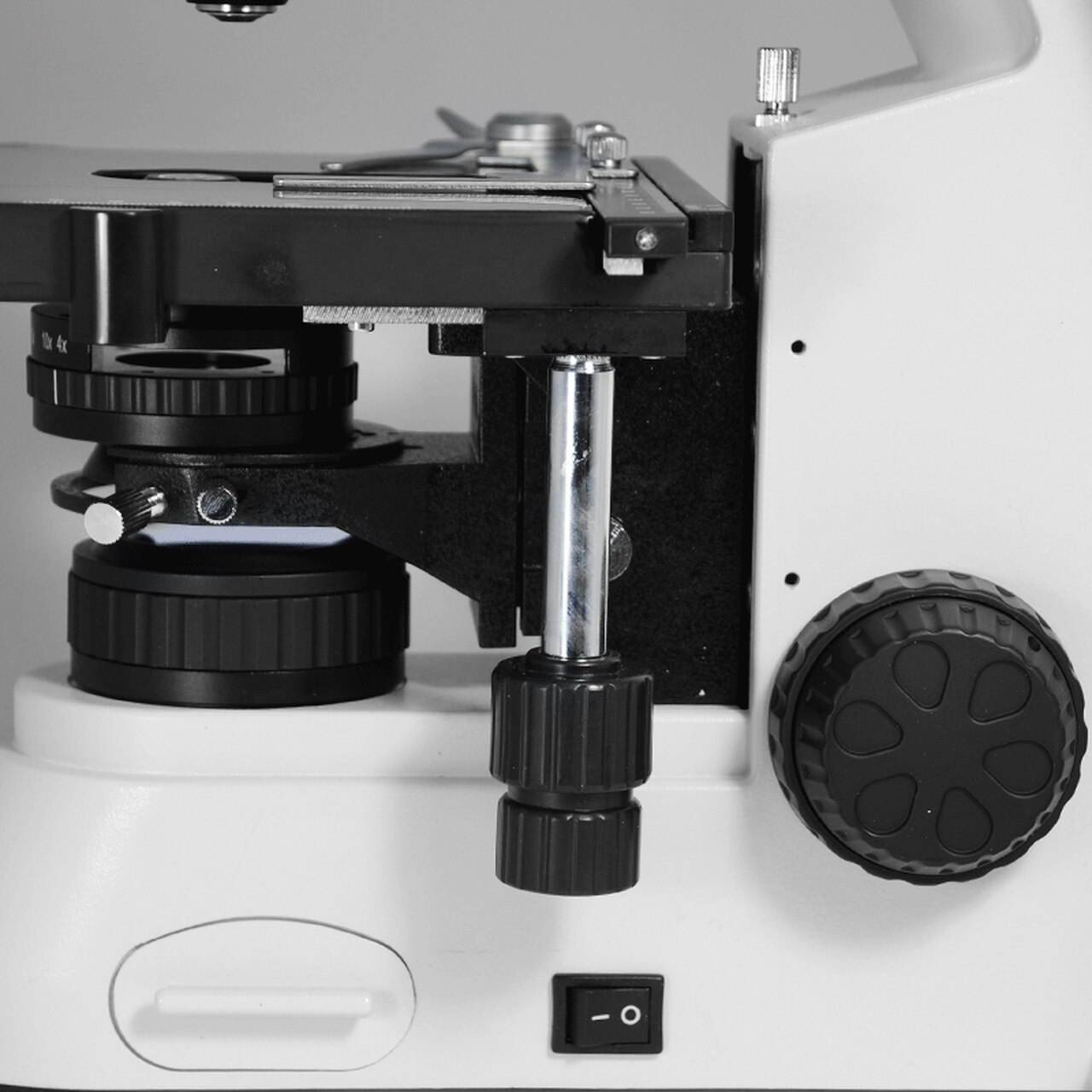

| Focusing | Coaxial focus system with tension adjustment, with up-limited. Coarse Focusing Range: 30mm |
| Packing Info | Carton dimension 58x56x28cm (Chargeable weight about 18kgs by express carrier ), Gross weight 12kgs |
Optional Accessories
| Head | Trinocular, 30° Inclined, Interpupillary Distance 54-75mm |
| Eyepiece | PL10X/22mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree |
| Objective | Infinity Plan Achromatic 20X/0.40mm |
| Nosepiece | Backward Quintuple |
| Filter | Blue, 45mm in diameter |
| Yellow,45mm in diameter | |
| Green, 45mm in diameter | |
| Neutral, 45mm in diameter | |
| Adapter | C-Mount 1.0X, Focus Adjustable |
| C-Mount 0.5X, Focus Adjustable , for 1/2″CCD | |
| C-Mount 0.35X, Focus Adjustable, for 1/3″CCD | |
| Photo Adapter with PK or MD mount, with 3.2X Photo Eyepiece | |
| Dark Field Slider | Dark Field Slider for 4X~40X Objective |
| Polarizing Kit | Polarizer |
| Analyzer | |
| Phase Contrast Accessory | Centering Telescope, 30mm in diameter |
| Phase Contrast Slide, for 10X, 40X Infinity Objective | |
| Phase Contrast Slide, for 20X,100X Infinity Objective | |
| N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condenser Set, For 10X, 20X, 40X, 100X Phase Contrast Observation | |
| N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condenser with Dark Field Set for 10X,40X,100X Phase Contrast Observation and Dark Filed Observation | |
| Infinity Plan Phase Contrast Objective 10X/0.25, W.D.=4.70mm (For BF or DF) | |
| Infinity Plan Phase Contrast Objective 20X/0.50, W.D.=1.75mm (For BF) | |
| Infinity Plan Phase Contrast Objective 40X/0.65, W.D.=0.72mm (For BF or DF) | |
| Infinity Plan Phase Contrast Objective 100X/1.25, W.D.=0.15mm (For BF) | |
| Bright Field Turnplate Phase Contrast Kit | This Kit Includes: |
| –N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condense Set, For 10X, 20X, 40X,100X Phase Contrast Observation | |
| –Infinity Plan Phase Contrast Objective 10X/0.25, W.D.=4.70mm | |
| –Infinity Plan Phase Contrast Objective 20X/0.50, W.D.=1.75mm | |
| –Infinity Plan Phase Contrast Objective 40X/0.65, W.D.=0.72mm | |
| –Infinity Plan Phase Contrast Objective 100X/1.25, W.D.=0.15mm | |
| –Centering Telescope, 30mm in diameter | |
| Dark Field Turnplate Phase Contrast Kit | This Kit Includes: |
| –N.A.1.25 Kohler Illumination Turnplate Phase Contrast Condenser with Dark Field Hole for 10X, 40X, 100X Phase Contrast Observation and Dark Filed Observation | |
| –Infinity Plan Phase Contrast Objective 10X/0.25, W.D.=4.70mm | |
| –Infinity Plan Phase Contrast Objective 40X/0.65, W.D.=0.72mm | |
| –Infinity Plan Phase Contrast Objective 100X/1.25, W.D.=0.15mm | |
| –Centering Telescope, 30mm in diameter | |
| Note: BF = Bright Field. DF=Dark Field | |

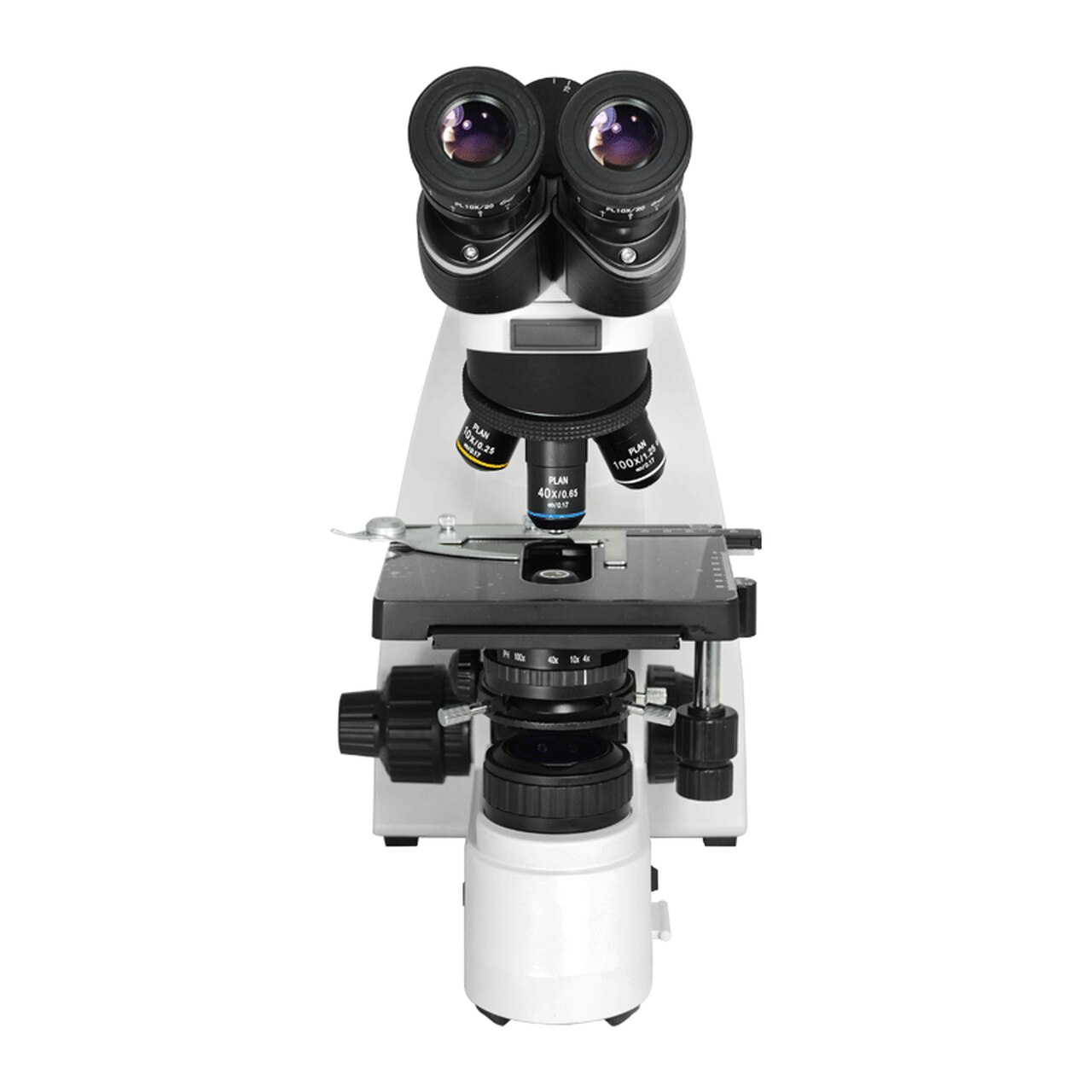

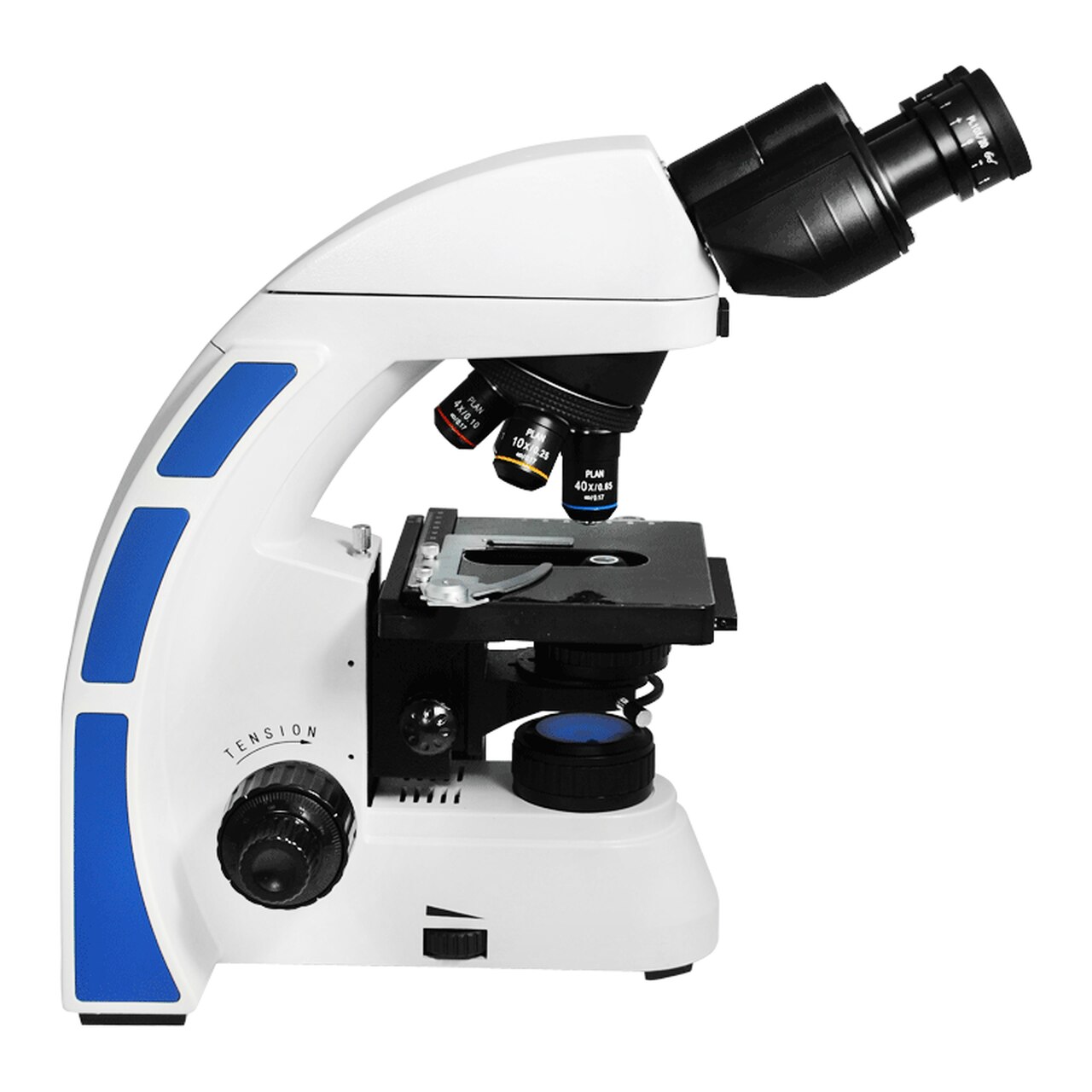

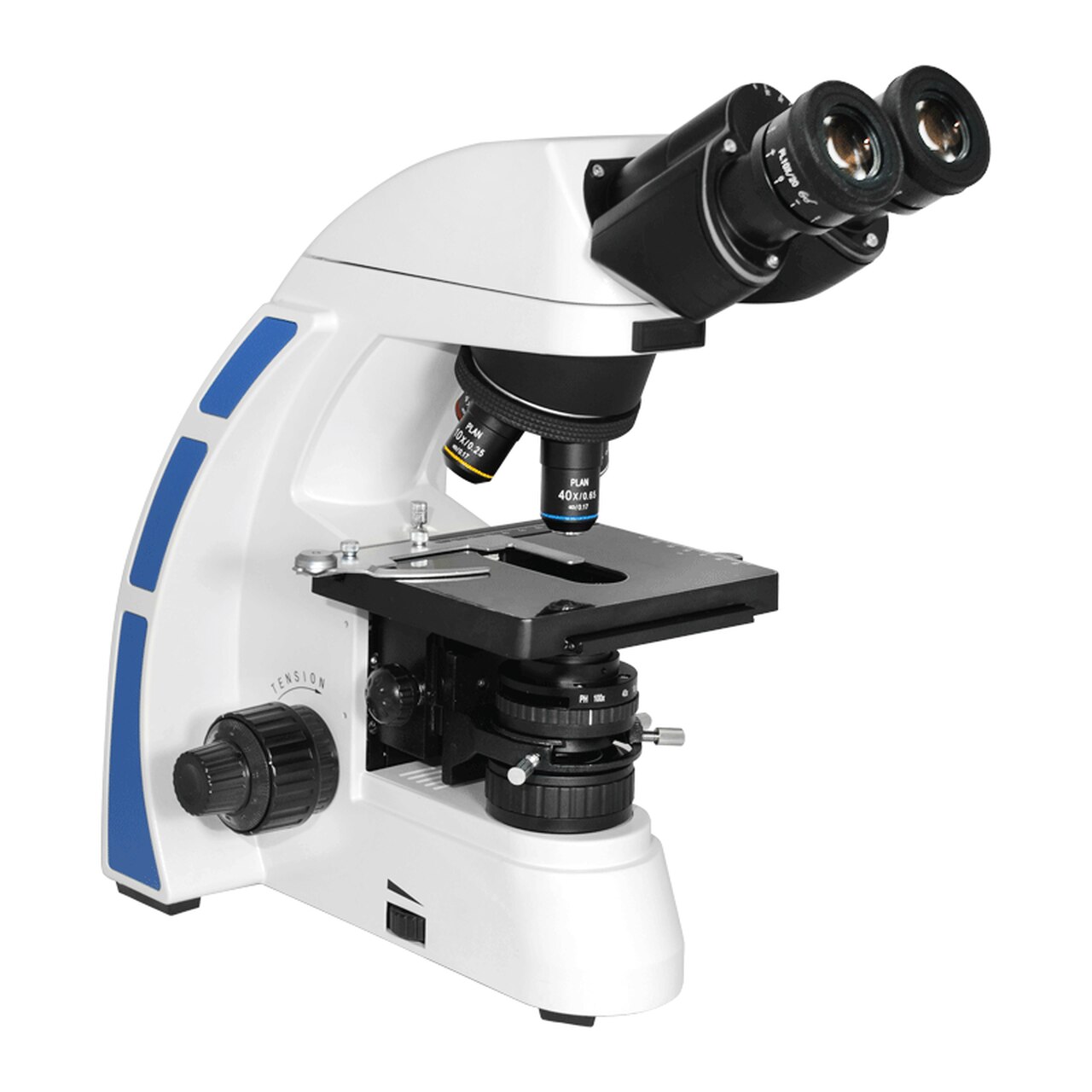

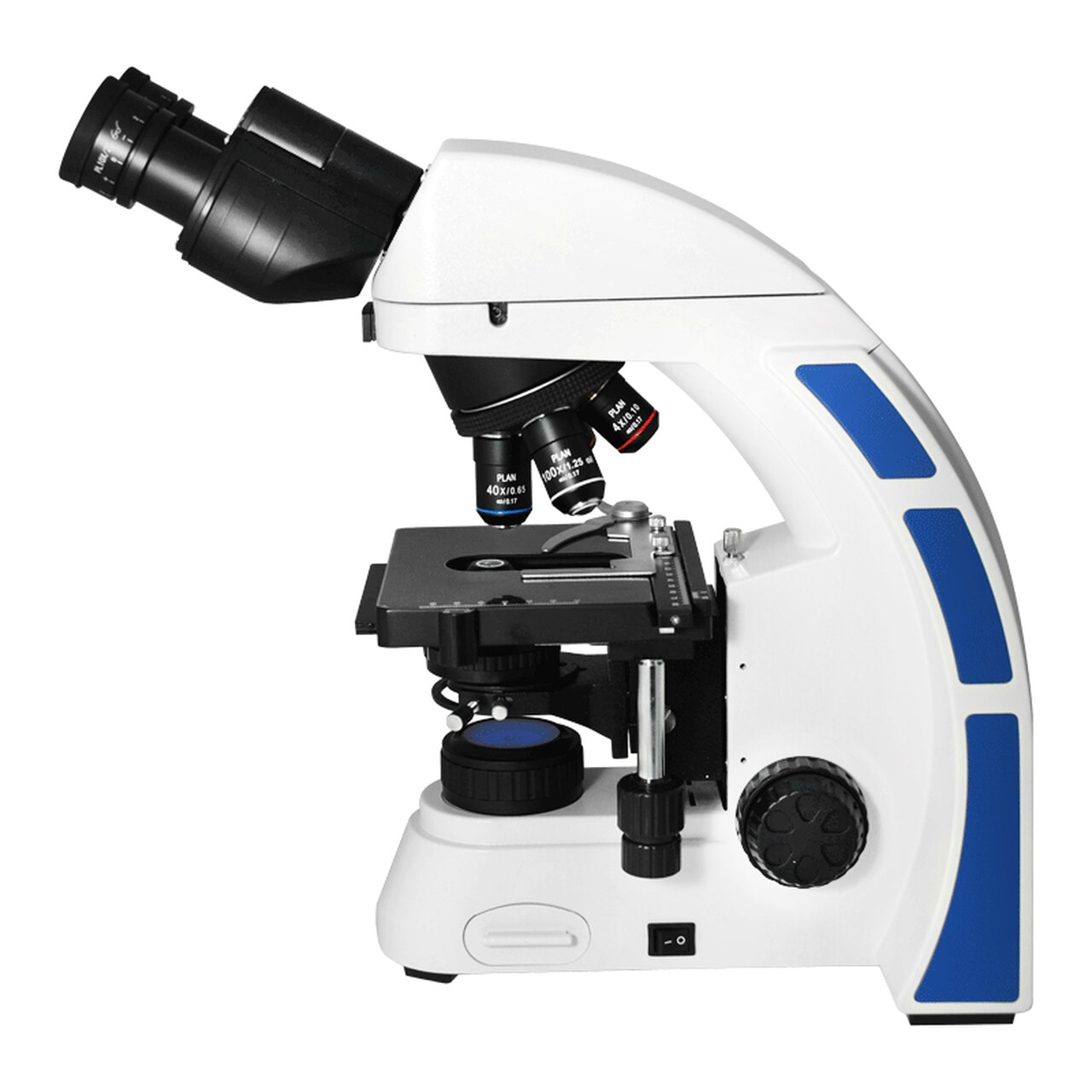

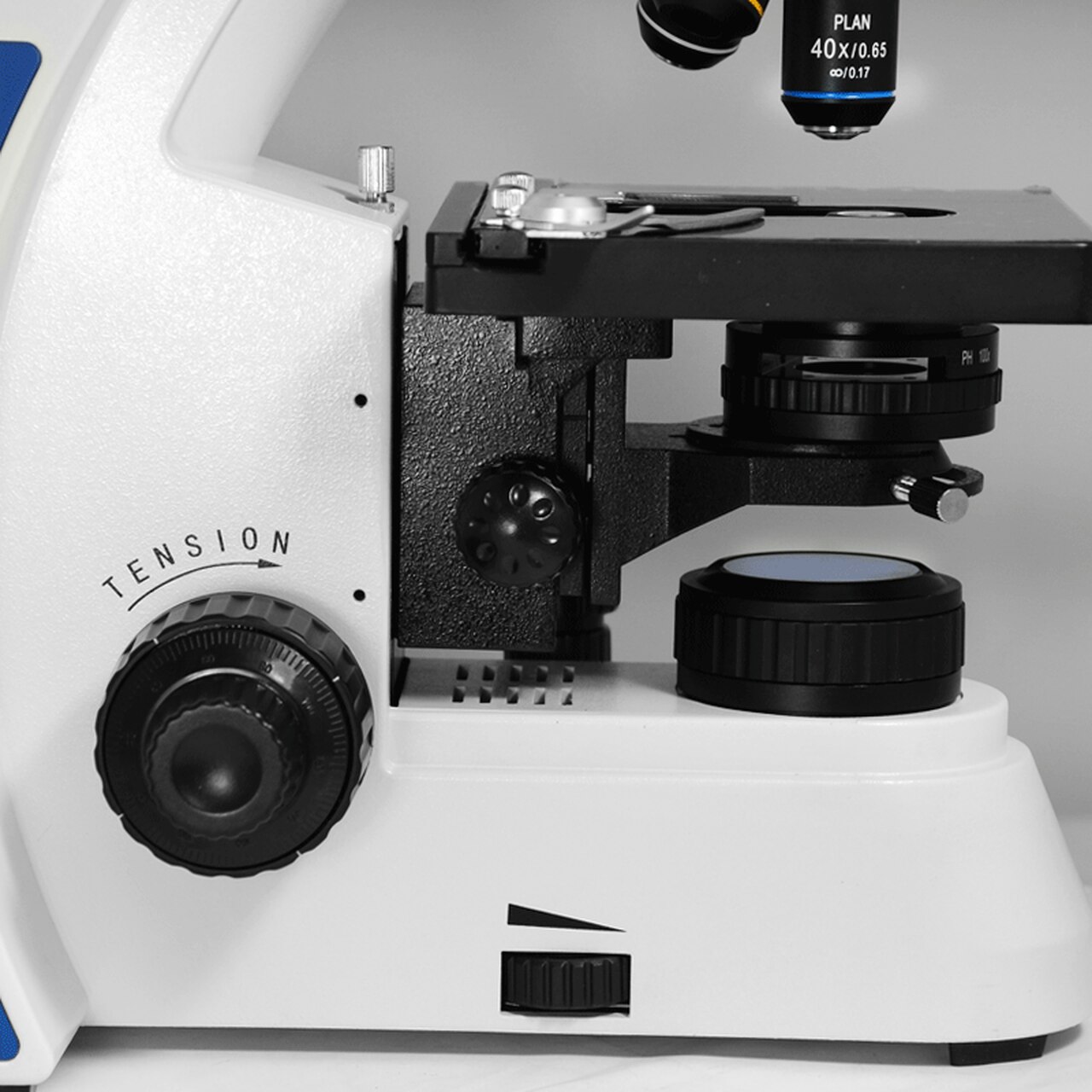

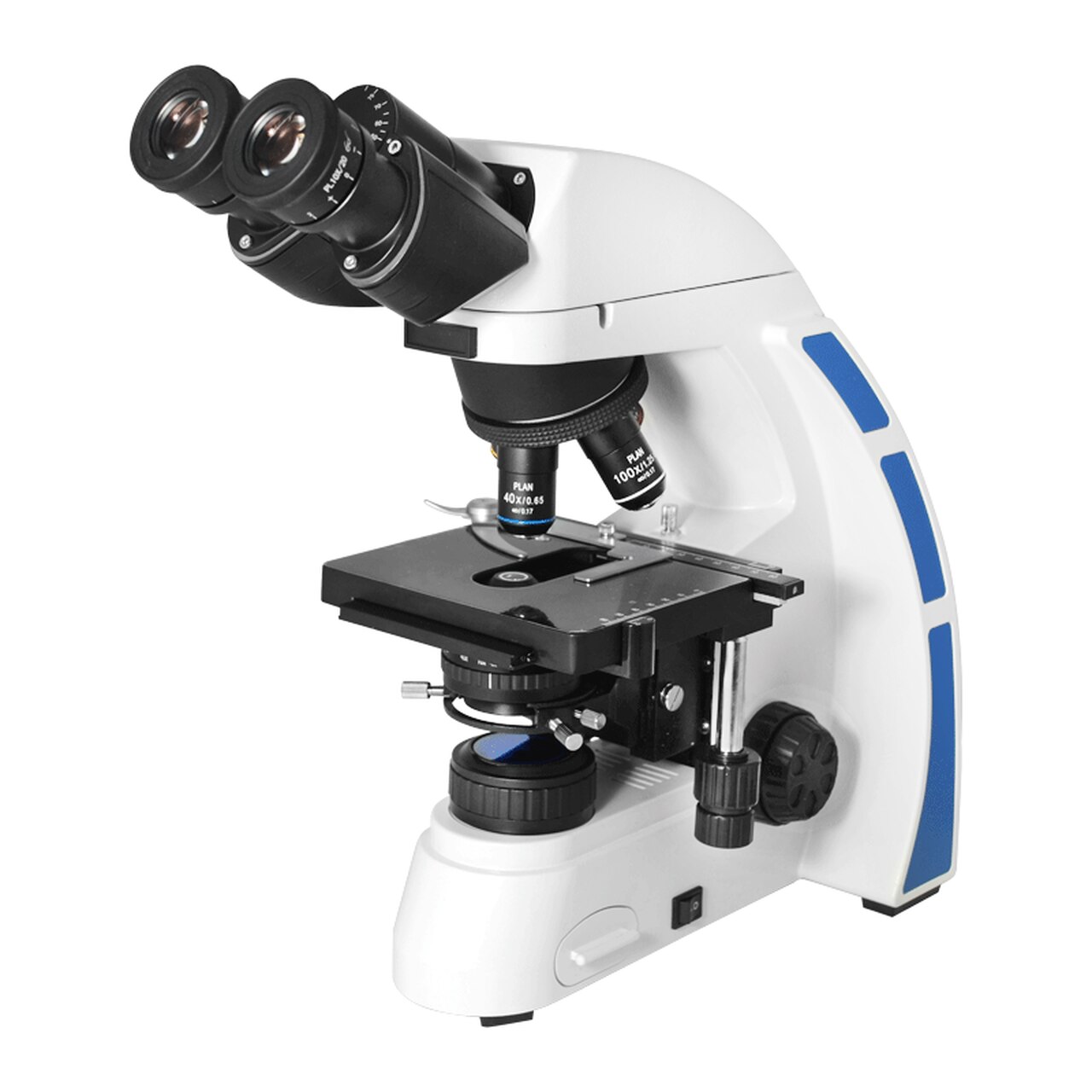

Photo of this model is following.
