Description
COP.33.J2 is a newly designed colposcope. It has five magnification settings from 2.7X to 16.6X, equipped with a long working distance objective, high brightness LED coaxial illumination system, a beamsplitter, a camera adapter and a movable base. High quality optics offering sharp image and wide field of views. This colposcope is an ideal instrument for gynecological examination.
Features
- Fivemagnification levels: 2.7X, 4.4X, 6.6X, 10X, 16.6X
- Equipped with long working distance objective
- Brightness adjustable LED coaxial illumination
- Movable base bringing flexible examination
Specification
| Observation angle | 45º tilted binocular observation unit |
| Eyepiece | 16X |
| Interpupillary distance | 50mm-80mm |
| Diopter | ±5D |
| Focal length of objective | F=300mm(M58x0.75) |
| Magnification changer | 5-step magnification change: 0.4X, 0.66X, 1X, 1.5X, 2.5X |
| Total magnification | 2.7X, 4.4X, 6.6X, 10X, 16.6X |
| Linear field | 90mm, 55mm, 37mm, 24mm, 15mm |
| Beamsplitter | 50:50:00 |
| CCD adapter | For C-mount 1/3″ cameras |
| Fine focusing distance | 20mm |
| Balance arm | Counterweight adjustable |
| Illumination system | Coaxial illumination，brightness adjustable |
| 10W LED lamp | |
| Brightness | >30000lux |
| Filter | Built-in Green and Blue |
| Stand | Short column fixed on the five-star base |
| Optional accessories | Demonstrator(assistant microscope), Camera (HDMI camera, VGA camera, USB camera), Photo adapter, LCD screen, Objective (F=230mm & F=280mm) |
Optical parameter
| Focal length of objective | F=300mm | F=230mm(optional) | F=280mm(optional) | |||||||||||||
| Magnification on handwheel | 2.5x | 1.5x | 1x | 0.66x | 0.4x | 2.5x | 1.5x | 1x | 0.66x | 0.4x | 2.5x | 1.5x | 1x | 0.66x | 0.4x | |
| Total magnification | 16.6x | 10x | 6.6x | 4.4x | 2.7x | 21.7x | 13.2x | 8.7x | 5.7x | 3.5x | 17.8x | 10.8x | 7.1x | 4.7x | 2.9x | |
| Linear field (mm) | 15 | 24 | 37 | 55 | 90 | 11 | 18 | 28 | 42 | 62 | 14 | 22 | 35 | 54 | 84 | |
| Resolution (LP/mm) | 78 | 61 | 40 | 30 | 21 | 86 | 68 | 52 | 35 | 27 | 80 | 63 | 42 | 31 | 22 | |

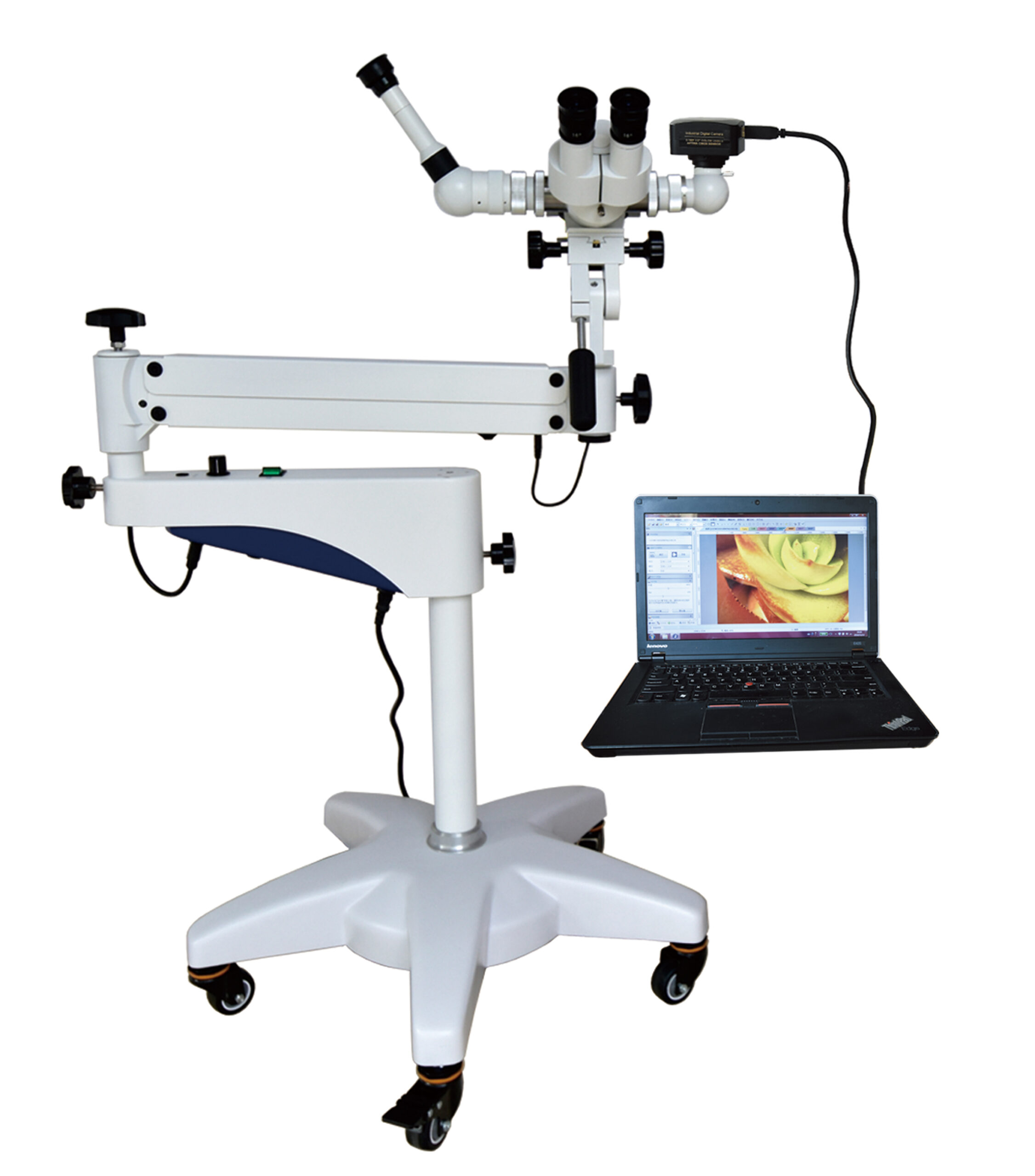

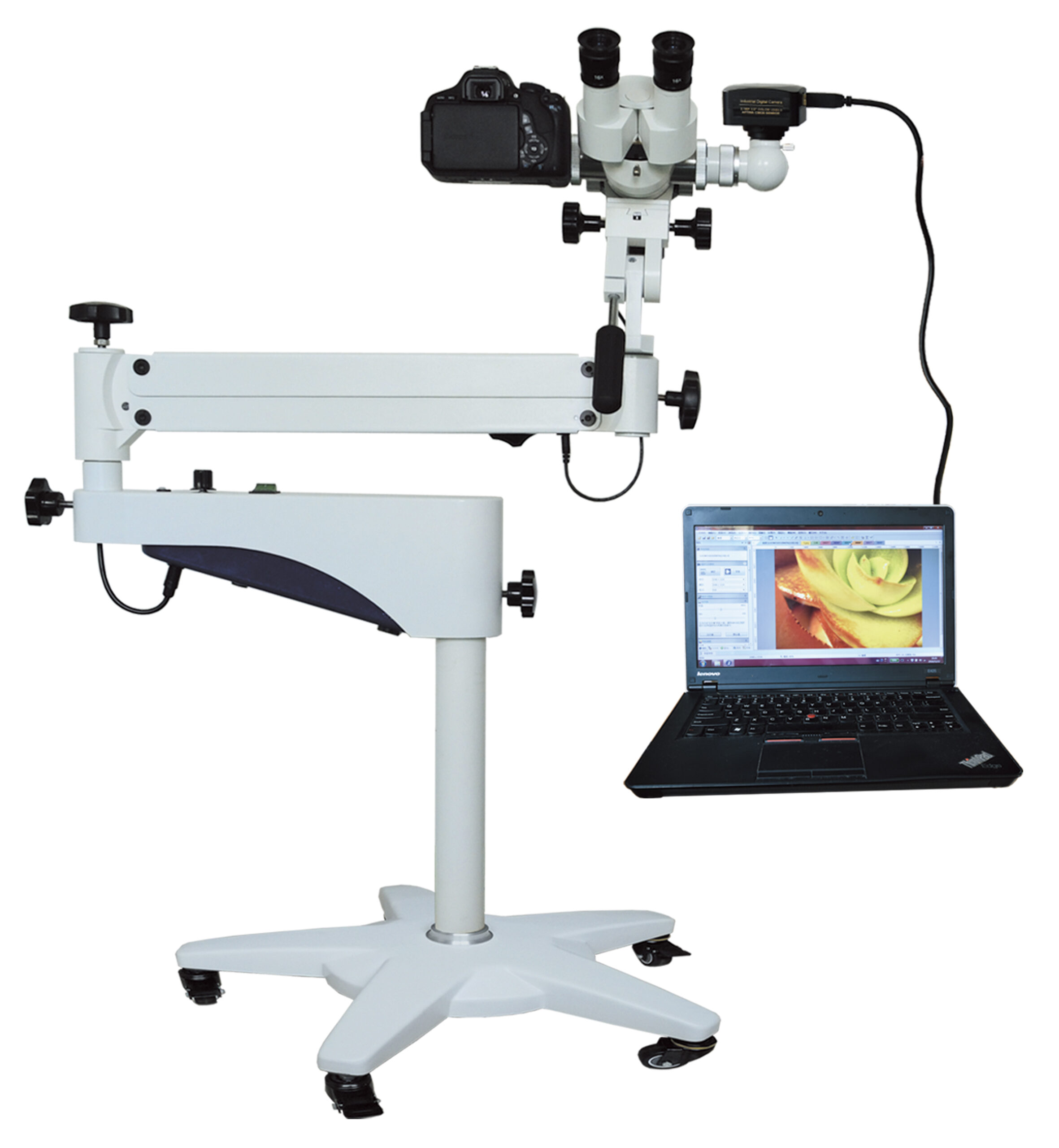

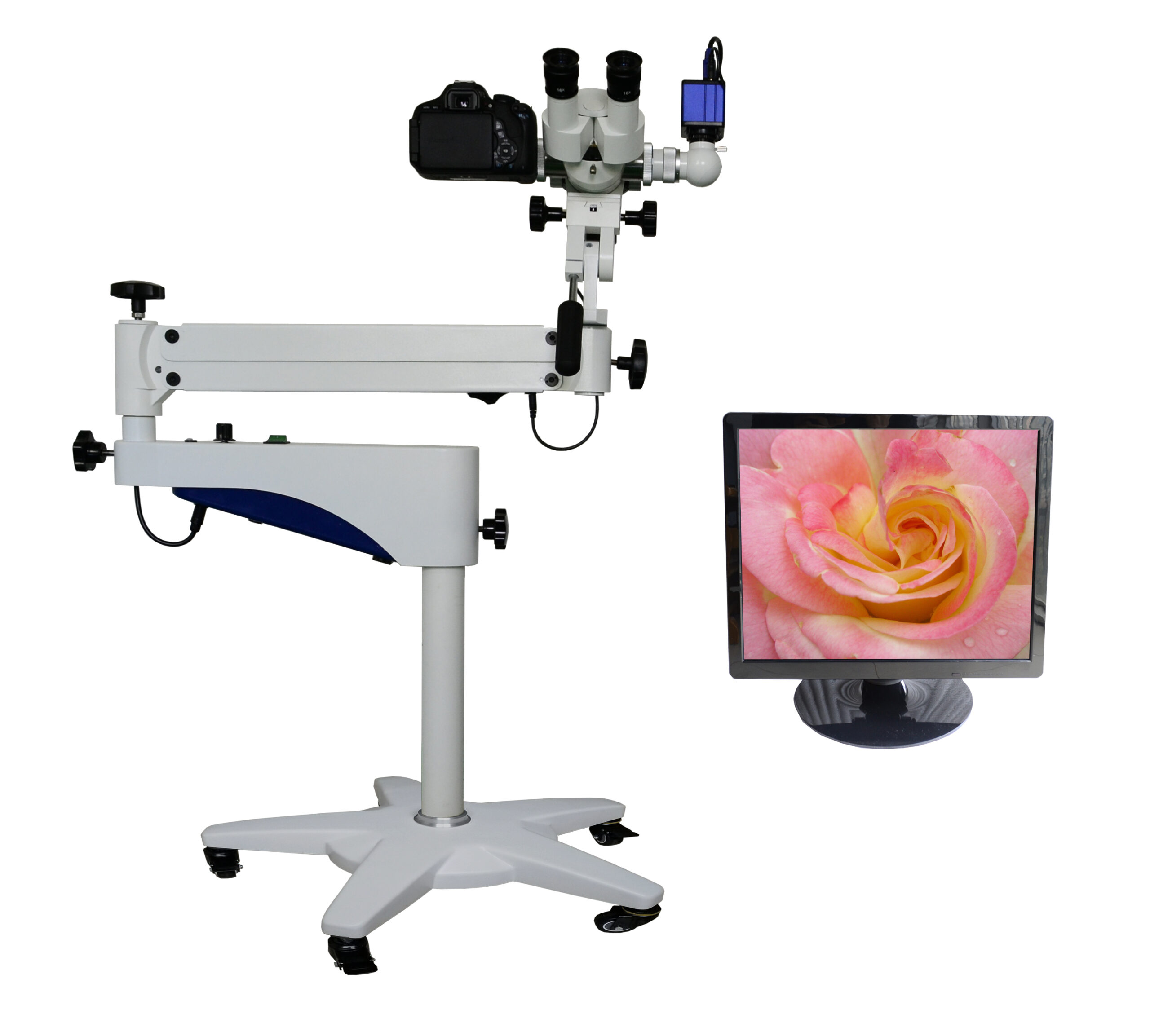

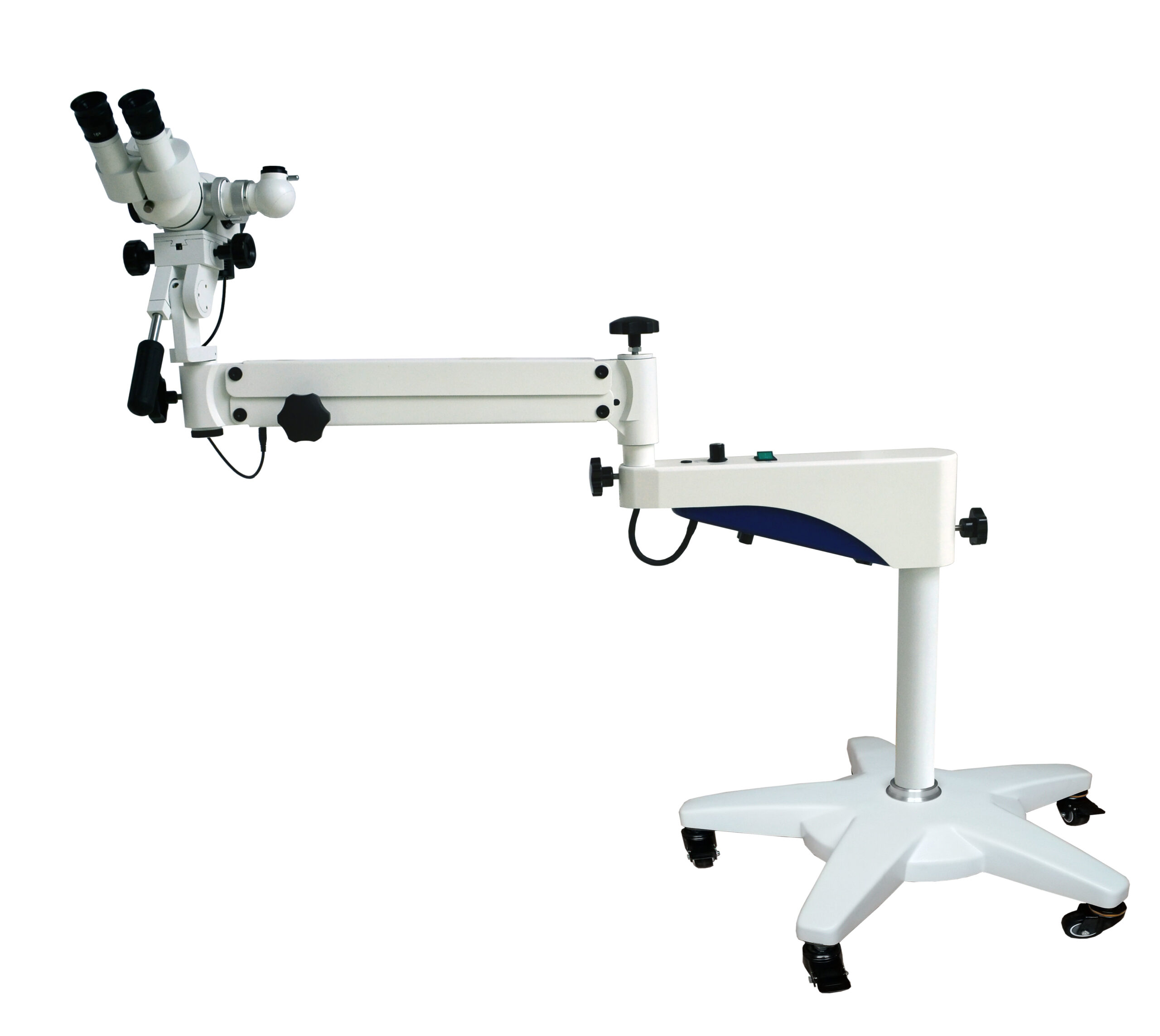

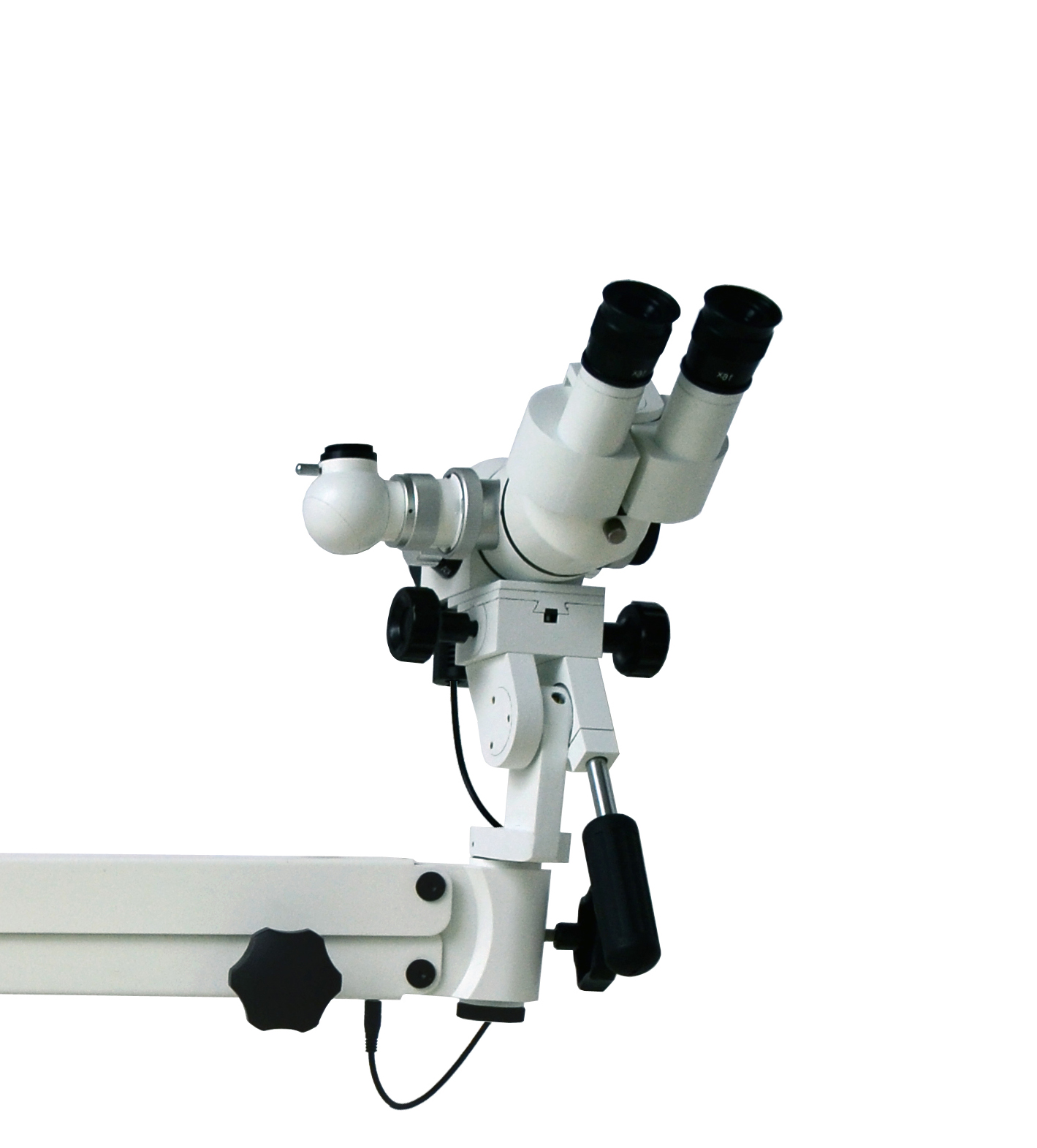

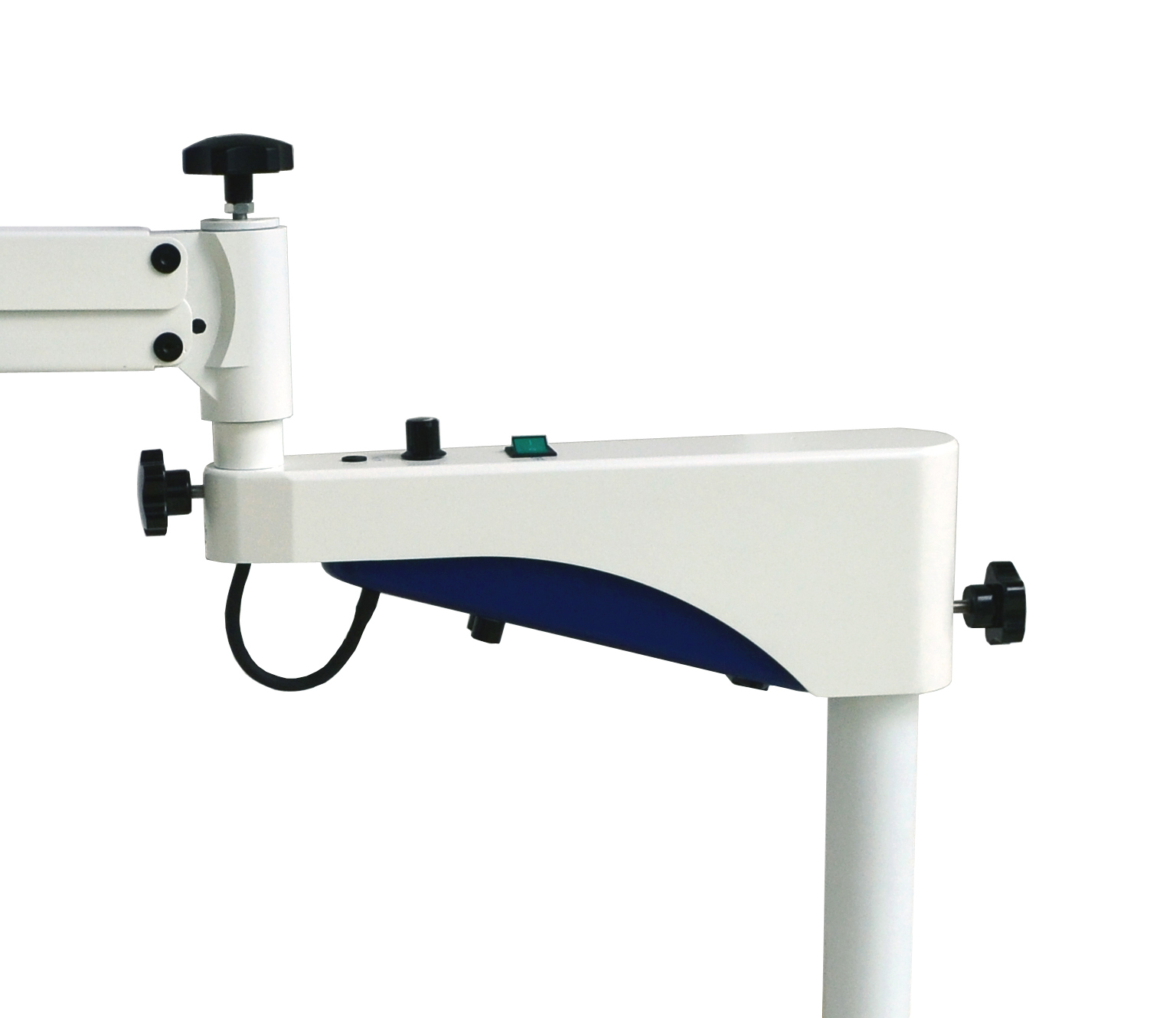

Photo of this model is as following.
