Features
- 7X-45X super widefield zoom magnification power
- Large working distance up to 100mm
- Widefield Optics Offering Crisp Clear Stereo Images

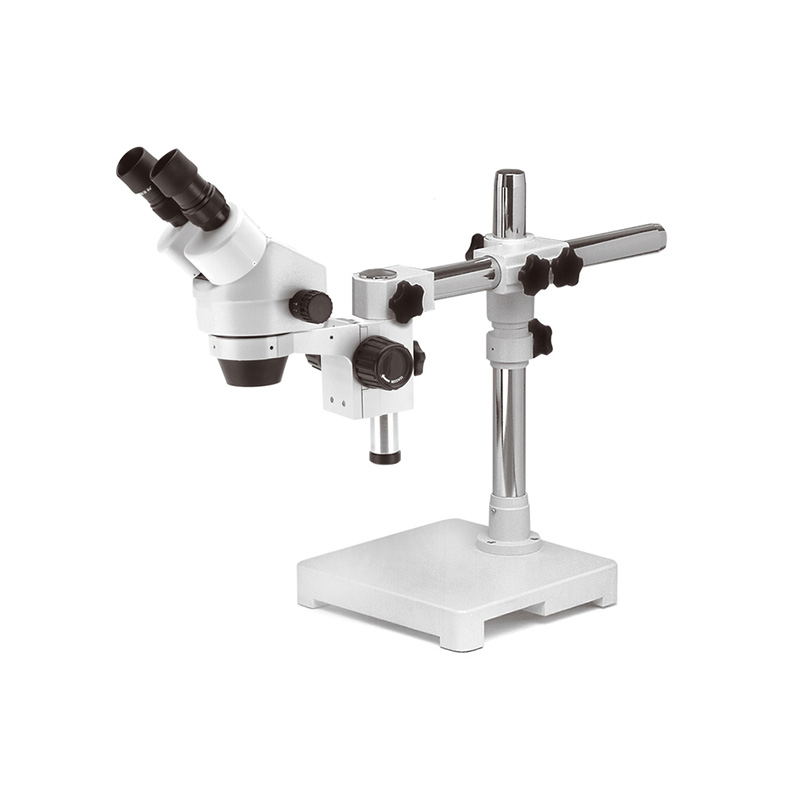

- Boom stand offering spacious operation room and brings flexible operation
Specification
| Head | Trinocular Head, 45° inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary adjustment 54-75m |
| Eyepiece | WF10X/FN20 High Eyepiont Eyepiece |
| Zoom Range | 0.7X-4.5X |
| Zoom Ratio | 1:6.5 |
| Standard Magnification | 7X-45X |
| Working Distance | 100mm |
| Field of View | 4.4mm-28.6mm |
| Boom stand | Microscope holder diameter: 76mm
Base size: 23x23cm Height of boom stand: 42.5cm Horizontal bar length: 58cm Boom horizontal travel stroke: 23.4cm Boom vertical travel stroke:19cm |
| Gross Weight | 19kg |
Optics Parameter
| Eyepiece | Standard Specification | Auxiliary Objective
0.5X |
Auxiliary Objective
1.5X |
Auxiliary Objective
2X |
||||
| WD= 100mm | WD= 165mm | WD= 45mm | WD= 30mm | |||||
| Mag. | View field | Mag. | View field | Mag. | View field | Mag. | View field | |
| 10X/20mm | 7.0X | 28.6mm | 3.5X | 57.1mm | 10.5X | 19mm | 14X | 14.3mm |
| 45.0X | 4.4mm | 22.5X | 8.9mm | 67.5X | 3mm | 90X | 2.2mm | |
| 15X/15mm | 10.5X | 21.1mm | 5.25X | 42.8mm | 15.75X | 14.3mm | 21X | 10.7mm |
| 67.5X | 3.3mm | 33.75X | 6.7mm | 101.25X | 2.2mm | 135X | 1.7mm | |
| 20X/10mm | 14.0X | 14.3mm | 7.0X | 28.6mm | 21.0X | 9.5mm | 28X | 7.1mm |
| 90.0X | 2.2mm | 45.0X | 4.4mm | 135.0X | 1.5mm | 180X | 1.1mm | |
| Note: If the standard magnification, viewing field, working distance of standard specification cannot meet your requirement, you can check this table for the auxiliary eyepieces and objectives that can meet your requirement. For example, if 180x magnification is needed, then WF20X eyepiece and 2X objective are needed to be added. | ||||||||
Optional Accessories
| Items | Specification |
| Eyepieces | WF10X Cross Rectile eyepiece , X axis with scale, Div:0.1mm |
| WF15X/15 | |
| WF20X/10 | |
| Objective | 0.5X/165mm |
| 0.75X/105mm | |
| 1.5X/45mm | |
| 2X/30mm |
Note: The head of this microscope is changeable, it can be changed to 6.7x-45x head, 8x-35x head, 8x-56x head, or dual magnification head like 10x-30x or 20x-40x.
