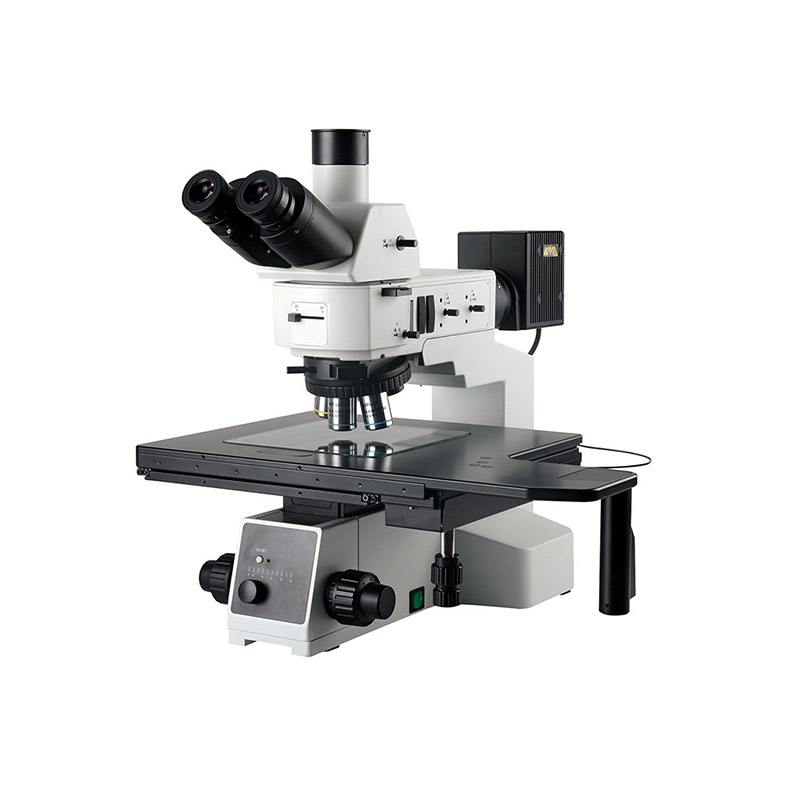

Specification
| Head | Trinocular Head, 30 °inclined, Erect Image, Interpupillary Distance 50~76mm, Split Ratio 0/100 or 100/0 |
| Eyepiece | High-Eyepoint Plan Eyepiece PL10X/25mm, Diopter Adjustable |
| BF/DF Objective | BF/DF Infinity Semi-Apochromatic Metallurgical Objective5X, WD=13.5, NA=0.15 |
| BF/DF Infinity Semi-Apochromatic Metallurgical Objective10X, WD=9, NA=0.30 | |
| BF/DF Infinity Semi-Apochromatic Extra LWD Metallurgical Objective 20X, WD=8.5, NA=0.40 | |
| BF/DF Infinity Semi-Apochromatic LWD Metallurgical Objective 50X, WD=7.5mm, NA=0.55, LMPLFL50X | |
| Nosepiece | BF/DF Sextuple Nosepiece, With DIC Slot |
| Working Stage | Three Layers Working stage, stage size: 525x330mm, Movement: 210mmX210mm, with controller handle, can move quickly all range. Glass insert for transmitted light |
| Frame Body | Reflected/Transmitted body, low-position coaxial coarse and fine adjustment, coarse moving range: 35mm; Fine focusing precision: 0.001mm. With tension adjustment and top limit stop, Brightness adjustment.
Built-in 100-240V wide voltage transformer |
| Reflected Light | BF/DF reflected illuminator with iris field diaphragm and aperture diaphragm, central adjustable. With Selector switch for Bright Field and Dark field Exchanging, With filter slot and polarizing slot. |
| Interface Filter | interface filter Natural (for Reflected): |
| Light source | 12V100W Tog light housing for Reflected and Transmitted light |
| 12V/100W Halogen（PHILIPS 7724） | |
| Polarizing Kits | Polarizing Filter Slider for Reflect Light Source |
| Fixed Analysis Slider, For Reflect Light Source |
Optional Accessory
| Eyepiece | High-Eyepoint Plan Eyepiece PL10X/25mm with reticles on X axis, Diopter Adjustable |
| High-Eyepoint Plan Eyepiece PL10X/26.5mm, Diopter Adjustable | |
| High-Eyepoint Plan Eyepiece PL10X/26.5mm with reticles on X axis, Diopter Adjustable | |
| BF/DF Objective | BF/DF Infinity Semi-Apochromatic Metallurgical Objective20X, WD=2.5, NA=0.50 |
| BF/DF Infinity Semi-Apochromatic Metallurgical Objective50X, WD=1.0, NA=0.80 | |
| BF/DF Infinity Semi-Apochromatic Metallurgical Objective100X, WD=1.0, NA=0.90 | |
| BF/DF Infinity Semi-Apochromatic LWD Metallurgical Objective 100X, WD=2.1mm, NA=0.8 LMPLFL100X | |
| BF Objective | BF Infinity Semi-Apochromatic Metallurgical Objective5X, WD=19.5, NA=0.15 |
| BF Infinity Semi-Apochromatic Metallurgical Objective10X, WD=10.9, NA=0.30 | |
| BF Infinity Semi-Apochromatic Metallurgical Objective20X, WD=3.2, NA=0.50 | |
| BF Infinity Semi-Apochromatic Metallurgical Objective50X, WD=1.2, NA=0.80 | |
| BF Infinity Semi-Apochromatic Metallurgical Objective100X, WD=1, NA=0.90 | |
| DIC Kits | DIC Kits |
| Rotating working Plate | Rotating working plate for 8 inch or 6 inch wafer |
| Interface Filter | interface filter Blue(for Reflected): ≤480nm |
| interface filter Green (for Reflected):520nm-570nm | |
| interface filter Red (for Reflected):630nm-750nm | |
| CCD Adapter | 0.5X CCD Adapter, Adjustable |
| 0.65X CCD Adapter, Adjustable | |
| 1x CCD Adapter, Adjustable |
